Comnet CNXE2GE2TX8MSPOE Quick Start Manual

Industrially hardened high speed 12-port managed poe ethernet switch 8 × ge pse + 2 × 2.5ge sfp + 2 × 10ge sfp+ ports
Hide thumbs Also See for CNXE2GE2TX8MSPOE:
Table of Contents

Advertisement

Quick Links

Download this manual
This guide serves the following
ComNet Model Numbers:
CNXE2GE2TX8MSPOE
QUICK START GUIDE
CNXE2GE2TX8MSPOE
INDUSTRIALLY HARDENED
HIGH SPEED 12-PORT MANAGED POE ETHERNET SWITCH
8 × GE PSE + 2 × 2.5GE SFP + 2 × 10GE SFP+ PORTS

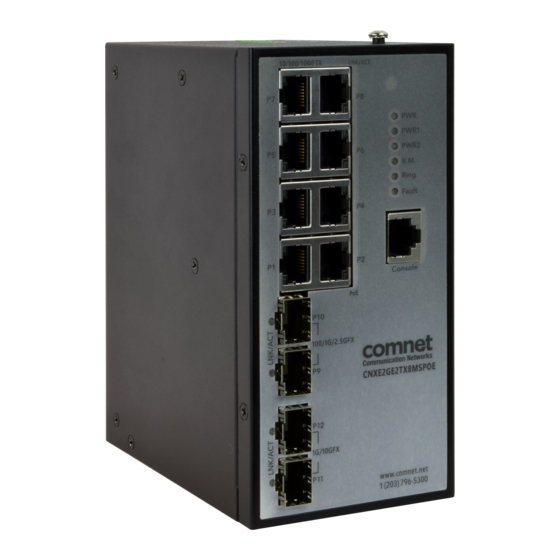

The ComNet CNXE2GE2TX8MSPOE is a twelve-port Managed Ethernet Switch
designed to reliably operate in harsh, environmentally challenging applications.
It features eight 10/100/1000BASE-TX ports supporting IEEE 802.2af/at PSE with a
total power budget of 240 watts with a maximum of thirty watts per port to provide
power in a PoE application. It also provides two 100/1G/2.5GBASE-X ports and two
1G/10GBASE-X SFP+ ports. The SFP ports are configurable by the use of compatible
ComNet SFP+ modules. These network-managed layer 2 switches are compatible
with any IEEE802.3 compliant Ethernet device.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CNXE2GE2TX8MSPOE and is the answer not in the manual?

Questions and answers

Related Manuals for Comnet CNXE2GE2TX8MSPOE

Summary of Contents for Comnet CNXE2GE2TX8MSPOE

  • Page 1 HIGH SPEED 12-PORT MANAGED POE ETHERNET SWITCH 8 × GE PSE + 2 × 2.5GE SFP + 2 × 10GE SFP+ PORTS The ComNet CNXE2GE2TX8MSPOE is a twelve-port Managed Ethernet Switch This guide serves the following designed to reliably operate in harsh, environmentally challenging applications.

  • Page 2: Table Of Contents

    QUICK START GUIDE CNXE2GE2TX8MSPOE Contents Getting Started 1.1 About the CNXE2GE2TX8MSPOE 1.2 Software Features 1.3 Hardware Specifications Hardware Overview 2.1 Installing Switch on DIN-Rail 2.2 Wall Mounting Installation Hardware Overview 3.1 Front Panel 3.2 Front Panel LEDs 3.3 Top View Panel Hardware Installation 4.1 Wiring...

  • Page 3: Getting Started

    240 watts with a maximum of thirty watts per port to provide power in a PoE application. It also provides two 100/1G/2.5GBASE-X ports and two 1G/10GBASE-X SFP+ ports. The SFP ports are configurable by the use of compatible ComNet SFP+ modules. These network-managed layer 2 switches are compatible with any IEEE802.3 compliant Ethernet device.

  • Page 4: Hardware Specifications

    QUICK START GUIDE CNXE2GE2TX8MSPOE 1.3 Hardware Specifications » Redundant 12~48VDC power inputs » 8 x 10/100/1000Base-T(X) ports, POE 30W » 2 x 1G/10GBase-X SFP+ sockets » 2 x 100/1G/2.5GBase-X SFP+ sockets » 1 x console port » Operating temperature: -20 to +60˚ C @ 2.5G/10G SFP or -40 to +75º C @ 1G »...

  • Page 5: Hardware Overview

    QUICK START GUIDE CNXE2GE2TX8MSPOE Hardware Overview 2.1 Installing Switch on DIN-Rail Each switch has a DIN-Rail kit pre-installed on rear panel. Mount CNXE2GE2TX8MSPOE on DIN-Rail DIN-Rail Mount Kit TECH SUPPORT: 1.888.678.9427 QSG_CNXE2GE2TX8MSPOE 13 Jan 2021 PAGE 5...

  • Page 6: Wall Mounting Installation

    QUICK START GUIDE CNXE2GE2TX8MSPOE 2.2 Wall Mounting Installation Each switch includes an optional wall mount panel. Install wall mount panel CNXE2GE2TX8MSPOE Wall-Mount Kit TECH SUPPORT: 1.888.678.9427 QSG_CNXE2GE2TX8MSPOE 13 Jan 2021 PAGE 6...

  • Page 7: Hardware Overview

    QUICK START GUIDE CNXE2GE2TX8MSPOE Hardware Overview 3.1 Front Panel The following table describes the labeling on the front panel of the CNXE2GE2TX8MSPOE. Port Description DG SFP Port 2 x 100 / 1G / 2.5G TG SFP Port 2 x 1G / 10G...

  • Page 8: Front Panel Leds

    QUICK START GUIDE CNXE2GE2TX8MSPOE 8. 10/100/1000Base-T(X) ports 9. LED for Ethernet ports link/act/speed status (right port indicator) (see table below) 10. SFP Port support 100 / 1G / 2.5G SFP+ Port support 1G / 10G 11. 10/100/1000Base-T(X) ports 12. LED for SFP Ports (see table below) 13.

  • Page 9: Top View Panel

    QUICK START GUIDE CNXE2GE2TX8MSPOE 3.3 Top View Panel The bottom panel components of CNXE2GE2TX8MSPOE are as shown below: 1. Terminal block includes: PWR1, PWR2 (50-57V DC) 2. Ground wire TECH SUPPORT: 1.888.678.9427 QSG_CNXE2GE2TX8MSPOE 13 Jan 2021 PAGE 9...

  • Page 10: Hardware Installation

    QUICK START GUIDE CNXE2GE2TX8MSPOE Hardware Installation 4.1 Wiring ATTENTION 1. Be sure to disconnect the power cord before installing and/or wiring your switches. 2. Calculate the maximum possible current in each power wire and common wire. Observe all electrical codes dictating the maximum current allowable for each wire size.

  • Page 11: Connection

    QUICK START GUIDE CNXE2GE2TX8MSPOE 4.2 Connection 4.2.1 Cables 1000/100BASE-TX/10BASE-T Pin Assignments The device has standard Ethernet ports. According to the link type, the switch uses CAT 3, 4, 5, or 5e UTP cables to connect to any other network devices (PCs, servers, switches, routers, or hubs).
  • Page 12 QUICK START GUIDE CNXE2GE2TX8MSPOE The device supports auto MDI/MDI-X operation. You can use a cable to connect the switch to a PC. The table below shows the 10/100Base-T(X) MDI and MDI-X port pin outs. 10/100Base-T(X) MDI/MDI-X Pin Assignments: Pin Number...

  • Page 13: Sfp

    QUICK START GUIDE CNXE2GE2TX8MSPOE RS-232 console port wiring The device can be managed via console ports using the included RS-232 cable. You can connect the port to a PC via the RS-232 cable with a DB-9 female connector. The DB-9 female connector of the RS-232 cable should be connected the PC while the other end of the cable (RJ-45 connector) should be connected to the console port of the switch.

  • Page 14: Management

    QUICK START GUIDE CNXE2GE2TX8MSPOE Management The switch can be controlled via a built-in web server which supports Internet Explorer (version 5.0 or newer) and other web browsers such as Chrome. Manage, configure and upgrade firmware remotely via a web browser. The Web management function not only reduces network bandwidth consumption, but also enhances access speed and provides a user-friendly viewing screen.

  • Page 15: Technical Specifications

    QUICK START GUIDE CNXE2GE2TX8MSPOE Technical Specifications Physical Ports 10/100/1000Base-T(X) with Ports in RJ45 Auto MDI/MDIX 100/1G/2.5GBase-X with SFP port 1G/10GBase-X with SFP port Technology Ethernet Standards IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX and 100Base-FX IEEE 802.3ab for 1000Base-T IEEE 802.3z for 1000Base-X...
  • Page 16 QUICK START GUIDE CNXE2GE2TX8MSPOE Security Features Device Binding security feature Enable/disable ports, MAC based port security Port based network access control (802.1x) VLAN (802.1Q ) to segregate and secure network traffic RADIUS/TACACS+ centralized password management SNMPv3 encrypted authentication and access security...
  • Page 17 QUICK START GUIDE CNXE2GE2TX8MSPOE 1G/2.5GBase-X SFP Port Green LED for Link/Act Indicator 1G/10Gbase-X SFP Port Green LED for Link/Act Indicator Fault contact Relay Relay output to carry capacity of 1A at 24VDC Power Redundant Input power Dual DC inputs 50~57VDC on 6-pin terminal block Power consumption (Typ.)
  • Page 18 QUICK START GUIDE CNXE2GE2TX8MSPOE TECH SUPPORT: 1.888.678.9427 QSG_CNXE2GE2TX8MSPOE 13 Jan 2021 PAGE 18...
  • Page 19 T: 203.796.5300 | F: 203.796.5303 | TECH SUPPORT: 1.888.678.9427 | INFO@COMNET.NET 8 TURNBERRY PARK ROAD | GILDERSOME | MORLEY | LEEDS, UK LS27 7LE T: +44 (0)113 307 6400 | F: +44 (0)113 253 7462 | INFO-EUROPE@COMNET.NET © 2021 Communications Networks Corporation. All Rights Reserved. “ComNet” and QSG_CNXE2GE2TX8MSPOE 13 Jan 2021 PAGE 19 the “ComNet Logo”...
