INSTALLATION AND OPERATION MANUAL
CNGE2FE8MSPOE2
MANAGED ETHERNET SWITCH WITH (8) 10/100 BASE-TX
+ (2) 10/100/1000 BASE-TX/FX COMBO PORTS
AND POWER OVER ETHERNET (POE)

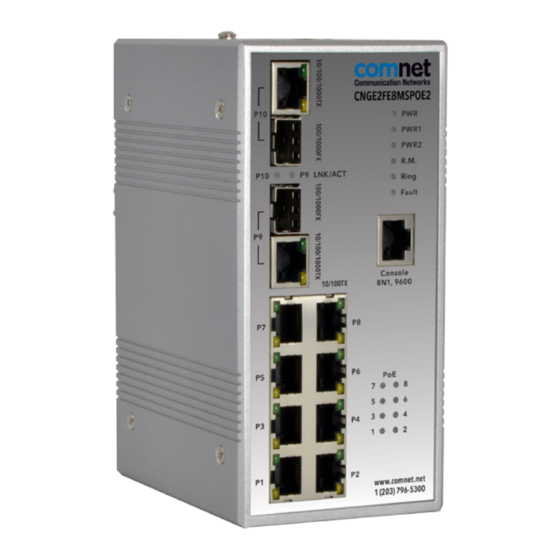

The ComNet
CNGE2FE8MSPOE2 is a hardened Managed Ethernet Switch. It
™
provides IEEE 802.3af (15W) PoE to eight 10/100BASE-T(X) ports and has two-
gigabit combination SFP or RJ-45 ports. Up to 120 watts of PoE power is available
for distribution across all 8 TX ports. All SFP ports utilize ComNet SFP* modules for
fiber and connector type and distance. The CNGE2FE8MSPOE2 is a redundant switch
offering multiple Ethernet redundancy protocols, C-Ring (recovery time <10ms over
250 units of connection), ComRing, and MSTP/RSTP/STP (IEEE 802.1 s/w/D). This
redundancy feature protects your applications from network interruptions or temporary
malfunctions by redirecting transmission within the network. Network management
is supported by eConsole, a powerful, easy-to-use Windows-based utility, as well as
Web-based telnet, and Console (CLI) configurations. This environmentally hardened
switch is designed for direct deployment in difficult out-of-plant or roadside operating
environments.
Rev. 4.23.14

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CNGE2FE8MSPOE2 and is the answer not in the manual?

Questions and answers

Related Manuals for Comnet CNGE2FE8MSPOE2

Summary of Contents for Comnet CNGE2FE8MSPOE2

  • Page 1 SFP or RJ-45 ports. Up to 120 watts of PoE power is available for distribution across all 8 TX ports. All SFP ports utilize ComNet SFP* modules for fiber and connector type and distance. The CNGE2FE8MSPOE2 is a redundant switch offering multiple Ethernet redundancy protocols, C-Ring (recovery time <10ms over...

  • Page 2: Table Of Contents

    Software Features Hardware Features Safety Indications Hardware Installation Installing Switch on DIN-Rail Mount Series on DIN-Rail Wall Mounting Installation Mounting the CNGE2FE8MSPOE2 on a Wall Hardware Overview Front Panel Front Panel LEDs Top view Panel Rear Panel Cables Ethernet Cables...
  • Page 3 INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 System Information System Information Enable Location Alert Basic setting Switch Setting Admin & Password IP Setting Time Setting PTP Client LLDP Auto Provision Backup & Restore Upgrade Firmware Redundancy C-Ring Legacy Ring COM-Ring C-RSTP RSTP...
  • Page 4 INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 DHCP Server DHCP Server – Setting DHCP Server – Client List DHCP Server – Port and IP bindings DHCP Server –DHCP Relay Agent SNMP SNMP – Agent Setting SNMPV3 SNMP –Trap Setting Security Management Security...
  • Page 5 INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 Commands Set List—System Commands Set Commands Set List—Port Commands Set Commands Set List—Trunk command set Commands Set List—VLAN command set Commands Set List—Spanning Tree command set Commands Set List—QoS command set Commands Set List—IGMP command set Commands Set List—MAC/Filter Table command set...

  • Page 6: Regulatory Compliance Statement

    ComNet warrants that all ComNet products are free from defects in material and workmanship for a specified warranty period from the invoice date for the life of the installation. ComNet will repair or replace products found by ComNet to be defective within this warranty period, with shipment expenses apportioned by ComNet and the distributor.

  • Page 7: Overview

    WEB-based, TELNET, Console port or other third-party SNMP software can manage the CNGE2FE8MSPOE2 as well. The switch can be managed by a useful utility called eConsole. eConsole is powerful network management software. With its user-friendly and powerful interface, multiple switches can be easily configured at the same time, and switches’ statuses monitored.

  • Page 8: Software Features

    INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 Software Features » World’s fastest Redundant Ethernet Ring: C-Ring (Recovery time <10ms over 250 units connection) » Supports Ring Coupling, Dual Homing over C-Ring » Supports SNMPv1/v2/v3 & RMON & Port base/802.1Q VLAN Network Management »...

  • Page 9: Hardware Features

    » Dimensions (W × D × H): 74.3mm × 109.2mm × 153.6mm Safety Indications Only ComNet service personnel can service the equipment. Please contact ComNet Technical Support if your unit requires service. The equipment should be installed in locations with controlled access, or other means of security, and controlled by persons of authority.

  • Page 10: Hardware Installation

    INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 Hardware Installation Installing Switch on DIN-Rail Metal Spring Each switch has a Din-Rail kit on the rear panel. The DIN-Rail kit affixes the switch to the DIN-Rail. It is easy to install the switch on the Din-Rail: INS_CNGE2FE8MSPOE2_REV–...

  • Page 11: Mount Series On Din-Rail

    INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 Mount Series on DIN-Rail Step 1: Tilt the switch and mount the metal spring to DIN-Rail. Step 2: Push the switch toward the DIN-Rail until you hear the spring snap into place INS_CNGE2FE8MSPOE2_REV– TECH SUPPORT: 1.888.678.9427...

  • Page 12: Wall Mounting Installation

    Each switch has another installation method for users to install the switch. A wall mount kit can be found in the package. The following steps show how to mount the switch on the wall: Mounting the CNGE2FE8MSPOE2 on a Wall Step 1: Remove Din-Rail kit if it is attached to the switch.

  • Page 13: Hardware Overview

    INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 Hardware Overview Front Panel The following table describes the labels on the CNGE2FE8MSPOE2. Port Description 10/100 RJ-45 fast 8 10/100BASE-T(X) RJ-45 fast Ethernet ports support auto- Ethernet ports negotiation. Default Setting : Speed: auto Duplex: auto...
  • Page 14 INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 CNGE2FE8MSPOE2 1. LED for PWR. When the PWR links, the green LED will be light on. 2. LED for PWR1. When the PWR1 links, the green LED will be light on. 3. LED for PWR2. When the PWR2 links, the green LED will be light on.

  • Page 15: Front Panel Leds

    INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 Front Panel LEDs Color Status Description Green DC power ready Green DC power module 1 activated. Green DC power module 2 activated. Green C-Ring Master. Ring Green C-Ring enabled. Slowly blinking C-Ring topology has fault Fast blinking C-Ring works normally.

  • Page 16: Top View Panel

    INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 Top view Panel The bottom panel components of CNGE2FE8MSPOE2 are shown as below: 1. Terminal block 2. Ground wire INS_CNGE2FE8MSPOE2_REV– TECH SUPPORT: 1.888.678.9427 12/20/12 PAGE 16...

  • Page 17: Rear Panel

    INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 Rear Panel The components in the rear of CNGE2FE8MSPOE2 are shown as below: 1. Screw holes for wall mount kit. 2. DIN-Rail kit INS_CNGE2FE8MSPOE2_REV– TECH SUPPORT: 1.888.678.9427 12/20/12 PAGE 17...

  • Page 18: Cables

    Cables Ethernet Cables The CNGE2FE8MSPOE2 switch has standard Ethernet ports. According to the link type, the switches use CAT 3, 4, 5, 5e UTP cables to connect to any other network device (PCs, servers, switches, routers, or hubs). Please refer to the following table for cable specifications.
  • Page 19 BI_DD- 1000 BASE-T RJ-45 Pin Assignments The CNGE2FE8MSPOE2 switch will support auto MDI/MDI-X operation. You can use a straight- through cable to connect a PC to the switch. The table below shows the 10BASE-T/ 100BASE-TX MDI and MDI-X port pin outs.

  • Page 20: Sfp

    Switch-B Console Port Cable CNGE2FE8MSPOE2 switches can be managed by the console port. The DB-9 to RJ-45 cable can be found in the package. You can connect them to the PC via a RS-232 cable with DB-9 female connector and the other end (RJ-45 connector) connects to console port of switch.
  • Page 21 INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 DB9 Male DB9 Female Male Connector Female Connector Received Line Signal Detect (Received by DTE Received Line Signal Detect (Transmitted from Device) DCE Device) Received Data (Received by DTE Device) Transmitted Data (Transmitted from DCE Device)

  • Page 22: Web Management

    INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 WEB Management Attention: While installing and upgrading firmware, please remove physical loop connection first. DO NOT power off equipment while the firmware is upgrading! Configuration by Web Browser This section details configuration through the Web browser.

  • Page 23: Preparing For Web Management

    INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 Preparing for Web Management The default value is as below: IP Address: 192.168.10.1 Subnet Mask: 255.255.255.0 Default Gateway: 192.168.10.254 User Name: admin Password: admin System Login 1. Launch Internet Explorer. 2. Type http://192.168.10.1 and the IP address of the switch. Press Enter.

  • Page 24: Main Interface

    INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 Main Interface Main interface System Information System Information interface System Information The system information will display the configuration of Basic Setting/Switch Setting page. Enable Location Alert Select Enable Location Alert and observe that the PWR1, PWR2 and FAULT LEDs of the switch will start to flash together.

  • Page 25: Basic Setting

    INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 Basic setting Switch Setting Switch setting interface Label Description System Name Assign the name of switch. The maximum length is 64 bytes System Description Display the description of switch. System Location Assign the switch physical location. The maximum length is 64 bytes...

  • Page 26: Ip Setting

    INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 IP Setting You can configure the IP Settings and DHCP client function through IP configuration. IP Configuration interface Label Description DHCP Client To enable or disable the DHCP client function. When DHCP client function is enabling, the switch will be assigned the IP address from the network DHCP server.

  • Page 27: Time Setting

    INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 Time Setting The SNTP (Simple Network Time Protocol) settings allow you to synchronize switch clocks from the Internet. SNTP Configuration interface Label Description SNTP Client Enable or disable SNTP function to get the time from the SNTP server.
  • Page 28 INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 Local Time Zone Conversion from UTC Time at 12:00 UTC November Time Zone - 1 hour 11 am Oscar Time Zone -2 hours 10 am ADT - Atlantic Daylight -3 hours 9 am AST - Atlantic Standard...

  • Page 29: Ptp Client

    INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 PTP Client The Precision Time Protocol (PTP) is a time-transfer protocol defined in the IEEE 1588-2002 standard that allows precise synchronization of networks (e.g., Ethernet). Accuracy within the nanosecond range can be achieved with this protocol when using hardware-generated timestamps.

  • Page 30: Auto Provision

    INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 Auto Provision Auto Provision allows you to automatically update the switch firmware. You can put the firmware or configuration file on TFTP server. When you reboot the switch, it will upgrade automatically. Before updating, make sure you have your TFTP server ready and the firmware image and configuration file is on the TFTP server.

  • Page 31: Backup & Restore

    INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 Backup & Restore You can save current EEPROM value from the switch to TFTP server, then go to the TFTP restore configuration page to restore the EEPROM value. Backup & Restore interface Label Description TFTP Server IP Address Fill in the TFTP server IP Restore File Name Fill the file name.

  • Page 32: Redundancy

    INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 Redundancy C-Ring C-Ring is the most powerful Redundant Ring in the world. The recovery time is less than 10ms. It can reduce unexpected damage caused by a network topology change. C-Ring supports three Ring topologies: C-Ring, Coupling Ring and Dual Homing.
  • Page 33 ComRing to the normal switches in RSTP mode. Apply Select Apply to set the configurations. Note: ComNet does not recommend setting one switch as a Ring Master and a Coupling Ring at the same time due to heavy load. INS_CNGE2FE8MSPOE2_REV– TECH SUPPORT: 1.888.678.9427...

  • Page 34: Legacy Ring

    CNGE2FE8MSPOE2 Legacy Ring Legacy Ring interface Legacy ring provides support for the switch to be used in an existing ring of ComNet X-Ring enabled switches. X-Ring provides a faster redundant recovery than Spanning Tree topology. The action is similar to STP or RSTP, but the algorithms between them are not the same. In the X-Ring topology, every switch should be enabled with X-Ring or Legacy Ring function and two ports should be assigned as the member ports in the ring.

  • Page 35: Com-Ring

    INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 COM-Ring You can add ComNet switches into a network constructed by another ring technology and enable COM-Ring to cooperate with another vendor’s managed switch. ComRing interface Label Description Enable Enable the COM-Ring function Vendor Select the vendor whose ring you want to join...

  • Page 36: C-Rstp

    INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 C-RSTP C-RSTP is proprietary redundant ring technology invented by ComNet. Different from standard STP/RSTP, the recovery time of C-RSTP is <10ms and supports more nodes of connection in a ring topology. C-RSTP interface The application of C-RSTP is shown as below.

  • Page 37: Rstp

    INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 RSTP The Rapid Spanning Tree Protocol (RSTP) is an evolution of the Spanning Tree Protocol. It provides faster spanning tree convergence after a topology change. The system also supports STP and the system will auto detect the connected device that is running STP or RSTP protocol.
  • Page 38 INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 View the RSTP algorithm results at this table INS_CNGE2FE8MSPOE2_REV– TECH SUPPORT: 1.888.678.9427 12/20/12 PAGE 38...
  • Page 39 INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 Label Description Path Cost (1-200000000) The cost of the path to the other bridge from this transmitting bridge at the specified port. Enter a number 1 through 200,000,000. Port Priority (0-240) Decide that port should be blocked by priority in LAN. Enter a numerical value that is a multiple of 16, 0 through 240.

  • Page 40: Mstp

    INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 MSTP Multiple Spanning Tree Protocol (MSTP) is a standard protocol base on IEEE 802.1s. The function is that several VLANs can be mapped to a reduced number of spanning tree instances because most networks do not need more than a few logical topologies. It supports load- balancing schemes and the CPU is sparer than PVST (Cisco proprietary technology).
  • Page 41 INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 Label Description MSTP Enable Enable/disable MSTP function to configure the related parameters. Force Version The Force Version parameter can be used to force a VLAN Bridge that supports RSTP to operate in an STP-compatible manner.
  • Page 42 INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 MSTP Port interface Label Description Port No. Select the port that you want to configure. Priority (0-240) Select which port should be blocked by priority in LAN. Enter a multiple of 16, 0 through 240.
  • Page 43 INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 MSTP Instance interface Label Description Instance Set the instance from 1 to 15 State Enable or disable the instance VLANs Set that VLAN will belong that instance Proprietary (0-61440) A value used to identify the root bridge. The bridge with the lowest value has the highest priority and is selected as the root.

  • Page 44: Multicast

    INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 Multicast IGMP Snooping Internet Group Management Protocol (IGMP) is used by IP hosts to register their dynamic multicast group membership. IGMP has 3 versions, IGMP v1, v2 and v3. Please refer to RFC 1112, 2236 and 3376. IGMP Snooping improves the performance of networks that carry multicast traffic.

  • Page 45: Static Multicast Filtering

    INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 Static Multicast Filtering Static multicast filtering is the system by that end stations only receive multicast traffic if they register to join specific multicast groups. With multicast filtering, network devices only forward multicast traffic to the ports that are connected to registered end stations.

  • Page 46: Port Setting

    INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 Port Setting Port Control Set the state, speed/duplex, flow control, and security of the port. Port Control interface Label Description Port No. Port number for setting. State Enable/Disable the port. Speed/Duplex Set Auto-negotiation, 100-full, 100-half, 10-full or 10-half mode.

  • Page 47: Port Status

    INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 Port Status The following information provides the current port status information. Port Status interface Rate Limit Limit the traffic of all ports, including broadcast, multicast and flooded unicast. You can also set Ingress or Egress to limit traffic received or transmitted bandwidth.

  • Page 48: Port Trunk

    INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 Port Trunk Port Trunk – Setting You can select static trunk or 802.3ad LACP to combine several physical links with a logical link to increase the bandwidth. Port Trunk - Setting interface Label Description Group ID Select port to join a trunk group.

  • Page 49: Port Trunk - Status

    INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 Port Trunk – Status Port Trunk - Status interface Label Description Group ID Trunk Group number Trunk Member Show Group port info VLAN A Virtual LAN (VLAN) is a logical network grouping that limits the broadcast domain that allows you to isolate network traffic.
  • Page 50 INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 VLAN Configuration – 802.1Q interface Label Description VLAN Operation Mode Select VLAN Operation Mode: Disable, Port Base, 802.1Q GVRP Mode Enable/Disable GVRP function. Management VLAN ID Management VLAN can provide network administrator a secure VLAN to management Switch. Only the devices in the management VLAN can access the switch.

  • Page 51: Traffic Prioritization

    INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 Traffic Prioritization Traffic Prioritization includes 3 modes: port base, 802.1p/COS, and TOS/DSCP. By traffic prioritization function, you can classify the traffic into four classes for differential network application. IGS-3044GP(GC) series support 4 priority queues. Qos policy...

  • Page 52: Port-Base Priority

    INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 Port-base priority Port-based Priority interface Priority Assign Port with one of four available priority queues: High, Middle, Low, and Lowest. Apply Select Apply to set the configurations. Help Show help file. INS_CNGE2FE8MSPOE2_REV– TECH SUPPORT: 1.888.678.9427...

  • Page 53: Cos/802.1P

    INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 COS/802.1p COS/802.1p interface COS/802.1p COS (Class Of Service) is also known as 802.1p. It describes that the output priority of a packet is determined by the user priority field in 802.1Q VLAN tag. The priority value is supported 0to7.COS value map to 4 priority queues: High, Middle, Low, and Lowest.

  • Page 54: Tos/Dscp

    INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 TOS/DSCP TOS/DSCP interface TOS/DSCP TOS (Type of Service) is a field in the IP header of a packet. This TOS field is also used by Differentiated Services and is called the Differentiated Services Code Point (DSCP). This field can determine the output priority of a packet and the priority value is supported 0to63.

  • Page 55: Dhcp Server

    INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 DHCP Server DHCP Server – Setting The system provides with DHCP server function. Enable the DHCP server function and the switch system will be a DHCP server. DHCP Server Configuration interface Label Description DHCP Server Enable or Disable the DHCP Server function.

  • Page 56: Dhcp Server - Client List

    INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 DHCP Server – Client List When the DHCP server function is activated, the system will collect the DHCP client information and display in here. DHCP Server Client Entries interface DHCP Server – Port and IP bindings You can assign the specific IP address that is in the assigned dynamic IP range to the specific port.

  • Page 57: Dhcp Server -Dhcp Relay Agent

    INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 DHCP Server –DHCP Relay Agent The DHCP relay agent relays DHCP messages between clients and servers for DHCP on different subnet domains. DHCP relay agent use Option 82 to insert specific information into a request that is being forwarded to a DHCP server and, according to Option 82, to remove the specific information from a reply packet when forwarding server DHCP packets to a DHCP client.

  • Page 58: Snmp

    INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 SNMP Simple Network Management Protocol (SNMP) is the protocol developed to manage nodes (servers, workstations, routers, switches and hubs etc.) on an IP network. SNMP enables network administrators to manage network performance, find and solve network problems, and plan for network growth.

  • Page 59: Snmpv3

    INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 SNMPV3 Label Description Context Table Configure SNMP v3 context table. Assign the context name of context table. Select Apply to change context name User Table Configure SNMP v3 user table. User ID: set up the user name.

  • Page 60: Snmp -Trap Setting

    INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 SNMP –Trap Setting A trap manager is a management station that receives traps, the system alerts generated by the switch. If no trap manager is defined, no traps will be issued. Create a trap manager by entering the IP address of the station and a community string.

  • Page 61: Security

    INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 Security Five useful functions can enhance security of switch: IP Security, Port Security, MAC Blacklist, and MAC address Aging and 802.1x protocol. Management Security Only IP in the Secure IP List can manage the switch through your defined management mode.

  • Page 62: Static Mac Forwarding

    INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 Static MAC Forwarding Static MAC Forwarding is to add static MAC addresses to hardware forwarding database. If port security is enabled at Port Control page, only the frames with MAC addresses in this list will be forwarded, otherwise will be discarded.

  • Page 63: Mac Blacklist

    INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 MAC Blacklist MAC Blacklist can eliminate the traffic forwarding to specific MAC addresses in list. Any frames forwarding to MAC addresses in this list will be discarded. Thus the target device will never receive any frame.

  • Page 64: 802.1X - Radius Server

    INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 802.1x 802.1x - Radius Server 802.1x makes the use of the physical access characteristics of IEEE802 LAN infrastructures in order to provide a authenticated and authorized devices attached to a LAN port. Please refer to IEEE 802.1X - Port Based Network Access Control.
  • Page 65 INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 Supplicant Timeout Set the period of time the switch waits for a supplicant response to an EAP request. Server Timeout Set the period of time the switch waits for a Radius server response to an authentication request.

  • Page 66: 802.1X-Port Authorized Mode

    INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 802.1x-Port Authorized Mode Set the 802.1x authorized mode of each port. 802.1x Port Authorize interface Label Description Port Authorized Reject: force this port to be unauthorized. Mode Accept: force this port to be authorized. Authorize: the state of this port was determined by the outcome of the 802.1x authentication.

  • Page 67: X-Port Authorized Mode

    INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 802.1x-Port Authorized Mode Show 802.1x port authorized state. 802.1x Port Authorize State interface TACACS+ INS_CNGE2FE8MSPOE2_REV– TECH SUPPORT: 1.888.678.9427 12/20/12 PAGE 67...

  • Page 68: Warning

    INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 Warning Warning: function is very important for managing the switch. You can manage the switch by SYSLOG, E-MAIL, and Fault Relay. It helps monitor the switch status on remote site. When events occur, the warning message will be sent to your appointed server, E-MAIL, or relay fault to switch panel.
  • Page 69 INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 System Warning – SMTP Setting The SMTP is Short for Simple Mail Transfer Protocol. It is a protocol for e-mail transmission across the Internet. Please refer to RFC 821 - Simple Mail Transfer Protocol. System Warning – SMTP Setting interface...
  • Page 70 INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 System Warning – Event Selection SYSLOG and SMTP are the two warning methods that supported by the system. Check the corresponding box to enable system event warning method you wish to choose. Please note that the checkbox cannot be checked when SYSLOG or SMTP is disabled.

  • Page 71: Monitor And Diag

    INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 Monitor and Diag System Event Log If system log client is enabled, the system event logs will be shown in this table. System event log interface Label Description Page Select LOG page. Reload To get the newest event logs and refresh this page.

  • Page 72: Mac Address Table

    INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 MAC Address Table Refer to IEEE 802.1 D Sections 7.9. The MAC Address Table, that is Filtering Database, supports queries by the Forwarding Process, as to whether a frame received by a given port with a given destination MAC address is to be forwarded through a given potential transmission port.

  • Page 73: Port Overview

    INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 Port Overview Port statistics show several statistics counters for all ports Port Overview interface Label Description Type Show port speed and media type. Link Show port link status. State Show ports enable or disable. TX GOOD Packet The number of good packets sent by this port.

  • Page 74: Port Monitoring

    INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 Port Monitoring Port monitoring function supports TX (egress) only, RX (ingress) only, and both TX/RX monitoring. TX monitoring sends any data that egress out checked TX source ports to a selected TX destination port as well. RX monitoring sends any data that ingress in checked RX source ports out to a selected RX destination port as well as sending the frame where it normally would have gone.

  • Page 75: Power Over Ethernet (Poe)

    INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 Power over Ethernet (PoE) System setting The following interface is the PoE setting interface. There are 8 ports (port 1 to port 8) act as PSE (Power Supply Equipment) ports. Label Description Maximum Power Available Display the maximum power available.

  • Page 76: Power Over Ethernet - Port Control

    INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 Power over Ethernet - Port Control The following interface is the PoE setting interface. There are 8 ports (port 1 to port 8) act as PSE (Power Supply Equipment) ports. Label Description Port Port number.

  • Page 77: Port Status

    INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 Port Status This screen shows detailed PoE status for each Port. Label Description Port Port number State Show PSE Status Current(mA) Displays current value Voltage(V) Displays voltage value Power(mW) Displays watt value Determined Class Displays the power class. If the Bypass classification is enabled, the class value will not show in here.

  • Page 78: Save Configuration

    INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 Save Configuration If any configuration is changed, visit this screen and save current configuration data to the permanent flash memory. Otherwise, the current configuration will be lost when power is turned off or the system is reset.

  • Page 79: Command Line Interface Management

    CNGE2FE8MSPOE2 Command Line Interface Management About CLI Management Besides WEB-base management, CNGE2FE8MSPOE2 also supports CLI management. You can use console or telnet to management switch by CLI. CLI Management by RS-232 Serial Console (9600, 8, none, 1, none) Before Configuring by the RS-232 serial console, use an RJ45 to DB9-F cable to connect the Switch’s RS-232 Console port to your PCs’...
  • Page 80 INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 Step 2. Input a name for new connection Step 3. Select to use COM port number INS_CNGE2FE8MSPOE2_REV– TECH SUPPORT: 1.888.678.9427 12/20/12 PAGE 80...
  • Page 81 INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 Step 4. The COM port properties setting, 9600 for Bits per second, 8 for Data bits, None for Parity, 1 for Stop bits and none for Flow control. Step 5. The Console login screen will appear. Use the keyboard to enter the Username and Password (same as for accessing via Web Browser), and then press Enter.

  • Page 82: Cli Management By Telnet

    INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 CLI Management by Telnet. Users can use telnet to configure the switches. The default value is as below: IP Address: 192.168.10.1 Subnet Mask: 255.255.255.0 Default Gateway: 192.168.10.254 User Name: admin Password: admin Follow the steps below to access the console via Telnet.

  • Page 83: Commands Level

    INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 Commands Level Modes Access Method Prompt Exit Method About This Model User EXEC Begin a session switch> Enter logout or The user command available with your switch. quit. at the level of user is the subset of those available at the privileged level.

  • Page 84: Symbol Of Command Level

    INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 Symbol of Command Level. Mode Symbol of Command Level User EXEC Privileged EXEC Global configuration VLAN database Interface configuration I Commands Set List—System Commands Set Commands Level Description Example show config Show switch configuration switch>show config...
  • Page 85 INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 show admin Show administrator information switch#show admin dhcpserver enable Enable DHCP Server switch(config)#dhcpserver enable dhcpserver lowip Configure low IP address for IP switch(config)# dhcpserver lowip [Low IP] pool 192.168.1.1 dhcpserver highip Configure high IP address for IP...

  • Page 86: Commands Set List—Port Commands Set

    INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 Commands Set List—Port Commands Set Commands Level Description Example interface fastEthernet Choose the port for modification. switch(config)#interface fastEthernet 2 [Portid] duplex Use the duplex configuration switch(config)#interface fastEthernet 2 [full | half] command to specify the duplex...
  • Page 87 INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 bandwidth out Set interface output bandwidth. switch(config)#interface fastEthernet 2 [Value] Rate Range is from 100 kbps to switch(config-if)#bandwidth out 100 102400 kbps or to 256000 kbps for giga ports, and zero means no limit. show bandwidth...

  • Page 88: Commands Set List—Trunk Command Set

    INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 Commands Set List—Trunk command set Commands Level Description Example aggregator priority Set port group system priority switch(config)#aggregator priority 22 [1to65535] aggregator activityport Set activity port switch(config)#aggregator activityport [Port Numbers] aggregator group Assign a trunk group with LACP...

  • Page 89: Commands Set List—Vlan Command Set

    INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 Commands Set List—VLAN command set Commands Level Description Example vlan database Enter VLAN configure mode switch#vlan database vlan To set switch VLAN mode. switch(vlan)# vlanmode 802.1q [8021q | gvrp] switch(vlan)# vlanmode gvrp no vlan Disable vlan group (by VID)

  • Page 90: Commands Set List—Spanning Tree Command Set

    INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 Commands Set List—Spanning Tree command set Commands Level Description Example spanning-tree enable Enable spanning tree switch(config)#spanning-tree enable spanning-tree priority Configure spanning tree priority switch(config)#spanning-tree priority [0to61440] parameter 32767 spanning-tree max-age Use the spanning-tree max-age switch(config)# spanning-tree max-age...

  • Page 91: Commands Set List—Qos Command Set

    INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 stp-admin-p2p Admin P2P of STP priority on this switch(config)#interface fastEthernet 2 [Auto|True|False] interface. switch(config-if)# stp-admin-p2p Auto stp-admin-edge Admin Edge of STP priority on this switch(config)#interface fastEthernet 2 [True|False] interface. switch(config-if)# stp-admin-edge True stp-admin-non-stp Admin NonSTP of STP priority on...

  • Page 92: Commands Set List—Igmp Command Set

    INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 Commands Set List—IGMP command set Commands Level Description Example igmp enable Enable IGMP snooping function switch(config)#igmp enable Igmp-query auto Set IGMP query to auto mode switch(config)#Igmp-query auto Igmp-query force Set IGMP query to force mode...

  • Page 93: Commands Set List—Mac/Filter Table Command Set

    INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 Commands Set List—MAC/Filter Table command set Commands Level Description Example mac-address-table static Configure MAC address table of switch(config)#interface fastEthernet 2 hwaddr interface (static). switch(config-if)#mac-address-table [MAC] static hwaddr 000012345678 mac-address-table filter Configure MAC address switch(config)#mac-address-table filter...

  • Page 94: Commands Set List—Snmp Command Set

    INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 Commands Set List—SNMP command set Commands Level Description Example snmp agent-mode Select the agent mode of SNMP switch(config)#snmp agent-mode [v1v2c | v3] v1v2c snmp-server host Configure SNMP server host switch(config)#snmp-server host [IP address] information and community string 192.168.10.50 community public trap-...

  • Page 95: Commands Set List—Port Mirroring Command Set

    INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 Commands Set List—Port Mirroring command set Commands Level Description Example monitor rx Set RX destination port of monitor switch(config)#monitor rx function monitor tx Set TX destination port of monitor switch(config)#monitor tx function show monitor Show port monitor information...

  • Page 96: Commands Set List—802.1X Command Set

    INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 Commands Set List—802.1x command set Commands Level Description Example 8021x enable Use the 802.1x global switch(config)# 8021x enable configuration command to enable 802.1x protocols. 8021x system radiousip Use the 802.1x system radious IP switch(config)# 8021x system radiousip...

  • Page 97: Commands Set List—Tftp Command Set

    INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 8021x portstate Use the 802.1x port state interface switch(config)#interface fastethernet 3 [disable | reject | accept | configuration command to set the switch(config-if)#8021x portstate authorize] state of the selected port. accept show 8021x Display a summary of the 802.1x switch>show 8021x...
  • Page 98 INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 smtp password Configure authentication switch(config)#smtp password [password] password smtp rcptemail Configure Rcpt e-mail Address switch(config)#smtp rcptemail 1 Alert@ [Index] [Email address] test.com show smtp Show the information of SMTP switch#show smtp no smtp Disable SMTP function...

  • Page 99: Commands Set List—Sntp Command Set

    INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 Commands Set List—SNTP command set Commands Level Description Example sntp enable Enable SNTP function switch(config)#sntp enable sntp daylight Enable daylight saving time, if switch(config)#sntp daylight SNTP function is inactive, this command can’t be applied. sntp daylight-period...

  • Page 100: Commands Set List — C-Ring Command Set

    INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 Commands Set List — C-Ring command set Commands Level Description Example Ring enable Enable C-Ring switch(config)# ring enable Ring master Enable ring master switch(config)# ring master Ring couplering Enable couple ring switch(config)# ring couplering Ring dualhoming...

  • Page 101: Technical Specifications

    INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 Technical Specifications Physical Ports 10/100 BASE-T(X) Ports in RJ45 8 ports supporting IEEE 802.3af compliant PoE Auto MDI/MDIX with PSE Total power budget is 125W with maximum 15.4W per port) Gigabit Combo Ports with 10/100/1000BASE-T(X) and...
  • Page 102 Relay output to carry capacity of 1A at 24VDC Power Redundant Input Power Dual DC inputs. 48–57VDC on 6-pin terminal block Order optional ComNet Part PS48VDC-5A or PS48VDC-10A (depending on per-port load and operation temperature) Power Consumption (Typ.) 9 Watts (power consumption of PSE is not included)
  • Page 103 INSTALLATION AND OPERATION MANUAL CNGE2FE8MSPOE2 Physical Characteristic Enclosure IP-30 Dimension (W × D × H) 74.3 × 109.2 × 153.6mm (2.93 × 4.3 × 6.05 in) Weight 1100g / 2.43lb Environmental Storage Temperature -40 to +85ºC (-40 to +185ºF) Operating Temperature -40 to +75ºC (-40 to +167ºF)
