INSTALLATION AND OPERATION MANUAL
CNFE5SMS
FIVE PoRt 10/100t(X) EthERNEt SElF-MANAGEd SwItCh

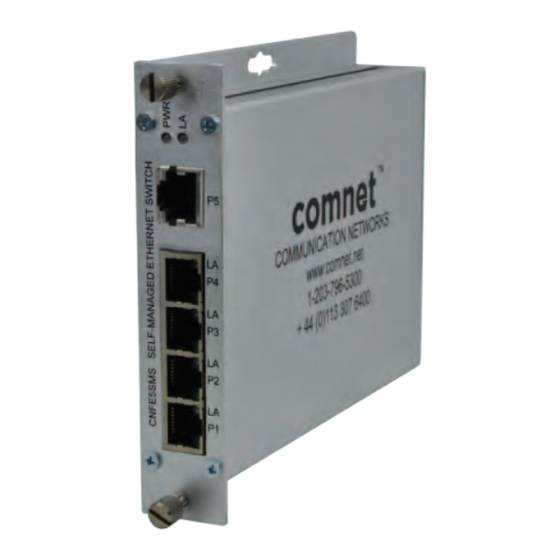

the ComNet CNFE5SMS is a five-port self-managed Ethernet switch with uplink
™
management functionality. It provides five ports operating at 10/100Mbps and is
designed to combine Ethernet data from the four electrical ports into a fifth electrical
port and forward that data to the next network device. there is no programming
required to use this switch. the ComNet CNFE5SMS comes pre-programmed,
preventing network video flooding with dIP switch selection of port five as uplink or
as an unmanaged switch. It is "Plug-and-Play".
Led Indicators confirm the operating status of this device. See Figure 4 on Page 3
for an explanation of the indicators.
the ComNet CNFE5SMS may be either wall mounted, rack mounted ("ComFit"
packaging) or dIN-rail mounted with the use of the ComNet dINBKt1 adapter. See
Figure A on Page 4 for mounting instructions.
See Figures 1 – 5 for complete installation details.
Rev. 09.20.12
INS_CNFE5SMS_REVA 07/08/11 PAGE 1
