INSTALLATION AND OPERATION MANUAL
CNFE4SMSPOE
FOuR PORt 10/100t(X) EthERNEt SElF-MANAGEd SwItCh
wIth POwER OVER EthERNEt (POE+)

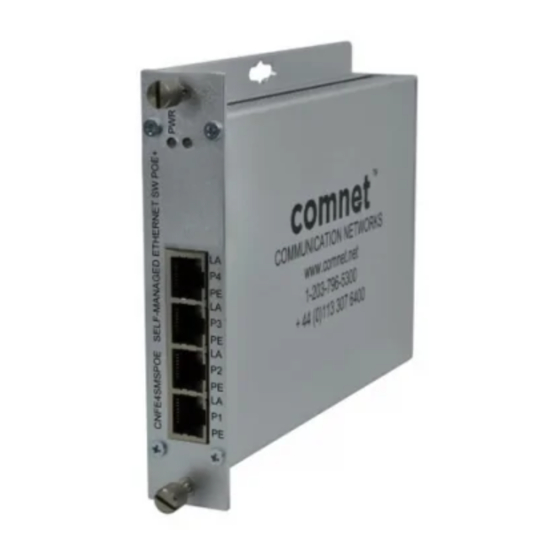

the ComNet CNFE4SMSPOE is a four-port self-managed Ethernet switch with
™
uplink management functionality. It provides four ports operating at 10/100Mbps
and is designed to combine Ethernet data from the three electrical ports into a
fourth electrical port and forward that data to the next network device. there is no
programming required to use this product. the ComNet CNFE4SMSPOE comes pre-
programmed, preventing network video flooding with dIP switch selection of port
four as uplink or as an unmanaged switch. All four ports can supply up to thirty (30)
watts of power ("Power over Ethernet") based on the IEEE 802.3at standard. It is
"Plug-and-Play" easy to use.
lEd indicators confirm the operating status of this device. See Figure 4 on Page 3
for an explanation of the indicators.
the ComNet CNFE4SMSPOE may be either wall mounted, rack mounted ("ComFit"
packaging) or dIN-rail mounted with the use of the ComNet dINBKt1 adapter. See
Figure A on Page 2 for mounting instructions.
See Figures 1 – 5 for complete installation details.
INS_CNFE4SMSPOE_REVA 07/08/11 PAGE 1
