Summary of Contents for Atlona AT-DP300

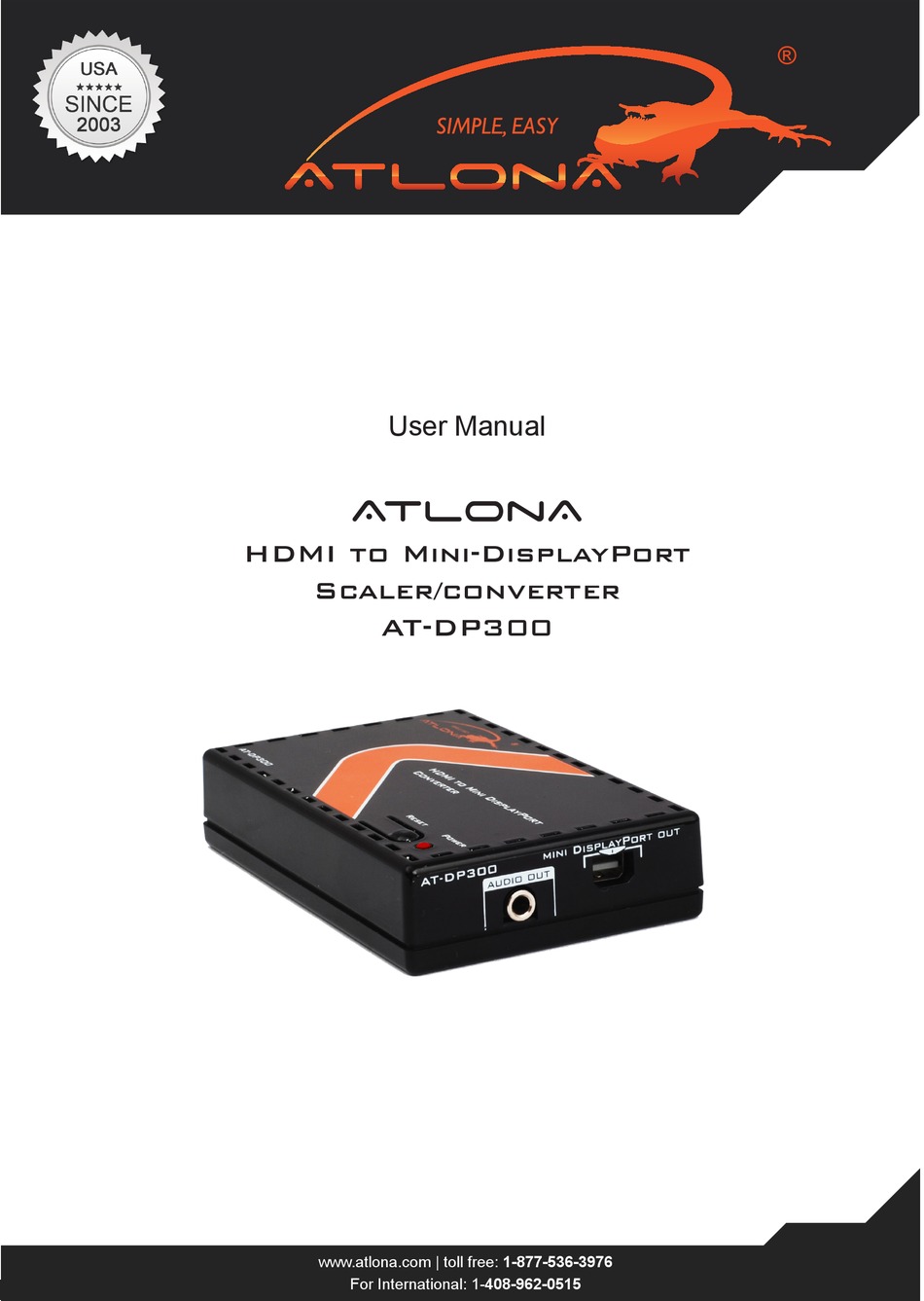

- Page 1 User Manual AtlonA HDMI to Mini-DisplayPort Scaler/converter AT-DP300 www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515...
-
Page 2: Table Of Contents
6. Operation Controls and Functions ..........6.1. Front Panel ..........6.2. Rear Panel ..........6.3. Top Panel ..........7. Connection and Installation ..........8. Atlona Product Registration ..........9. Safety Information ..........10. Warranty ..........www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 3: Introduction
BluRay Player, Cable Box, Video Game Console, Apple TV to Mini DisplayPort which is commonly used by Apple 24” LED, Apple 27” LED and iMac 27”. The AT-DP300 is able to accept high resolution audio/video signals up to 1080p and scale them to either 1920x1200 or 720p Apple 24” users:... -
Page 4: Features
OPERATION CONTROLS AND FUCTIONS: 6.1. Front Panel 1. HDMI IN: This input is to connect input source equipment such as PS3 or BluRay DVD player. 2. DC 5V: This input is to plug 5V DC power supply www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 5: Rear Panel
1. RESET button: This button is designed to reset the converter to manufactures’ default. Only press it if you are not receiving any output signal. 2. Power LED: The Green LED will illuminate when the power is on. www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 6: Connection And Installation
At Atlona, we respect and protect your privacy and assure you that your registration information is completely secure. Of course, Atlona product registration is totally voluntary and failure to register will not diminish your limited war- ranty rights. To register go to www.atlona.com/registration www.atlona.com | toll free: 1-877-536-3976... -
Page 7: Safety Information
It may also cause damage to your the manufacturer could void the AT-DP300. Opening the product will void the user’s authority to operate this warranty. equipment. -
Page 8: Warranty
Product, or repair or replacement of the Product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of Customer’s receipt. This Limited Warranty is void if failure of the Product has resulted from accident, abuse, or misapplication.
