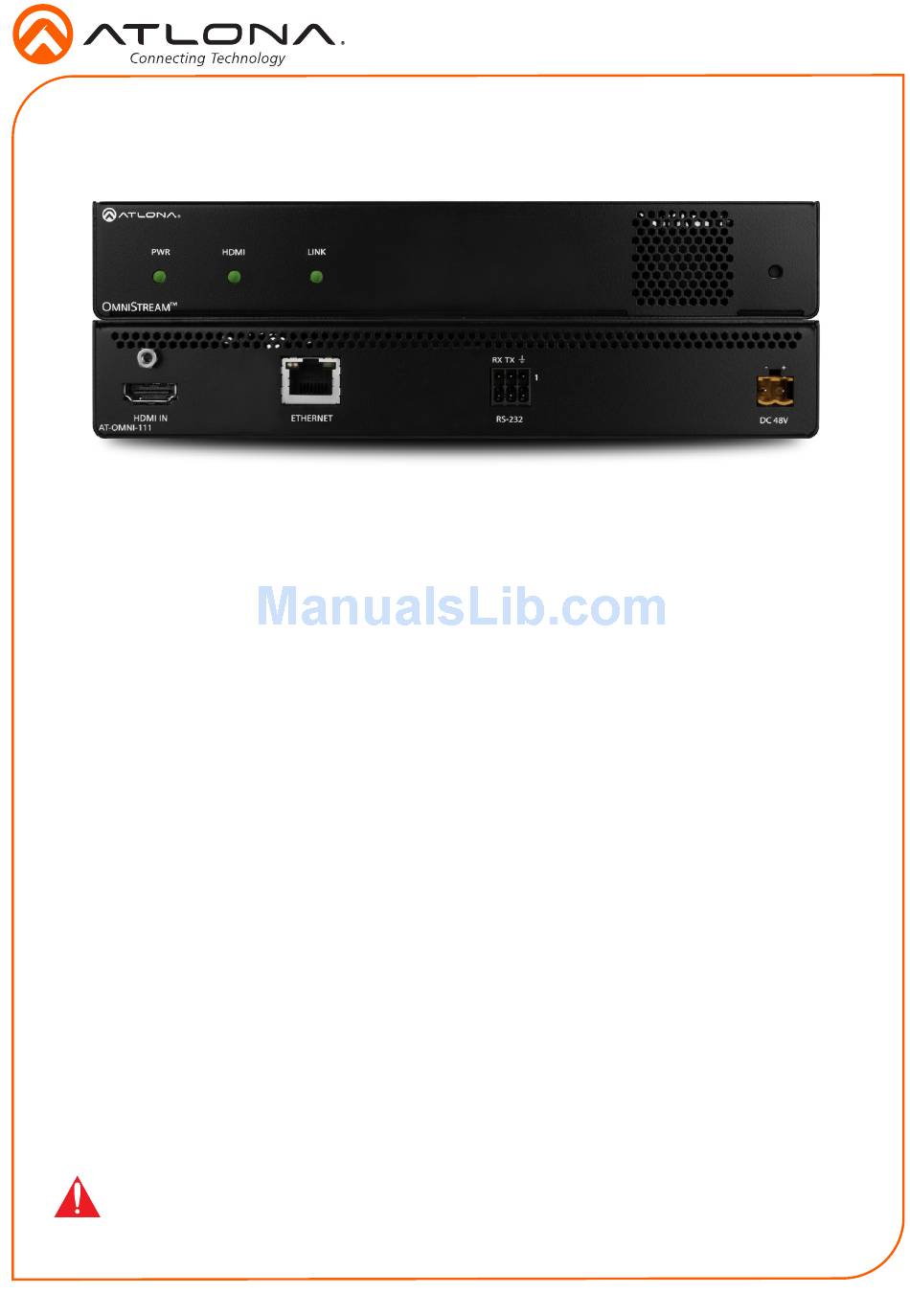

Atlona AT-OMNI-111 Installation Manual

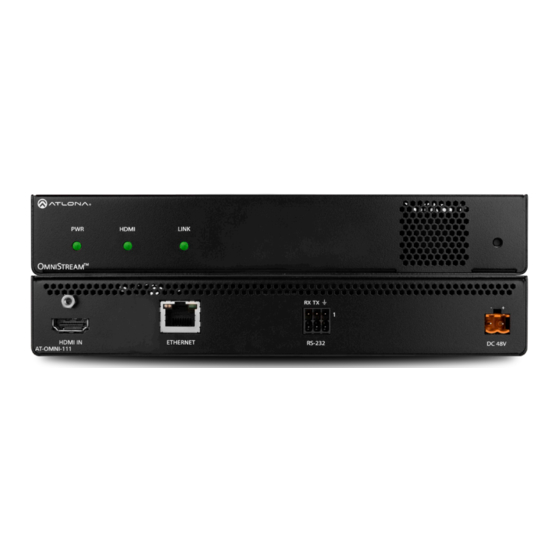

OmniStream 111 Single-Channel Networked AV Encoder
AT-OMNI-111
The Atlona OmniStream™ 111 (AT-OMNI-111) is a networked AV encoder for one HDMI
source up to 4K/UHD, plus embedded audio and RS-232 control. OmniStream is designed
for distributing AV over Gigabit Ethernet in enterprises and other large-scale installations. The
OmniStream 111 features SMPTE VC-2 visually lossless compression for critical-quality video
applications, with extremely low, sub-frame latency from encode to decode. It also includes
selectable AES-128 encryption, and SMPTE 2022-5 forward error correction for robust AV
distribution spanning multiple networks. This encoder is housed in a half-rack width enclosure.
The OmniStream 111 can conveniently be powered over the network through Power over
Ethernet (PoE), as well as from local AC power.

Package Contents

1 x AT-OMNI-111
1 x Push spring connector, 6-pin
1 x Wall/table mounting brackets
4 x Rubber feet
1 x Installation Guide
Operating Notes
• OmniStream requires the Atlona Management System (AMS) which provides discovery,
management, and configuration assistance. AMS is a free application that can be
downloaded from the Atlona web site at http://atlona.com/product/at-sw-ams/
• OmniStream uses mDNS as the discovery mechanism. In order for mDNS to function
properly, there must not be restrictions applied to the network. VPN can be used to
connect to a computer that is running AMS, on the same network. However, VPN cannot
be used when AMS is running on the local machine.
IMPORTANT: Visit http://www.atlona.com/product/AT-OMNI-111 for the latest firmware
updates and User Manual.
1

Installation Guide

AT-OMNI-111
