- Page 1 Optical/Digital Coaxial 2-Way Converter AT-AD2 User Manual Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
-
Page 2: Table Of Contents
2. Package Contents ....................3 3. Features ....................3 4. Panel Descriptions ....................4 5. Connection Diagram ....................5 6. Specifications ....................5 7. Safety Information ....................6 8. Warranty ....................7-8 9. Registration ....................8 Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 3: Introduction
The Atlona TOSlink/Digital Coaxial 2-Way Converter enables a TOSlink audio signal to be converted to coaxial and vice versa. In addition AT-AD2 also acts as an audio splitter, receiving one input signal (TOSlink or coaxial) and transmitting both TOSlink and coaxial simultaneously on output. -
Page 4: Panel Descriptions

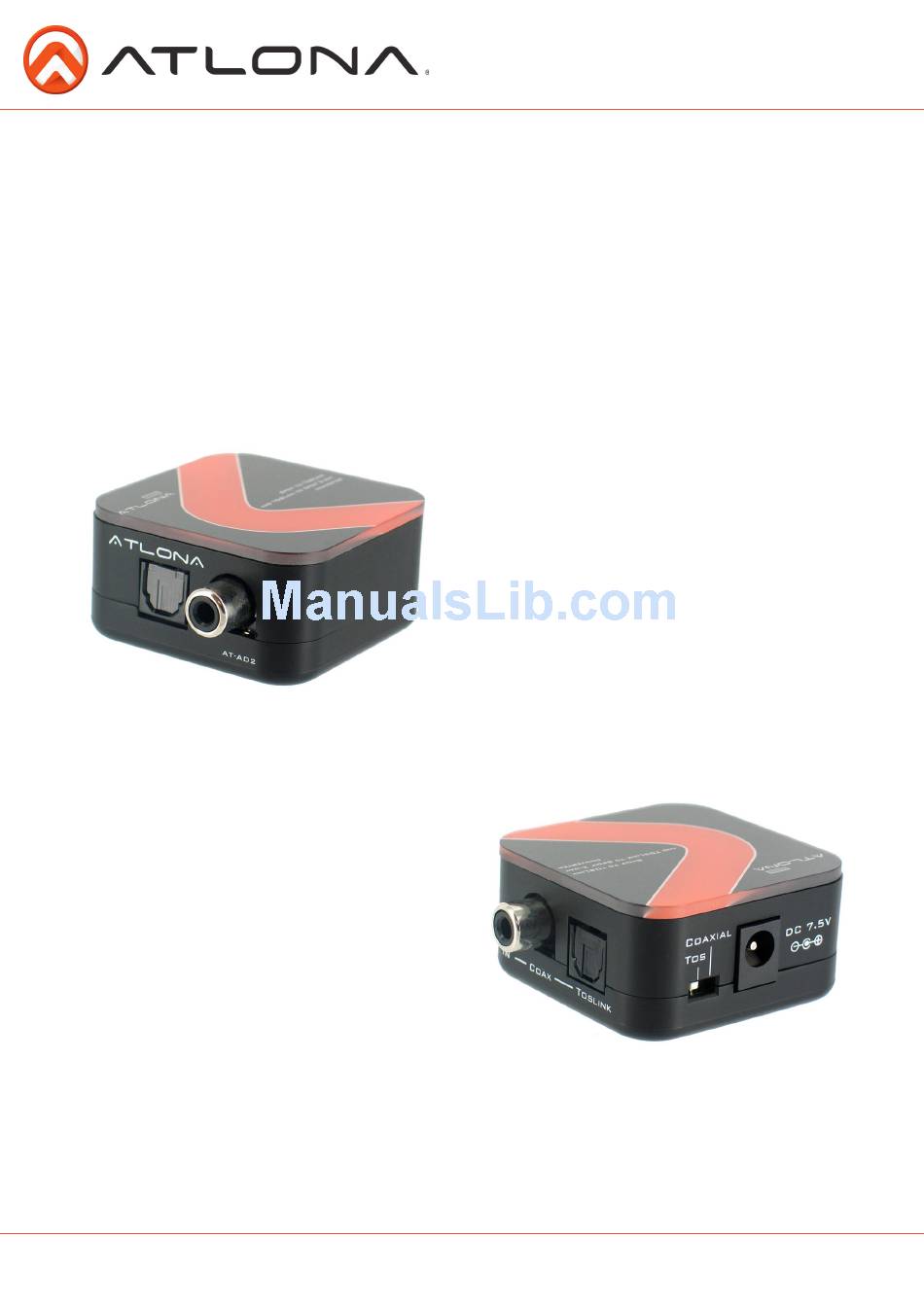

Coax TOSlink DC 7.5V Coaxial AT-AD2 1. COAX Input: Connect coaxial source here 2. Audio Selector: Switch between TOSlink input and Coaxial input 3. TOSlink Output: Connect to a TOSlink audio receiver from here 4. TOSlink Input: Connect TOSlink source here DC 7.5V Input: Connect included DC 7.5V power supply here... -
Page 5: Connection Diagram
TOSlink DC 7.5V Coaxial Coaxial DC 7.5V Coax TOSlink Coax TOSlink DC 7.5V Coaxial Coaxial DC 7.5V AT-AD2 AT-AD2 AT-AD2 AT-AD2 Audio Receiver Audio Receiver Specifications Ports 1 x S/PDIF 1 x S/PDIF 1 x Coaxial 1 x Coaxial Audio Up to Dolby Digital or DTS 5.1... -
Page 6: Safety Information
It may also cause damage to your product. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. -
Page 7: Warranty
Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US toll free) or 1-408- 962-0515 (US/international) or via Atlona’s website at www.atlona.com. -
Page 8: Registration
Atlona’s authorized distributors, dealers and resellers can be found at www.atlona.com . Atlona Product Registration Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase.
