Summary of Contents for Atlona AT-DP200

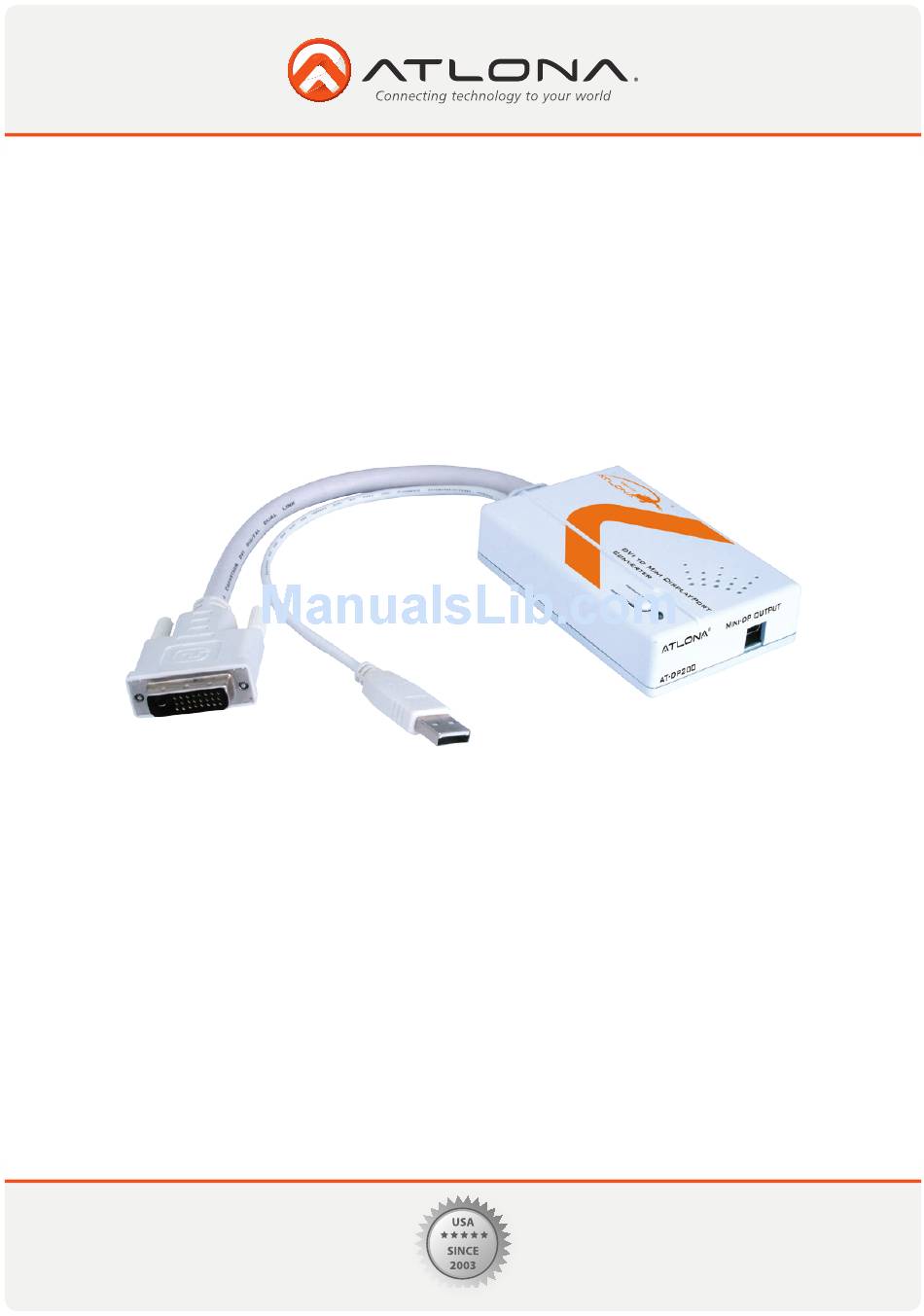

- Page 1 DVI to Mini DisplayPort Converter AT-DP200 User Manual Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
-
Page 2: Table Of Contents
7. Panel Descriptions 7.1. Top Panel 7.2. Left Panel 7.3. Right Panel 8. Pin Assignment 8.1. DVI-D connector 8.2. Mini DisplayPort Connector 9. Connection Diagram 10. Safety Information 11. Warranty 12. Atlona Product Registration Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 3: Introduction

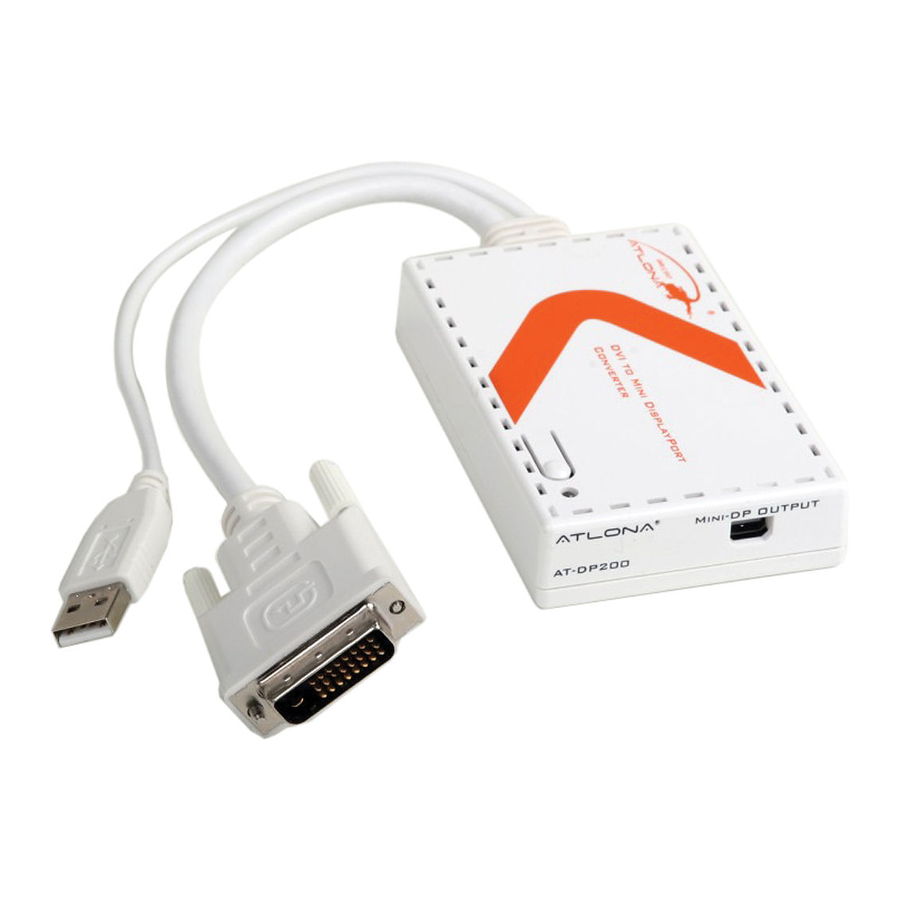

INTRODUCTION Congratulations on your purchase of Atlona Technologies DVI to Mini DisplayPort Converter, the AT-DP200. This one of a kind device is specifically designed for any digital DVI source signal to display on the Apple LED Cinema Display®. With the DP200, the Apple LED Cinema Display can not only be used for Mac© notebooks and Mac® PCs, but also can be used for other PC device with a DVI output. -
Page 4: Specifications
1. Reset Button: Press this button only when display image has problem. The reset function will reload the EDID and display with the best resolution image. 2. Power LED: The Green LED will illuminate when the power is on. Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 5: Left Panel
T.M.D.S Data1+ T.M.D.S Data0+ T.M.D.S. Data2/4 Shield T.M.D.S. Data1/3 Shield T.M.D.S. Data0/5 Shield DDC Clock +5V Power T.M.D.S. Clock Shield DDC Data Ground (for +5) T.M.D.S. Clock+ No Connect Hot Plug Detect T.M.D.S. Clock- Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 6: Mini Displayport Connector
ML Lane 3 (n) ML Lane 2 (p) AUX CH (p) ML Lane 2 (n) AUX CH (n) PWR Out DP_PWR CONNECTION DIAGRAM AT-DP200 Mini DisplayPort cable Apple LED Cinema display cable cable Notebook Mac Mini Toll free: 1-877-536-3976 www.atlona.com... -
Page 7: 10. Safety Information
Never open, remove unit panels, or make any adjustments not described in this manual. Attempting to do so could expose you to dangerous electrical shock or other hazards. It may also cause damage to your AT-DP200. Opening the product will void the warranty. -
Page 8: 11. Warranty
To the maximum extent permitted by applicable law, in no event shall Atlona Technologies or its suppliers be liable for any damages arising out of the use of or inability to use this product, even if Atlona Technologies has been advised of the possibility of such damages. Such damages include but are not limited to: special, inciden- tal, consequential, or indirect damages for personal injury, loss of business profits, business interruption, loss of business information, or any other pecuniary loss. -
Page 9: 12. Atlona Product Registration
ATLONA PRODUCT REGISTRATION Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase. Registration creates an ownership record if your product is lost or stolen and helps ensure you’ll receive notification of performance issues and firmware updates.
