Summary of Contents for Atlona AT-DP300

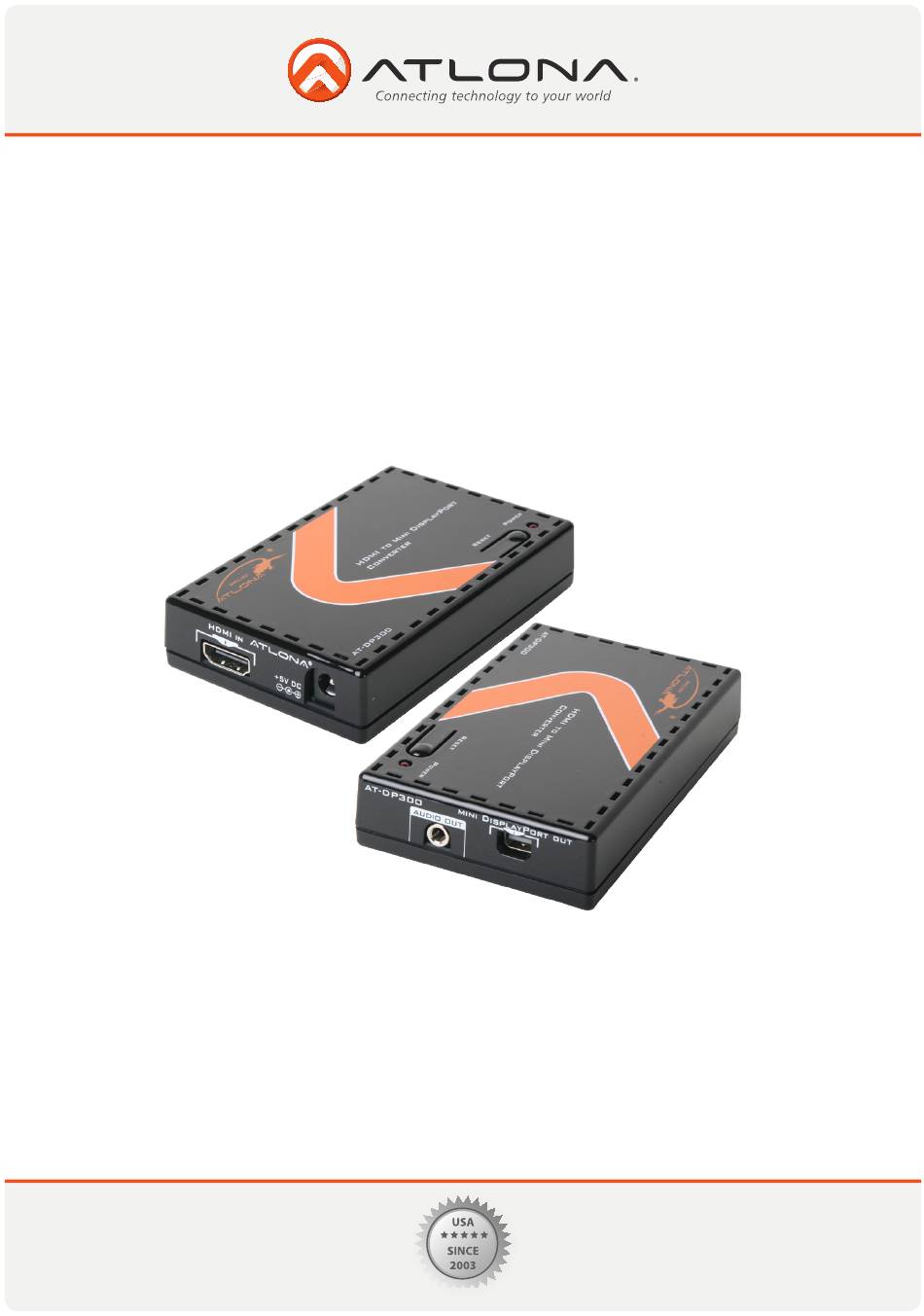

- Page 1 HDMI to Mini-DisplayPort Scaler/converter AT-DP300 User Manual Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
-
Page 2: Table Of Contents
1. Introduction 2. Applications 3. Package Contents 4. Features 5. Specifications 6. Panel Descriptions 6.1. Left Panel 6.2. Right Panel 6.3. Top Panel 7. Connection Diagram 8. Safety Information 9. Warranty 10. Atlona Product Registration Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 3: Introduction
Player, Cable Box, Video Game Console, Apple TV to Mini DisplayPort which is commonly used by Apple 24” LED, Apple 27” LED and iMac 27”. The AT-DP300 is able to accept high resolution audio/video signals up to 1080p and scale them to either 1920x1200 or 720p Apple 24”... -
Page 4: Package Contents
• Compatible with Apple 24-inch LED, Apple 27-inch LED and Apple iMac 27-inch • The AT-DP300 is designed for video gaming and has almost no latency below 2ms, which is basically no delay at all. • HDCP1.1 and DisplayPort 1.1a compliant •... -
Page 5: Panel Descriptions
1. RESET button: This button is designed to reset the converter to manufactures’ default. Only press it if you are not receiving any output signal. 2. Power LED: The Green LED will illuminate when the power is on. Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 6: Connection Diagram
CONNECTION DIAGRAM Blu Ray AT-DP300 Active Speakers Apple Monitor Dell Monitor Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 7: Safety Information
Never open, remove unit panels, or make any adjustments not described in this manual. Attempting to do so could expose you to dangerous electrical shock or other hazards. It may also cause damage to your AT-DP300. Opening the product will void the warranty. -
Page 8: Warranty
To the maximum extent permitted by applicable law, in no event shall Atlona Technologies or its suppliers be liable for any damages arising out of the use of or inability to use this product, even if Atlona Technologies has been advised of the possibility of such damages. Such damages include but are not limited to: special, inciden- tal, consequential, or indirect damages for personal injury, loss of business profits, business interruption, loss of business information, or any other pecuniary loss. -
Page 9: 10. Atlona Product Registration
ATLONA PRODUCT REGISTRATION Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase. Registration creates an ownership record if your product is lost or stolen and helps ensure you’ll receive notification of performance issues and firmware updates.
