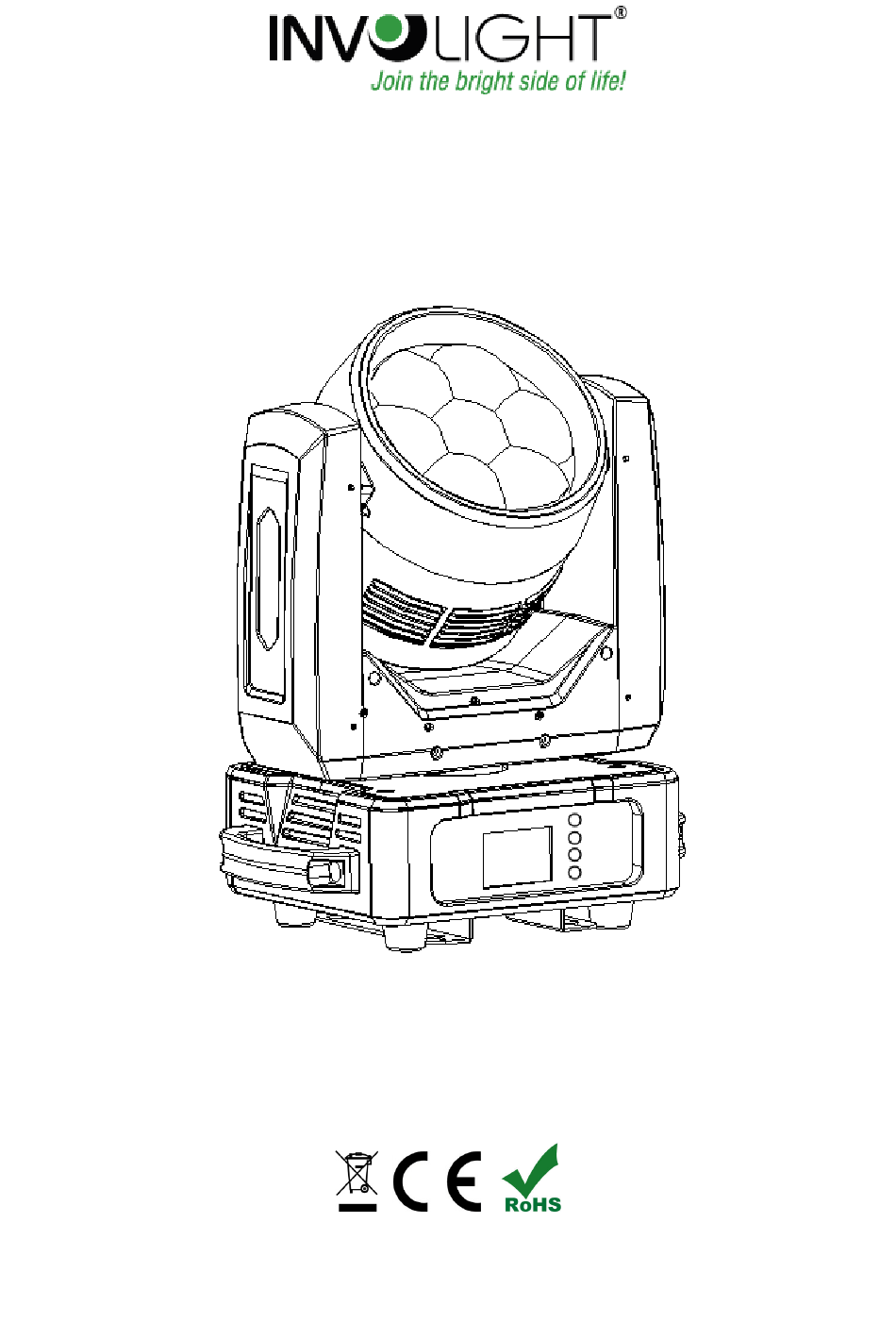

- Page 1 User manual PROWASH740Z Hybrid moving head 3 in1 Spot / Wash / Beam Ver. 1.0...
- Page 2 INVGROUP Germany GmbH Stöckenhoop 27B 21465 Wentorf bei Hamburg...
-
Page 3: Table Of Contents
Table content Part 1: Warnings: .................................4 1.1 Meaning of the safety symbols and signal words ....................4 1.2 Safety instructions: ............................5 Part 4. Functions and operations..........................7 4.1 Navigation in the Menu: .............................7 4.2 Menu structure: ...............................10 4.4 Connections in DMX mode „DMX“: .........................11 4.5 MASTER-SLAVE mode: ..........................11 4.6 STAND-ALONE mode: ............................11 5. -
Page 4: Part 1: Warnings
Congratulation for choosing INVOLIGHT PROWASH740Z. With this device you become an owner of a professional hybrid moving head with our latest technology. In order to make your PROWASH740Z long lasting, please read these instructions carefully before operation. If you have any questions, please contact your local INVOLIGHT dealer. -
Page 5: Safety Instructions
1.2 Safety instructions: This information sheet contains important information of safety operation of the device. Ensure that this information is available to all persons using this device. The rating plate is located on the bottom of the product. Please read all warnings and operating instructions carefully before using this unit. Keep this manual for future ref- erence. - Page 6 1.3 Intended use. The INVOLIGHT "PROWASH740Z" is a light unit with colored light effects. It was developed and designed for pro- fessional use in the field of event technology - exclusively indoors. The device may only be used by persons with sufficient physical, sensory and mental abilities as well as the appropriate knowledge and experience.
-
Page 7: Part 4. Functions And Operations
IMPORTANT! Overhead mounting requires a lot of experience. This includes knowledge of the load bearing capac- ity, the installation material used and the safety inspections of the material and the projector used, but the required experience is not limited to this. If you do not have the appropriate qualification. Instead, commission a professional installer. - Page 8 Display Operation Level 1 Level 2 Level 3 Press the button DMX Address code Sett- Address: 001-512 ings Channel Mode 23CH/16CH Invert Pan On/off Fixture Pan/Tilt Invert Tilt On/off Swap Pan-Tilt On/off Head Reset Reset Device Reset Default: Keep Pan/Tilt All Rest Stop Mode...
- Page 9 In the main interface, press the "MODE" button to view the software version. Use the "UP" and "DOWN" buttons to modify the DMX address. Click on the icon in the main interface to view numerical settings and related information of the lamps. If there are any error messages represented by symbols like “...
-
Page 10: Menu Structure

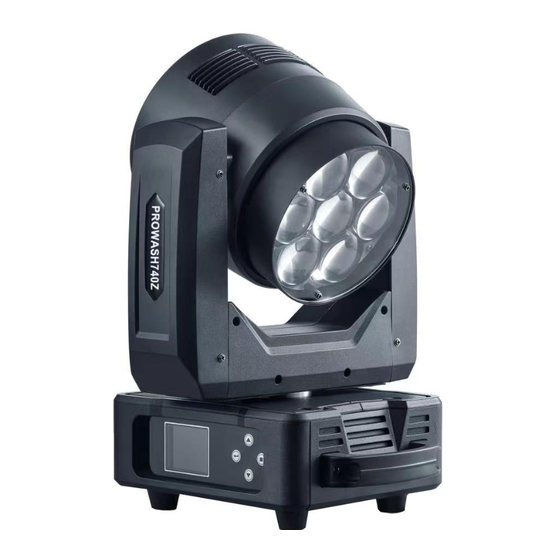

4.2 Menu structure: 4.3 Device description 1. Head Tilt360°,Fixture could auto reset. 2. Arm Pan 540°,Fixture could auto reset. 3. Base 4.3-pin XLR female 5.3-pin XLR male 6. display 7. power in 8. power out button UP button DOWN button ENTER button When changing the fuse, always disconnect the mains plug and only use the specified fuse types! -
Page 11: Connections In Dmx Mode „Dmx
Then, connect the DMX output of the first slave device to the DMX input of the second slave device, and so on. 4.6 STAND-ALONE mode: A PROWASH740Z can also be used in stand-alone mode without a DMX controller. Disconnect PROWASH740Z from the controller and call the pre programmed program. - Page 12 DMX Protocol Mode Value Function Simple Standard 0-255 0-100% Pan Fine 0-255 0-100% Tilt 0-255 0-100% Tilt Fine 0-255 0-100% Pan&Tilt Speed 0-255 Fast->Slow Functions 0-139 No function 140-159 Pan/Tilt reset 160-199 Zoom reset 200-209 Total fixture reset 210-255...
- Page 13 41-42 Filter 117 (Steel Blue) 43-44 Filter 118 (Light Blue) 45-46 Filter 122 (Fern Green) 47-48 Filter 182 (Light Red) 49-50 Filter 121 (Filter Green) 51-52 Filter 128 (Bright Pink) 53-54 Filter 131 (Marine Blue) 55-56 Filter 132 (Medium Blue) 57-58 Filter 134 (Golden Amber) 59-60...
- Page 14 123-124 Filter 352 (Glacier Blue) 125-126 Filter 353 (Lighter Blue) 127-128 Filter 507 (Madge) 129-130 Filter 778 (Millennium Gold) 131-132 Filter 793 (Vanity Fair) 133-235 Raw DMX Red/Cyan(8bit) 0-255 Colour saturation control-coarse 0-100%(255=default) Red/Cyan(16bit) 0-255 Colour saturation control-fine(255=default) ...
- Page 15 Zoom fine 0-255 0-100% Strobe No function Open 4-255 Strobe: Slow->Fast Dimmer 0-255 0-100% Dimmer fine 0-255 0-100% Tilt Rotation Stop 6-130 Rotation Forward: Fast->Slow 131-255 Rotation Backward: Slow->Fast No response to the DMX controller: Check the DMX connectors and cables for correct connection.
-
Page 16: Part 8. Technical Specifications
The objective lens should be cleaned on a weekly basis, since fog fluid residues settle very quickly, which consid- erably reduce the light output of the device. Clean the fan monthly. Maintenance and service work is reserved exclusively for authorized specialist personnel! Part 8. Technical specifications MODEL NAME: PROWASH740Z Product type: LED moving head Type: Wash LED Number:... - Page 17 Error codes: CODE # ERRO INFO CHECK MEASURMENT NOTE Program Err 1 Check the welding of Chip MBDInit Error Check the communication signal 485& 485 chip & memory IC RESET ERROR BD1Init Error Check main cable ABAB（485） chip BD2Init Error Bus1 Error Check main cable ABAB（485）...
-
Page 18: Part 9. Environmental Protection
WEEE-Reg.-Nr. Deutschland: DE91898274 Part 10. WARRANTY: INVOLIGHT devices are subject to the valid legal warranty provisions. Check with your dealer for the valid warranty conditions. The following conditions apply when purchasing an INVOLIGHT product: Only authorized dealers determined by INVOLIGHT may carry out repairs to INVOLIGHT devices. The warranty claim expires if an unauthorized service, technician or a private person undertakes a repair attempt or opens the device. - Page 19 PROWASH740Z PROWASH740Z Bestellnummer: A-000000-06082 www.involight.com...
