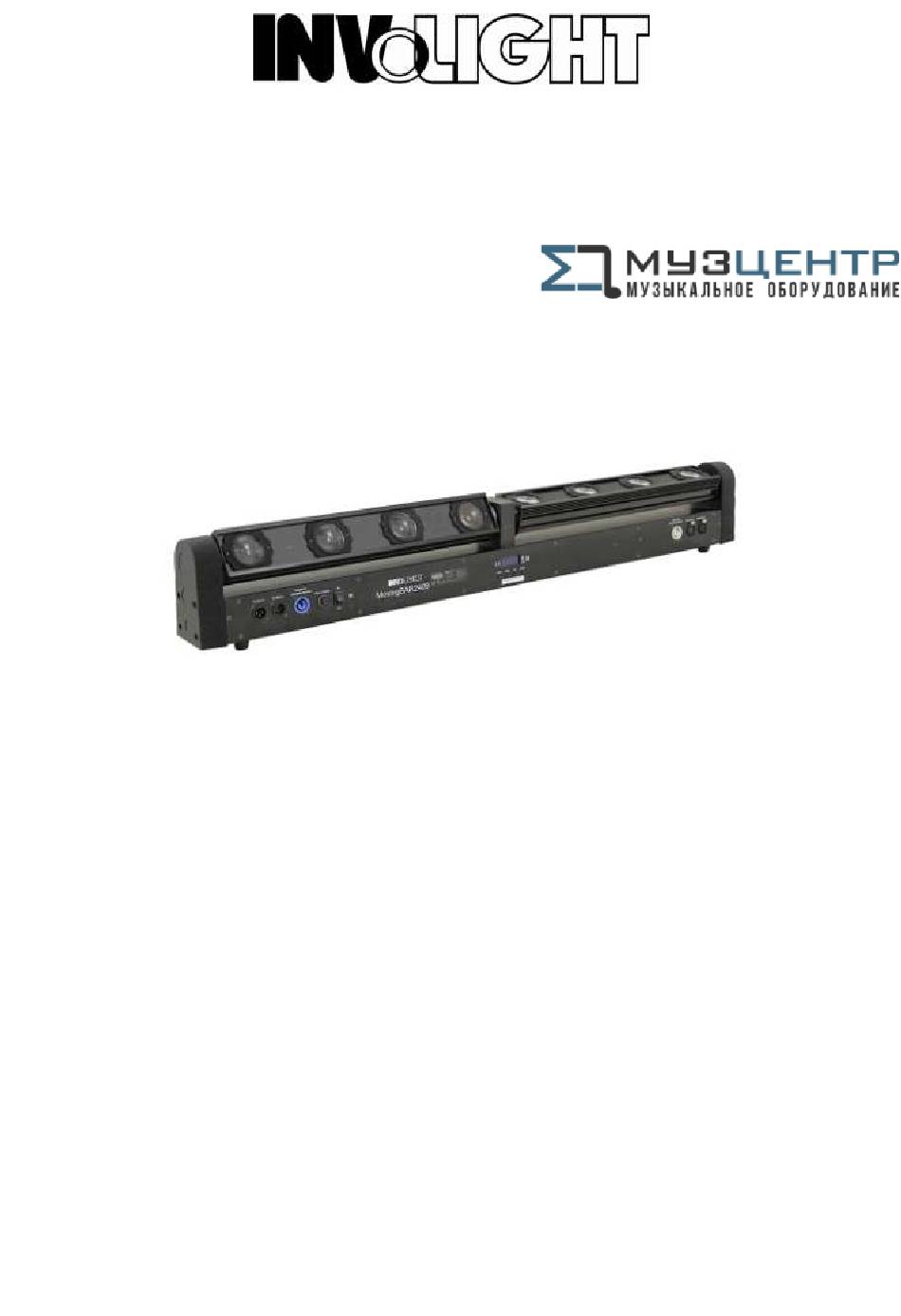

  • Page 1 INVOLIGHT MovingBAR2409 https://muzcentre.ru USER MANUAL...

  • Page 2: Specification

    DMX LED Linear Beam Bar User Manual Please read the manual before operation A. SPECIFICATION 1. Voltage: AC 100V-240V, 50Hz/60Hz 2. Power consumption: 72W 3. LED: 8*9W Cool White 4. Beam angle: 3° 5. DMX channels: 1,12,16CH 6. Operation mode: LCD display 7.
  • Page 3 plus In option menu, press to return to last menu In mode menu, press to enter next mode In parameter setting, press to subtract one DOWN subtract In option menu, press to return to next menu In mode menu, press to enter last mode E.

  • Page 4: Led Function

    1) LED function When choose “led”, and press “SETUP” enter to LED auto running parameter setting. You could choose e-Auto or e-Manul When choose “e-Auto”, press “SETUP” button enter to the menu Press “UP” and “DOWN” to select the parameter. When choose Speed will show: Press “UP”...
  • Page 5 2. Build-in program When display shows this menu, enter to the build-in program Press “SETUP” enters to choose build-in programs. There are 10 programs inside. Press “UP” and “DOWN” to choose from Show1 –Show10 3. Sound-active Mode When display shows this menu, enter to the sound-active mode. Press “SETUP”...
  • Page 6 30-39 Show2 40-49 Show3 50-59 Show4 60-69 Show5 70-79 Show6 80-89 Show7 90-99 Show8 100-109 Show9 110-119 Show10 120-139 LED close, electronic machine back to the horizontal position 140-255 Sound active DMX Mode 2: 12-ch 12-ch Channel Number Function 0--180 Left BAR 0-180°(90°...
  • Page 7 speed 0-255 LED1 0-100% 0-255 LED2 0-100% 0-255 LED3 0-100% 0-255 LED4 0-100% 0-255 LED5 0-100% 0-255 LED6 0-100% 0-255 LED7 0-100% 0-255 LED8 0-100% 0-255 Dimming No function 10-19 LED auto run，1-4 channel control the electronic machine 20-29 Show1 30-39 Show2 40-49...
  • Page 8 When choose “BL Time”, press “SETUP” button to set the time. Choose 5s, 10s, 20s, 30s, on through pressing “UP” and “DOWN” As the above picture, if you choose 10s. After you restore factory settings, the time will keep 10s. Choose “Adjust”, press “SETUP”...
  • Page 9 The above picture shows driver version (subject to the actual product) The above picture shows update date (subject to the actual product) G. Restore factory setting Operate in the setup menu, please refer to the operation Press “MODE”, “SETUP” and make power on. When LCD prompts the following process, release the button and restore factory settings.
  • Page 10 ООО «ИНВАСК» Адрес: 143406, Московская область, Красногорск, ул. Ленина, дом 3-Б Тел. (495) 565-0161 (многоканальный) Факс (495) 565-0161, доб. 105 http://www.invask.ru e-mail: invask@invask.ru Сервис-центр «ИНВАСК» Адрес: 143400, Московская область, Красногорск, Коммунальный квартал, дом. 20 Тел. (495) 563-8420, (495) 564-5228 e-mail: service@invask.ru...
