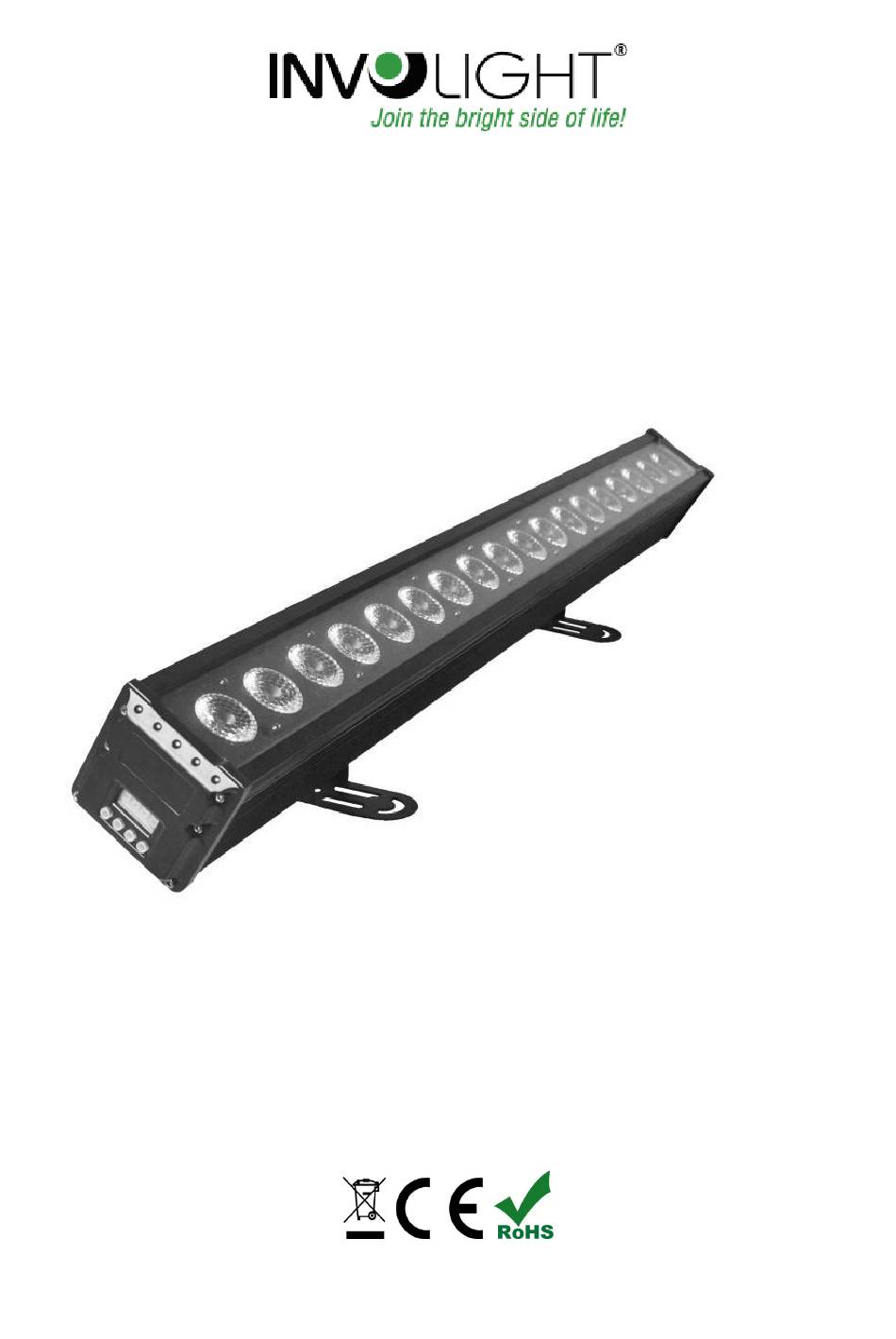

- Page 1 User manual IP BAR1818 5in1 Professional Pixel Bar 18 X 15W Ver. 1.0...
-
Page 2: Table Of Contents
Table content Part 1: Warnings: 1.1 Meaning of the safety symbols and signal words 1.2 Safety instructions: 1.3 Intended use. Part 2: Installation. Part 3. Functions and operations. Part 4. LED Display List Part 5. Background LED display function table Part 6. -
Page 3: Part 1: Warnings
In order to make your IP BAR1818 long lasting, please read these instructions carefully before operation. If you have any questions, please contact your local INVOLIGHT dealer. Part 1: Warnings: 1.1 Meaning of the safety symbols and signal words... -
Page 4: Safety Instructions
1.2 Safety instructions: This information sheet contains important information of safety operation of the device. Ensure that this information is available to all persons using this device. The rating plate is located on the bottom of the product. Please read all warnings and operating instructions carefully before using this unit. Keep this manual for future reference. -
Page 5: Intended Use
1.3 Intended use. The INVOLIGHT “IPBAR1818" is a light unit with colored light effects. It was developed and designed for professional use in the field of event technology - exclusively indoors. The device may only be used by persons with sufficient physical, sensory and mental abilities as well as the appropriate knowledge and experience. -
Page 6: Part 3. Functions And Operations
Part 3. Functions and operations. 1.Key instruction: function + Button - Button Enter Operational Instruction: Press A, there will be eight different kinds of functional effects: the former two number of digital pipe shows the present function (please refer to the functional list), the last two ones indicate address code and speed, and then press B or C to set the right parameter, last step is to press D for enter. -
Page 7: Part 4. Led Display List
Part 4. LED Display List (When all functions are confirmed press D to enter) Display Function A001 DMX512 Address 28ch/10ch/ Channel selection (28CH, 10CH, 100CH, 90CH) B, C addition and subtraction 100h/90h CC50 Colorful jumping, B, C to modify the jump speed Ed50 Colorful gradient, pulse change, (01-99) B, C to modify the gradient speed... -
Page 8: Part 5. Background Led Display Function Table
Part 5. Background LED display function table (In DMX512 mode, press the function key to enter, all the features D key to confirm) Display Function R200 Red current, (20-255) B, C key to modify the current G235 Green current, (20-255) B, C key to modify the current B235 Blue current, (20-255) B, C key to modify the current W235... -
Page 9: Part 6. Dmx512-11 Channel
Part 6. DMX512–11 Channel Function Instruction Dimmer R, G, B, W, U Dimmer Strobe R, G, B, W, U Strobe Function 31-45: (1channel bright) running effect1, (controlled by ,6channel-11channel, controlled selection 2 pattern 46-60: running effect2, (controlled by 1channel, 6channel-11channel, controlled pattern brightness) 240-255: running effect15 (controlled by 1channel, 6channel-11channel, controlled pattern bright) -
Page 10: Part 7. Dmx512-29 Channel
Part 7. DMX512–29 Channel Function Instruction Dimmer R, G, B, W, A Dimmer Strobe R, G, B, W, A Strobe Function 0-32: no function selection 1 33-37: white color from RGBWA 38-42: color jump 43-47: color gradient 48-67: color running flow, (colors in RGBWA order) 68-71: auto program 1 72-75: color flow, bouncing... -
Page 11: Part 8. Dmx512-91 Channel
Function 3 Direction control of the effect of colorful flowing water (0-127: left flow effect, 128-255: right flow effect, ) Function speed Function speed, from slow to fast R Dimmer R Dimmer G Dimmer G Dimmer B Dimmer B Dimmer W Dimmer W Dimmer CH10... -
Page 12: Part 9. Dmx512-101 Channel
Part 9. DMX512–101 channel Function Instruction Total dimmer R, G, B, W, Y, total dimmer, linear dimmer, from dark to bright Total dimmer R, G, B, W, Y total strobe, from slow to fast 0-32: no function Function selection 1 33-37: white color from RGBWA 38-42: color jump 43-47: color gradient... - Page 13 Function 31-45: Running effect1 (controlled by 1 channel, 6channel-11channel, controlled pattern brightness) selection 2 46-60: Running effect2 (controlled by 1 channel, 6channel-11channel, controlled pattern brightness) 216-240: Running effect14 (controlled by 1 channel, 6channel-11channel, controlled pattern brightness) 240-255: Running15 (controlled by 1 channel, 6channel-11channel, controlled pattern brightness) Function Direction control of the effect of colorful flowing water...
-
Page 14: Part 10: Troubleshooting
Part 10: Troubleshooting. The device does not work, no light: Check the mains connection and the main fuse. No response to the DMX controller: Check the DMX connectors and cables for correct connection. Check the address settings and the DMX polarity. -
Page 15: Part 13. Environmental Protection
WEEE-Reg.-Nr. Deutschland: DE91898274 Part 14. WARRANTY: INVOLIGHT devices are subject to the valid legal warranty provisions. Check with your dealer for the valid warranty conditions. The following conditions apply when purchasing an INVOLIGHT product: Only authorized dealers determined by INVOLIGHT may carry out repairs to INVOLIGHT devices. The warranty claim expires if an unauthorized service, technician or a private person undertakes a repair attempt or opens the device. - Page 16 IPBAR1818 Bestellnummer: A-000000-06082 www.involight.com...
