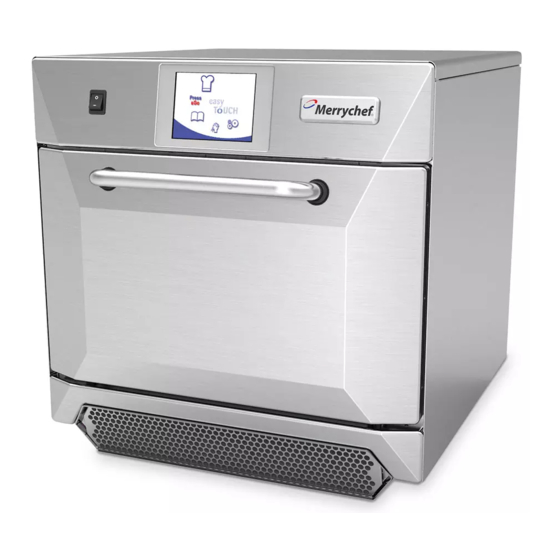

eikon e4s
Service & Parts Manual
eikon
CAUTION MICROWAVE EMISSIONS:
DO NOT BECOME EXPOSED TO EMISSIONS FROM THE
MICROWAVE GENERATOR OR PARTS CONDUCTING
MICROWAVE ENERGY.
TM
Service & Parts Manual original Instructions
Part Number 32Z3871 US
Issue 3
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the eikon e4s and is the answer not in the manual?

Questions and answers

Luis hung
March 30, 2025

Termocupla cual es el valor ohmico

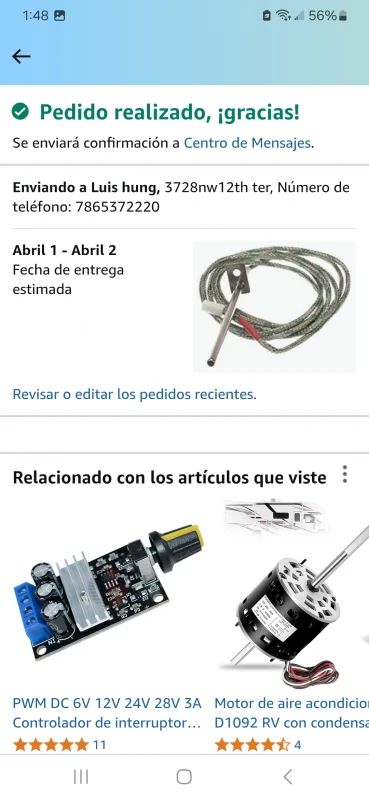

User image 67e99c0d8eed3
1 comments:
Mr. Anderson
March 31, 2025

The ohmic value of the thermocouple for the Merrychef eikon e4s is not provided in the given context.

This answer is automatically generated

steve
May 28, 2025

why is the wire rack welded on the top and the bottom

Subscribe to Our Youtube Channel

Summary of Contents for Merrychef eikon e4s

  • Page 1 Service & Parts Manual eikon CAUTION MICROWAVE EMISSIONS: DO NOT BECOME EXPOSED TO EMISSIONS FROM THE MICROWAVE GENERATOR OR PARTS CONDUCTING MICROWAVE ENERGY. Service & Parts Manual original Instructions Part Number 32Z3871 US Issue 3...
  • Page 2 SYMBOLS The symbols below are used, where applicable, as visual guidance throughout this manual. DANGER This symbol is shown if there is a high risk of severe personal physical injury. The relevant safety precautions MUST be observed and implemented at all times. WARNING This symbol is shown if there is a possible risk of personal physical injury or if damage may occur to the equipment.
  • Page 3: Table Of Contents

    CONTENTS SAFETY & REGULATIONS TESTING COMPONENTS 1 SAFETY REQUIREMENTS 15 OVEN TESTING 1.1 Important: 15.1 Equipment required 15.2 Earth/Insulation Test: PRODUCT DETAILS 15.3 Screen calibration: 2 PRODUCT OVERVIEW & FUNCTIONS 15.4 OVEN TESTS 3 MAIN FEATURES 15.5 Microwave Power Test 4 TECHNICAL SPECIFICATIONS 15.6 Microwave Leakage Test 4.1 Speci cations...
  • Page 4: Safety Requirements

    SWITCH OFF THE OVEN DISCONNECT/ISOLATE who have successfully undertaken a recognised product FROM THE ELECTRICAL SUPPLY familiarisation and training course run by Merrychef to carry KEEP THE OVEN DOOR CLOSED TO STIFLE ANY out service/repair tasks to the appliance/s shown on the front FLAMES.
  • Page 5: Product Overview & Functions

    2 PRODUCT OVERVIEW & FUNCTIONS CONSTRUCTION Stainless Steel cavity and casework. CONTROL SYSTEM Colour touchscreen, icon driven. Storage for up to 1024 programs with 6 stages per cooking program providing a user instruction for each stage. USB memory stick data transfer. Support for optional remote communications Ethernet module.
  • Page 6: Main Features

    3 MAIN FEATURES 1 ON/OFF SWITCH ON (I) activates the oven, OFF (0) switches the oven to standby mode. IT DOES NOT ISOLATE INTERNAL WIRING FROM THE MAINS SUPPLY. 2 CONTROL PANEL Touch sensitive controls (easyToUCH) for controlling oven functions, including diagnostics and service mode.
  • Page 7: Technical Specifications

    4 TECHNICAL SPECIFICATIONS 4.1 Speci cations Description unit Touch screen controls programs 1024 Ambient operating temperature °C/°F <40/104 External HxWxD 591x584x750 External HxWxD inches 23.3x23.0x29.5 Internal HxWxD 218x375x361 Internal HxWxD inches 8.6x14.8x14.2 Cooking chamber Ltr (cu.ins) 29.5 (1800) Power output microwave Watts 1800 Power output convection...
  • Page 8: Installation

    5 INSTALLATION 5.1 OVEN LOCATION AND POSITIONING Choose a site away from major heat sources. DO NOT position so that hot air is drawn in from fryers, grills, griddles, etc. A heat barrier to the height of the oven must be installed if sited next to a burner, stove or range.
  • Page 9: Electrical Installation

    6 ELECTRICAL INSTALLATION POWER SUPPLY REQUIREMENTS DANGER! This appliance should be connected to a suitable THIS APPLIANCE MUST BE EARTHED. electricity supply which can cope with the switching FAILURE TO DO SO MAY RESULT IN on surge that occurs with certain types of catering ELECTRIC SHOCK AND DEATH.
  • Page 10: Quick Start Guide: Quick Service Oven

    7 QUICK START GUIDE: QUICK SERVICE OVEN The easyToUCH screen display, layout and icons shown herein, are for guidance purposes only and are not intended to be an exact representation of those supplied with the oven. 7.1 START UP 1. Switch the oven on; Make all the relevant safety checks and ensure the oven is clean and empty before pressing the oven switch down to activate the oven.
  • Page 11: Using A Cooking Program

    7.2 USING A COOKING PROGRAM Taking all the necessary precautions to ensure you do not burn yourself, open the oven door to place the food into the hot oven and close the door. 1. Select a program group, for example, ‘BURGERS’ to display the individual cooking programs.
  • Page 12: Operating Guide: Full Service Oven

    8 OPERATING GUIDE: FULL SERVICE OVEN 8.1 easyToUCH MAIN MENU & KEYBOARD SCREEN MAIN MENU SCREEN: 1. DEVELOPMENT MODE enables multistage cooking programs to be developed, then stored under a name and symbol for reuse. DEVELOPMENT 2. PRESS & GO allows quick access to use the MODE cooking programs that are already stored.
  • Page 13: Development Mode: Creating A Cook Program 1

    8.2 DEVELOPMENT MODE: CREATING A COOK PROGRAM 1. Select the ‘chef’s hat’ symbol from the main menu to enter development mode. Enter stage 1 of the program 2. The temperature displays the set preheated oven temperature. To increase or decrease the temperature required, select the temperature symbol (2), enter the Example below;...
  • Page 14: Press & Go

    8.3 PRESS & GO Running a cooking program from the Press & Go menu. 1. Select ‘PRESS & GO’ from the main menu screen. 2. Select the item required to cook. 3. The display shows the cooking time count down. The timer bar turns red to indicate the cooking cycle has nished.
  • Page 15: Changing The Oven Temperature

    4. Select the required cooking program to start cooking. For example, ‘1 BURGER’ . 5. The program either starts immediately displaying a countdown timer, or an instruction is displayed rst; follow the stage instruction then select OK to start cooking. If the oven door is not opened within 30 seconds a warning message appears.
  • Page 16: Adding A New Program Group

    8.7 ADDING A NEW PROGRAM GROUP To add a new Program Group. 1. Select ‘COOKBOOK’ from the main menu screen. 2. Select ‘EDIT COOKBOOK’ . 3. Select the ‘ADD A NEW GROUP’ symbol. 4. Select the camera icon to open pictures. 5.
  • Page 17: Adding A Program To A Group

    8.9 ADDING A PROGRAM TO A GROUP To add a cooking program to an existing PROGRAM GROUP. Example add Program ‘4 BURGERS’ to the program group ‘BURGERS’ . 1. Select ‘COOKBOOK’ from the main menu screen. 2. Select the ‘BURGERS’ Program Group. 3.
  • Page 18: Oven Control Settings

    9 OVEN CONTROL SETTINGS 1. Select the ‘settings’ symbol from the main menu screen. 2. Enter the password and select OK to display the Settings menu (3) comprising: A. Oven mode/navigation settings. B. Language options. C. Oven temperature settings and labels. D.
  • Page 19: Recipe Counters (E)

    9.4 Recipe counters (E) 9.4.1 Select the clipboard symbol to display a listing of recipe counters. 9.4.2 If shown, use the arrows (bottom right) to scroll up and down the list. 9.5 Date and Time settings (F) 9.5.1 Select the time/date symbol to display the setting options.
  • Page 20: Usb Oven Programs (J)

    (1 ‘.cbr’ + ‘autoupd.ate’). 9.8.1 With the oven switched o , slide the Merrychef badge (oven front top right) upwards and insert the USB Memory Stick into the slot.
  • Page 21: Cooling The Oven Down Before Cleaning

    10 COOLING THE OVEN DOWN BEFORE CLEANING 10.1 Oven cool down IMPORTANT: the oven must be cooled down before the cleaning processes are carried out. 1. In Full Serve mode, select the CLEANING symbol from the main menu. 2. In Full or Quick Serve mode, select the blue thermometer symbol to disable heating and start the cooling cycle.
  • Page 22: Cold Oven Cleaning Instructions E4S

    11 Cold oven CLEANING INSTRUCTIONS e4s Complete COOL DOWN procedure and allow the oven and accessories to cool before commencing cleaning. DO NOT USE TOOLS REMOVE & CLEAN Oven Parts: 1. Remove the air lter at the base of the oven. 2.
  • Page 23: Servicing The Oven

    12 SERVICING THE OVEN 12.1 Servicing Procedure: DANGER: 12.1.1 Disconnect/isolate the oven from the power BEFORE REMOVING THE OVEN CASING, ISOLATE THE supply. OVEN FROM THE MAINS ELECTRICITY POWER SUPPLY; 12.1.2 Check the oven is correctly installed as SWITCH OFF, DISCONNECT OVEN PLUG FROM WALL SOCKET, TURN OFF ISOLATOR SWITCH TO DISCONNECT described in the Installation Instructions (Product FIXED WIRED OVENS AND LOCK OFF.
  • Page 24: Errors & Diagnostics

    13 ERRORS & DIAGNOSTICS 13.1 ERROR MESSAGES 13.1.1 A description of the type of error is shown. Check for a number following ‘ERROR:’ (A) and refer to the Error Codes (Fault Finding section) for more details. The Oven Serial Number, Model, UI (QTS) version and SRB version information is also displayed below.
  • Page 25: Visual View

    13.5 VISUAL VIEW 13.5.1 Select VISUAL VIEW (E) to check the main oven components. Select a component symbol to switch on (red), select again to increase the level or turn o (green). 13.5.2 Remove the front air intake lter, the colour should change from green to red on the display indicating that the magnetic reed switch circuit for the air intake lter is operating.
  • Page 26: Firmware Updates

    14 FIRMWARE UPDATES 14.1 Note: if icons are not displayed on the screen, press in the same positions on screen as the missing icons to select. 14.1.1 Switch on the oven. 14.1.2 Tap the top right of the screen (1) or the same position if it is not displayed to bypass oven preheat.
  • Page 27 14.1.9 Enter the password and select OK to display the Settings menu, see (2). 14.1.10 Select the USB symbol (4). 14.1.11 Slide the Merrychef badge (oven front top right) upwards and insert the USB Memory Stick into the slot (3).
  • Page 28 For update B) follow the rst 2 instructions: 14.1.24 With the oven switched o , slide the Merrychef badge (oven front top right) upwards and insert the USB Memory Stick into the slot (1). 14.1.25 Switch the oven ON (2).
  • Page 29: Oven Testing

    15 OVEN TESTING 15.1 Equipment required DANGER: Portable Appliance Tester (P.A.T.). ¢ BEFORE REMOVING THE OVEN CASING, ISOLATE THE Digital Multi-meter (D.M.M.). ¢ OVEN FROM THE MAINS ELECTRICITY POWER SUPPLY; SWITCH OFF, DISCONNECT OVEN PLUG FROM WALL Megger / similar 500V d.c. resistance meter. ¢...
  • Page 30: Oven Tests

    15.4 OVEN TESTS 15.4.1 Enter Service mode (Servicing section). 15.4.2 Select the down arrow to display the individual Oven tests (A) for the oven to perform. 15.5 Microwave Power Test Measuring the power output. Note: The power output is established under IEC 705 standard method which is only workable in Laboratory controlled conditions.
  • Page 31: Microwave Leakage Test

    15.6.8 Readings must be below 5mW/cm². If a level greater than 5mW/cm² is observed, this should be reported to the Merrychef Service Department immediately, and the oven should not be used. 15.6.9 Notes should be kept of any leakage that is observed in terms of the level and position on the oven.
  • Page 32: Temperature Control Test

    15.7 Temperature Control Test Measuring the oven cavity temperature. (Note; re-calibrating the Thermocouple with the SRB is normally only required when the Thermocouple has been replaced or the oven is under or over cooking.) Procedure: 15.7.1 Place the probe of a temperature reader (A) onto a heat sink or a metal plate in the centre of the oven cavity and close the oven door.
  • Page 33: Soak Test

    15.8 Soak Test Checking the oven cavity integrity. Procedure: 15.8.1 Place an oven/microwave safe container with approx. 2 litres of water into the oven. 15.8.2 Close the oven door and select ‘Soak Test’ (A) from the Service mode oven tests (maximum oven temperature, 50% microwave power, maximum fan speed).
  • Page 34: High Voltage Components

    16 HIGH VOLTAGE COMPONENTS High voltages and large currents are present at DANGER: the High Voltage Capacitor. It is very dangerous to work near this part when the oven is on. BEFORE REMOVING THE OVEN CASING, ISOLATE THE OVEN FROM THE MAINS ELECTRICITY POWER SUPPLY; NEVER make any voltage measurements at the SWITCH OFF, DISCONNECT OVEN PLUG FROM WALL High Voltage circuits, including the magnetron...
  • Page 35: High Voltage Capacitor Test

    High voltages and large currents are present at the High Voltage Capacitor. It is very dangerous to work near this part when the oven is on. NEVER make any voltage measurements at the High Voltage circuits, including the magnetron lament. 16.3 High Voltage Capacitor Test 16.3.1 Disconnect and isolate the oven from the electricity supply.
  • Page 36: Mains Voltage Components

    17 MAINS VOLTAGE COMPONENTS 17.1 Door Interlock Adjustment Located on the door hinges are 3 safety interlock microswitches, to prevent microwave emissions escaping when the oven door is opened: The Primary (SW3) breaks the electrical supply circuit to the transformers. The Secondary (SW2) breaks the microwave circuit if the primary fails.
  • Page 37: Convection Fan Motor & Controller

    17.2 Convection Fan Motor & Controller 17.2.1 Convection Fan Motor. The convection motor Is a 3-phase AC motor having a maximum speed of 7200 rpm controlled by a motor speed controller. The windings are thermally protected and in the event of a thermal fault a trip inside the motor will operate and shut down the motor speed controller.
  • Page 38: Oven Components

    18 OVEN COMPONENTS DANGER: BEFORE REMOVING THE OVEN CASING, ISOLATE THE OVEN FROM THE MAINS ELECTRICITY POWER SUPPLY; SWITCH OFF, DISCONNECT OVEN PLUG FROM WALL SOCKET, TURN OFF ISOLATOR SWITCH TO DISCONNECT FIXED WIRED OVENS AND LOCK OFF. WARNING: ALLOW OVEN TO COOL. OBSERVE AND FOLLOW ALL SAFETY PRECAUTIONS INCLUDING THOSE DESCRIBED UNDER THE SAFETY REGULATIONS SECTION OF...
  • Page 39 51 Magnetron cooling duct RH 11 Magnetron 33 Heater element x2 (connectors shown) 65 Motor assembly convection fan 24 Gland Power supply cable 52 Magnetron cooling duct LH 62 HT Diode 85 Transformer 69 Cooling fan motor Capacitor 1.5µF (Silver) motor start 13 Overheat stat Magnetron 17 QTS Touch Screen PCB Switch oven ON/OFF (rear connection)
  • Page 40: Srb & Qts Circuit Boards

    19 SRB & QTS Circuit Boards 19.1 SRB replacement 19.1.1 Disconnect and isolate the oven from the electricity supply. 19.1.2 Allow the oven to cool down. 19.1.3 Remove the oven casing. 19.1.4 Ensure that the High Voltage Capacitor is discharged before commencing work. 19.1.5 Taking anti-static precautions, disconnect all connections on the SRB.
  • Page 41: Pm (Personality Module) Replacement

    19.3.3 Enter the service password and select OK to display the Settings menu, see (3). 19.3.4 Select the USB symbol (4). 19.3.5 Slide the Merrychef badge upwards and insert the USB Memory Stick into the slot (5). 19.3.6 Once the USB has stopped ashing, select the required USB recipe symbol (6).
  • Page 42: Spare Parts Exploded View

    20 SPARE PARTS EXPLODED VIEW Service & Parts Manual original Instructions Part Number 32Z3871 US Issue 3...
  • Page 43: Spare Parts

    21 SPARE PARTS Parts list & recommended minimum stock holding & Service Kits Merrychef eikon e4s Oven Recommended Minimum Stock Holding & Service Kits Recommended Parts List Service Part 1-10 11-50 51-100 Unique Description Unit Aid/To Centre Number Ovens Ovens...
  • Page 44 SA3150 e4s LOWER CAT ASSY SA3151 e4s UPPER CAT ASSY SA3153 e4s AIR DIFFUSER ASSY eikon e4s 230Volts 50Hz - UK/EU - Single Phase - Unique Parts 30Z0231 FUSEHOLDER 1in (13A) 30Z0456 FUSE 1in 13A HRC 30Z1425 TRANSFORMER 240V 50/60Hz 30Z1431 1.2uF 2500V CAPACITOR...
  • Page 45 1.00uF 2500V CAPACITOR 30Z1488 e4s MAINS FILTER P30Z1230 60HZ TRANS MULTI TAP POWER SUPPLY LEAD HE (EU) eikon e4s 208V & 240V 60Hz - USA - Unique Parts 30Z0285 FUSEHOLDER 1 1/4in (13A) 30Z1331 1.00uF 2500V CAPACITOR 30Z1439 OMRON RELAY 12V...
  • Page 46: Error Codes Displayed

    22 ERROR CODES DISPLAYED Error Error System Error Condition Description Trigger Possible Causes Code Level Response The current measured by the Failure of Display error Detects a magnetron Magnetron failed current sensing component/s in message until E 101 is not working Critical to energise transformer...
  • Page 47 Error Error System Error Condition Description Trigger Possible Causes Code Level Response Firmware update The QTS has has been carried Display error SRB rmware version found that out to the QTS message until SRB version incompatible with the rmware Critical E 110 and the SRB has system is...
  • Page 48: Srb & Qts Circuit Boards

    23 SRB & QTS Circuit Boards 23.1 QTS LEDs Run - Pulsing 1 second ash, indicating that the ¨ board has booted up. Power - Lit to show that there is a power supply ¨ from the SRB. P-Bus - Irregular ashing, indicating data ¨...
  • Page 49: Srb Led's

    23.3 SRB LED’s P-Bus - Irregular ashing, indicating data © communication with QTS. Run - Pulsing 1 second ash, indicating that the © board has booted up. 12v & 5v - Lit to show voltage outputs from © inboard transformer. Relay &...
  • Page 50: Srb Terminal Locations

    23.4 SRB Terminal Locations: 1 X3 - Output for e4s Convection Fan Speed Controller. 2 X101 - Voltage Selection Relay coil feeds.(US Only) 3 X18b - Air intake Filter Reed Switch. 4 X18e - Right Magnetron Overheat Thermostat. 5 X18d - Left Magnetron Overheat Thermostat. 6 X18c - Cavity Overheat Thermostat.
  • Page 51: Circuit Diagrams

    24 CIRCUIT DIAGRAMS 3rd ANGLE PROJECTION Mains Input Motor Speed Controller Mains Filter Delta Star Secondary Micro Switch Green Blue Note Switches Shown in Door Closed Position Fuse Rating Fuse 20 Amp 20 Amp 20 Amp 20 Amp Convection Fan 12 Amp 13 Amp Brown...
  • Page 52 RJ-45 Diode HV07 - 16 C - Bus Coms Modules RJ-12 P - Bus RJ-11 eikon e4s Speaker Wire e4s Wiring Diagram 50/60Hz 0 (DJOHVWRQH  DRG.No. 32Z3845 Service & Parts Manual original Instructions Part Number 32Z3871 US Issue 3...
  • Page 53: Power Connections E4S

    24.1 POWER CONNECTIONS e4s Product e4s Neutral Single Phase & Neutral Model Microwave 1800W Heater circuit Convection heater 3.2kW Microwave circuit Control circuit Live Heater circuit Microwave circuit Control circuit Service & Parts Manual original Instructions Part Number 32Z3871 US Issue 3...
  • Page 54: Control Circuit E4S

    24.2 CONTROL CIRCUIT e4s Mains Input - L2 RFI Filter 12 Amp Safety Aux. 1.25A Input Detection for Control Safety Relay Supply RFI Filter Mains Input - L1 Service & Parts Manual original Instructions Part Number 32Z3871 US Issue 3...
  • Page 55: Heater Circuit E4S

    24.3 HEATER CIRCUIT e4s Mains Input - L2 RFI Filter 20 Amp x2.1 x14.1 Safety Heater Relay Temperature Powered by Safety Supply Input for Thermocouple Relay x14.2 Processor Controlled x2.2 Heater Element RFI Filter Mains Input - L1 Service & Parts Manual original Instructions Part Number 32Z3871 US Issue 3...
  • Page 56: Microwave Circuit E4S

    24.4 MICROWAVE CIRCUIT e4s Mains Input - L2 RFI Filter 20 Amp RHS SW2 Normally Open Door Switches Shown in x.10 Door Open Position LHS SW3 Normally Open Safety Relay Microwave Powered By Safety Supply Relay Current Sense To SRB E101 Sence Hybrid Relay x102b...
  • Page 57: Commissioning The Oven

    25 Commissioning the oven 25.1 Initial installation 25.2 After Service 1 Unpack the Oven and check for damage. Complete the following checks after the Oven has been Serviced/Repaired/Tested before connecting to the 2 Check Oven Accessories. mains electricity power supply: 3 Check location will provide adequate Ventilation.
  • Page 58 Service & Parts Manual original Instructions Part Number 32Z3871 US Issue 3...
  • Page 59: Service & Parts Manual Original Instructions Part Number 32Z3871 Us Issue

    Correct disposal of this product (Waste Electrical & Electronic Equipment) To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.
