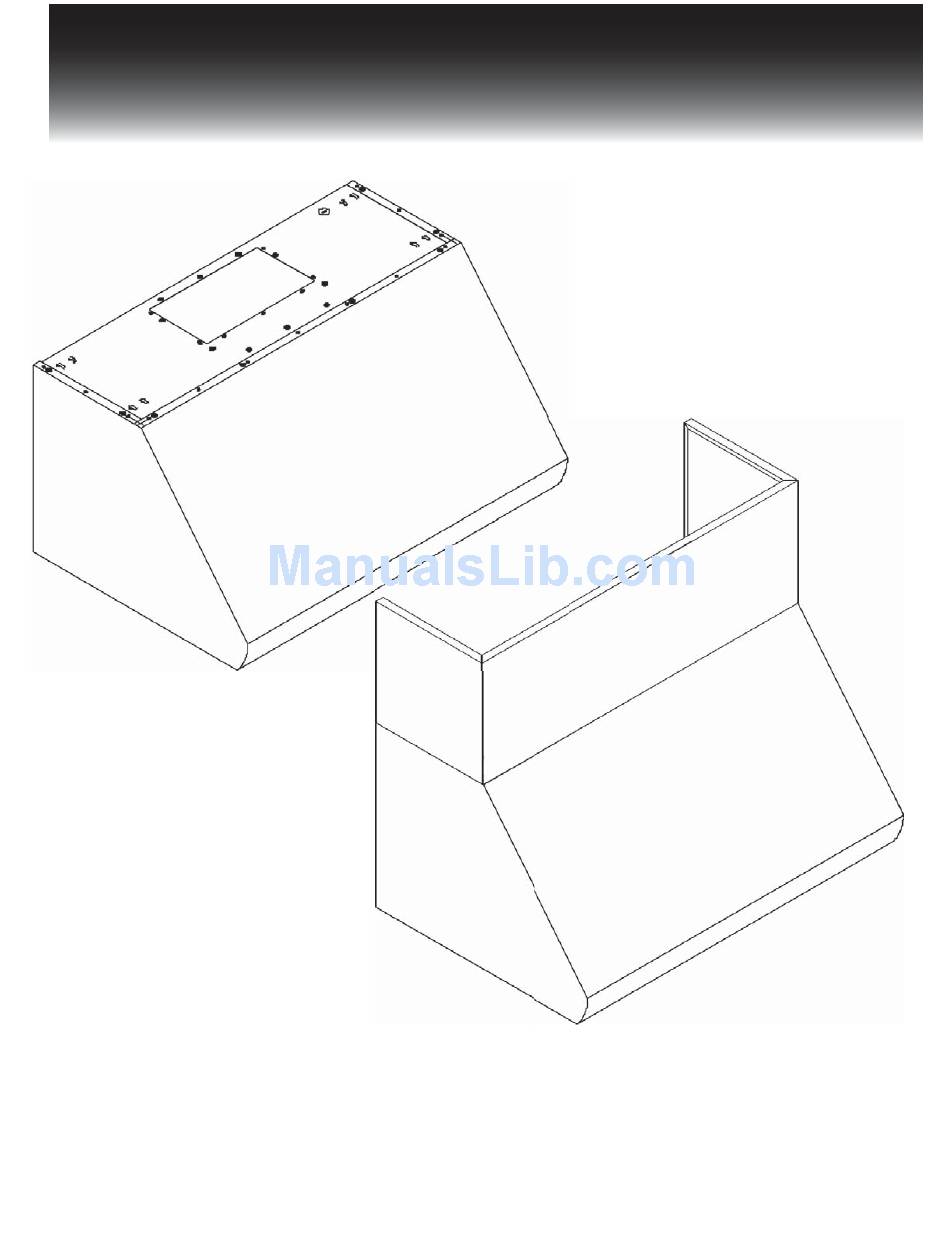

Installation Guide and Users Manual and Users Manual IMPORTANT: Read and save these instructions. Professional Series NOTICE: Installer: Leave this guide with the homeowner (PS09) Homeowner: Keep this guide for future reference Under Cabinet/Wall Mount Range Hood...
Important Safety Notice Read all Instructions before Installing and operating this appliance • The installation in this manual is intended for qualified installers, service technicians or persons with Installation Guide similar qualified background. Installation and electrical wiring must be done by qualified profession- als and in accordance with all applicable codes and standards, including fire-rated construction.
Page 4
Important Safety Notice Read all Instructions before Installing and operating this appliance • Clean ventilating fan frequently. • Always use appropriate cookware and utensils size. • Always use cookware appropriate for the size of the surface element. To reduce the risk of injury to persons in the event of a stove top grease fire: •...
Venting Requirements Height & Clearance • Vent system must terminate to the outside (roof or side wall). • DO NOT terminate the vent system in an at- tic or other enclosed area. • DO NOT use 4” (10.2 cm) laundry-type wall Cabinet or Single- caps.
IMPORTANT: • A minimum of 8” round (standard for this range hood) or 3-1/4 x 10” rectangular duct (purchased separate- ly) must be used to maintain maximum airflow efficiency. • Always use rigid type metal/aluminum ducts if available to maximize airflow when connecting to provided duct.
Venting Methods • This range hood is factory set for venting through the roof or wall. • Vent work can terminate either through the roof or wall. To vent through a wall, a 90° elbow is needed. IMPORTANT: • NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or garages.
Electrical Requirements IMPORTANT: Observe all governing codes and ordinances. It is the customer’s responsibility: • To contact a qualified electrical installer. If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path is adequate.
Page 10
Preparation Advanced Preparations: • Be familiar with the controls of the range hood by reading through Range Hood Operations, Page 12. • Place the range hood on a flat, stable surface. Connect the range hood to a designated standard outlet (120-Volt, 60Hz, AC only) and turn on the range hood.
Installation Installations (refer to Page 4 for parts): I t ll ti ( f t P Measure the distance between stove top and the bottom of range hood. A distance of 27” to 30” is recommended*. *Due to different ceiling height configurations, recom- mended height may not be applicable.
Page 12
Installation (Continued) Store excess wires in the wiring box. OPTIONAL: If you purchased a single-piece chimney cover, attach it to the hood in this step. Drop oil tunnel into recess support near rear of hood. Refer to Figure 9. To install baffle filters and stainless spacer(s), refer to Baffle Filters and Stainless Steel Spacers on Page 18 for baffle filter and stainless spacer placement.
Range Hood Operations Control Panel Layout and Buttons Configurations: LED Light LED Speed Indicator Indicators Light Control Speed Control Power Control (On/Off) This range hood is equipped with four electronic controls, oversized powerful centrifugal squirrel cage motor with stainless steel grease tunnel, stainless steel baffle filters and spacers, two bright 12V 20W halogen lights and 120V 250W heating lamp sockets (heating lamps sold separately).
Page 14
Range Hood Operations (Continued) Control Panel Layout and Buttons Configurations: Decrease Increase Speed Speed LED Light LED Speed Indicator Indicators Light Control Power Control (On/Off) • During this 3-minutes delay, changing speeds will not affect the countdown. Immediate Power-off • While the fans are in 3-minute power-off delay mode, press the Power Control (On/Off) button once to turn OFF the fans immediately.
Troubleshooting If the range hood or halogen light does not operate • Check if the range hood has been plugged in, make after installation: sure that all power has been turned back ON, fused not blown and all electrical wiring are properly con- nected.
Use and Care Information Operations: • Read and understand all instructions and warnings in this manual before operating the appliance. Save these instructions for future reference. • Always leave safety grills and filters in place. Without these components, operating blowers could catch on to hair, fingers and loose clothing.
Page 17
Measurements and Diagrams • All measurements in parenthesis are in millimeter. • All inch measurements are converted from millimeters, thus inch measurements are estimated. With optional single-piece chimney: Without optional single-piece chimney: Page 16 Page 16...
Page 18
• All measurements in parenthesis are in millimeter. • All inch measurements are converted from millimeters, thus inch measurements are estimated. Without hood-mounting bracket: With hood-mounting bracket: Page 17...
Page 19
• All measurements in parenthesis are in millimeter. • All inch measurements are converted from millimeters, thus inch measurements are estimated. Rear Knockout Holes: Hood-mounting Bracket: Page 18...
Page 20
Baffle Filters and Stainless Steel Spacers: 30” Range Hood 36” Range Hood Circuit Diagram: Page 19...
Maintenance SAFETY WARNING: Never put your hand into area housing the fan while the fan is operating! SAFETY WARNING N For optimal operation, clean range hood and all baffle/spacer/filter/grease tunnel/oil container regularly. Regular care will help preserve the appearance of the range hood. Cleaning Exterior surfaces: •...
Warranty must rese sent chas date Pl Plea ease a an h a hase l e les re rece i n invo i in d e der ai ain se serv i c ice d e der warr rran One Year Parts Warranty: For one year from the date of original purchase, we will provide free of charge, non- consumable replacement consumable replacement parts or components that failed due to manufacturing defects.
Page 25
Disclaimer Carefully inspect all items for damages before accepting delivery. note any damages on the freight bill or express receipt. request name and signature of the carrier’s agent and keep copy to support your claim. Upon acceptance of items, owner assumes responsibility for its safe arrival. Report damages to the carrier and file a claim immediately.
Page 26
Spagna Vetro Appliances Inc. 7272 Buller Avenue Burnaby, BC V5J 4S3 http://www.KitchenHoods.ca...
