Installation Guide
and Users Manual

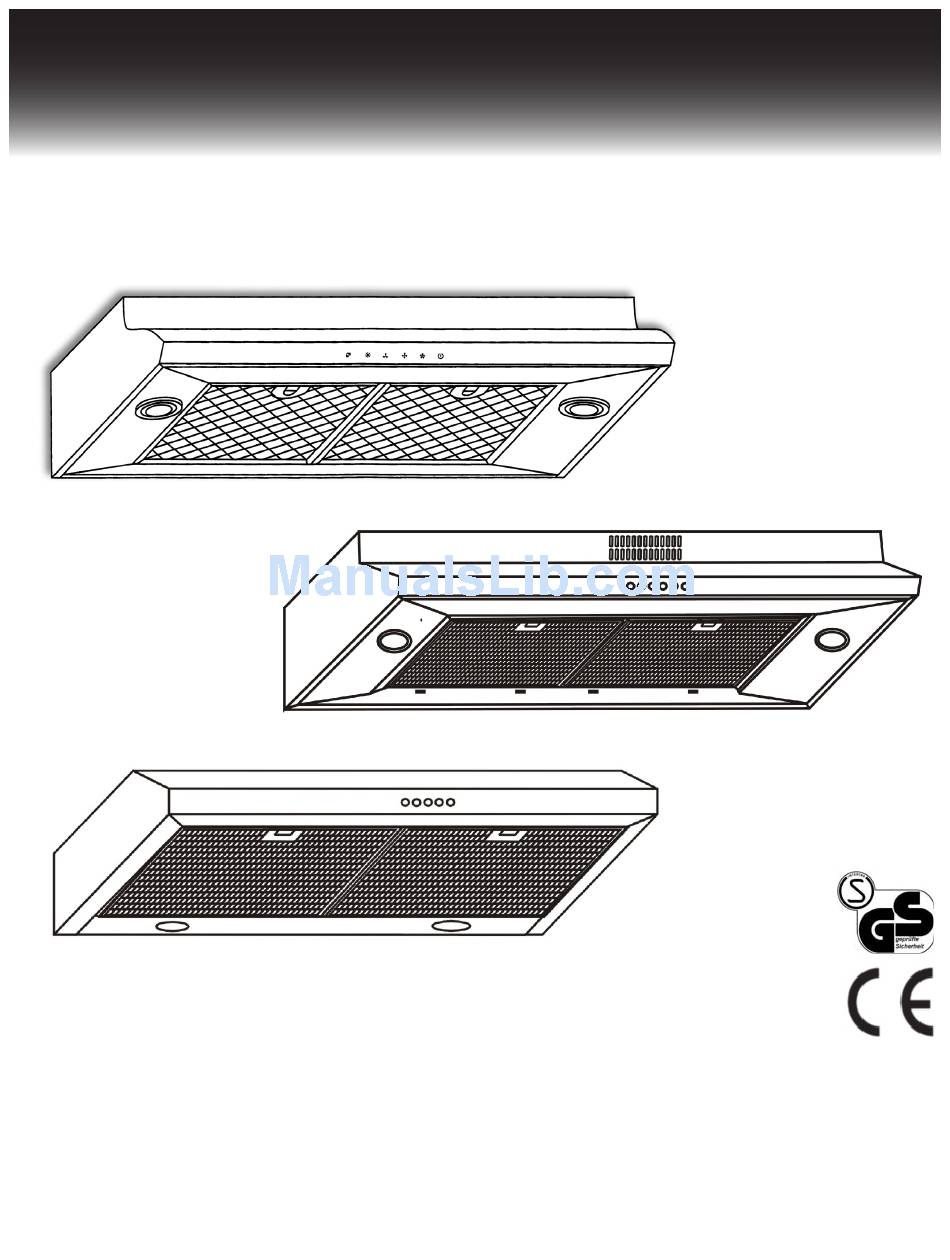

UC200 Series Under Cabinet
IMPORTANT:
Read and save these instructions.
NOTICE:
Installer: Leave this guide with the homeowner
Homeowner: Keep this guide for future reference
Under Cabinet Range Hood
Suitable for:
4100 Class
2000 Class
1900 Class
1800 Class
SPAGNA VETRO
Rev. 1032u.3a
Advertisement
Table of Contents
Related Manuals for Spagna Vetro UC200 Series
Summary of Contents for Spagna Vetro UC200 Series
- Page 1 Installation Guide and Users Manual UC200 Series Under Cabinet Suitable for: 4100 Class 2000 Class 1900 Class 1800 Class IMPORTANT: Read and save these instructions. NOTICE: Installer: Leave this guide with the homeowner Homeowner: Keep this guide for future reference...
-
Page 3: Important Safety Notice
Important Safety Notice Read all Instructions before Installing and operating this appliance • The installation in this manual is intended for qualified installers, service technicians or persons with similar qualified background. Installation and electrical wiring must be done by qualified profession- als and in accordance with all applicable codes and standards, including fire-rated construction. - Page 4 Important Safety Notice Read all Instructions before Installing and operating this appliance • Clean ventilating fan frequently. • Always use appropriate cookware and utensils size. • Always use cookware appropriate for the size of the surface element. To reduce the risk of injury to persons in the event of a stove top grease fire: •...
-
Page 5: Table Of Contents
Table of Contents INSTALLATION USE AND CARE Tools needed............3 Troubleshooting...........15 Parts supplied...........4 Use and care information.......16 Venting requirements........5 Specifications..........16 Mount heights & clearance......5-6 Measurements & Diagrams......17-21 MAINTENANCE Calculating vent system length.......6 Venting methods & charcoal filters....7 Cleaning..........22 Ductless conversion & electrical requirements.8 Replacing the filter &... -
Page 6: Parts Supplied
Parts Supplied: UC200 Series Under Cabinet Range Hood (vary with model) Aluminum Filters (Pre-Installed) for 1900 & 2000 Class for 4100 Class for 1800 Class Rectangular Exhaust/Vent Adapter (For vertical or horizontal venting) Round Exhaust /VentAdapter (For vertical venting) Qty: 4 PCS... -
Page 7: Venting Requirements
Venting Requirements Height & Clearance • Vent system must terminate to the outside (roof or side wall). • DO NOT terminate the vent system in an at- tic or other enclosed area. • DO NOT use 4” (10.2 cm) laundry-type wall caps. -
Page 8: Calculating Vent System Length
IMPORTANT: • A minimum of 6” round (standard for this range hood) or 3-1/4 x 10” rectangular duct (purchased separate- ly) must be used to maintain maximum airflow efficiency. • Always use rigid type metal/aluminum ducts if available to maximize airflow when connecting to provided duct. -
Page 9: Venting Methods & Charcoal Filters
Venting Methods IMPORTANT: • NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or garages. All exhaust must be ducted to the outside. • Use metal/aluminum duct work only. • Fasten all connections with sheet metal screws and tape all joints with certified Silver Tape or Duct Tape. •... -
Page 10: Ductless Conversion
Ductless Conversion • Ductless conversion is intended for applications where an exhaust duct work is not possible to be installed. When converted, the hood functions as a purifying hood rather than an exhaust hood. Fumes and exhaust from cooking is drawn and filtered by a set of charcoal filters. The air is then purified and re-circulated back within the home. -
Page 11: Preparation
Preparation WARNING Advanced Preparations: • Be familiar with the controls of the range hood by reading through Range Hood Operations, Page 13-14. • Place the range hood on a flat, stable surface. Connect the Excessive Weight range hood to a designated standard outlet and turn on the Require three or more person to move and range hood. -
Page 12: Installation
Installation Installations (refer to Page 4 for parts): Measure the distance between stove top and the bottom of range hood. A distance of 27” to 30” is recommended*. *Due to different ceiling height configurations, recommend- ed height may not be applicable. You have two ways (A: Vertical Venting, or B: Horizontal Venting) to mount this range hood: Determine venting method as shown on Page 7 and proceed if you would like to vent vertically. - Page 13 Installation Figure 3: Cabinet Bottom View (Continued) UC200-4130W Wood Filler Strips (Not included) Hood Mounting Screws Electrical Access Opening Wall Centerline UC200-2000 Class Wood Filler Strips (Not included) Hood Mounting Screws Electrical Access Wall Centerline Opening UC200-1900 Class Wood Filler Strips (Not included) Electrical Access...
-
Page 14: Installation
Installation (Continued) Figure 5: Cabinet Front View UC200-4130W Centerline Hood Electrical Mounting Wire Screws Opening UC200-1900 Class Centerline Electrical Hood Wire Mounting Opening Screws UC200-1800 Class Centerline Figure 6: Electrical wires through rear opening Page 12... -
Page 15: Range Hood Operations
Range Hood Operations Control Panel Layout and Buttons Configurations: 1. Electronic Control Light Control Filter Clean Quiet High Power Control Reminder Speed Speed Speed (On/Off) This range hood is equipped with five electronic controls, a powerful centrifugal squirrel cage motor with two aluminum filters, two bright 20W~12V or 40W~120/240V halogen lights and a filter clean reminder. -
Page 16: Level
Range Hood Operations (Continued) Control Panel Layout and Buttons Configurations: Turning Fan OFF: The 3-minute power-off delay function will only turn OFF fans. The light settings will not be affected by the delay function. Three-Minute Delay • While the fans are operating, press Power Control (On/Off) button once, the Power Control LED will flash and fans will turn OFF after 3-minutes. -
Page 17: Troubleshooting
Troubleshooting If the range hood or halogen light does not operate • Check if the range hood has been plugged in, make after installation: sure that all power has been turned back ON, fused not blown and all electrical wiring are properly con- nected. -
Page 18: Use And Care Information
Use and Care Information Operations: • Read and understand all instructions and warnings in this manual before operating the appliance. Save these instructions for future reference. • Always leave safety grills and filters in place. Without these components, operating blowers could catch on to hair, fingers and loose clothing. -
Page 19: Measurements & Diagrams
Measurements and Diagrams • All measurements in parenthesis are in millimeter. • All inch measurements are converted from millimeters, thus inch measurements are estimated. UC200-4100 Class: Front View Rear View: Top View: Page 17... - Page 20 • All measurements in parenthesis are in millimeter. • All inch measurements are converted from millimeters, thus inch measurements are estimated. UC200-2000 Class: Front View Rear View: Top View: Page 18...
- Page 21 • All measurements in parenthesis are in millimeter. • All inch measurements are converted from millimeters, thus inch measurements are estimated. UC200-1900 Class: Front View Rear View: Top View: Page 19...
- Page 22 • All measurements in parenthesis are in millimeter. • All inch measurements are converted from millimeters, thus inch measurements are estimated. UC200-1800 Class: Front View Rear View: Top View: Page 20...
-
Page 23: Circuit Diagram
Circuit Diagram: UC200-4100 Class GREEN UC200-18/19/2000 Class NOTE: Wiring Diagram shown above with GU10 light configuration. A transformer is required for MR16/J4 Lights. Page 21... -
Page 24: Cleaning
WARNING Maintenance SAFETY WARNING: Never put your hand into area housing the fan while the fan is operating! Hazard of Burns! For optimal operation, clean range hood & all filter/oil container regu- Light bulb become extremely hot when turned on. larly. - Page 25 WARNING Maintenance (Continued) Hazard of Burns! Replacing J4 Type Halogen Light Bulb: Light bulb become extremely hot when turned on. DO NOT touch bulb until switched off and cooled. • When the range hood uses J4 type halogen light bulb: 20W 12V. Touching hot bulbs could cause serious burns.
-
Page 26: Coverage & Exceptions
Warranty TO OBTAIN SERVICE UNDER WARRANTY: You must present proof of original purchase date. Please provide an original dated proof of purchase (sales receipt / invoice) in order to obtain service under warranty. One Year Parts Warranty: For one year from the date of original purchase, your local reseller will provide free of charge, non-consumable replace- ment parts or components that failed due to manufacturing defects. -
Page 27: Disclaimer & Contact Us
Disclaimer Carefully inspect all items for damages before accepting delivery. note any damages on the freight bill or express receipt. request name and signature of the carrier’s agent and keep copy to support your claim. Upon acceptance of items, owner assumes responsibility for its safe arrival. Report damages to the carrier and file a claim immediately. - Page 28 SPAGNA VETRO Spagna Vetro Appliances Inc Burnaby ,BC , Canada www.KitchenHoods.ca tel. 604 430 5252...
