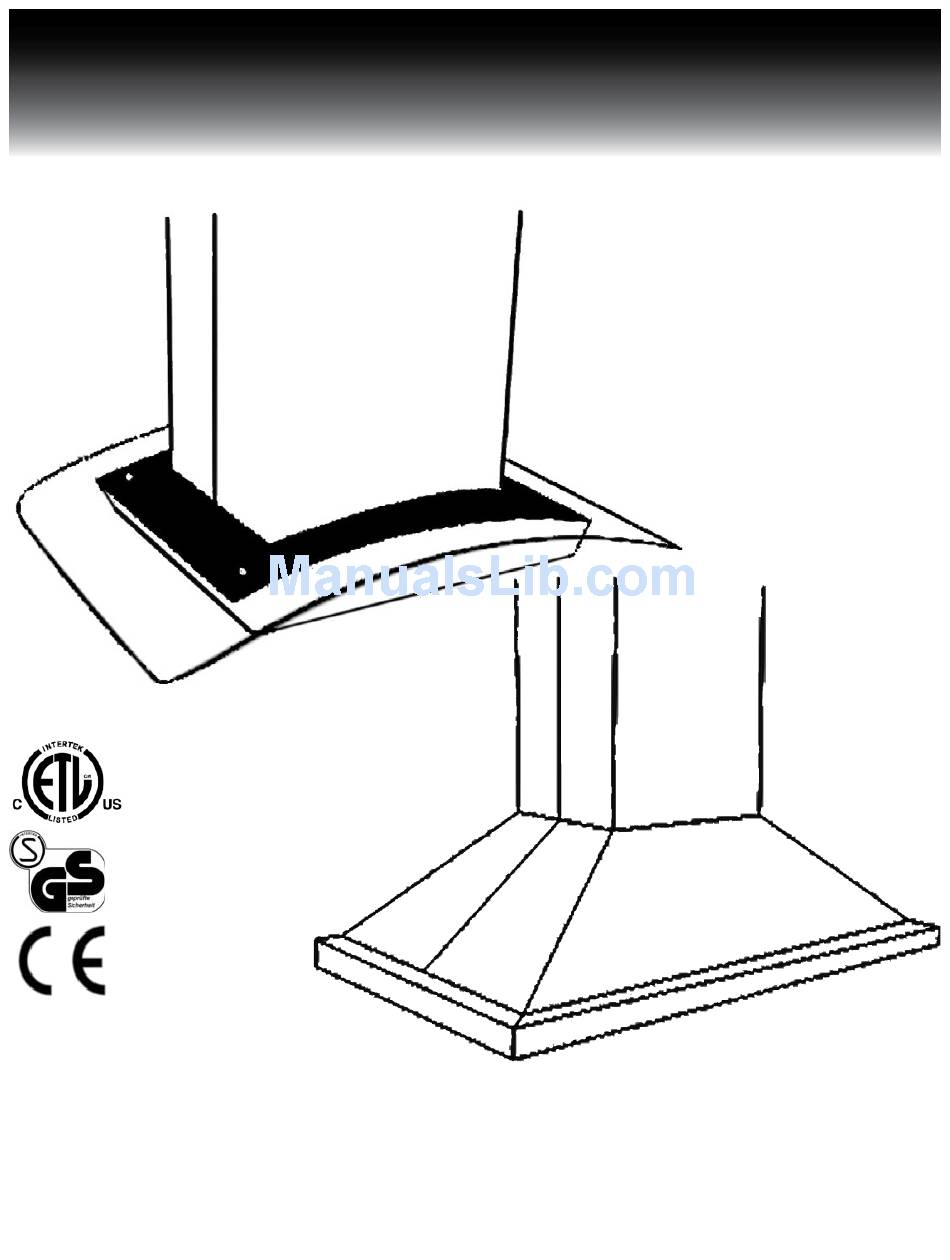

- Page 1 Installation Guide and Users Manual SV218B2-I36-LUX IMPORTANT: Read and save these instructions. NOTICE: Installer: Leave this guide with the homeowner Homeowner: Keep this guide for future reference Island Mount Range Hood SPAGNA VETRO Rev. 2016u.6a...
-
Page 3: Important Safety Notice
Important Safety Notice Read all Instructions before Installing and operating this appliance • The installation in this manual is intended for qualified installers, service technicians or persons with similar qualified background. Installation and electrical wiring must be done by qualified profession- als and in accordance with all applicable codes and standards, including fire-rated construction. - Page 4 Important Safety Notice Read all Instructions before Installing and operating this appliance • Clean ventilating fan frequently. • Always use appropriate cookware and utensils size. • Always use cookware appropriate for the size of the surface element. To reduce the risk of injury to persons in the event of a stove top grease fire: •...
-
Page 5: Table Of Contents
Table of Contents INSTALLATION USE AND CARE Tools needed............3 Troubleshooting...........23 Parts supplied...........4 Use and care information......24 Venting requirements........5 Specifications..........24 Mount heights & clearance......5-6 MAINTENANCE Calculating vent system length.......6 Cleaning..........25 Venting methods & ductless conversion..7 Replacing filter & light bulb....25-27 Charcoal filters & electrical requirements..8 WARRANTY Preparation............9 Coverage &... -
Page 6: Parts Supplied
Parts supplied: Range Hood (vary with model) Flappers Air diverter (Optional re-circulating kit) Remote Control (Optional w/ “R” Class Control) Charcoal Filter Upper standard chimney Lower standard chimney (Optional re-circulating kit) Flexible Duct Tube (Optional) Stainless Steel Baffle or Concrete Sleeve Anchor Aluminum Filter(s) Support Frame Structure Description... -
Page 7: Venting Requirements
Venting Requirements Height & Clearance • Vent system must terminate to the outside Support Maximum* ceiling clearance (roof or side wall). 101” at 31” hood mounting Structure height above countertop/stove • DO NOT terminate the vent system in an at- (may vary with different tic or other enclosed area. -
Page 8: Calculating Vent System Length
IMPORTANT: • A minimum of 6” round (standard for this range hood) or 3-1/4 x 10” rectangular duct (purchased separately) must be used to maintain maximum airflow efficiency. • Flexible 6” round duct provided for convenience, always use rigid type metal/aluminum ducts if available to maximize airflow when connecting to provided duct. -
Page 9: Venting Methods
Venting Methods • This range hood is factory set for venting through the roof or wall. For non-vented (re-circulating) installa- tions, see Recirculating (Non-Vented) Kit on Page 11. • Vent work can terminate either through the roof or wall. To vent through a wall, a 90° elbow is needed. IMPORTANT: •... -
Page 10: Electrical Requirements
Charcoal Filter Installation NOTE: The charcoal filters are preinstalled if you purchased the range hood with re-circulating kit from us. Remove aluminum filters on hood. Remove the safety filter under the aluminum filter by unscrewing two screws, then position the charcoal filter and align the screw holes, reinstall and fasten two screws. -
Page 11: Preparation
WARNING Preparation DO NOT INSTALL THE RANGE HOOD BEFORE TESTING IT. MECHAN- ICAL DAMAGE MIGHT HAVE OCCURRED DURING TRANSPORTION. Plug in the range hood to the USA/Canada 120V standard outlet (220V for Eu- rope and other countries), test the blower and the lights before installing it. Advanced Preparations: Read the entire installation guide and users manual thoroughly, understand instructions and warnings. -
Page 12: Installation
Installation Installations (refer to Page 4 for parts): As illustrated in Figure 1A, drill four holes with diam- eter not exceeding 5/8” and depth of 3” to 3-1/2” on the false ceiling. Fasten two hexagonal wood screws at two of these holes opposite from each other, reserve approx- imately 1/8”... - Page 13 WARNING Installation (Continued) As shown in Figure 4A, 4B and 4C, slide in both upper chim- Excessive Weight ney and lower chimney, pay extra attention to sharp edges Require three or more person to move and on the chimneys and minimize chimney movements to avoid install this range hood.
-
Page 14: Installation
WARNING Installation (Continued) Due to excessive weight, two or more person is recommended for this step. Excessive Weight Install the hood body onto the support frame and secure it with sixteen (16) 4mm x 16mm Phillips Head Tapping Require three or more person to move and install this range hood. - Page 15 Range Hood Operations & Wiring Diagram SV168/198 Series Standard Class (3 Speed Mechanical Control) Low Speed High Speed Power Switch Medium Speed Light Switch Turn On: • Press the speed control (Low Speed, Medium Speed, High Speed) switch to select the desired level of power. Once button is pressed, the previous speed mode will cancel.
- Page 16 Range Hood Operations & Wiring Diagram (Continued) SV168/198 Series “R” Class (4 Speed Electronic Control w/ Remote) Power-Off Delay Control Power / Fan Speed Control Remote Control Sensor Speed / Timer Indicator Light Control This range hood is equipped with a credit card size remote control (approximately 20ft range), three built-in electronic controls, a powerful centrifugal squirrel cage motor, grease filters and two bright 35W halogen lights.
- Page 17 Range Hood Operations & Wiring Diagram (Continued) SV168/198 Series “R” Class (4 Speed Electronic Control w/ Remote) Power-Off Delay Control Power / Fan Speed Control Remote Control Sensor Speed / Timer Indicator Light Control The credit card size remote control controls the power of the Lights , Power-Off Delay , Power (ON/OFF) and Fan Speeds: Quiet (F1), Low (F2), Medium (F3) and High (F4).
- Page 18 Range Hood Operations & Wiring Diagram (Continued) SV168/198 Series “R” Class Wiring Diagram NOTE: Wiring Diagrams shown above with GU10 light configuration. A transformer is required for MR16 Lights. Page 16...
- Page 19 Range Hood Operations & Wiring Diagram (Continued) SV168/198 Series “E” Class (4 or 6 Speed Electronic Touch Control) Power Light Power-Off Delay Increase Value Decrease Value Power-Off Delay Digital Timer Blower Speed Indicator Cleaning Reminder Indicator This range hood is designed to remove smoke, cooking vapors and odors from the cook top area. For best results, start the range hood before cooking and allow it to operate several minutes after the cooking is completed to clear all smoke and odors from the kitchen.
-
Page 20: Level
Range Hood Operations & Wiring Diagram (Continued) SV168/198 Series “E” Class (4 or 6 Speed Electronic Touch Control) Power Light Power-Off Delay Increase Value Decrease Value Power-Off Delay Digital Timer Blower Speed Indicator Cleaning Reminder Indicator • Controls: • Adjusting the timer function: •... - Page 21 Range Hood Operations & Wiring Diagram (Continued) SV168/198 Series “E” Class Wiring Diagram (4 Speed) SV168/198 Series “E” Class Wiring Diagram (6 Speed) NOTE: Wiring Diagrams shown above with GU10 light configuration. A transformer is required for MR16 Lights. Page 19...
- Page 22 Range Hood Operations & Wiring Diagram (Continued) SV168/198 Series “E” Class (6 Speed Electronic Touch Control) Power Light Decrease Value Increase Value Blower Power Indicator Power-On Elapsed Digital Timer Blower Speed Indicator Power-Off Delay Digital Timer Light Power Indicator Power-Off Delay Timer Indicator This range hood is designed to remove smoke, cooking vapors and odors from the cook top area.
-
Page 23: Level
Range Hood Operations & Wiring Diagram (Continued) SV168/198 Series “E” Class (6 Speed Electronic Touch Control) Power Light Decrease Value Increase Value Blower Power Indicator Power-On Elapsed Digital Timer Blower Speed Indicator Power-Off Delay Digital Timer Light Power Indicator Power-Off Delay Timer Indicator •... -
Page 24: Wiring Diagram
Wiring Diagram SV168/198 Series “E” Class Wiring Diagram (6 Speed with GU10 Bulb) Page 22... -
Page 25: Troubleshooting
Troubleshooting If the range hood or halogen light does not operate • Check if the range hood has been plugged in, make after installation: sure that all power has been turned back ON, fused not blown and all electrical wiring are properly con- nected. -
Page 26: Use And Care Information
Use and Care Information Operations: • Read and understand all instructions and warnings in this manual before operating the appliance. Save these instructions for future reference. • Always leave safety grills and filters in place. Without these components, operating blowers could catch on to hair, fingers and loose clothing. - Page 27 WARNING Maintenance SAFETY WARNING: Never put your hand into area housing the Hazard of Burns! fan while the fan is operating! Light bulb become extremely hot when turned on. For optimal operation, clean range hood & all filter/oil container regu- DO NOT touch bulb until switched off and cooled.
- Page 28 Maintenance (Continued) Replacing GU10 Type light bulb: • This range hood uses LED or halogen bulb (please refer to the actual specification of the hood purchased): USA/Canada: Halogen 35W Type GU10 120V (Europe : 220V) USA/Canada: LED 3W Type GU10 120V (Europe : 220V) •...
- Page 29 Maintenance (Continued) Replacing the Light Bulb Using the Inner Ring Opener: • Make sure the range hood is unplugged or turn OFF breaker. • Make sure the lights are cool to touch, carefully align the arrow on the inner ring with the arrow on the outer ring where it says OPEN with the Inner Ring Opener as shown in Figure 1.
- Page 30 Warranty TO OBTAIN SERVICE UNDER WARRANTY: You must present proof of original purchase date. Please provide an original dated proof of purchase (sales receipt / invoice) in order to obtain service under warranty. One Year Parts Warranty: For one year from the date of original purchase, your local reseller will provide free of charge, non-consumable replace- ment parts or components that failed due to manufacturing defects.
- Page 31 Disclaimer Carefully inspect all items for damages before accepting delivery. note any damages on the freight bill or express receipt. request name and signature of the carrier’s agent and keep copy to support your claim. Upon acceptance of items, owner assumes responsibility for its safe arrival. Report damages to the carrier and file a claim immediately.
- Page 32 SPAGNA VETRO Spagna Vetro Appliances Inc Burnaby ,BC , Canada www.KitchenHoods.ca tel. 604 430 5252...
