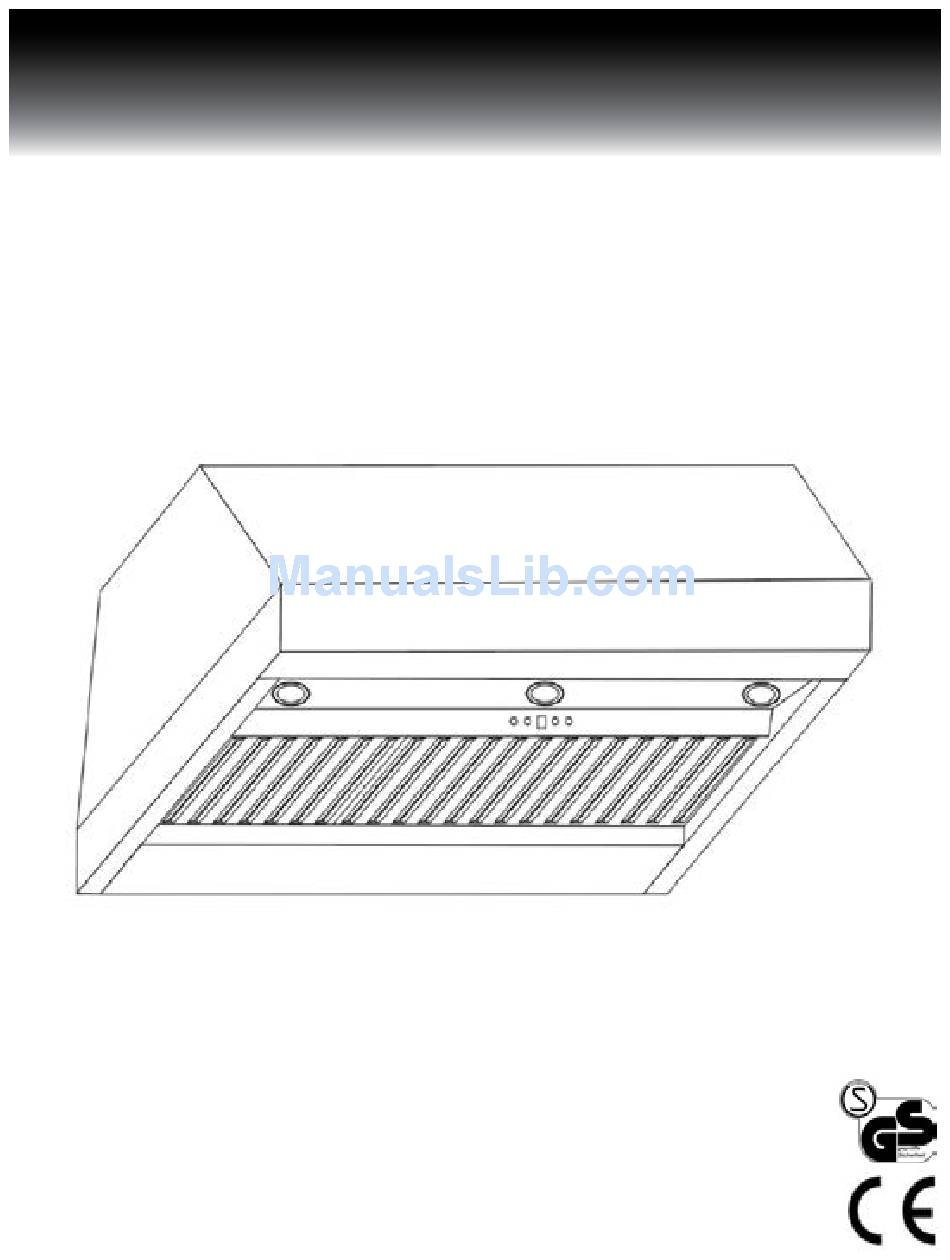

- Page 1 Installation Guide and Users Manual Professional Insert Liners Spagna Vetro PS19 IMPORTANT: Read and save these instructions. NOTICE: Installer: Leave this guide with the homeowner Homeowner: Keep this guide for future reference Professional Built-in hood Rev. 2036u.1c...
-
Page 2: Important Safety Notice
Important Safety Notice Read all Instructions before Installing and operating this appliance • The installation in this manual is intended for qualified installers, service technicians or persons with similar qualified background. Installation and electrical wiring must be done by qualified profession- als and in accordance with all applicable codes and standards, including fire-rated construction. • DO NOT attempt to install this appliance yourself. Injury could result from installing the unit due to lack of appropriate electrical and technical background. • Range hood may have very sharp edges; please wear protective gloves if it is necessary to remove any parts for installing, cleaning or servicing. • Activating any switch ON before completing installation may cause ignition or an explosion. • Due to the size and weight of this range hood, two people installation is recommended. To reduce the risk of fire, electric shock, or injury to persons: • For general ventilating use only. DO NOT use to exhaust hazardous or explosive materials and va- pors. -
Page 3: Table Of Contents
Important Safety Notice Table of Contents Read all Instructions before Installing and operating this appliance INSTALLATION USE AND CARE Tools needed............3 Troubleshooting...........14 • Clean ventilating fan frequently. Parts supplied...........4 Use and care information.......15 • Always use appropriate cookware and utensils size. Mount heights & clearance.......5 Specifications..........15 • Always use cookware appropriate for the size of the surface element. Venting requirements........6 Measurement & wiring diagram....16-17 Calculating vent system length.......6 MAINTENANCE To reduce the risk of injury to persons in the event of a stove top grease fire:... -
Page 4: Parts Supplied
Parts supplied: Mount Heights & Clearance Insert Liners Typical Installation: Insert Liner Wood Hood Insert Liner Round Duct Wood Hood Transition Mounting Bracket Insert Liner Grease Filter Width Tunnel Qty: 2 PCS 30” to 36” Hood to Cooking Surface Professional Insert Liner Qty: 1 PC Trim Kit IMPORTANT: • Vent system must terminate to the outside (roof or side wall). Qty: 11 PCS Ducting Transition (Single or Dual Blower) • DO NOT terminate the vent system in an attic or other enclosed area. -
Page 5: Venting Requirements
Venting Requirements Venting Methods For the most efficient & quiet operation: • This range hood is factory set for venting through the roof or wall. • ALWAYS, when possible, reduce the number or transitions and turns. If long duct run is required, increase • Vent work can terminate either through the roof or wall. To vent through a wall, a 90° elbow is needed. duct size from 8” to 10” or bigger size duct. If a reducer is used, install a long reducer instead of a pancake reducer. Reducing duct size will restrict airflow and decrease airflow, thus reduce duct size as far away from IMPORTANT: opening as possible. • NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or • Use no more than three 90° elbows. garages. All exhaust must be ducted to the outside. • Make sure there is a minimum of 24” (61 cm) of straight vent between the elbows if more than one elbow is used. • Use metal/aluminum duct work only. • DO NOT install two elbows together. • Fasten all connections with sheet metal screws and tape all joints with certified Silver Tape or Duct Tape. • The length of vent system and number of elbows should be kept to a minimum to provide efficient performance. • Use caulking to seal exterior wall or roof opening around the cap. • The vent system must have a damper. If roof or wall cap has a damper, DO NOT use damper (if supplied) on top of the range hood. -
Page 6: Electrical Requirements
Electrical Requirements Preparation WARNING Advanced Preparations: IMPORTANT: Observe all governing codes and ordinances. 1. Be familiar with the controls of the range hood by reading (Please consult with a qualified electrician for 220-Volt 50 Hz voltage) through Range Hood Operations, Page 12. 2. Place the range hood on a flat, stable surface. Connect the It is the customer’s responsibility: Excessive Weight range hood to a designated standard outlet (please refer the • To contact a qualified electrical installer. Require three or more person to move and product label for the suitable voltage of this unit) and turn on • To assure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/ install this range hood. -
Page 7: Installation
Installation Installation (Continued) Installations (refer to Page 4 for parts): 10. To install baffle filters and stainless spacer(s), refer to Baffle Filters and Stainless Steel Spacers on Page 23 for baffle filter and stainless spacer placement. Refer to Figure 8 for the following five steps: Measure the distance between stove top and the bottom of Angle baffle filter toward back of hood. range hood. A distance of 30” to 36” is recommended*. Push baffle filter up until almost level. *Due to different ceiling height configurations, recommend- Slide forward into recess behind the front of hood. ed height may not be applicable. Lower baffle filter. Slide back until it fits into resting positions. Installation of Metal Liner Inserts 11. Repeat Step 8 to install all baffle filters and stainless spacers. 1. If the optional trim kit is used it must be installed prior to mounting the Metal Hood Liner into the wood 12. -
Page 8: Range Hood Operations
Range Hood Operations Range Hood Operations (Continued) Control Panel Layout and Buttons Configurations: Control Panel Layout and Buttons Configurations: Power Light Power Light Power-Off Delay Increase Value Power-Off Delay Increase Value Decrease Value Power-Off Delay Digital Timer Decrease Value Power-Off Delay Digital Timer Blower Speed Indicator Cleaning Reminder Indicator Blower Speed Indicator Cleaning Reminder Indicator This range hood is designed to remove smoke, cooking vapors and odors from the cook top area. For best results, • Controls: start the range hood before cooking and allow it to operate several minutes after the cooking is completed to clear • Adjusting the timer function: all smoke and odors from the kitchen. -
Page 9: Troubleshooting
Troubleshooting Use and Care Information Operations: • Read and understand all instructions and warnings in this manual before operating the appliance. Save these instructions for future reference. • Always leave safety grills and filters in place. Without these components, operating blowers could catch on to hair, fingers and loose clothing. • NEVER dispose cigarette ashes, ignitable substances, or any foreign objects into blowers. • NEVER leave cooking unattended. When frying, oil in the pan can easily overheat and catch fire. The risk of self combustion is higher when the oil has been used several times. • NEVER cook on “open” flames under the range hood. Check deep-fryers during use: Superheated oil may be flammable. 1. If the range hood or halogen light does not operate • Check if the range hood has been plugged in, make after installation: sure that all power has been turned back ON, fused Cleaning: not blown and all electrical wiring are properly con- • The saturation of greasy residue in the blower and filters may cause increased inflammability. Keep unit clean nected. and free of grease and residue build-up at all times to prevent possible fires. • Swap out light assembly to working ones to deter- • Filters must be cleaned periodically and free from accumulation of cooking residue (see cleaning instructions mine whether it is caused by defective bulbs. See on Page 18). Old and worn filters must be replaced immediately. - Page 10 Measurements & Wiring Diagram Measurements & Wiring Diagram (Continued) Wiring Diagram (4 Speed) • All measurements in parenthesis are in millimeter. • All inch measurements are converted from millimeters, thus inch measurements are estimated. Professional Insert Liner Wiring Diagram (6 Speed) NOTE: Wiring Diagrams shown above with GU10 light configuration. A transformer is required for MR16 Lights. Page 16 Page 17...
-
Page 11: Warranty
Maintenance Warranty SAFETY WARNING: Never put your hand into area housing the fan while the fan is operating! TO OBTAIN SERVICE UNDER WARRANTY: For optimal operation, clean range hood and all baffle/spacer/filter/grease tunnel/oil container regularly. Regular care will help preserve the appearance of the range hood. You must present proof of original purchase date. Cleaning Exterior surfaces: Please provide an original dated proof of purchase (sales receipt / invoice) in order to obtain service under warranty. - Page 12 Disclaimer Your Notes Carefully inspect all items for damages before accepting delivery. note any damages on the freight bill or express receipt. request name and signature of the carrier’s agent and keep copy to support your claim. Upon acceptance of items, owner assumes responsibility for its safe arrival. Report damages to the carrier and file a claim immediately. Failure to do so may result in the denial of your claim. The carrier will furnish you with necessary forms for filing a claim. Damages caused during transit are not covered under our warranty. Please contact us to file an insurance claim. Please inspect contents of package(s) carefully upon receiving! We must be notified of any damages and/or missing parts within five (5) days upon your receipt of package(s). Claims will not be accepted after five (5) days. NOTE: Items were thoroughly tested and carefully packed in our factory before shipping. Products must be returned in good working condition with ALL original parts and documentation packed in ALL original cartons, fillers and shipping cartons. A restocking fee of 15% will be charged for all approved return(s). Exchanges or returns may not be accepted if any packaging is missing. Make sure to inspect the hood for damages and defects before installation. Appearance flaws of the hood found after installation and not affecting hood performance is not covered under our warranty for returns or exchang- es. Service visits not covered under warranty will carry a service charge. Before Installation: Return for exchange or refund (please see above for acceptable returns). After Installation: NO exchange or refund. Contact Us If you need any assistance, please contact your local reseller. Please have your order number and model of the range hood ready. This information will help them better respond to your request. If you need replacement parts, we recommend that you only use genuine parts. Our accessories and parts are engineered and designed specifically for this series of range hood, each is rigorously tested assuring the utmost in durability and reliability, providing a factory match, factory-installed appearance and functionality tailored to each individual range hood model. Page 20 Page 21 The information in this document is subject to change without notice, please contact your local reseller for updated details.
