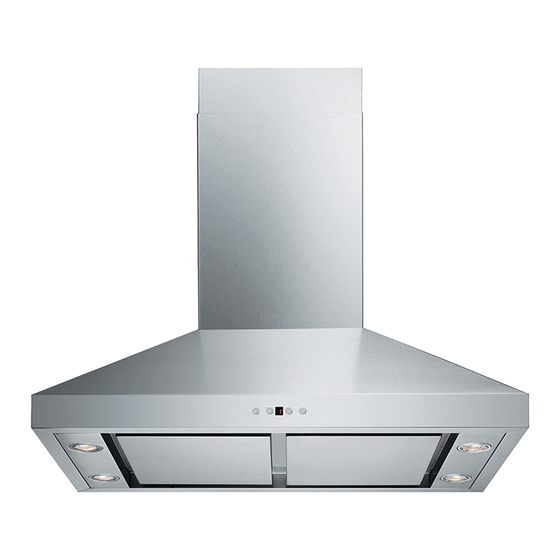

- Page 1 Installation Guide and Users Manual 168/198 Series Wall Hood Suitable for: Standard Class “R” Class “E” Class IMPORTANT: Read and save these instructions. NOTICE: Installer: Leave this guide with the homeowner Homeowner: Keep this guide for future reference Wall Mount Range Hood Rev.
-
Page 3: Important Safety Notice
Important Safety Notice Read all Instructions before Installing and operating this appliance • The installation in this manual is intended for qualified installers, service technicians or persons with similar qualified background. Installation and electrical wiring must be done by qualified profession- als and in accordance with all applicable codes and standards, including fire-rated construction. - Page 4 Important Safety Notice Read all Instructions before Installing and operating this appliance • Clean ventilating fan frequently. • Always use appropriate cookware and utensils size. • Always use cookware appropriate for the size of the surface element. To reduce the risk of injury to persons in the event of a stove top grease fire: •...
-
Page 5: Table Of Contents
Table of Contents INSTALLATION USE AND CARE Tools needed............3 Troubleshooting...........20 Parts supplied...........4 Use and care information.......21 Venting requirements........5 Specifications..........21 MAINTENANCE Mount heights & clearance......5-6 Calculating vent system length.......6 Cleaning..........22 Venting methods & ductless conversion..7 Replacing filter & light bulb....22-23 WARRANTY Charcoal filters &... -
Page 6: Parts Supplied
Parts supplied: Range Hood (vary with model) Flappers Remote Control (Optional w/ “R” Class Control) Stainless Steel Baffle or Aluminum Filter(s) Mounting Bracket Lower standard chimney Upper standard chimney Charcoal Filter Air diverter Flexible Duct Tube (Optional) (Optional re-circulating kit) (Optional re-circulating kit) Description Quantity... -
Page 7: Venting Requirements
Venting Requirements Height & Clearance • Vent system must terminate to the outside Mounting (roof or side wall). Maximum* ceiling clearance Bracket • DO NOT terminate the vent system in an at- 110” at 31” hood mounting Standard tic or other enclosed area. height above countertop/stove Upper (may vary with different... -
Page 8: Calculating Vent System Length
IMPORTANT: • A minimum of 6” round (standard for this range hood) or 3-1/4 x 10” rectangular duct (purchased separately) must be used to maintain maximum airflow efficiency. • Flexible 6” round duct provided for convenience, always use rigid type metal/aluminum ducts if available to maximize airflow when connecting to provided duct. -
Page 9: Venting Methods
Venting Methods • This range hood is factory set for venting through the roof or wall. For non-vented (re-circulating) installa- tions, see Recirculating (Non-Vented) Kit on Page 11. • Vent work can terminate either through the roof or wall. To vent through a wall, a 90° elbow is needed. IMPORTANT: •... -
Page 10: Charcoal Filter Installation
Charcoal Filter Installation NOTE: The charcoal filters are preinstalled if you purchased the range hood with re-circulating kit from us. Remove aluminum filters on hood. Remove the safety filter under the aluminum filter by unscrewing two screws, then position the charcoal filter and align the screw holes, reinstall and fasten two screws. -
Page 11: Preparation
Preparation WARNING Excessive Weight Require three or more person to move and install this range hood. Spinal or other bodi- ly injuries could occur if it is not followed. Advanced Preparations: Read the entire installation guide and users manual thoroughly, understand instructions and warnings. Be familiar with the controls of the range hood by reading through Range Hood Operations, Page 13. -
Page 12: Installation
Installation WARNING Installations (refer to Page 4 for parts): Due to excessive weight, two or more person is recommended for this step. Excessive Weight Locate an optimal location to place the range hood. Mark the Require three or more person to move and leveling points for two Body Hooks (Figure 1) on the wall and install this range hood. - Page 13 Installation (Continued) If Recirculating (Non-Vented) Kit is NOT purchased, please go back to step 2 on Page 10. Find an optimal location for the Air Diverter. The air diverter must be placed directly above and align with the two body hooks, see Figure 4. Drill four more holes with diameter not exceeding 5/8” and in- sert four toggle bolts.
-
Page 14: Installation
Installation (Continued) Connect the duct tube to the exterior exhaust system or the optional air diverter. Make sure all joints are secure and air tight. Use of duct tape is recommended. Place Upper Chimney and Lower Chimney over the body of the hood as shown in Figure 7A (or Figure 7B of air diverter is present). -
Page 15: Level
Range Hood Operations & Wiring Diagram SV168/198 Series Standard Class (3 Speed Mechanical Control) Low Speed High Speed Power Switch Medium Speed Light Switch Turn On: • Press the speed control (Low Speed, Medium Speed, High Speed) switch to select the desired level of power. Once button is pressed, the previous speed mode will cancel. - Page 16 Range Hood Operations & Wiring Diagram (Continued) SV168/198 Series “R” Class (4 Speed Electronic Control w/ Remote) Power-Off Delay Control Power / Fan Speed Control Remote Control Sensor Speed / Timer Indicator Light Control This range hood is equipped with a credit card size remote control (approximately 20ft range), three built-in elec- tronic controls, a powerful centrifugal squirrel cage motor, grease filters and two bright 12V 20W halogen lights.
- Page 17 Range Hood Operations & Wiring Diagram (Continued) SV168/198 Series “R” Class (4 Speed Electronic Control w/ Remote) Power-Off Delay Control Power / Fan Speed Control Remote Control Sensor Speed / Timer Indicator Light Control The credit card size remote control controls the power of the Lights , Power-Off Delay , Power (ON/OFF) and Fan Speeds: Quiet (F1), Low (F2), Medium (F3) and High (F4).
- Page 18 Range Hood Operations & Wiring Diagram (Continued) SV168/198 Series “R” Class Wiring Diagram NOTE: Wiring Diagrams shown above with GU10 light configuration. A transformer is required for MR16 Lights. Page 16...
-
Page 19: Level
Range Hood Operations & Wiring Diagram (Continued) SV168/198 Series “E” Class (4 or 6 Speed Electronic Touch Control) Power Light Power-Off Delay Increase Value Decrease Value Power-Off Delay Digital Timer Blower Speed Indicator Cleaning Reminder Indicator This range hood is designed to remove smoke, cooking vapors and odors from the cook top area. For best results, start the range hood before cooking and allow it to operate several minutes after the cooking is completed to clear all smoke and odors from the kitchen. -
Page 20: Level
Range Hood Operations & Wiring Diagram (Continued) SV168/198 Series “E” Class (4 or 6 Speed Electronic Touch Control) Power Light Power-Off Delay Increase Value Decrease Value Power-Off Delay Digital Timer Blower Speed Indicator Cleaning Reminder Indicator • Controls: • Adjusting the timer function: •... - Page 21 Range Hood Operations & Wiring Diagram (Continued) SV168/198 Series “E” Class Wiring Diagram (4 Speed) SV168/198 Series “E” Class Wiring Diagram (6 Speed) NOTE: Wiring Diagrams shown above with GU10 light configuration. A transformer is required for MR16 Lights. Page 19...
-
Page 22: Troubleshooting
Troubleshooting If the range hood or halogen light does not operate • Check if the range hood has been plugged in, make after installation: sure that all power has been turned back ON, fused not blown and all electrical wiring are properly con- nected. -
Page 23: Use And Care Information
Use and Care Information Operations: • Read and understand all instructions and warnings in this manual before operating the appliance. Save these instructions for future reference. • Always leave safety grills and filters in place. Without these components, operating blowers could catch on to hair, fingers and loose clothing. - Page 24 Maintenance WARNING SAFETY WARNING: Never put your hand into area housing the fan while the fan is operating! Hazard of Burns! For optimal operation, clean range hood & all filter/oil container regu- Light bulb become extremely hot when turned on. larly.
- Page 25 Maintenance (Continued) Replacing J4 Type Halogen Light Bulb: • This range hood uses halogen light bulb: 20W 12V (Product ID: SV-ACS-HAL20W-B). • Make sure the range hood is unplugged or turn OFF breaker and the lights are cool to touch. •...
- Page 26 Warranty TO OBTAIN SERVICE UNDER WARRANTY: You must present proof of original purchase date. Please provide an original dated proof of purchase (sales receipt / invoice) in order to obtain service under warranty. One Year Parts Warranty: For one year from the date of original purchase, your local reseller will provide free of charge, non-consumable replace- ment parts or components that failed due to manufacturing defects.
- Page 27 Disclaimer Carefully inspect all items for damages before accepting delivery. note any damages on the freight bill or express receipt. request name and signature of the carrier’s agent and keep copy to support your claim. Upon acceptance of items, owner assumes responsibility for its safe arrival. Report damages to the carrier and file a claim immediately.
- Page 28 Your Notes Page 26...
- Page 29 Your Notes Page 27...
- Page 30 Your Notes Page 28...
- Page 31 Your Notes Page 29...
- Page 32 SPAGNA VETRO Spagna Vetro Appliances Inc Burnaby ,BC , Canada www.KitchenHoods.ca tel. 604 430 5252...
