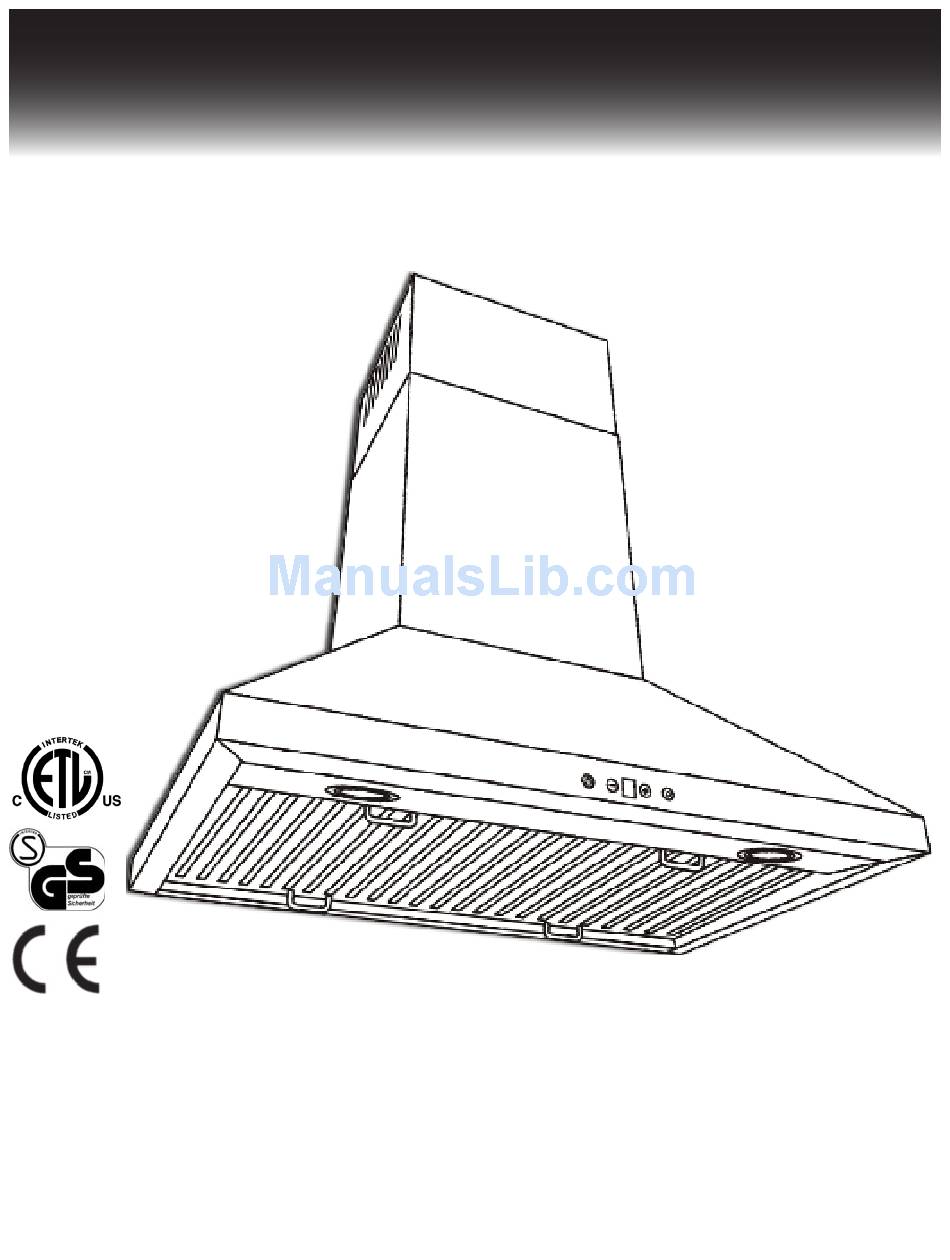

- Page 1 Installation Guide and Users Manual PSD/F/L/Z IMPORTANT: Read and save these instructions. NOTICE: Installer: Leave this guide with the homeowner Homeowner: Keep this guide for future reference Wall Mount Range Hood SPAGNA VETRO Rev. 3046u.5a...
-
Page 3: Important Safety Notice
Important Safety Notice Read all Instructions before Installing and operating this appliance • The installation in this manual is intended for qualified installers, service technicians or persons with similar qualified background. Installation and electrical wiring must be done by qualified profession- als and in accordance with all applicable codes and standards, including fire-rated construction. - Page 4 Important Safety Notice Read all Instructions before Installing and operating this appliance • Clean ventilating fan frequently. • Always use appropriate cookware and utensils size. • Always use cookware appropriate for the size of the surface element. To reduce the risk of injury to persons in the event of a stove top grease fire: •...
-
Page 5: Table Of Contents
Table of Contents INSTALLATION USE AND CARE Troubleshooting...........17 Tools needed............3 Use and care information.......18 Parts supplied...........4 Specifications..........18 Venting requirements........5 MAINTENANCE Mount heights & clearance......5-6 Cleaning..........19 Calculating vent system length.......6 Replacing filter & light bulb.....19-20 Venting methods & ductless conversion..7 WARRANTY Charcoal filters &... -
Page 6: Parts Supplied
Parts supplied: Range Hood (vary with model) Flappers Chimney Mounting Bracket Stainless Steel Baffle Filter(s) Lower standard chimney Upper standard chimney Grease Tunnel Charcoal Filter Air diverter (Optional re-circulating kit) (Optional re-circulating kit) Description Quantity Toggle Bolts 2 Pcs Duct Set 1 Set Body Hook 2 Pcs... -
Page 7: Venting Requirements
Venting Requirements Height & Clearance • Vent system must terminate to the outside Mounting (roof or side wall). Maximum* ceil- Bracket • DO NOT terminate the vent system in an at- ing clearance Standard 110” at 31” hood tic or other enclosed area. Upper mounting height •... -
Page 8: Calculating Vent System Length
IMPORTANT: • A minimum of 6” round (standard for this range hood) or 3-1/4 x 10” rectangular duct (purchased separately) must be used to maintain maximum airflow efficiency. • Always use rigid type metal/aluminum ducts if available to maximize airflow when connecting to provided duct. -
Page 9: Venting Methods & Ductless Conversion
Venting Methods • This range hood is factory set for venting through the roof or wall. For non-vented (re-circulating) installa- tions, see Ductless Conversion on Page 7. • Vent work can terminate either through the roof or wall. To vent through a wall, a 90° elbow is needed. IMPORTANT: •... -
Page 10: Charcoal Filters & Electrical Requirements
Charcoal Filter Installation NOTE: The charcoal filters are preinstalled if you purchased the range hood with re-circulating kit from us. Remove stainless steel baffle filters on hood. Remove the safety filter under the stainless steel baffle filters by unscrewing two screws, then position the charcoal filter and align the screw holes, reinstall and fasten two screws. -
Page 11: Preparation
Preparation Advanced Preparations: Read the entire installation guide and users manual thoroughly, understand instructions and warnings. Be familiar with the controls of the range hood by reading through Range Hood Operations, Page 12. Place the range hood on a flat, stable surface. Connect the range hood to a designated standard outlet (please refer the product label for the suitable voltage of this unit) and verify no debris has entered the vent openings, then turn on the range hood. -
Page 12: Installation
Installation Figure 1 Installations (refer to Page 4 for parts): Measure the distance between stove top and the bottom of range hood. A distance of 28” to 31” is recommended*. *Due to different ceiling height configurations, recom- mended height may not be applicable. Height &... - Page 13 Installation (Continued) Store excess wires in the wiring box. Install both chimneys and tighten screws to secure the lower chimney to the range hood as shown in Figure 5. To avoid scratching the chimney, extend the upper chimney slowly and carefully to the chimney-mounting bracket and tighten screws as shown in Figure 6.
-
Page 14: Range Hood Operations
Range Hood Operations Power Light Power-Off Delay Increase Value Decrease Value Power-Off Delay Digital Timer Blower Speed Indicator Cleaning Reminder Indicator This range hood is designed to remove smoke, cooking vapors and odors from the cook top area. For best results, start the range hood before cooking and allow it to operate several minutes after the cooking is completed to clear all smoke and odors from the kitchen. -
Page 15: Range Hood Operations
Range Hood Operations (Continued) Power Light Power-Off Delay Increase Value Decrease Value Power-Off Delay Digital Timer Blower Speed Indicator Cleaning Reminder Indicator • Controls: • Adjusting the timer function: Decrease Value button over 3 seconds to • While the blower (motor) is not running, press and hold enter timer mode. -
Page 16: Wiring Diagram & Measurements
Wiring Diagrams Wiring Diagram (4 Speed) Wiring Diagram (6 Speed) NOTE: Wiring Diagrams shown above with GU10 light configuration. A transformer is required for MR16 Lights. Page 14... -
Page 17: Installation Overview
Measurements and Diagrams Installation Overview: Mounting Bracket Qty: 6 PCS Qty: 6 PCS (For sheet rock only) Re-circulating kit exhaust (Re-circulating kit not shown) Upper chimney Glass Canopy Screw Qty: 4 PCS (Optional with glass canopy) Duct work and electric wiring region Qty: 4 to 8 PCS Lower chimney... - Page 18 Measurements and Diagrams (Continued) • All inch measurements are converted from millimeters, thus inch measurements are estimated. Overall: Page 16...
-
Page 19: Troubleshooting
Troubleshooting If the range hood or halogen light does not operate • Check if the range hood has been plugged in, make after installation: sure that all power has been turned back ON, fused not blown and all electrical wiring are properly con- nected. -
Page 20: Use And Care Information
Use and Care Information Operations: • Read and understand all instructions and warnings in this manual before operating the appliance. Save these instructions for future reference. • Always leave safety grills and filters in place. Without these components, operating blowers could catch on to hair, fingers and loose clothing. -
Page 21: Cleaning
Maintenance SAFETY WARNING: Never put your hand into area housing the fan while the fan is operating! For optimal operation, clean range hood and all baffle/spacer/filter/grease tunnel/oil container regularly. Regular care will help preserve the appearance of the range hood. Cleaning Exterior surfaces: •... - Page 22 Maintenance (Continued) Replacing the Light Bulb Using the Inner Ring Opener: • Make sure the range hood is unplugged or turn OFF breaker. • Make sure the lights are cool to touch, carefully align the arrow on the inner ring with the arrow on the outer ring where it says OPEN with the Inner Ring Opener as shown in Figure 1.
-
Page 23: Coverage & Exceptions
Warranty TO OBTAIN SERVICE UNDER WARRANTY: You must present proof of original purchase date. Please provide an original dated proof of purchase (sales receipt / invoice) in order to obtain service under warranty. One Year Parts Warranty: For one year from the date of original purchase, your local reseller will provide free of charge, non-consumable replace- ment parts or components that failed due to manufacturing defects. -
Page 24: Disclaimer & Contact Information
Disclaimer Carefully inspect all items for damages before accepting delivery. note any damages on the freight bill or express receipt. request name and signature of the carrier’s agent and keep copy to support your claim. Upon acceptance of items, owner assumes responsibility for its safe arrival. Report damages to the carrier and file a claim immediately. - Page 25 Your Notes Page 23...
- Page 26 Your Notes Page 24...
- Page 27 Your Notes Page 25...
- Page 28 SPAGNA VETRO Spagna Vetro Appliances Inc Burnaby ,BC , Canada www.KitchenHoods.ca tel. 604 430 5252...
