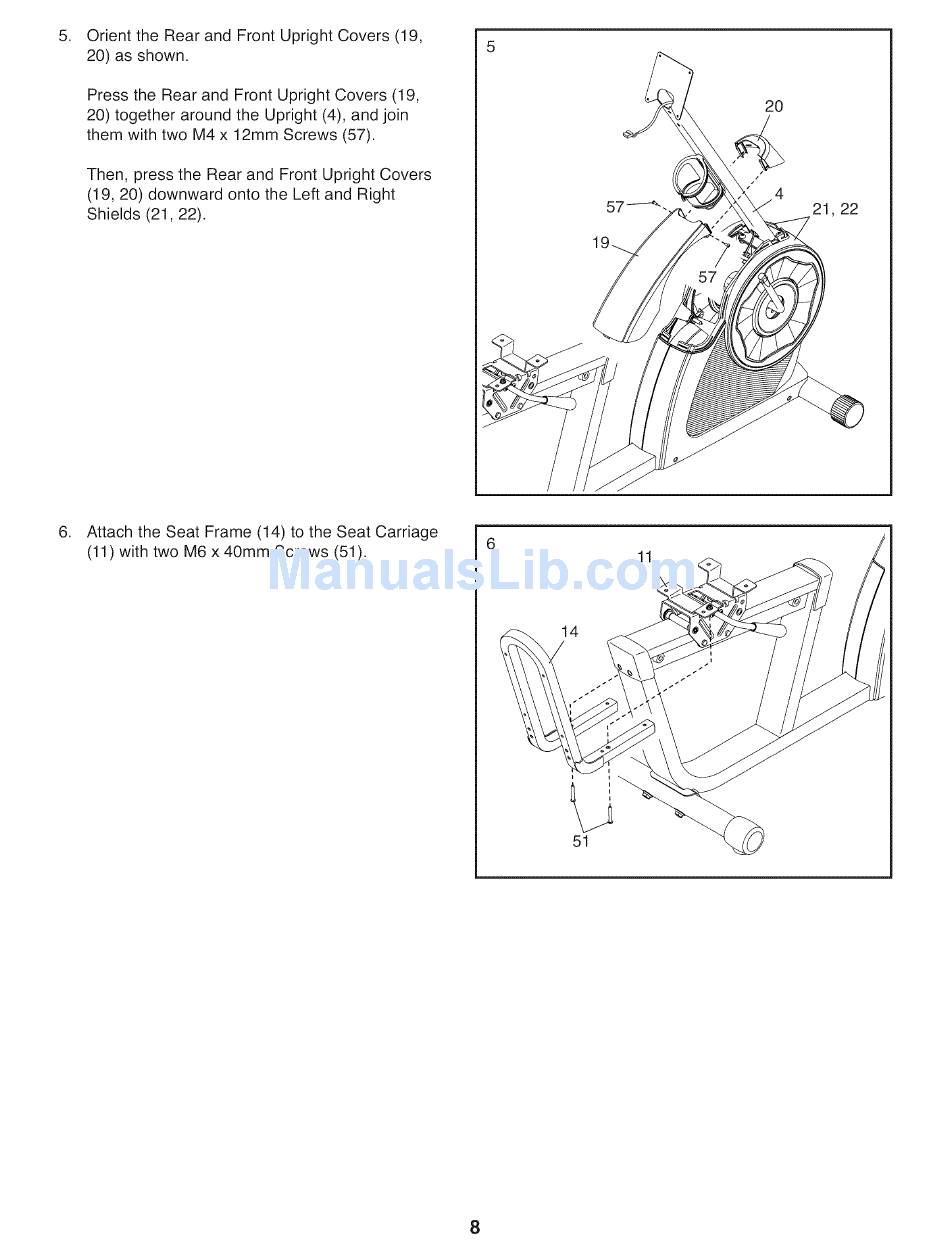

Orient the Rear and Front Upright Covers (19,
20) as shown.
Press the Rear and Front Upright Covers (19,
20) together around the Upright (4), and join
them with two M4 x 12mm Screws (57).
Then, press the Rear and Front Upright Covers
(19, 20) downward onto the Left and Right
Shields (21,22).
20
4
21, 22
.
Attach the Seat Frame (14) to the Seat Carriage
(11) with two M6 x 40mm Screws (51).
14
11
8
