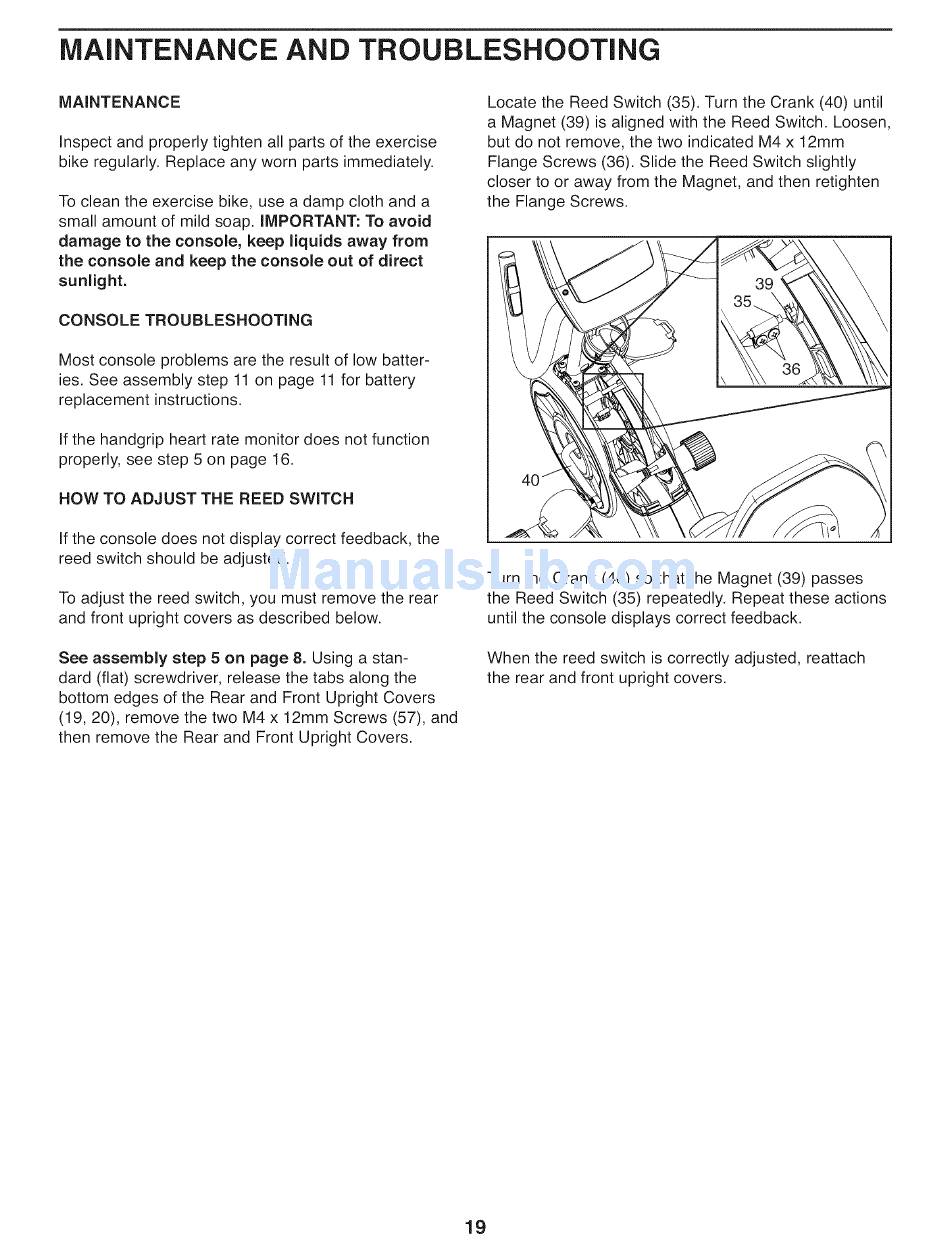

MAINTENANCE
AND TROUBLESHOOTING
MAINTENANCE
Inspect and properly tighten all parts of the exercise
bike regularly. Replace any worn parts immediately.
To clean the exercise bike, use a damp cloth and a
small amount of mild soap. iMPORTANT: To avoid
damage to the console,
keep liquids away from
the console and keep the console out of direct
sunlight.
CONSOLE TROUBLESHOOTING
Most console problems are the result of low batter-
ies. See assembly step 11 on page 11 for battery
replacement instructions.
If the handgrip heart rate monitor does not function
properly, see step 5 on page 16.
HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted.
To adjust the reed switch, you must remove the rear
and front upright covers as described below.
See assembly
step 5 on page 8. Using a stan-
dard (flat) screwdriver, release the tabs along the
bottom edges of the Rear and Front Upright Covers
(19, 20), remove the two M4 x 12mm Screws (57), and
then remove the Rear and Front Upright Covers.
Locate the Reed Switch (35). Turn the Crank (40) until
a Magnet (39) is aligned with the Reed Switch. Loosen,
but do not remove, the two indicated M4 x 12mm
Flange Screws (36). Slide the Reed Switch slightly
closer to or away from the Magnet, and then retighten
the Flange Screws.
Turn the Crank (40) so that the Magnet (39) passes
the Reed Switch (35) repeatedly. Repeat these actions
until the console displays correct feedback.
When the reed switch is correctly adjusted, reattach
the rear and front upright covers.
