Step !3, Install Lower Duct Cover; Step 14 Install Duct Cover Trim - Monogram ZV925 Installation Instructions Manual

Installation Instructions
INSTALLATI0 N-R ECI R CULATING

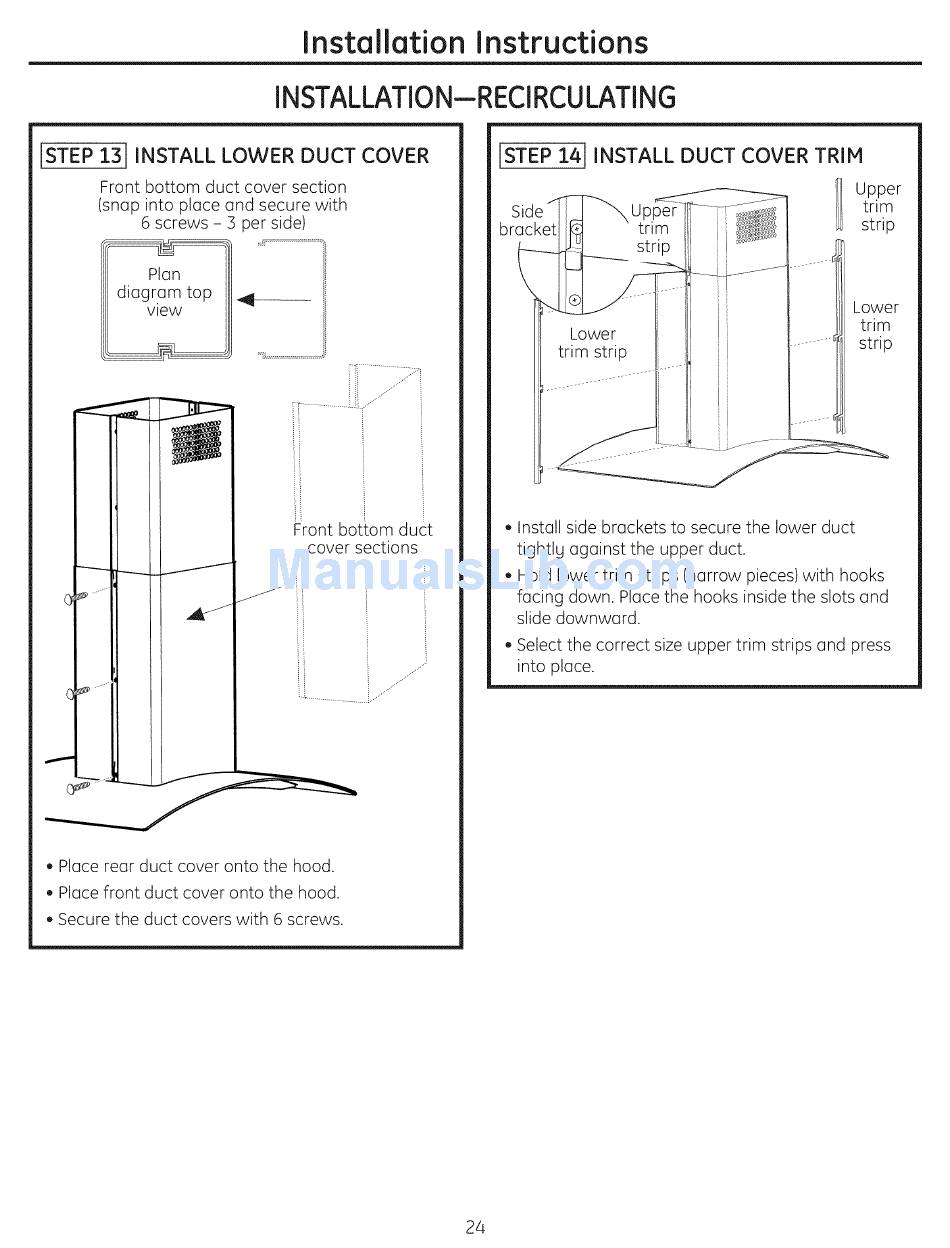

ISTEP 13] INSTALL LOWER DUCT COVER
Front bottom duct cover section
Isnap into place and secure with
6 screws - ] per side}
Plan
diagram top
view
__
ot om
II I cover sections
, Place rear duct cover onto the hood.
, Place front duct cover onto the hood.
, Secure the duct covers with 6 screws.
STEP 14 INSTALL DUCT COVER TRIM
, Install side brackets to secure the lower duct
tightlg against the upper duct.
, Hold lower trim strips (narrow pieces} with hooks
facing down. Place the hooks inside the slots and
slide downward.
, Select the correct size upper trim strips and press
into place.
