Installation Preparation

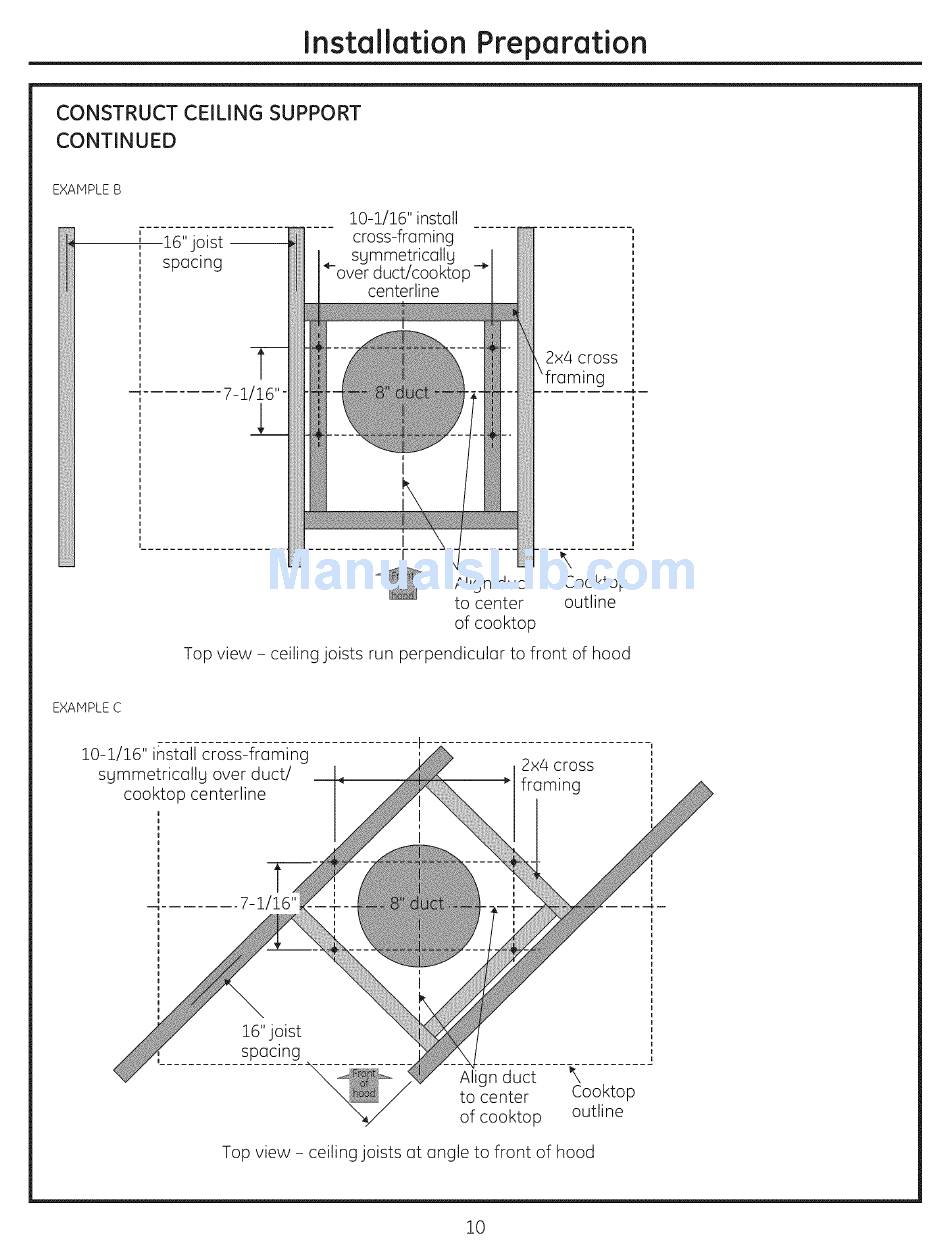

CONSTRUCT CEILING SUPPORT
CONTINUED
EXAMPLE B
10-1/16" install
16" joist --
cross-framing
spacing
symmetrically
÷over duct/cooktop
centerline
7- ......
7-1/16"-
2x4 cross
\
Align duct
Cooktop
to center
outline
of cooktop
Top view - ceiling joists run perpendicular
to front of hood
EXAMPLEC
10-1/16" install cross-framing
symmetrically
over duct/
cooktop
centerline
2x4 cross
framing
16"joist
spacing
Align duct
to center
of cooktop
\
Cooktop
outline
Top view - ceiling joists at angle to front of hood
10
