Installation Instructions
INSTALLATION-VENTEDTO THE OUTSIDE

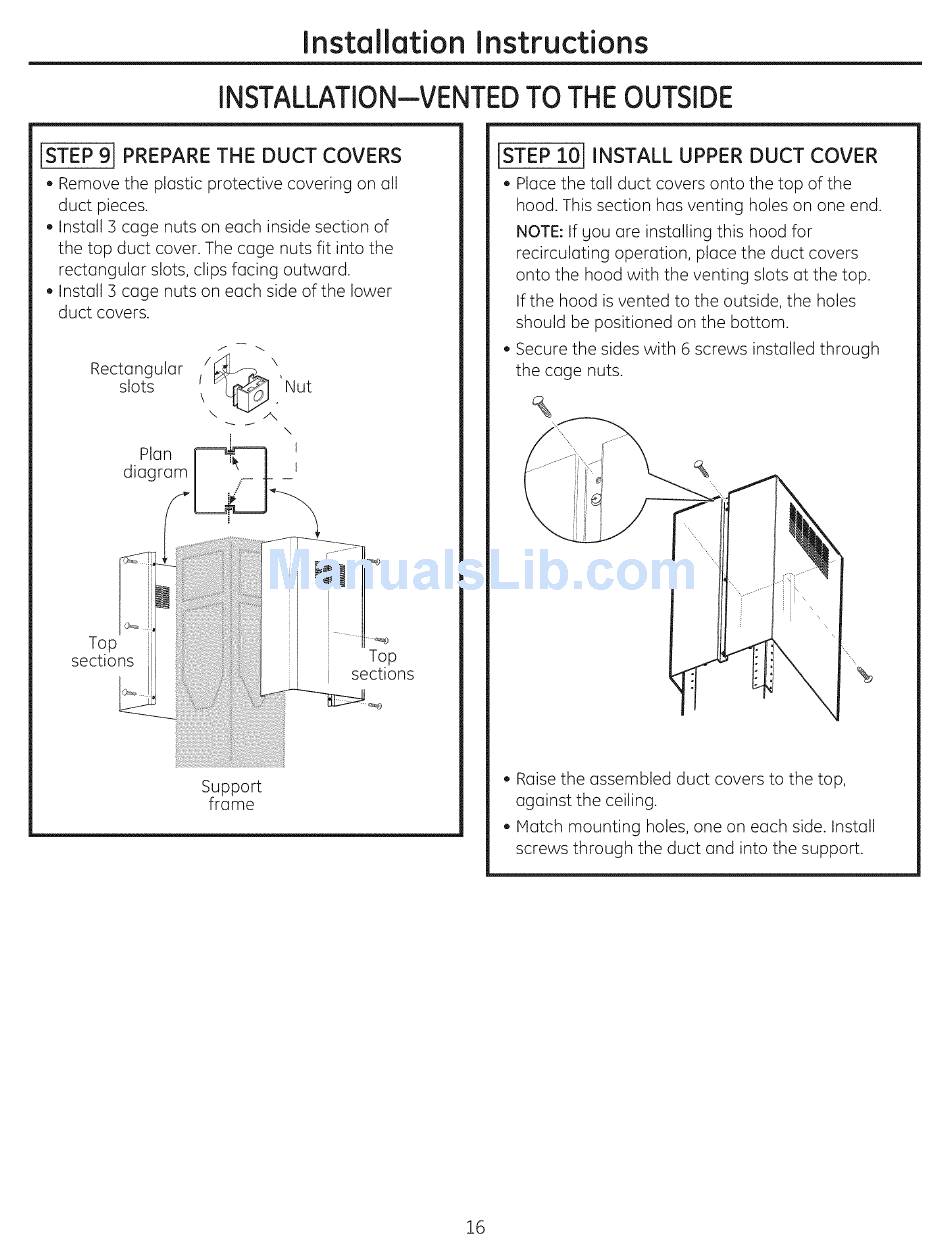

ISTEP 9] PREPARE THE DUCT COVERS
, Remove the plastic protective covering on all
duct pieces.
, Install 3 cage nuts on each inside section of
the top duct cover. The cage nuts fit into the
rectangular slots, clips facing outward.
, Install 3 cage nuts on each side of the lower
duct covers.
Rectangular slots 'Nut
N
Support
frame
ISTEP 10] INSTALL UPPER DUCT COVER
, Place the tall duct covers onto the top of the
hood. This section has venting holes on one end.
NOTE: If gou are installing this hood for
recirculating operation, place the duct covers
onto the hood with the venting slots at the top.
If the hood is vented to the outside, the holes
should be positioned on the bottom.
, Secure the sides with 6 screws installed through
the cage nuts.
%
, Raise the assembled duct covers to the top,
against the ceiling.
, Hatch mounting holes, one on each side. Install
screws through the duct and into the support.
