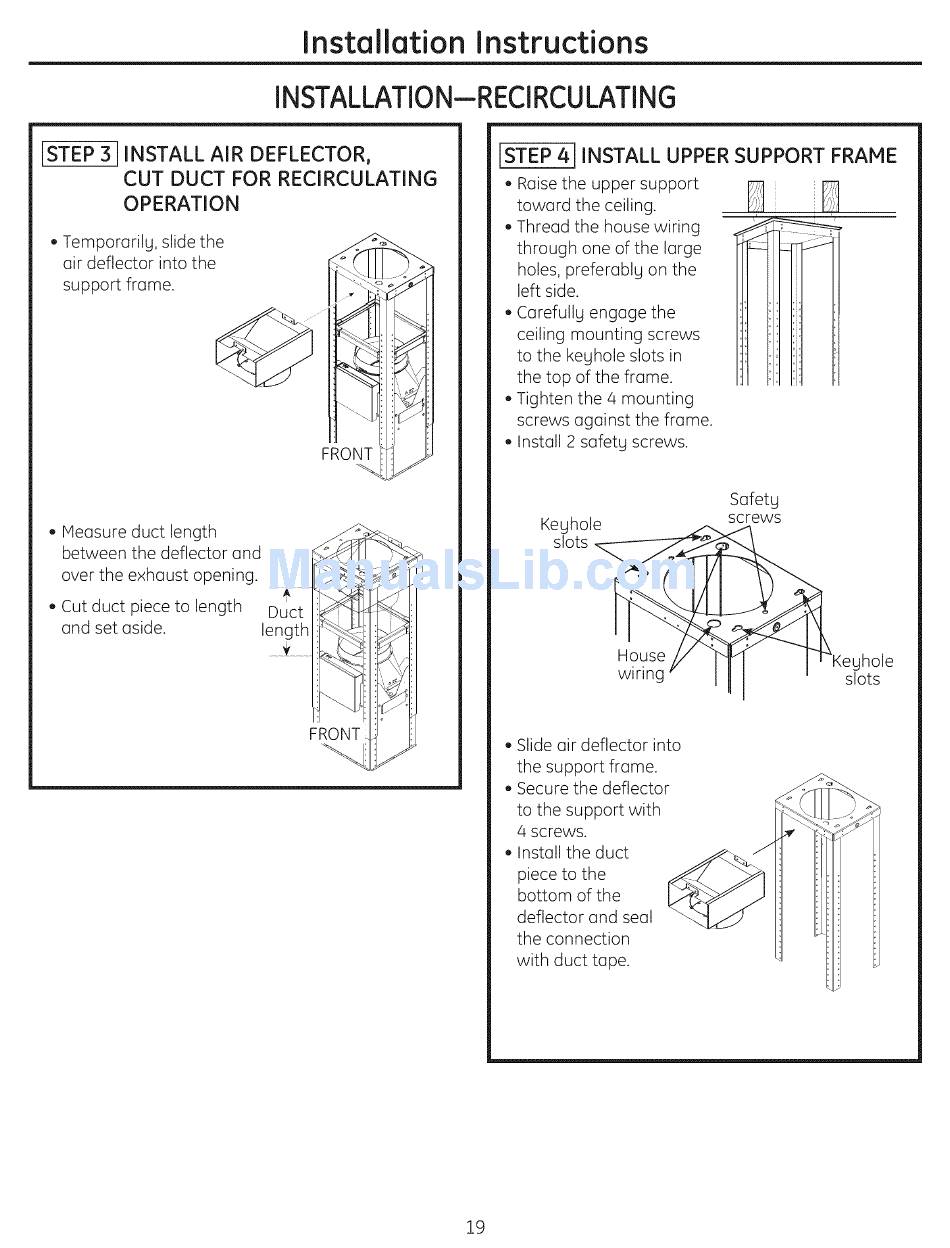

INSTALLATI0 N-R ECI R CULATING
STEP 3 INSTALL AIR DEFLECTOR,
CUT DUCT FOR RECIRCULATING
OPERATION
, Temporarilg, slide the
air deflector into the
support frame.
FRONT
, Measure duct length
between the deflector and
over the exhaust opening.
, Cut duct piece to length Duct
and set aside, length
FRONT.
ISTEP 41 INSTALL UPPER SUPPORT FRAME
, Raise the upper support
toward the ceiling.
, Thread the house wiring
through one of the large
holes, preferablg on the
left side.
, Carefullg engage the
ceiling mounting screws
to the keghole slots in
the top of the frame.
, Tighten the 4 mounting
screws against the frame.
, Install 2 safetg screws.
Keghole
slots
House
wiring
Safetg
screws
slots
Slide air deflector into
the support frame.
Secure the deflector
to the support with
4 screws.
Install the duct
piece to the
bottom of the
deflector and seal
the connection
with duct tape.
