Installation
instructions
INSTALLATION-VENTEDTO THE OUTSIDE

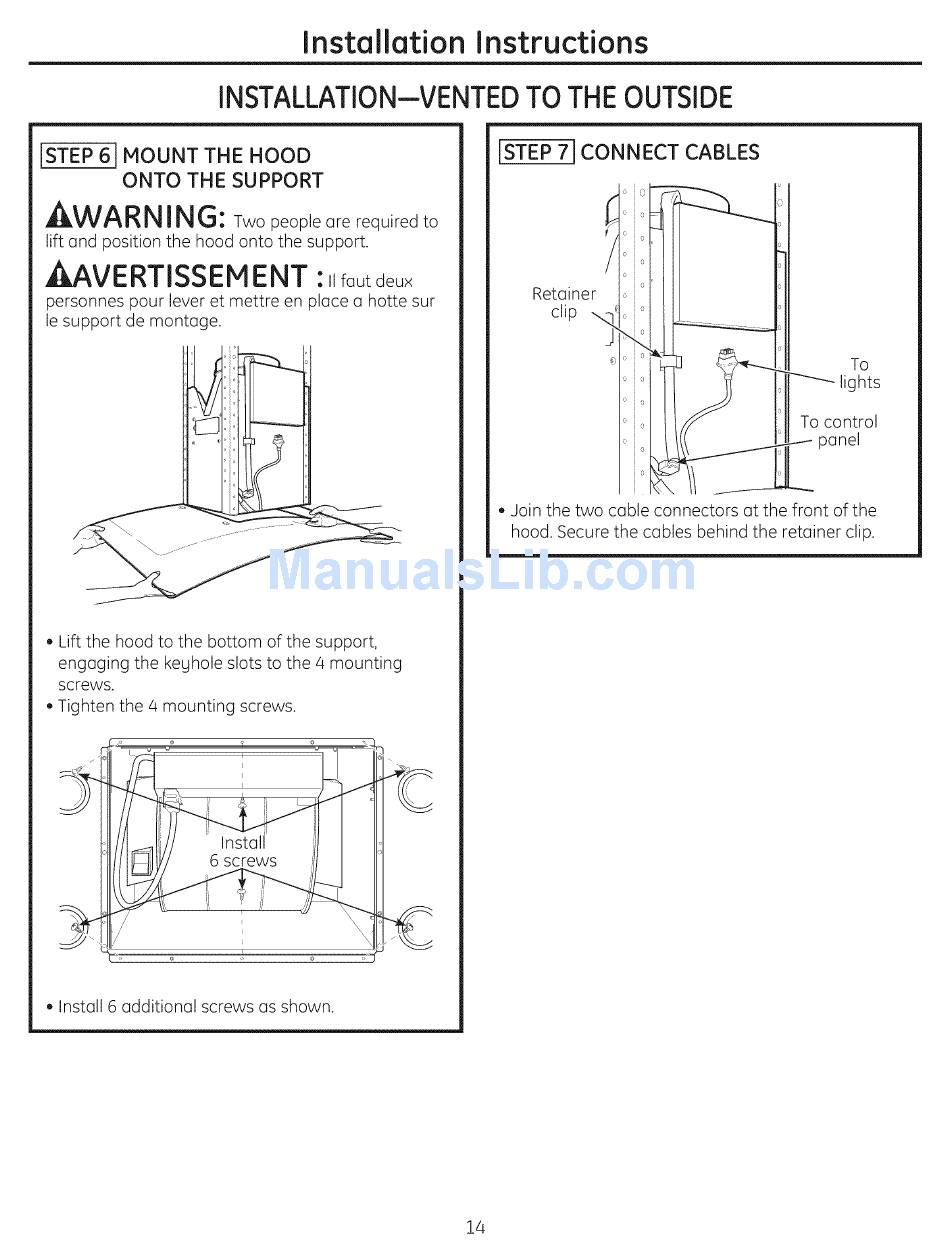

[STEP 6 MOUNT THE HOOD
ONTO THE SUPPORT
,AWARNING:
Two
p eople are required to
lift and position the hood onto the support.
,&AVERTISSEMENT
: II faut deux
personnes pour lever et mettre en place a hotte sur
le support de montage.
, Lift the hood to the bottom of the support,
engaging the keghole slots to the 4 mounting
screws.
, Tighten the 4 mounting
screws.
, Install 6 additional
screws as shown.
jSTEP 7i CONNECT CABLES
Retainer
clip
"-4
/
, Join the two cable connectors
at the front of the
hood. Secure the cables behind the retainer clip.
