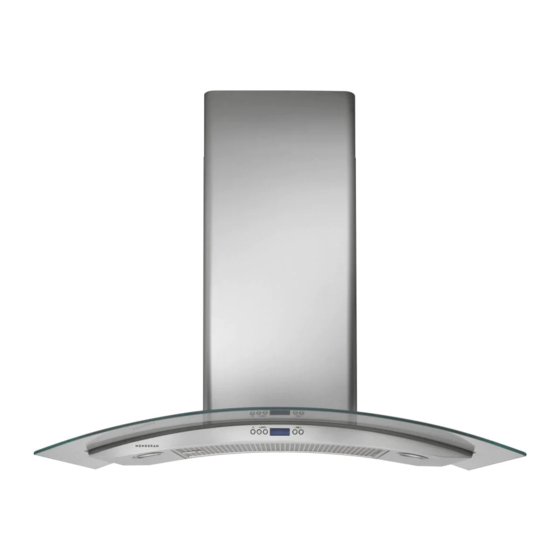

36" glass canopy chimney vent hood
Hide thumbs Also See for ZV900:

Advertisement

Installation
Instructions
49-80328-3
36" Glass Canopy
Chimney Vent Hood
ZV900

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZV900 and is the answer not in the manual?

Questions and answers

Summary of Contents for Monogram ZV900

  • Page 1 Installation Instructions 36" Glass Canopy Chimney Vent Hood ZV900 49-80328-3...
  • Page 2: Safety Information

    B. Avant toute intervention ou nettoyage, couper For Monogram local service in your area, call l’alimentation électrique au disjoncteur et verrouiller le panneau du disjoncteur pour éviter la mise sous tension accidentelle. S’il n’est pas possible de...
  • Page 3: Table Of Contents

    No kits required. ceiling heights. This hood can be installed over any Monogram electric cooktop or gas cooktop. It cannot be installed over a Monogram Professional cooktop or range.
  • Page 4: Installation Preparation

    Installation Preparation ADVANCE PLANNING • Determine the exact location of the vent hood. • Use metal ductwork only. These hoods must use • Plan the route for venting exhaust to the outdoors. 8" round duct. • Use the shortest and straightest duct route possible. For •...
  • Page 5: Duct Fittings

    Installation Preparation Total DUCT FITTINGS Equivalent Quantity Equivalent Duct Piece Dimensions Length* Used Length This Hood Must Use an Round, 1 ft. Round Duct. It Can straight (per foot Transition to a length) Duct. 3-1/4" x 12" 1 ft. Use this chart to compute straight (per foot maximum permissible lengths for...
  • Page 6: Tools And Materials Required

    Installation Preparation TOOLS AND MATERIALS REQUIRED (NOT SUPPLIED Gloves Tape measure Knife Spirit level Spirit level Measuring tape Wire cutter/stripper Knife Wire nuts Electric drill with 5/16" and 3/8" bits Phillips and flat blade screwdrivers Hammer Pliers Electric drill Pliers with 5/16”...
  • Page 7: Determine Installation Height

    24" to 30" ACCESSORIES: 10'-1" 24" to 30" 24" to 30" • Order ZX90010 accessory for ZV900 wall mount 10'-2" 25" to 30" 24" to 30" hood to reach ceiling heights between 9'-6" and 10'-5". This accessory contains one 40" long duct 10'-3"...
  • Page 8: Check Installation Hardware

    Installation Preparation CHECK INSTALLATION HARDWARE Locate the hardware accessory box packed with the hood and check contents. HARDWARE PACKAGE Locate and count screws Air deflector for Duct bracket recirculating installation only 12-7/8” 12" 3 wall 2-piece decorative duct 27-3/4” fasteners 29-7/8"...
  • Page 9: Ductwork, Wiring Locations

    Installation Instructions DUCTWORK, WIRING LOCATIONS INSTALL FRAMING FOR HOOD SUPPORT Determine the exact location of the vent hood. • Locate the template packed with the literature. IMPORTANT Framing must be capable of – Measure 36" from the floor to the top of the cooking supporting 100 lbs.
  • Page 10: Step 2, Install Mounting Bracket

    Installation Instructions INSTALL MOUNTING BRACKET 3 INSTALL DUCT BRACKET This vent hood must be secured to the horizontal The duct bracket should be installed against the support or wall studs. back wall and flush with the ceiling. This bracket will hold the duct cover in place at the top.
  • Page 11: Step 4, Prepare The Hood

    Installation Instructions PREPARE THE HOOD • Place the hood on a padded surface. • Carefully lay the hood on its back. • Position the motor housing at the back of the hood. • Fasten the hood to the motor housing from the Electrical connectors should face the front, with bottom, using 6 screws.
  • Page 12: Step 5, Mount The Hood

    Installation Instructions MOUNT THE HOOD 7 CONNECT DUCTWORK WARNING: 2 people are required to lift and • Install ductwork, making connections in the position the hood onto the mounting bracket. direction of airflow as illustrated. • Push duct over the exhaust outlet and damper. AVERTISSEMENT : •...
  • Page 13: Step 8, Connect Electrical

    Installation Instructions CONNECT ELECTRICAL Verify that power is turned off at the source. • Remove junction box cover and knockout on the left side. WARNING: If house wiring is not 2-wire Knockout with a ground wire, a ground must be provided by the installer.
  • Page 14: Step 9, Install Duct Covers

    Installation Instructions INSTALL DUCT COVERS INSTALL FILTERS • Place the decorative duct IMPORTANT: Check to be sure that the main ON/ covers on top of the hood. OFF switch next to the motor is in the ON position. Mounting screws NOTE: The inside (upper) •...
  • Page 15: Ductwork, Wiring Locations

    Installation Instructions DUCTWORK, WIRING LOCATIONS 1 INSTALL FRAMING FOR HOOD SUPPORT • Determine the exact location of the vent hood. • Locate the template packed with the literature. IMPORTANT: Framing must be capable of • Measure 36 from the floor to the top of the cooking surface.
  • Page 16: Step 2, Install Mounting Bracket

    Installation Instructions INSTALL MOUNTING BRACKET 3 INSTALL DUCT BRACKET This vent hood must be secured to the horizontal The duct bracket should be installed against the support or wall studs. back wall and flush with the ceiling. This bracket will hold the duct cover in place at the top.
  • Page 17: Step 4, Prepare The Hood

    Installation Instructions PREPARE THE HOOD MOUNT THE HOOD WARNING: • Place the hood on a padded surface. 2 people are required to lift and • Position the motor housing at the back of the hood. position the hood onto the mounting bracket. Electrical connectors should face the front, with AVERTISSEMENT : rear mounting hooks at the back.
  • Page 18: Step 7, Size And Cut Duct Piece

    Installation Instructions 7 SIZE AND CUT DUCT PIECE CONNECT ELECTRICAL • Hold upper air deflector Verify that power is turned off at the source. with duct connector WARNING: against the ceiling. If house wiring is not 2-wire with a ground wire, a ground must be provided by •...
  • Page 19: Step 9, Install Duct Covers

    Installation Instructions INSTALL DUCT COVERS INSTALL FILTERS • Place the decorative duct Mounting IMPORTANT: Check to be sure that the main ON/ covers on top of the hood. screw holes OFF switch next to the motor is in the ON position. NOTE: The inside piece has Charcoal filter holes on one end intended for...
  • Page 20 NOTE: While performing installations described in this book, safety glasses or goggles should be worn. For Monogram local service in your area, call ® 1.800.444.1845. NOTE: Product improvement is a continuing endeavor at General Electric. Therefore, materials, appearance and specifications are subject to change without notice.
