36" stainless steel vent hood
Hide thumbs Also See for ZV950:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual
Installation
Instructions
If you have questions, call 800.GE.CARES or visit our website at: www.monogram.com
ZV950
36" Stainless Steel
Vent Hood

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZV950 and is the answer not in the manual?

Questions and answers

Related Manuals for Monogram ZV950

Summary of Contents for Monogram ZV950

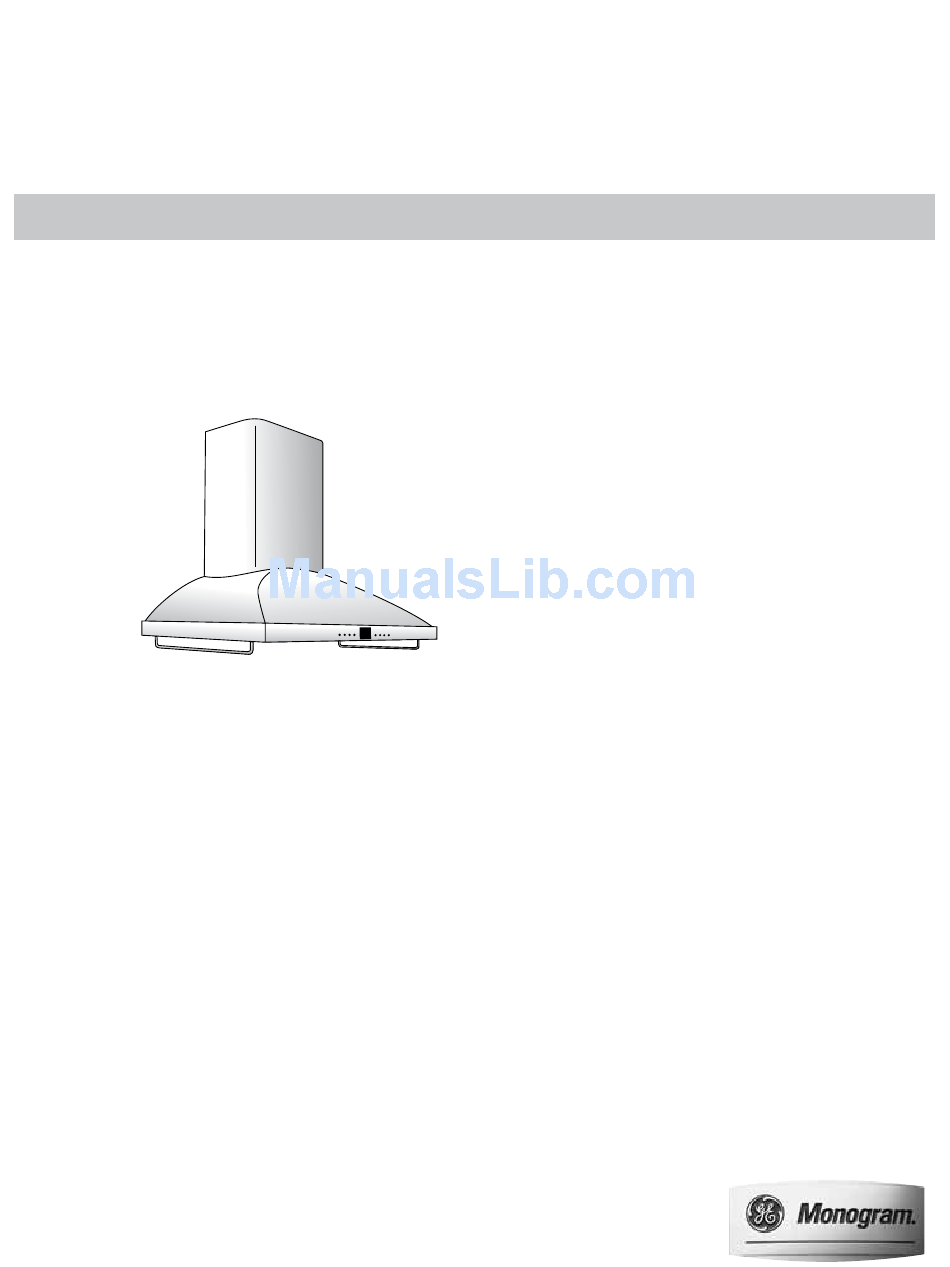

  • Page 1 Installation Instructions If you have questions, call 800.GE.CARES or visit our website at: www.monogram.com ZV950 36" Stainless Steel Vent Hood...

  • Page 2: Safety Information

    A. Utiliser cet appareil uniquement de la manière ered under the Warranty. prévue par le fabricant. En cas de question, consulter le fabricant. For Monogram local service in your area, B. Avant toute intervention ou nettoyage, couper 1.800.444.1845. l’alimentation électrique au disjoncteur et verrouiller For Monogram service in Canada, call le panneau du disjoncteur pour éviter la mise...

  • Page 3: Table Of Contents

    Plan the installation height carefully to avoid unsightly gaps above the hood. *Height This hood must be installed 30" min. above a Monogram to Ceiling Professional Cooktop or Range. Ceiling height for this in- stallation combination must be at least 8'5" high.

  • Page 4: Optional Accessories

    Design Information PRODUCT DIMENSIONS AND CLEAR- OPTIONAL ACCESSORIES ANCES (cont.) ZX14SDSS, optional stainless steel duct cover is available for ceiling heights greater than 10 ft. and up to 14 ft. Using Duct Cover Accessories Order the optional duct cover at the same time as the A Duct Cover Accessory may be required for your hood vent hood and have on site before installation.

  • Page 5: Installation Preparation

    Installation Preparation ADVANCE PLANNING Ductwork Planning • Use metal ductwork. These hoods must use 8" round • Determine the exact location of the vent hood. duct. It can transition to 3-1/4" x 12", reducing the maxi- • Plan the route for venting exhaust to the outdoors. mum equivalent duct length to 75 feet.

  • Page 6: Duct Fittings

    Installation Preparation Total DUCT FITTINGS Equivalent Quantity Equivalent Duct Piece Dimensions Length* Used Length This Hood Must Round, 1 ft. Use 8" Round Duct. straight (per foot It Can Transition to length) 3-1/4" x 12" Duct. 1 ft. 3-1/4" x 12" (per foot straight length )

  • Page 7: Tools And Materials Required

    Installation Preparation TOOLS AND MATERIALS REQUIRED (NOT SUPPLIED) • Tape measure • Duct tape • Knife • Tape to mount template • Spirit level • Gloves to protect against sharp edges • Wire cutter/stripper • 120V 60Hz. 15 or 20 Amp, 2 wire with ground. •...

  • Page 8: Check Installation Hardware

    Installation Preparation DUCTWORK, WIRING LOCATIONS CHECK INSTALLATION HARDWARE Determine the exact location of the vent hood. Locate the hardware accessory box packed with the hood • Locate the template packed with the literature. and check contents. – Measure 36" from the floor to the top of the cooking surface.

  • Page 9: Installation Instructions

    Installation Instructions 2 INSTALL MOUNTING BRACKETS 1 INSTALL FRAMING FOR HOOD SUPPORT This vent hood must be secured to the horizontal support or wall studs. IMPORTANT: Framing must be capable • With the template taped in place, use a punch to mark of supporting 100 lbs.

  • Page 10: Step 3, Install Duct Bracket

    Installation Instructions 3 INSTALL DUCT BRACKET The duct bracket must be installed against the ceiling. This Pre-Tap Pre-Tap bracket will hold the decorative duct cover in place at the Side Side top. Screw Screw • Install the 2 small screws into the sides of the duct bracket.

  • Page 11: Step 5, Connect Ductwork

    Installation Instructions 5 CONNECT DUCTWORK • Install ductwork, making connections in direction of airflow as illustrated. Air Flow Duct Tape • Push duct over the exhaust outlet until it reaches Over Seam the duct stops. and Screw • Secure joints in ductwork with sheetmetal screws. Screw •...

  • Page 12: Step 8, Install Filters

    • Refer to the Owner’s Manual for operating instructions. Note: While performing installations described in this book, safety glasses or goggles should be worn. For Monogram local service in your area, call 1.800.444.1845. Note: Product improvement is a continuing endeavor at General Electric.
