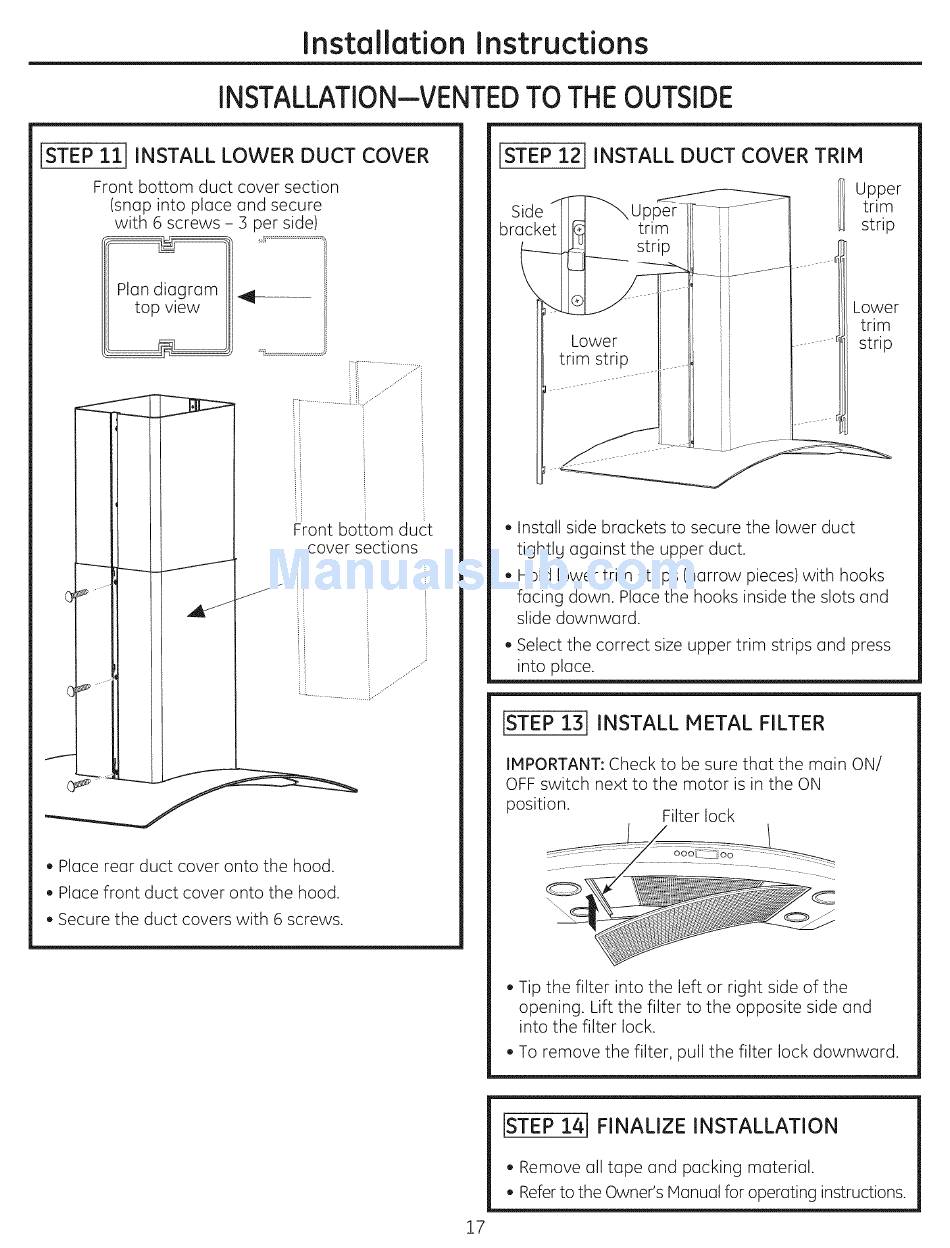

ISTEP 111 INSTALL LOWER DUCT COVER
Front bottom duct cover section
(snap into place and secure
with 6 screws - 3 per side)
Plan diagram
top view
....................
_ront bottom duct
II I cover
sections
, Place rear duct cover onto the hood.
, Place front duct cover onto the hood.
, Secure the duct covers with 6 screws.
STEP 12 INSTALL DUCT COVER TRIM
, Install side brackets to secure the lower duct
tightlg against the upper duct.
, Hold lower trim strips (narrow pieces) with hooks
facing down. Place the hooks inside the slots and
slide downward.
, Select the correct size upper trim strips and press
into place.
[STEP 13] INSTALL METAL FILTER
IMPORTANT: Check to be sure that the main ON/
OFF switch next to the motor is in the ON
position. Filter lock
, Tip the filter into the left or right side of the
opening. Lift the filter to the opposite side and
into the filter lock.
, To remove the filter, pull the filter lock downward.
17
[STEP 14] FINALIZE INSTALLATION
, Remove all tape and packing material.
, Refer to the Owner's Manual for operating instructions.
