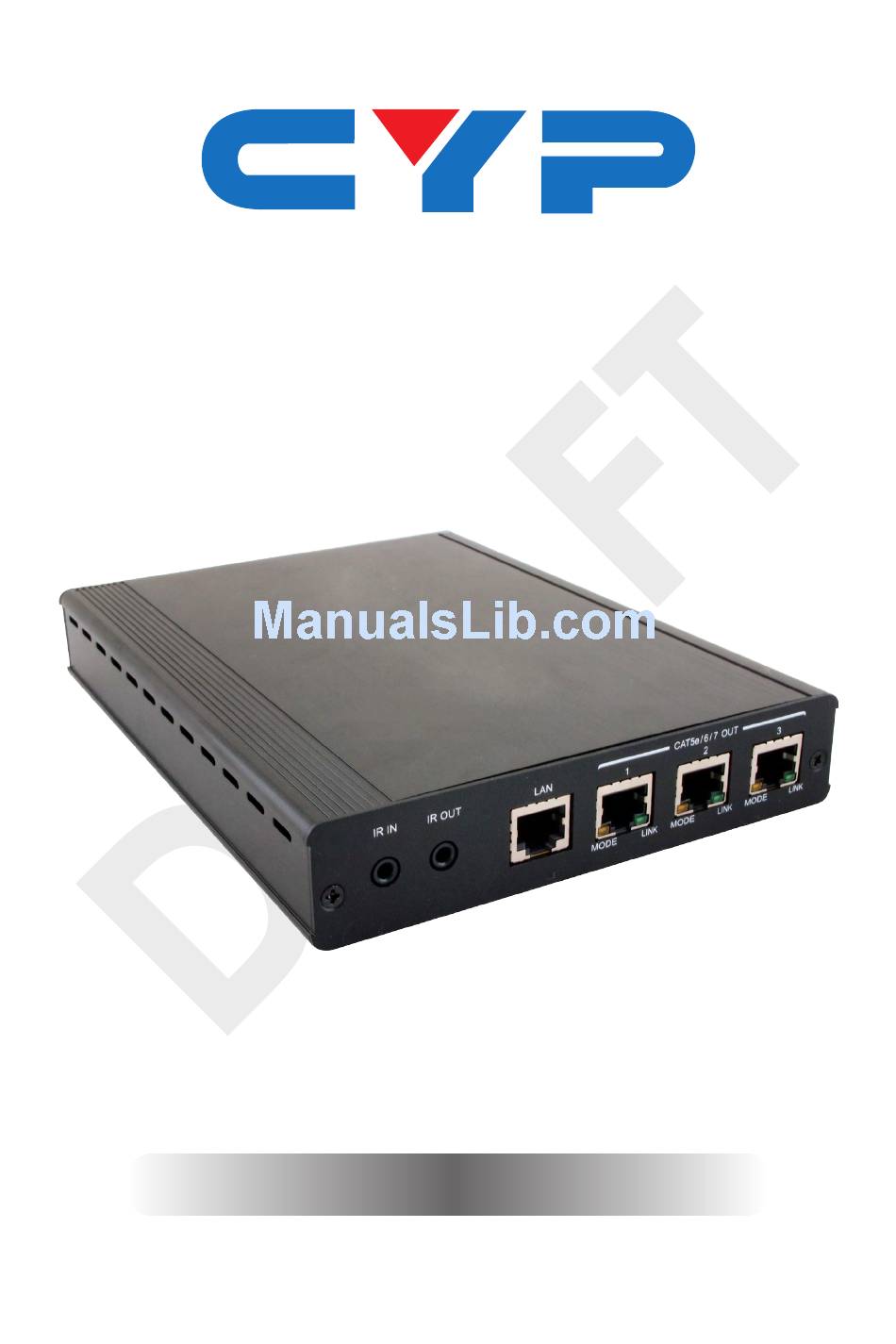

- Page 1 CHDBT-1H3CE 1 by 4 HDMI over HDMI & CAT5e/6/7 with PoE and Ethernet Transmitter Operation Manual Operation Manual...
- Page 2 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 3: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 4: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........4 6.3 IR Cable Pin Assignment....5 7. -
Page 5: Introduction
1. INTRODUCTION The HDMI over HDMI and CAT5e/6/7 Transmitter can support resolutions up to 1080p Full HD, 4Kx2K timing, 3D and multi-channel digital audio formats to one HDTV and three CAT5e/6/7 outputs. The HDMI can be connected to HDMI display for instant nearby display and the CAT5e/6/7 can be connected to CAT5e/6/7 to HDMI Receivers for distance up to 100 meters. -
Page 6: Features
5. FEATURES • HDMI with 3D & 4Kx2K supported, HDCP and DVI compliant • The HDMI and CAT5e/6/7 outputs are playing the same source simultaneously • Supports data rate from 250Mbps up to 3Gbps • Supports wide range of PC resolutions from VGA to WUXGA and HDTV resolutions up to 4Kx2K (3840x2160@30Hz and 4096x2160@24Hz) •... -
Page 7: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel DC 24V SYNC LINK EDID SERVICE HDMI IN HDMI OUT POWER HDMI IN: Connect with source equipment such as DVD/Blu-ray or PS3 player. SYNC: This LED will illuminate when the HDMI input port connected to the source. -
Page 8: Rear Panel
6.2 Rear Panel CAT5e / 6 / 7 OUT IR IN IR OUT MODE LINK MODE LINK MODE LINK IR IN: Connect with IR Extender to receive IR signal from Transmitter side and blast out at Receiver side. Ensure that remote controller being used is within he direct line-of-sight of the IR Extender. -
Page 9: Ir Cable Pin Assignment
6.3 IR Cable Pin Assignment IR Blaster Power 3.3 V IR Blaster Signal IR Extender IR Signal Power 3.3 V Grounding... -
Page 10: Connection Diagram
7. CONNECTION DIAGRAM 3D TV/Display Blu-ray or PS3 Player HDMI HDMI DC 24V SYNC LINK EDID SERVICE HDMI IN HDMI OUT POWER CAT5e / 6 / 7 OUT IR IN IR OUT 1.5m MODE LINK MODE LINK MODE LINK 60° IR BLASTER IR2 Blaster Power... -
Page 11: Specifications
8. SPECIFICATIONS Video Bandwidth 300Mbps/10.2Gbps Input ports 1 x HDMI, 1 x IR IN, 1 x LAN*, 1 x USB (Service only) Output ports 1 x HDMI, 3 x CAT5e/6/7 1 x IR OUT, Resolution Up to 4Kx2K (3840x2160@30Hz/4096x2160@24Hz) HDMI Input Cable Dis- tance CAT5e/6/7 Output Up to 100m... -
Page 12: Cat5E/6/7 Cable Specification
8.1 CAT5e/6/7 Cable Specification Cable Range Pixel clock Video Data Supported Video Type rate Rate CAT5e/6/7 100 m <=225 MHz <=5.3 Gbps Up to 1080p, 60 Hz, 36 bits, 3D (data rates (HD Video) lower than 5.3 Gbps or below 225 MHz TMDS clock). - Page 13 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw 20130531MPM-CHDBT-1H3CE...
