Removing the M.2 SSD Module

1. Turn off the computer, turn it over, remove the battery
2. The M.2 SSD module will be visible at point
3. Remove the screw
(Figure
2
4. The M.2 SSD module
(Figure
3
a.
1
b.
2
(page 2 -
on the mainboard
1
9b)
9c) will pop-up, and you can remove it from the computer.
c.
6).
(Figure
9a).
3
Removing the M.2 SSD Module 2 - 13
Disassembly

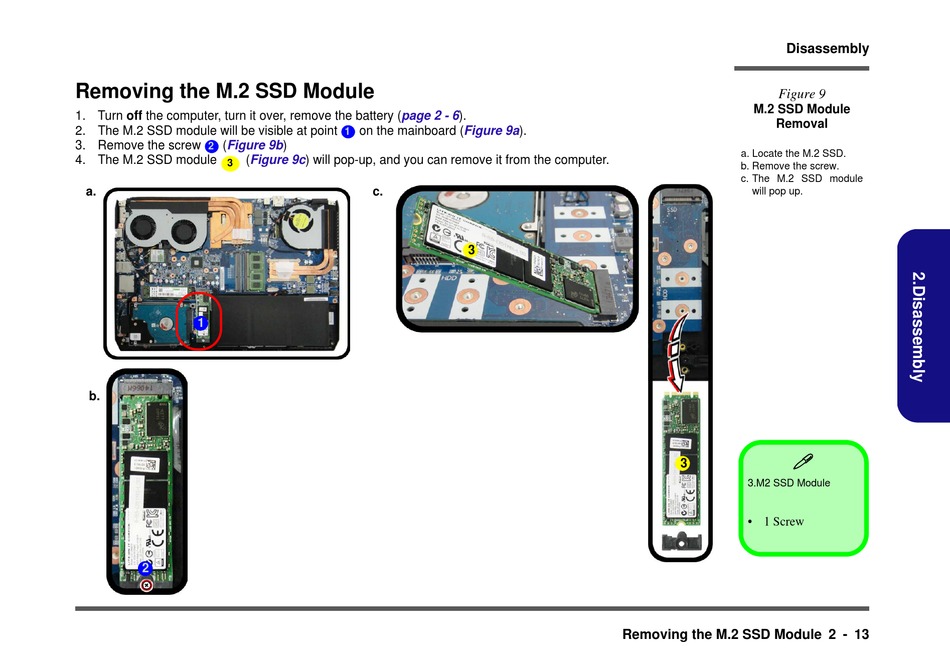

Figure 9
M.2 SSD Module
Removal
a. Locate the M.2 SSD.
b. Remove the screw.
c. The M.2 SSD module
will pop up.
3
3.M2 SSD Module
• 1 Screw
