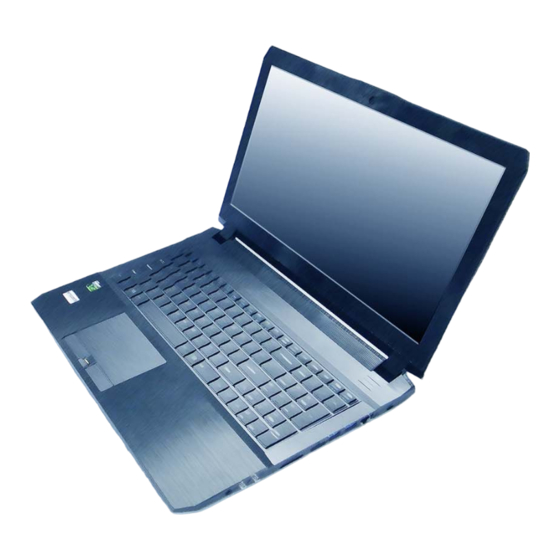

Clevo P640RF Series Service Manual
  1. Manuals
  2. Brands
  3. Clevo Manuals
  4. Laptop
  5. P640RF Series
  6. Service manual

Clevo P640RF Series Service Manual

Hide thumbs Also See for P640RF Series:
Table of Contents

Advertisement

Quick Links

See also: Service Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P640RF Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Clevo P640RF Series

Summary of Contents for Clevo P640RF Series

  • Page 2: Instructions For Care And Operation

    Preface Instructions for Care and Operation The notebook computer is quite rugged, but it can be damaged. To prevent this, follow these suggestions: Don’t drop it, or expose it to shock. If the computer falls, the case and the components could be damaged. Do not expose the computer Do not place it on an unstable Do not place anything heavy...

  • Page 3: Power Safety

    Preface Avoid interference. Keep the computer away from high capacity transformers, electric motors, and other strong mag- netic fields. These can hinder proper performance and damage your data. Take care when using peripheral devices. Use only approved brands of Unplug the power cord before peripherals.

  • Page 4: Battery Precautions

    Preface Battery Precautions • Only use batteries designed for this computer. The wrong battery type may explode, leak or damage the computer. • Do not continue to use a battery that has been dropped, or that appears damaged (e.g. bent or twisted) in any way. Even if the computer continues to work with a damaged battery in place, it may cause circuit damage, which may possibly result in fire.

  • Page 5: Related Documents

    Preface Related Documents You may also need to consult the following manual for additional information: User’s Manual on CD/DVD This describes the notebook PC’s features and the procedures for operating the computer and its ROM-based setup pro- gram. It also describes the installation and operation of the utility programs provided with the notebook PC. System Startup 1.

  • Page 6: Specifications

    Introduction Specifications Processor Options Memory i7-6820HK (2.70GHz) Two 260 Pin SO-DIMM Sockets Supporting DDR4 2133MHz Memory 8MB Smart Cache, 14nm, DDR4-2133MHz, TDP 45W Memory Expandable from 4GB (minimum) up to 32GB  i7-6700HQ (2.60GHz) (maximum) 8MB Smart Cache, 14nm, DDR4-2133MHz, Latest Specification Information TDP 45W ...
  • Page 7 Introduction Audio Interface Power High Definition Audio Compliant Interface One HDMI-Out Port Embedded 3-Cell Polymer Battery Pack, 45WH S/PDIF Digital Output Two Mini DisplayPorts 1.2* Full Range AC/DC Adapter Two Speakers One S/PDIF Out Jack AC Input: 100 - 240V, 50 - 60Hz Sound Blaster Audio One Headphone/Speaker-Out Jack DC Output: 19.5V, 7.7A (150W)

  • Page 8: External Locator - Top View With Lcd Panel Open

    Introduction External Locator - Top View with LCD Panel Open Figure 1 Top View 1. PC Camera 2. *PC Camera LED *When the PC camera is in use, the LED will be illuminated. 3. Built-In Array Microphone 4. LCD 5. Speakers 6.

  • Page 9: External Locator - Front & Right Side Views

    Introduction External Locator - Front & Right Side Views Figure 2 Front View 1. LED Indicator FRONT VIEW Figure 3 Right Side View 1. USIM Card RIGHT SIDE VIEW Reader (for 3G/ 4G USIM Cards) 2. Multi-in-1 Card Reader 3. USB 3.0 (USB 3.1 Gen 1) Port 4.

  • Page 10: External Locator - Left Side & Rear View

    Introduction External Locator - Left Side & Rear View Figure 4 Left Side View 1. Mini Display Port 1 2. Mini Display Port 2 3. HDMI-Out Port LEFT SIDE VIEW 4. USB 3.0 (USB 3.1 Gen 1) Port 5. USB 3.1 (Gen 2 - Type C) Port 6.

  • Page 11: External Locator - Bottom View

    Introduction External Locator - Bottom View Figure 6 Bottom View 1. Vent  Overheating To prevent your com- puter from overhea- ting, make sure no- thing blocks any vent while the computer is in use. External Locator - Bottom View 1 - 7...

  • Page 12: Chapter 2: Disassembly

    Disassembly Chapter 2: Disassembly Overview This chapter provides step-by-step instructions for disassembling the P640RF / P641RF series notebook’s parts and sub- systems. When it comes to reassembly, reverse the procedures (unless otherwise indicated). We suggest you completely review any procedure before you take the computer apart. Procedures such as upgrading/replacing the RAM, optical device and hard disk are included in the User’s Manual but are repeated here for your convenience.

  • Page 13: Maintenance Tools

    Disassembly NOTE: All disassembly procedures assume that the system is turned OFF, and disconnected from any power supply (the battery is removed too). Maintenance Tools The following tools are recommended when working on the notebook PC: • M3 Philips-head screwdriver •...

  • Page 14: Maintenance Precautions

    Disassembly Maintenance Precautions  The following precautions are a reminder. To avoid personal injury or damage to the computer while performing a re- moval and/or replacement job, take the following precautions: Power Safety Warning 1. Don't drop it. Perform your repairs and/or upgrades on a stable surface. If the computer falls, the case and other Before you undertake components could be damaged.

  • Page 15: Removing The Keyboard

    Disassembly Removing the Keyboard Figure 1 Keyboard Removal 1. Turn off the computer, turn it over. 2. Remove screws from the bottom of the computer. a. Remove the screws from 3. Open it up with the LCD on a flat surface before pressing at point to release the keyboard module (use the spe- the bottom of the compu- cial eject stick...

  • Page 16: Removing The Battery

    Disassembly Removing the Battery Figure 2 Battery Removal 1. Turn the computer off, and turn it over. 2. Remove the SD card cover and screws (Figure 2a). a. Remove the SD cover 3. Carefully lift the bottom case up in the direction of the arrow at points &...
  • Page 17 Disassembly 5. Carefully disconnect the cable , then remove screws (Figure 3b Figure 3 6. Lift the battery off the computer (Figure 3e Battery Removal 7. Reinsert the bottom case starting from point as shown (Figure 3f) to avoid damaging the jack(s). Tighten the (cont’d.) screws to secure the bottom case in place.

  • Page 18: Removing The Hard Disk Drive

    Disassembly Removing the Hard Disk Drive Figure 4 HDD Assembly The hard disk drive can be taken out to accommodate other 2.5" serial (SATA) hard disk drives with a height of 9.5mm Removal or 7mm (h). Follow your operating system’s installation instructions, and install all necessary drivers and utilities (as outlined in Chapter 4 of the User’s Manual) when setting up a new hard disk.
  • Page 19 Disassembly 4. Slightly lift and disconnect the hard disk and connector in the direction of arrow (Figure 5c Figure 5 5. Lift the hard disk assembly out of the bay (Figure 5d HDD Assembly 6. Remove screws and bracket from the hard disk (Figure 5e Removal (cont’d.) 7.

  • Page 20: Removing The System Memory (Ram)

    Disassembly Removing the System Memory (RAM) Figure 6 RAM Module The computer has two memory sockets for 204 pin Small Outline Dual In-line Memory Modules (SO-DIMM) supporting Removal DDR4 Up to 2133 MHz. The main memory can be expanded up to 32GB. The total memory size is automatically detect- ed by the POST routine once you turn on your computer.

  • Page 21: Removing The M.2 Ssd Module

    Disassembly Removing the M.2 SSD Module Figure 7 M.2 SSD Module 1. Turn off the computer, turn it over, remove the battery (page 2 - Removal 2. The M.2 SSD module will be visible at point on the mainboard (Figure 7a).

  • Page 22: Removing The Wireless Lan Module

    Disassembly Removing the Wireless LAN Module Figure 8 Wireless LAN 1. Turn off the computer, turn it over, remove the battery (page 2 - Module Removal 2. The Wireless LAN module will be visible at point on the mainboard (Figure 8a).

  • Page 23: Wireless Lan, Combo, 3G & Lte Module Cables

    Disassembly Wireless LAN, Combo, 3G & LTE Module Cables Note that the cables for connecting to the antennae on WLAN, WLAN & Bluetooth Combo, 3G and LTE modules are not labelled. The cables/covers (each cable will have either a black or transparent cable cover) are color coded for iden- tification as outlined in the table below.

  • Page 24: Removing The 3G Module

    Disassembly Removing the 3G Module Figure 9 3G Module Removal Procedure 3G Module Removal 1. Turn off the computer, remove the battery (page 2 - a. Locate the module. 2. Locate the module, it is visible at point Figure 9a b.
