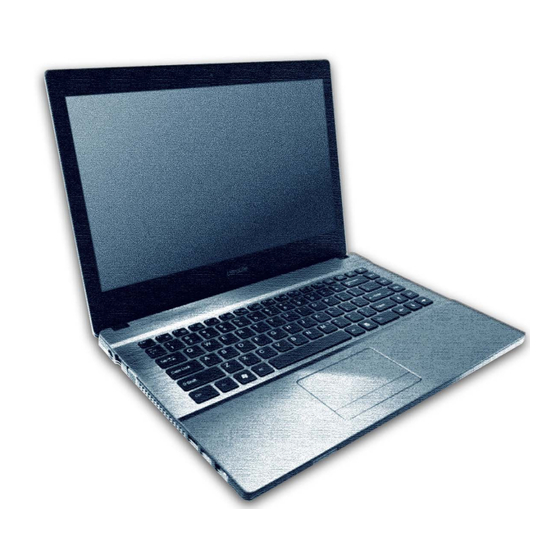

Clevo P650SG Service Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

P650SG / P651SG

Advertisement

Table of Contents
loading

Related Manuals for Clevo P650SG

Summary of Contents for Clevo P650SG

  • Page 1 P650SG / P651SG...
  • Page 3 Preface Notebook Computer P650SG / P651SG Service Manual...
  • Page 4 Preface Notice The company reserves the right to revise this publication or to change its contents without notice. Information contained herein is for reference only and does not constitute a commitment on the part of the manufacturer or any subsequent ven- dor.
  • Page 5 This manual is intended for service personnel who have completed sufficient training to undertake the maintenance and inspection of personal computers. It is organized to allow you to look up basic information for servicing and/or upgrading components of the P650SG / P651SG series notebook PC.
  • Page 6 Preface IMPORTANT SAFETY INSTRUCTIONS Follow basic safety precautions, including those listed below, to reduce the risk of fire, electric shock and injury to per- sons when using any electrical equipment: 1. Do not use this product near water, for example near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool.
  • Page 7 Preface Instructions for Care and Operation The notebook computer is quite rugged, but it can be damaged. To prevent this, follow these suggestions: Don’t drop it, or expose it to shock. If the computer falls, the case and the components could be damaged. Do not expose the computer Do not place it on an unstable Do not place anything heavy...
  • Page 8 Preface Avoid interference. Keep the computer away from high capacity transformers, electric motors, and other strong mag- netic fields. These can hinder proper performance and damage your data. Take care when using peripheral devices. Use only approved brands of Unplug the power cord before peripherals.
  • Page 9 Preface Battery Precautions • Only use batteries designed for this computer. The wrong battery type may explode, leak or damage the computer. • Do not continue to use a battery that has been dropped, or that appears damaged (e.g. bent or twisted) in any way. Even if the computer continues to work with a damaged battery in place, it may cause circuit damage, which may possibly result in fire.
  • Page 10 Preface Related Documents You may also need to consult the following manual for additional information: User’s Manual on CD/DVD This describes the notebook PC’s features and the procedures for operating the computer and its ROM-based setup pro- gram. It also describes the installation and operation of the utility programs provided with the notebook PC. System Startup 1.

  • Page 11: Table Of Contents

    Preface Contents Introduction ..........1-1 Main Board ................... A-5 HDD ....................A-6 Overview ..................1-1 LCD ....................A-7 Specifications ..................1-2 Schematic Diagrams......... B-1 External Locator - Top View with LCD Panel Open ......1-4 External Locator - Front & Right Side Views .........1-5 System Block Diagram ..............B-2 External Locator - Left Side &...
  • Page 12 Preface GPU Decoupling ................B-28 NVVDD Phase 1 & 2 ..............B-60 DACA Interface XTAL ..............B-29 FBVDDQ ..................B-61 IFP I/O Interface ................B-30 Audio Board ..................B-62 Misc - GPIO, I2C and ROM ............B-31 Power Board .................B-63 GPU NVVDD, FBVDDQ, and GND ........... B-32 HDD Board ...................B-64 Lynx 1/9 ..................

  • Page 13: Introduction

    Chapter 1: Introduction Overview This manual covers the information you need to service or upgrade the P650SG / P651SG series notebook computer. Information about operating the computer (e.g. getting started, and the Setup utility) is in the User’s Manual. Information about dri-vers (e.g.

  • Page 14: Specifications

    Introduction Specifications Processor Options Memory Intel® Core™ i7 Processor Four 204 Pin SO-DIMM Sockets Supporting DDR3L 1600MHz Memory i7-4980HQ (2.80GHz), i7-4870HQ (2.50GHz), i7-4710HQ (2.50GHz) (The real memory operating frequency depends on the FSB  6MB L3 Cache, 22nm, DDR3L-1600MHz, TDP 47W of the processor.) Latest Specification Information Memory Expandable from 4GB (minimum) up to 32GB...
  • Page 15 Introduction Audio Communication High Definition Audio Compliant Interface Built-In Gigabit Ethernet LAN S/PDIF Digital Output 2.0M FHD PC Camera Module Two Speakers (Factory Option) M.2 3G/4G Module Sound Blaster Audio WLAN/ Bluetooth M.2 Modules: ANSP ™ 3D sound technology on headphone output (Factory Option) Intel®...

  • Page 16: External Locator - Top View With Lcd Panel Open

    Introduction External Locator - Top View with LCD Panel Open Figure 1 Top View 1. PC Camera 2. *PC Camera LED *When the PC camera is in use, the LED will be illuminated. 3. Built-In Array Microphone 4. LCD 5. Speakers 6.

  • Page 17: External Locator - Front & Right Side Views

    Introduction External Locator - Front & Right Side Views Figure 2 Front View 1. LED Indicator FRONT VIEW Figure 3 Right Side View 1. S/PDIF-Out Jack RIGHT SIDE VIEW 2. Microphone-In Jack 3. Headphone-Out Jack 4. Multi-in-1 Card Reader 5. USIM Card Reader (for 3G/ 4G USIM Cards) 6.

  • Page 18: External Locator - Left Side & Rear View

    Introduction External Locator - Left Side & Rear View Figure 4 Left Side View 1. Vent 2. HDMI-Out Port 3. Powered USB 3.0 LEFT SIDE VIEW Port 4. Mini DisplayPorts Figure 5 REAR VIEW Rear View 1. Vent 2. DC-In Jack 3.

  • Page 19: External Locator - Bottom View

    Introduction External Locator - Bottom View Figure 6 Bottom View 1. Vent  Overheating To prevent your com- puter from overhea- ting, make sure no- thing blocks any vent while the computer is in use. External Locator - Bottom View 1 - 7...

  • Page 20: Mainboard Overview - Top (Key Parts)

    Introduction Mainboard Overview - Top (Key Parts) Figure 7 Mainboard Top Key Parts 1. Memory Slots DDR3 SO-DIMM 2. KBC-ITE IT8587 3. CMOS Battery 1 - 8 Mainboard Overview - Top (Key Parts)

  • Page 21: Mainboard Overview - Bottom (Key Parts)

    Introduction Mainboard Overview - Bottom (Key Parts) Figure 8 Mainboard Bottom Key Parts 1. Mini-Card Connector (WLAN Module) 2. Mini-Card Connector (M.2 3G/SATA Module) 3. Mini-Card Connector (M.2 PCIE/SATA SSD Module) 4. GPU-GTX980M 5. Memory Slots DDR3 SO-DIMM 6. CPU Mainboard Overview - Bottom (Key Parts) 1 - 9...

  • Page 22: Mainboard Overview - Top (Connectors)

    Introduction Mainboard Overview - Top (Connectors) Figure 9 Mainboard Top Connectors 1. HDMI-Out Port 2. USB Port 3.0 Connector 3. Mini Display Port 4. eSATA + USB 3.0 5. DC-In Jack 6. Keyboard Cable Connector 7. TP Connector 8. Speaker Connector 9.

  • Page 23: Mainboard Overview - Bottom (Connectors)

    Introduction Mainboard Overview - Bottom (Connectors) Figure 10 Mainboard Bottom Connectors 1. Multi-in-1 Card Reader 2. Battery Connector 3. Fan Connector 4. LCD Cable Connector 5. CCD Connector Mainboard Overview - Bottom (Connectors) 1 - 11...
  • Page 24 Introduction 1 - 12...

  • Page 25: Disassembly

    Chapter 2: Disassembly Overview This chapter provides step-by-step instructions for disassembling the P650SG / P651SG series notebook’s parts and sub- systems. When it comes to reassembly, reverse the procedures (unless otherwise indicated). We suggest you completely review any procedure before you take the computer apart.

  • Page 26: Maintenance Tools

    Disassembly NOTE: All disassembly procedures assume that the system is turned OFF, and disconnected from any power supply (the battery is removed too). Maintenance Tools The following tools are recommended when working on the notebook PC: • M3 Philips-head screwdriver •...

  • Page 27: Maintenance Precautions

    Disassembly Maintenance Precautions  The following precautions are a reminder. To avoid personal injury or damage to the computer while performing a re- moval and/or replacement job, take the following precautions: Power Safety Warning 1. Don't drop it. Perform your repairs and/or upgrades on a stable surface. If the computer falls, the case and other Before you undertake components could be damaged.

  • Page 28: Disassembly Steps

    Disassembly Disassembly Steps The following table lists the disassembly steps, and on which page to find the related information. PLEASE PERFORM THE DISASSEMBLY STEPS IN THE ORDER INDICATED. To remove the Keyboard: 1. Remove the keyboard page 2 - 5 To remove the Battery: 1.

  • Page 29: Removing The Keyboard

    Disassembly Removing the Keyboard Figure 1 Keyboard Removal 1. Turn off the computer, turn it over. 2. Remove screws from the bottom of the computer. a. Remove the screws from 3. Open it up with the LCD on a flat surface before pressing at point to release the keyboard module (use the spe- the bottom of the compu- cial eject stick...

  • Page 30: Removing The Battery

    Disassembly Removing the Battery Figure 2 Battery Removal 1. Turn the computer off, and turn it over. 2. Remove the SD card cover and screws (Figure 2a). a. Remove the SD cover 3. Carefully lift the bottom case up in the direction of the arrow and remove it (Figure 2b and screws.
  • Page 31 Disassembly 5. Carefully disconnect the cable , then remove screws (Figure 3b Figure 3 6. Lift the battery off the computer (Figure 3e Battery Removal 7. Reinsert the bottom case starting from point as shown (Figure 3f) to avoid damaging the rear eSATA/USB 3.0 (cont’d.) port.

  • Page 32: Removing The Hard Disk Drive

    Disassembly Removing the Hard Disk Drive Figure 4 HDD Assembly The hard disk drive can be taken out to accommodate other 2.5" serial (SATA) hard disk drives with a height of 9.5mm Removal or 7mm (h). Follow your operating system’s installation instructions, and install all necessary drivers and utilities (as outlined in Chapter 4 of the User’s Manual) when setting up a new hard disk.
  • Page 33 Disassembly 4. Slightly lift and pull the hard disk in the direction of arrow (Figure 5c Figure 5 5. Lift the hard disk assembly out of the bay (Figure 5d HDD Assembly 6. Remove screws and bracket from the hard disk (Figure 5e Removal (cont’d.) 7.

  • Page 34: Removing The System Memory (Ram)

    Disassembly Removing the System Memory (RAM) Figure 6 RAM-1 Module The computer has two memory sockets for 204 pin Small Outline Dual In-line Memory Modules (SO-DIMM) supporting Removal DDR3L Up to 1600 MHz. The main memory can be expanded up to 16GB. The SO-DIMM modules supported are 1024MB and 2048MB DDR3L Modules.
  • Page 35 Disassembly 4. Gently pull the two release latches ( & ) on the sides of the memory socket in the direction indicated by the Figure 7 arrows (Figure 8c). The RAM module will pop-up Figure 8d , and you can then remove it RAM-1 Module 5.
  • Page 36 Disassembly Memory-2 Upgrade Process Figure 8 RAM-2 Module 1. Turn off the computer, turn it over, remove the battery (page 2 - Removal 2. The RAM-2 modules will be visible at point on the mainboard (Figure 8a 3. Gently pull the two release latches ( &...

  • Page 37: Removing The M.2 Ssd Module

    Disassembly Removing the M.2 SSD Module Figure 9 M.2 SSD Module 1. Turn off the computer, turn it over, remove the battery (page 2 - Removal 2. The M.2 SSD module will be visible at point on the mainboard (Figure 9a).

  • Page 38: Removing The Wireless Lan Module

    Disassembly Removing the Wireless LAN Module Figure 10 Wireless LAN 1. Turn off the computer, turn it over, remove the battery (page 2 - Module Removal 2. The Wireless LAN module will be visible at point on the mainboard (Figure 10a).

  • Page 39: Wireless Lan, Combo, 3G & Lte Module Cables

    Disassembly Wireless LAN, Combo, 3G & LTE Module Cables Note that the cables for connecting to the antennae on WLAN, WLAN & Bluetooth Combo, 3G and LTE modules are not labelled. The cables/covers (each cable will have either a black or transparent cable cover) are color coded for iden- tification as outlined in the table below.

  • Page 40: Removing And Installing The 3G / Sata Module

    Disassembly Removing and Installing the 3G / SATA Module Figure 11 3G Removal Procedure 3G Module Removal 1. Turn off the computer, remove the battery (page 2 - a. Locate the module. 2. Locate the module, it is visible at point Figure 11a b.
  • Page 41 Disassembly SATA Removal Procedure Figure 12 1. Turn off the computer, remove the battery (page 2 - SATA Module 2. Locate the module, it is visible at point Figure 12a Removal 3. Remove the screw from the module Figure 12b 4.
  • Page 42 Disassembly 3G / SATA Installation Procedure Figure 13 3G / SATA Module 1. Place the thermal pad on the module as shown (Figure 13a). Installation 2. Insert the module in the computer Figure 13b 3. Tighten the screw to secure it in place (Figure 13c).

  • Page 43: Part Lists

    Appendix A:Part Lists This appendix breaks down the P650SG / P651SG series notebook’s construction into a series of illustrations. The com- ponent part numbers are indicated in the tables opposite the drawings. Note: This section indicates the manufacturer’s part numbers. Your organization may use a different system, so be sure to cross-check any relevant documentation.
  • Page 44 Part List Illustration Location The following table indicates where to find the appropriate part list illustration. Table A - 1 Part List Illustration Part Location page A - 3 Bottom page A - 4 page A - 5 Main Board page A - 6 page A - 7 A - 2...
  • Page 45 Figure A - 1 Top A - 3...

  • Page 46: Bottom

    Bottom Figure A - 2 Bottom A - 4 Bottom...

  • Page 47: Main Board

    Main Board Figure A - 3 Main Board Main Board A - 5...

  • Page 48: Hdd

    Figure A - 4 A - 6 HDD...

  • Page 49: Lcd

    Figure A - 5 LCD A - 7...
  • Page 50 A - 8...

  • Page 51: Schematic Diagrams

    Schematic Diagrams Appendix B: Schematic Diagrams This appendix has circuit diagrams of the P650SE / P651SE notebook’s PCB’s. The following table indicates where to find the appropriate schematic diagram. Diagram - Page Diagram - Page Diagram - Page Table B - 1 System Block Diagram - Page B - 2 Frame Buffer Partition C - Page B - 25 Fan, LID, KB, LED, G Sensor - Page B - 51...
  • Page 52 Schematic Diagrams System Block Diagram VDD3,VDD5 P650SE Shark Bay System Block Diagram P650 AUDIO BOARD SHEET 53 6-71-P6508-D03 SHEET 61 5V,3.3V,5VS,3VS, P650 POWER SW BOARD 6-7P-P650C-001 3.3VM SHEET 54 6-71-P650C-D01B SHEET 62 6-71-P6500-D03 <=4.5" PCIE*16 Vcore P650 HDD BOARD 1067/1333/1600 MHz SHEET 57 6-71-P650N-D02 SHEET 63...
  • Page 53 Schematic Diagrams Processor 1/7-DMI, FDI, PEG Haswell Processor 1/7 ( DMI,FDI,PEG ) HASWELL_BGA_E U104A 12 mil R206 24.9_1%_04 PEG_RCOMP VCCIOA_OUT PEG_RX#0 PEG_RXN0 PEG_RX#1 DMI_TXN0 DMI_RXN0 PEG_RXN1 DMI_TXN1 DMI_RXN1 PEG_RXN2 PEG_RX#2 PEG_RX#3 DMI_TXN2 DMI_RXN2 PEG_RXN3 PEG_RX#4 DMI_TXN3 DMI_RXN3 PEG_RXN4 PEG_RXN5 PEG_RX#5 PEG_RX#6 DMI_TXP0 DMI_RXP0...
  • Page 54 Schematic Diagrams Processor 2/7- CLK, MISC PU/PD for JTAG signals Haswell Processor 2/7 ( MISC,JTAG,CLK ) 1.05VS XDP_TMS R328 51_04 XDP_TDI_R R329 51_04 XDP_PREQ# R330 *51_04 XDP_TDO_R R327 51_04 XDP_TCLK U104B HASWELL_BGA_E R744 51_04 XDP_TRST# R745 51_04 MISC PROC_DETECT# BB51 SM_RCOMP_0 XDP_TDO_R R326...
  • Page 55 Schematic Diagrams Processor 3/7- (DDR3L) Haswell Processor 3/7 ( DDR3L ) HASWELL_BGA_E U104D 11,12 M_B_DQ[63:0] M_B_DQ0 AC54 AY36 RSVD_AY36 SB_DQ0 RSVD M_B_DQ1 AC52 AW27 M_B_CLK_DDR#0 SB_DQ1 SB_CKN0 M_B_DQ2 AE51 AV27 M_B_CLK_DDR0 SB_DQ2 SB_CK0 M_B_DQ3 AE54 AU36 SB_DQ3 SB_CKE0 M_B_CKE0 M_B_DQ4 AC53 AW26 SB_DQ4...
  • Page 56 Schematic Diagrams Processor 4/7- Display Haswell Processor 4/7 ( DISPLAY ) VCCIOA_OUT HASWELL_BGA_E U104J R204 10K_04 DP_B#0 DDIB_TXN0 EDP_AUXN EDP_AUXN DP_B0 EDP_AUXP DDIB_TXP0 EDP_AUXP DP_B#1 DDIB_TXN1 EDP_HPD DP_B1 DDIB_TXP1 mini DP DP_B#2 EDP_TXN_0 DDIB_TXN2 EDP_TXN0 DP_B2 DDIB_TXP2 EDP_TXN1 EDP_TXN_1 DP_B#3 EDP_TXP_0 14 EDP_HPD 13,14...

  • Page 57: Processor 5/7- Power

    Schematic Diagrams Processor 5/7- Power V_VCCDDQ VDDQ Haswell Processor 5/7 ( POWER ) 47W->85A VCORE VCORE U104E HASWELL_BGA_E RSVD C427 C449 C428 C450 C429 C451 C445 C446 C447 C448 4.2A V_VCCDDQ RSVD RSVD V_VCCDDQ RSVD AR29 VDDQ AR31 VDDQ C424 C443 C396 C499...

  • Page 58: Processor 6/7- Pognd

    Schematic Diagrams Processor 6/7- POGND VCORE VCORE HASWELL_BGA_E HASWELL_BGA_E U104F U104I Haswell Processor 6/7 ( POWER,GND ) AB45 BC10 AB46 BC12 BC15 AC46 BC18 AC47 BC22 HASWELL_BGA_E HASWELL_BGA_E BC26 U104H U104G AD46 BC30 AT40 AY50 AJ48 BC33 AT42 AJ51 AE46 BC36 AT43 AJ54...

  • Page 59: Processor 7/7- Rsvd

    Schematic Diagrams Processor 7/7- RSVD Haswell Processor 7/7 ( RESERVED ) CFG STRAPS FOR PROCESSOR HASWELL_BGA_E HASWELL_BGA_E U104K U104L RSVD_TP RSVD_TP RSVD_TP RSVD_TP PCI EXPRESS STATIC LANE REVERSAL FOR ALL PEG PORTS RSVD_TP RSVD_TP DAISY_CHAIN_NCTF_A3 DAISY_CHAIN_NCTF_A4 CFG_RCOMP RSVD_TP CFG_RCOMP 1: (DEFAULT)NORMAL OPERATION; BF51 RSVD_TP CFG16...

  • Page 60: Ddr3 Cha So-Dimm_0

    Schematic Diagrams DDR3 CHA SO-DIMM_0 Channel A SO-DIMM 0[RAM1] STD TYPE H=4mm J_DIMMA_1A 4,10 M_A_A[15:0] M_A_DQ[63:0] 4,10 M_A_A0 M_A_DQ0 J_DIMMA_1B M_A_A1 M_A_DQ1 M_A_A2 M_A_DQ3 M_A_A3 M_A_DQ7 VDDQ M_A_A4 M_A_DQ5 M_A_A5 M_A_DQ4 VDD1 VSS16 M_A_A6 M_A_DQ2 VDD2 VSS17 M_A_A7 M_A_DQ6 VDD3 VSS18 M_A_A8 M_A_DQ9...

  • Page 61: Ddr3 Cha So-Dimm_1

    Schematic Diagrams DDR3 CHA SO-DIMM_1 Channel A SO-DIMM 1[RAM3] REV TYPE H=5.2mm J_DIMMA_2A M_A_A[15:0] M_A_DQ[63:0] M_A_A0 M_A_DQ0 J_DIMMA_2B M_A_A1 M_A_DQ1 M_A_A2 M_A_DQ3 M_A_A3 M_A_DQ7 VDDQ M_A_A4 M_A_DQ5 M_A_A5 M_A_DQ4 VDD1 VSS16 M_A_A6 M_A_DQ2 VDD2 VSS17 M_A_A7 M_A_DQ6 VDD3 VSS18 M_A_A8 M_A_DQ9 VDD4 VSS19...

  • Page 62: Ddr3 Chb So-Dimm_0

    Schematic Diagrams DDR3 CHB SO-DIMM_0 RSV TYPE Channel B SO-DIMM 0[RAM2] H=4mm J_DIMMB_1A 4,12 M_B_B[15:0] M_B_DQ[63:0] 4,12 M_B_B0 M_B_DQ1 J_DIMMB_1B M_B_B1 M_B_DQ5 M_B_B2 M_B_DQ3 M_B_B3 M_B_DQ2 VDDQ M_B_B4 M_B_DQ4 M_B_B5 M_B_DQ0 VDD1 VSS16 M_B_B6 M_B_DQ6 VDD2 VSS17 M_B_B7 M_B_DQ7 VDD3 VSS18 M_B_B8 M_B_DQ8...

  • Page 63: Ddr3 Chb So-Dimm_1

    Schematic Diagrams DDR3 CHB SO-DIMM_1 Channel B SO-DIMM 1[RAM4] STD TYPE H=5.2mm J_DIMMB_2A 4,11 M_B_B[15:0] M_B_DQ[63:0] 4,11 M_B_B0 M_B_DQ1 J_DIMMB_2B M_B_B1 M_B_DQ5 M_B_B2 M_B_DQ3 VDDQ M_B_B3 M_B_DQ2 M_B_B4 M_B_DQ4 M_B_B5 M_B_DQ0 VDD1 VSS16 M_B_B6 M_B_DQ6 VDD2 VSS17 M_B_B7 M_B_DQ7 VDD3 VSS18 M_B_B8 M_B_DQ8...

  • Page 64: Panel, Inverter

    Schematic Diagrams Panel, Inverter PANEL POWER PANEL CONNECTOR (For coaxial cable) PLVDD C144 *MTS3572G6 VLED J_LCD1 1u_6.3V_X5R_04 C197 C206 3.3VS C222 *0.22u_50V_Y5V_06 *4.7K_06 LVDS-U0N LVDS-U0P *1M_04 LVDS-U1N GND5 *100K_04 LVDS-U1P GND5 GND4 GND4 GND3 LVDS-U2N GND3 GND2 LVDS-U2P GND2 3.3V GND1 GND1 LVDS...

  • Page 65: Rtd2136N-Cg

    Schematic Diagrams RTD2136N-CG Power 3.3VS 3.3VS 0_06 0_06 AVCC33 DVCC33 DVCC33 ENBLT ENBLT VC17 VC19 6-19-31001-245 VC16 2.2u_6.3V_X5R_06 2.2u_6.3V_X5R_06 VR15 0.1u_10V_X7R_04 0.1u_10V_X7R_04 10K_04 Note: VR23 0_04 1. Entire trace of Panel VCC should be wider than 80-mil 5,13 EDP_HPD LVDS-L0N LVDS-L0N LVDS LVDS-L0P...

  • Page 66: Mini Dp Port D

    Schematic Diagrams Mini DP Port D mini-Display Port D R758 0_04 R760 0_04 Close to Display PORT MDP_D#3 D_MDP_D#3 C857 0.1u_10V_X7R_04 D_MDP_D3 C856 0.1u_10V_X7R_04 3.3VS 3.3VS_MDP MDP_D3 *DVI2012F2SF-900T05_08 VOUT R771 0_04 R774 0_04 C488 C511 SY6288DAAC MDP_D#2 C866 0.1u_10V_X7R_04 D_MDP_D#2 *10u_6.3V_X5R_06 10u_6.3V_X5R_06 C864...

  • Page 67: Mini Dp Port B

    Schematic Diagrams Mini DP Port B mini-Display Port B PLEASE CLOSE TO CONNECTOR 3.3VS_MDP Close to Display PORT R780 0_04 C566 DP_B#3 C874 0.1u_10V_X7R_04 D_DP_B#3 D_DP_B3 C872 0.1u_10V_X7R_04 10u_6.3V_X5R_06 DP_B3 *DVI2012F2SF-900T05_08 R779 0_04 R784 0_04 DP_B#2 C877 0.1u_10V_X7R_04 D_DP_B#2 D_DP_B2 C875 0.1u_10V_X7R_04 DP_B2...

  • Page 68: Hdmi Connector

    Schematic Diagrams HDMI Connector HDMI_5VS HDMI CONNECTOR For ESD HDMI_5VS J_HDMI1 C128L1-K1909-L R634 R666 VOUT P/N = 6-21-14A90-019 C394 C393 2.2K_04 2.2K_04 SY6288DAAC 22u_6.3V_X5R_08 22u_6.3V_X5R_08 *LBAV99LT1G *LBAV99LT1G *LBAV99LT1G PCB Footprint = C12881-100C 3,15,52,54,55 SUSB HDMI_HPD-C HDMI_SCL-C HOT PLUG DETECT uP7549UMA5-20 PCB Footprint = M-SOT23-5A HDMI_SDA-C DDC/CEC GND...

  • Page 69: Vga Pci Express

    Schematic Diagrams VGA PCI Express 3V3_AON 37,48,60 DGPU_PWRGD NV PCI EXPRESS R546 10K_04 2SK3018S3 PEX_CLKREQ# PEG_CLKREQ# R547 *100K_04 BGA1745 PLACE AT PLACE OUTSIDE COMMON PEX_VDD 1/21 PCI_EXPRESS BALLS OF BGA SNN_PEXWAKE BJ21 PEX_WAKE AW33 PEX_IOVDD BE20 AY32 R545 0_04 C109 C125 C101 GPU_PEX_RST#...

  • Page 70: Vga Frame Buffer Partition

    Schematic Diagrams VGA Frame Buffer Partition PAGE3: GPU FRAME BUFFER PARTITION A/B BGA1745 COMMON BGA1745 COMMON 3/21 FBB 2/21 FBA FBB_D0 FBB_CMD0 FBB_D0 FBB_CMD0 FBA_DBI[7..0] FBB_DBI[7..0] FBA_D0 FBA_CMD0 FBB_D1 FBB_CMD1 FBA_D0 FBA_CMD0 FBB_D1 FBB_CMD1 FBA_DBI[7..0] FBB_DBI[7..0] FBA_D1 FBA_CMD1 FBB_D2 FBB_CMD2 FBA_D1 FBA_CMD1 FBB_D2...

  • Page 71: Frame Buffer Partition A

    Schematic Diagrams Frame Buffer Partition A FBA_WCK01 FBA_CMD[31..0] FBA_W CK01 FBA_CMD[31..0] FBA_WCK01* FBA_W CK01* FRAME BUFFER PARTITION A FBA_WCK23 FBA_D[63..0] FBA_W CK23 FBA_D[63..0] FBA_WCK23* FBA_W CK23* FBA_WCK45 FBA_DBI[7..0] FBA_W CK45 FBA_DBI[7..0] FBA_WCK45* FBA_W CK45* FBA_WCK67 FBA_EDC[7..0] FBA_W CK67 FBA_EDC[7..0] FBA_WCK67* FBA_W CK67* INS53642266 BGA170...

  • Page 72: Frame Buffer Partition B

    Schematic Diagrams Frame Buffer Partition B FBB_WCK01 FBB_CMD[31..0] FBB_W CK01 FBB_CMD[31..0] FBB_WCK01* FRAME BUFFER PARTITION B FBB_W CK01* FBB_WCK23 FBB_D[63..0] FBB_W CK23 FBB_D[63..0] FBB_WCK23* FBB_W CK23* FBB_WCK45 FBB_DBI[7..0] FBB_W CK45 FBB_DBI[7..0] FBB_WCK45* FBB_W CK45* FBB_WCK67 FBB_EDC[7..0] FBB_W CK67 FBB_EDC[7..0] FBB_WCK67* FBB_W CK67* INS53645030 BGA170...

  • Page 73: Frame Buffer Partition A_B

    Schematic Diagrams Frame Buffer Partition A_B FRAME BUFFER PARTITION A/B DECOUPLING FBVDDQ DECOUPLING AROUND FBA MEMORIES (DQ0-DQ31) PLACE Under MEM FBVDDQ PLACE Under MEM DECOUPLING AROUND FBA MEMORIES (DQ32-DQ63) SPARE SPARE C619 C621 C634 FBVDDQ Sheet 22 of 72 FBVDDQ Frame Buffer 1K_1%_04 INS53650384...

  • Page 74: Gpu Frame Buffer Partition

    Schematic Diagrams GPU Frame Buffer Partition FBD_DBI[7..0] FBD_CMD[31..0] GPU FRAME BUFFER PARTITION C/D FBD_DBI[7..0] FBD_CMD[31..0] FBC_DBI[7..0] FBD_EDC[7..0] FBD_D[63..0] FBC_DBI[7..0] FBD_EDC[7..0] FBD_D[63..0] FBC_EDC[7..0] FBC_EDC[7..0] P650SE, P670SE, P65SE Frame D FBC_CMD[31..0] BGA1745 BGA1745 FBC_CMD[31..0] COMMON COMMON FBVDDQ FBC_D[63..0] 4/21 FBC 5/21 FBD FBC_D[63..0] FBC_D0 FBC_CMD0...

  • Page 75: Frame Buffer Partition C

    Schematic Diagrams Frame Buffer Partition C FRAME BUFFER PARTITION C FBC_CMD[31..0] FBC_CMD[31..0] FBC_WCK01 FBC_W CK01 FBC_WCK01* FBC_D[63..0] FBC_D[63..0] FBC_W CK01* FBC_WCK23 FBC_W CK23 FBC_DBI[7..0] FBC_WCK23* FBC_DBI[7..0] FBC_W CK23* FBC_WCK45 FBC_W CK45 FBC_EDC[7..0] FBC_WCK45* FBC_EDC[7..0] FBC_W CK45* FBC_WCK67 FBC_W CK67 FBC_WCK67* INS53657275 FBC_W CK67* BGA170...

  • Page 76: Frame Buffer Partition D

    Schematic Diagrams Frame Buffer Partition D FRAME BUFFER PARTITION D FBD_CMD[31..0] FBD_CMD[31..0] FBD_WCK01 FBD_W CK01 FBD_D[63..0] FBD_WCK01* FBD_D[63..0] FBD_W CK01* FBD_WCK23 FBD_W CK23 FBD_DBI[7..0] FBD_WCK23* FBD_DBI[7..0] FBD_W CK23* FBD_WCK45 FBD_W CK45 FBD_WCK45* INS100801293 FBDEDC[7..0] BGA170 FBD_EDC[7..0] FBD_W CK45* FBD_WCK67 COMMON FBD_W CK67 FBD_WCK67* FBD_W CK67*...

  • Page 77: Frame Buffer Partition C_D

    Schematic Diagrams Frame Buffer Partition C_D FRAME BUFFER PARTITION C/D DECOUPLING FBVDDQ FBVDDQ PLACE Under MEM DECOUPLING AROUND FBC MEMORIES (DQ0-DQ31) DECOUPLING AROUND FBC MEMORIES (DQ32-DQ63) PLACE Under MEM SPARE SPARE C678 C679 C266 C272 C261 C140 C230 C217 C246 C102 C224 C207...

  • Page 78: Gpu Decoupling

    Schematic Diagrams GPU Decoupling GPU DECOUPLING FBVDDQ NVVDD MID-FREQ CERAMICS x11 22uF X5R 0805 FBVDDQ PLACE Near GPU x4 10uF X5R 0805 PLACE Under GPU C171 C172 C124 C174 C173 C648 C651 C650 x8 100nF 0402 X7R C160 C202 C220 C108 C219 C196...

  • Page 79: Daca Interface Xtal

    Schematic Diagrams DACA Interface XTAL DACA INTERFACE and XTAL N15E-GT GC6 1.0 IO PORT PCH BGA1745 COMMON 6/21 DACA AW18 DACA_VDD I2CA_SCL 3V3_RUN I2CA_SCL I2CA_SDA I2CA_SDA AW20 DACA_VREF AY20 BA20 DACA_RSET DACA_HSYNC AY18 DACA_VSYNC AY21 DACA_RED BA21 DACA_GREEN AW21 DACA_BLUE N16E-GT Sheet 28 of 72 DACA Interface and...

  • Page 80: Ifp I/O Interface

    Schematic Diagrams IFP I/O Interface N15E-GT optimus IFP I/O INTERFACE IO PORT PCH BGA1745 BGA1745 COMMON COMMON BGA1745 COMMON 7/21 IFPAB 10/21 IFPEF 8/21 IFPC DVI/HDMI GK104 GM204 BB14 IFPCD_RSET IFPA_AUX_SDA DVI/HDMI IFPE_AUX_SDA IFPA_AUX_SCL IFPE_AUX_SCL BB12 IFPCD_PLLVDD IFPC_AUX_SDA BF15 IFPB_AUX_SDA IFPC_AUX_SCL IFPE_L3 BE15...

  • Page 81: Misc - Gpio, I2C And Rom

    Schematic Diagrams Misc - GPIO, I2C and ROM 3.3V MULTI-LEVEL STRAPS MISC: GPIO, I2C, and ROM 3V3_RUN 3V3_RUN 3V3_AON BIOS ROM 3.3V Setting RAM type 3V3_RUN INS53767385 R124 R125 R126 R101 BGA1745 R130 R136 R137 R135 4.99K_1%_04 *34.8K_1%_04 *4.99K_1%_04 *45.3K_1%_04 *45.3K_1%_04 COMMON *4.99K_1%_04...

  • Page 82: Gpu Nvvdd, Fbvddq, And Gnd

    Schematic Diagrams GPU NVVDD, FBVDDQ, and GND BGA1745 BGA1745 GPU NVVDD, FBVDDQ, AND GND COMMON COMMON 16/21 GND_1/2 17/21 GND_2/2 AJ25 BB32 AJ27 BB34 AJ29 BB35 AJ31 BB36 AA15 AK14 NVVDD AA17 AK16 BGA1745 BGA1745 NVVDD NVVDD NVVDD COMMON COMMON AA19 AK18 AA21...

  • Page 83: Lynx 1/9

    Title Title [32] Lynx Point 1/9 [32] Lynx Point 1/9 [32] Lynx Point 1/9 For P650SE: 193705-1 PCB Footprint = 193705-1 PN = 6-20-437E0-022 For P650SG, P670SE, P670SG: TBF0-02102-0021A(6-21-43710-022) Size Size Size Document Number Document Number Document Number 6-71-P6500-D03 6-71-P6500-D03...

  • Page 84: Lynx 3/9

    Schematic Diagrams Lynx 2/9 Lynx Point (LPC,SMBUS SPI,C-LINK) 3.3VA RTC-WakeUp U108D LPT_PCH_M_EDS PCH_BT_EN# R278 10K_04 SMB_CLK R305 2.2K_04 PCH_BT_EN# SMB_DATA R304 2.2K_04 SMBALERT#/GPIO11 48,49 LPC_AD0 LAD_0 SMB_CLK DRAMRST_CNTRL R277 1K_04 SMBus SMBCLK SMB_CLK 9,10,11,12,43,45,50 48,49 LPC_AD1 LAD_1 SMB_DATA SML0_DATA R282 499_1%_04 SMB_DATA 9,10,11,12,43,45,50...

  • Page 85: Lynx 6/9

    Schematic Diagrams Lynx 3/9 Lynx Point (DMI,FDI,GPIO) DSWODVREN - On Die DSW VR Enable R1 STUFFED, Enabled (DEFAULT) R2 UNSTUFFED LPT_PCH_M_EDS U108B AW22 R1 STUFFED, Disabled DMI_RXN0 DMI_RXN_0 AR20 DMI_RXN_1 R2 UNSTUFFED DMI_RXN1 AJ35 FDI_RXN_0 AP17 DMI_RXN2 DMI_RXN_2 AV20 AL35 DMI_RXN3 DMI_RXN_3 FDI_RXN_1...

  • Page 86: Lynx 8/9

    Schematic Diagrams Lynx 4/9 Lynx Point (CRT,DISPLAY,PCI) DDPB mini Display port 3.3VS DDPC HDMI DDPD mini Display port HDMI_CTRLCLK R150 2.2K_04 HDMI_CTRLDATA R149 2.2K_04 INT_PIRQE# R256 *10K_04 SATA_ODD_DA# R220 10K_04 INT_PIRQG# R226 *10K_04 U108E LPT_PCH_M_EDS INT_PIRQH# R192 *10K_04 Flash Descriptor security override strap VGA_BLUE DDPB_CTRLCLK DP_B_CLK...
  • Page 87 Schematic Diagrams Lynx 5/9 Lynx Point (PCIe,USB) P6x0SA P655SE 0 U108I LPT_PCH_M_EDS C750 0.1u_10V_X7R_04 AW31 PCIE_RXN1_SSD USB_PN0 PERN1/USB3RN3 USB2N0 C748 0.1u_10V_X7R_04 AY31 USB3 PORT1, , Charger PCIE_RXP1_SSD PERP1/USB3RP3 USB2P0 USB_PP0 USB_PN1 USB2N1 C744 0.1u_10V_X7R_04 BE32 USB3 PORT2, USB_PP1 PCIE_TXN1_SSD PETN1/USB3TN3 USB2P1 C746 0.1u_10V_X7R_04...
  • Page 88 Schematic Diagrams Lynx 6/9 Lynx Point (GPIO,VSS_NCTF,RSVD) 3.3VA R733 10K_04 SB_BLON C760 *0.1u_10V_X5R_04 H_THRMTRIP# R732 10K_04 GPIO27 PLL_ODVR_EN R311 *10K_04 LPT_PCH_M_EDS R295 *1K_04 U108F PLL_ODVR_EN: EDP_CARD_DET# C754 0.01u_16V_X7R_04 H_CPUPW RGD HIGH- ENABLED (DEFAULT) BMBUSY#/GPIO0 LOW - DISABLED D02A SMI#_R R623 10K_04 SMI# TACH1/GPIO1...
  • Page 89 Schematic Diagrams Lynx 7/9 Lynx Point (POWER) U108G LPT_PCH_M_EDS 1.05VS 1.312A 0.07A R576 *15mil_short_06 VCCADAC1_5 1.312A AA24 CRT DAC AA26 0.0133A V3.3S_ADACBG AD20 R177 *15mil_short_06 VCCADACBG3_3 AD22 C356 C328 C347 C358 C350 AD24 0.183A VCCAPLL_FDI 10u_6.3V_X5R_06 1u_6.3V_X5R_04 1u_6.3V_X5R_04 1u_6.3V_X5R_04 1u_6.3V_X5R_04 AD26 BB44 R152...
  • Page 90 Schematic Diagrams Lynx 8/9 Lynx Point (POWER) 1.05VS VCCIO2PCH RTCVCC R219 0_06 C373 C372 C370 C778 C779 C777 0.1u_10V_X7R_04 0.1u_10V_X7R_04 1u_6.3V_X5R_04 0.1u_10V_X7R_04 0.1u_10V_X7R_04 1u_6.3V_X5R_04 0.261A HCB1608KF-121T25 3.3VA 1.05VS C346 C330 R180 0_04 3.3VA LPT_PCH_M_EDS 0.1u_10V_X7R_04 U108H 0.1u_10V_X7R_04 C355 C345 0.1u_10V_X7R_04 0.1u_10V_X7R_04 3.3VS VCCSUS3_3...
  • Page 91 Schematic Diagrams Lynx 9/9 U108J LPT_PCH_M_EDS Lynx Point (GND) AL34 AL38 AM14 AM24 3G_CLKREQ# AM26 R704 10K_04 3.3VS AM28 PCIECLKRQ2# R701 10K_04 AM30 PEG_CLKREQ# R309 10K_04 3.3VA AM32 R294 *10K_04 AM16 AN36 AN40 AN42 LPT_PCH_M_EDS 3.3VA U108C AP13 AP24 PCIECLKRQ3# R306 10K_04 AP31...

  • Page 92: Usb3.0 + Esata Combo

    Schematic Diagrams USB3.0 + eSATA Combo USB3.0 re-driver USB3.0 PORT5 3.3V (MB ) 3.3V USBVCC3.0_5 *4.7K_04 *0_04 *4.7K_04 *0_04 R513 R519 VOUT *4.7K_04 *0_04 *4.7K_04 *4.7K_04 C639 C638 *4.7K_04 2K_1%_04 I2C_SCK_P5 10u_6.3V_X5R_06 0.1u_16V_Y5V_04 *0.1u_16V_Y5V_04 I2C_SDA_P5 R517 *4.7K_04 R516 0_04 R512 R518 *10mil_short_04 SY6288DAAC...

  • Page 93: Usb Charger

    Schematic Diagrams USB Charger USB3.0 re-driver 3.3V 3.3V R686 *4.7K_04 R687 *0_04 R680 *4.7K_04 R681 *0_04 R659 R694 R676 *4.7K_04 R677 *0_04 *4.7K_04 *4.7K_04 R671 *4.7K_04 R672 2K_1%_04 I2C_SCK_P1 I2C_SDA_P1 R667 *4.7K_04 R668 0_04 R660 R695 *4.7K_04 *4.7K_04 I2C_SDA_P1 I2C_SCK_P1 USB3_TXN1 TXN1 0.1u_10V_X7R_04...

  • Page 94: M.2 3G + M.2 Sata

    Schematic Diagrams M.2 3G + M.2 SATA 3.3VS M.2 SATA re-driver 3G CARD / M.2 SATA R761 SATA5_GPIO49 CURRENT2A ,DON'T DROP BELOW 3.135V SATA5_GPIO49 *10K_04 3G_3.3V 80 mils H: SATA 3.3VS 3G_CONFIG1 J_3G1 C850 220u_6.3V_6.3*6.3*4.2 L: PCIe R391 *0_04 R403 0_04 *2SK3018S3 C516...

  • Page 95: M.2 Wlan+Bt, Pcie4X Ssd

    Schematic Diagrams M.2 WLAN+BT, PCIE4X SSD J_W LAN1 40 mil WLAN+BT W LAN_3.3V GND10 3.3V3 Reserved/REFCLKN1 3.3V2 C281 Reserved/REFCLKP1 UIM_Power_In/Gpio1/PEWake1# GND9 UIM_Power_Out/CLKREQ1# 0.1u_16V_Y5V_04 Reserved/PERn1 UIM_SWP/PERST1# Reserved/PERp1 Reserved1 GND8 ALERT#(I) R163 10K_04 *2mm Reserved/PETn1 I2C CLK(O) W LAN_3.3V 3.3V R162 10K_04 Reserved/PETp1 I2C DATA(IO) VDD3...

  • Page 96: Realtek Alc892

    Schematic Diagrams Realtek ALC892 3.3V 3.3V 2,3,13,30,32,41,42,43,44,49,50,51,52,54,55,58,59,60 Layout Note: 3.3VS 3,9,10,11,12,13,14,15,16,17,32,33,34,35,37,38,39,40,41,43,44,46,48,49,50,51,54,57 41,49,51,52,54,55,58,59,60 U43 pin 1 ~ pin 11 and pin 47 and pin 48 C522 0.1u_16V_Y5V_04 13,15,16,17,32,35,46,47,49,50,51,54,57 are Digital signals. R457 C521 0.1u_16V_Y5V_04 The others are Analog signals. *100K_04 HCB1005KF-121T20 C525 0.1u_16V_Y5V_04 3.3VS...

  • Page 97: Tpa2008D2

    Schematic Diagrams TPA2008D2 AMP_5VS TPA2008D2 HCB1608KF-121T25 The volume control.the gain range is from -80db(Vvolume=5V) to +20db(Vvolume=0V) with P2P BA20550 64 steps precise control. C535 C536 C526 (TSSOP24) 0.1u_16V_Y5V_04 0.1u_16V_Y5V_04 22u_6.3V_X5R_08 Front Speaker R / L AUDG AUDG AUDG 4 Ohm 2W Speaker AMP_EN ROUTP FCM1005KF-121T03...

  • Page 98: Subwoofer

    Schematic Diagrams Subwoofer P670SE ONLY 2.2_04 2200p_50V_X7R_04 SAMP_PW R SAMP_PW R SC40 SC41 SC12 SC10 0.1u_16V_Y5V_04 0.1u_16V_Y5V_04 0.1u_16V_Y5V_04 0.1u_16V_Y5V_04 0.1u_16V_Y5V_04 0.1u_16V_Y5V_04 BCIHP0420TB-2R2M SAMPPW R_SW 10K_04 AUDG_2 AUDG_2 AUDG_2 AUDG_2 AUDG_2 FMS3004-AS-H SOSCIN *10K_04 45,46 AMP_EN OSCIN 10u_6.3V_X5R_06 SR13 0_04 MUTE OSOC SAMPPW R_FREQ SR19...

  • Page 99: Kbc-Ite It8587

    Schematic Diagrams KBC-ITE IT8587 P670SE IT8587 MODEL_ID RB (PL) RA (PH) Voltage J_KB2 KBC_AVDD (85208-24051) VDD3 P650SE HCB1005KF-121T20 KB-SI0 MODEL_ID R783 10K_04 P650SG VDD3 VDD3 KB-SI1 C534 C562 C610 C611 C604 C609 KB-SI2 R781 *10K_04 P670SE 15.4K KB-SI3 10u_6.3V_X5R_06 0.1u_16V_Y5V_04 0.1u_16V_Y5V_04...

  • Page 100: Tpm, Ccd, Tp

    Schematic Diagrams TPM, CCD, TP FOR TP SLB9665TT 3.3VS TP_VCC R488 *0_04 R427 *0_04 R456 R425 C865 3.3V 3.3VS D02A C617 C616 R426 0_04 10K_04 10K_04 *10u_6.3V_X5R_06 R489 0_04 3.3VS 0.1u_16V_Y5V_04 *10u_6.3V_X5R_06 J_TP1 C923 0.1u_16V_Y5V_04 TP_CLK PIN5 TP_DATA 33,48 LPC_AD0 LAD0 VDD1 PIN5...

  • Page 101: Fan, Lid, Kb, Led, G Sensor

    Schematic Diagrams Fan, LID, KB, LED, G Sensor CPU FAN CONTROL VGA FAN CONTROL-Selector LID SWITCH IC FON1# VDD3 VOUT C321 C316 100K_04 VSET 1u_6.3V_X5R_04 *4.7u_6.3V_X5R_06 NCT3940S-A C705 0.1u_16V_Y5V_04 CPU_FAN CPU_FAN LID_SW # 13,48 5VS_CPU_FAN J_FAN1 VGA_FAN2SEN *1u_10V_Y5V_06 0.1u_16V_Y5V_04 MH-248 *100p_50V_NPO_04 VGA_FAN1SEN MH248-ALFA-ESO...

  • Page 102: Connector

    Schematic Diagrams Connector D02A 3.3VS LED BOARD LAN BOARD C381 ( USB3.0x2, PHONE JACK) *0.01u_16V_X7R_04 J_LED1 J_LAN1 LED_ACIN LED_PW R USB_PN9 LED_BAT_CHG USB_PP9 C453 C437 LED_BAT_FULL LED_NUM# USB3_TXN6 10u_6.3V_X5R_06 0.1u_16V_Y5V_04 D02A LED_CAP# USB3_TXP6 R1300 0_04 LED_SCROLL# DGPU_PW R_EN 58,59 USB3_RXN6 AIRPLAN_LED# USB3_RXP6 R1299...

  • Page 103: Ddr 1.35V / 0.75Vs, Pch 1.5V

    Schematic Diagrams DDR 1.35V / 0.75VS, PCH 1.5V PQ36 1.35V/0.75VS (MDU1516) PC212 PC220 PC219 ULTRASO-8 RB0540S2 G5616 VTT_MEM VDDQ_R PC74 1.35V PC79 0.1u_10V_X7R_04 VLDOIN VBST Short 10u_6.3V_X5R_06 EMR1 VDDQ_R VTT_MEM DRVH 0_06 1.0UH_10*10*4.5 PJ14 PC77 VDDQ VTTGND PC73 PC75 PR79 EMR2 22u_6.3V_X5R_08 *10u_6.3V_X5R_06...

  • Page 104: Vdd3, Vdd5

    Schematic Diagrams VDD3, VDD5 VREF PR186 *0_04 PR189 0_04 PC190 1u_10V_Y5V_06 PR188 PR202 EN_3V EN_5V PC192 130K_1%_04 130K_1%_04 PC210 1000p_50V_X7R_04 1000p_50V_X7R_04 D01A PU17 VREG3 PC217 PC216 PC215 PC207 Sheet 53 of 72 PC188 R737 *10K_04 15u_25V_6.3*4.4 0.1u_50V_Y5V_06 SYS5V VDD3 LDO3 VDD5 1u_6.3V_X5R_06 PC208...

  • Page 105: 5V, 5Vs, 3.3V, 3.3Vs, 3.3Va

    Schematic Diagrams 5V, 5VS, 3.3V, 3.3VS, 3.3VA VIN1 VIN1 DD_ON R167 100K_04 VIN1 R168 *100K_04 USB_CHARGE_EN 42,48,53 DD_ON_LATCH C893 C894 C895 C568 C513 R216 10K_04 R169 10K_04 C486 M_BTN# M_BTN# PWR_SW# VDD3 0.1u_50V_Y5V_06 0.1u_50V_Y5V_06 0.1u_50V_Y5V_06 R217 *100K_04 R170 1K_1%_04 PW R_SW # INSTANT-ON USB_CHARGE_EN R218...

  • Page 106: 1.05 Series

    Schematic Diagrams 1.05 Series For CV test 1.05V_LAN_M R615 100K_04 PR180 820K_1%_06 PJ18 *CV-40mil PC182 PC183 PC186 1.05V_LAN_M_EN PM_SLP_LAN# PJ19 PU16 PQ27 (MDU1516) VTT_SELECT VTT VR Output Voltages PR179 PC179 ULTRASO-8 34,42,45,46,48,54,55 SUSB# 1.1 V PJ20 *1mm 0_06 0.1u_10V_X7R_04 high (V1.1S_VTT) 1.05 V EN_PSV C752...

  • Page 107: Ac_In, Charger

    Schematic Diagrams AC_In, Charger EMB20P03V PR222 0_04 PQ15 V_BAT EMB20P03V PR221 *470K_04 EMR11 C559 C541 C518 EML2 2.2_06 HCB2012KF-800T80 0.01u_50V_X7R_04 0.01u_50V_X7R_04 0.01u_50V_X7R_04 EMB20P03V PQ17 EMB20P03V EML1 *HCB2012KF-800T80 0.01u_50V_X7R_04 EMC7 PR223 C567 PR213 2200p_50V_X7R_04 *49.9K_1%_04 JBATTA1 20K_1%_04 J_DC_JACK1 EML5 0.01u_50V_X7R_04 PQ43A HCB2012KF-800T80 EMB20P03V PQ16...

  • Page 108: Power V-Core1

    Schematic Diagrams POWER V-Core1 3.3VS PR225 *20mil_04 PR224 *20mil_04 PR113 PR101 *20mil_04 TSENSE EWTF02-104F4F-N PR70 SWN3 CSREF 100K_04 162K_1%_06 PC81 PR75 APGND *20K_04 PJ13 PR72 PR69 SWN1 PR74 165K_1%_04 162K_1%_06 CSP3 PR73 6.98K_1%_04 *CV-40mil SWN3 0.047u_10V_X7R_04 APGND PJ12 75K_1%_04 PR131 VR_EN PC80 1200p_50V_X7R_04...

  • Page 109: Pex_Vdd, 3V3_Aon, 3V3_Run

    PGOOD FBVDD/Q For P650SE Title Title Title GC6_FB_EN [58] PEX_VDD, 3V3_AON, 3V3_RUN [58] PEX_VDD, 3V3_AON, 3V3_RUN [58] PEX_VDD, 3V3_AON, 3V3_RUN P650SG, P670SE, P670SG, P650SA, P670SA, P655SE, P655SA Size Size Size Document Number Document Number Document Number 6-71-P6500-D03 6-71-P6500-D03 6-71-P6500-D03 Custom...

  • Page 110: Nvvdd Phase 1 & 2

    Schematic Diagrams NVVDD Phase 1 & 2 PR173 2.2_1%_06 PWR_SRC_NV PAGE 21: NVVDD PHASE 1 and 2 Optional Place Close to DrMOS PS1_NVVDD_VCC PR50 100K_04 PS1_NVVDD_PVCC PC34 PC132 PC133 PC65 PC54 PC171 PC58 PC67 PC66 PC50 PC63 PC62 0.1u_10V_X7R_04 0.1u_10V_X7R_04 22u_6.3V_X5R_08 FREQ SELECTION PR28...

  • Page 111: Fbvddq

    Schematic Diagrams FBVDDQ PAGE22: NVVDD PHASE 3, FBVDDQ, and MXM Mounting Holes ~6A at 15A/1.5V Output with 7V Input PWR_SRC_NV_FB Optional Place Close to DrMOS FBVDDQ PC130 PC131 PC26 PC21 PC16 PC10 PC126 PC12 PC25 INS102340263 TPS51211 DFN10 COMMON LFPAK 3.3V PQ25 PC129...

  • Page 112: Audio Board

    Schematic Diagrams Audio Board AJ_SPDIF1 A_5VS AJ_MB1 ASIDE_L FCM1005KF-121T03 ASIDE_R FCM1005KF-121T03 ASIDE_SENSE AGND ASPDIFO AC10 A_AUDG AJD_SENSEA A_5VS 680p_50V_X7R_04 680p_50V_X7R_04 AJD_SENSEB A_AUDG DRIVE AMIC1-R AMIC1-L ASPDIFO FCM1005KF-121T03 ASIDE_R 1.56 ASIDE_L P/N = 6-20-B2820-005 AR10 0.1u_16V_Y5V_04 PCB Footprint = TOJ-001ST-2-H4 AHEADPHONE-RC *220_04 180p_50V_NPO_04 VENDOR P/N = TOJ-0015STR2-2-H4-PA9T-J...

  • Page 113: Power Board

    Schematic Diagrams Power Board B3.3VS BJ_BTN1 BM_BTN# FP226H-004S10M PCB Footprint = fp226h-004xxxm_r BGND *0_04 *0_04 *0_04 *0_04 Sheet 62 of 72 B3.3VS POWER BUTTON *0_04 *0_04 POWER Power Board B_SW1 SWITCH TJE-532-Q-T/R BM_BTN# 20mil 220_1%_04 PCB Footprint = NTC017-BB1J-X160T 20mil BGND 0.1u_50V_Y5V_06 20mil...

  • Page 114: Hdd Board

    Schematic Diagrams HDD Board SATA PORT1 HJ_SATA1 H_SATA_TXP1 H_SATA_TXN1 H_SATA_RXN1 H_SATA_RXP1 H_3.3VS HJ_MB1 HGND HSATA_TXP1 HC13 HC11 HSATA_TXN1 *0.01u_16V_X7R_04 *10u_6.3V_X5R_06 HSATA_RXN1 H_5VS HGND HGND HSATA_RXP1 H_5VS HGND HC10 HC12 H_3.3VS HGND EEFCX0J221YR 0.1u_16V_Y5V_04 1u_6.3V_X5R_04 10u_6.3V_X5R_06 220u,6.3V,ESR=15m ,H=1.9mm 50009-03041-001 51824-0227A-001 P/N = 6-21-C2430-215 Sheet 63 of 72 P/N = 6-20-437J0-022 PCB Footprint = 50009-0304x...

  • Page 115: Led Board

    Schematic Diagrams LED Board LJ_LED1 LLED_ACIN LD11 LLED_PWR LLED_BAT_CHG LLED_PWR 330_04 LLED_BAT_FULL LR13 330_04 LLED_BAT_FULL Green Green LLED_NUM# MBD03 BCN MBD03 BCN RY-SP260UYG24-5M RY-SP260UYG24-5M LLED_CAP# LD10 LD12 LLED_SCROLL# LOT3 LOT3 L_WLAN_AIRPLANE# LLED_ACIN 330_04 LLED_BAT_CHG LR11 330_04 L_dGPU_LED P65 LED D02 Amber Amber LSATA_LED#...

  • Page 116: Finger Sensor Board

    Schematic Diagrams Finger Sensor Board NOTE: MODE MODE=HIGH (NC) , USB MODE MODE=LOW , SPI MODE EGND MODE FUSB_PP F3.3V AVDD FUSB_PN F2.5V F2.5V DVDD FMOSI F3.3V F3.3V VDDIO UVDD FMCLK FLED1 FLED1 FMCS FMCS FLED2 LED1 SPI_CS FMISO FDISCON FMOSI FMISO SPI_MOSI...

  • Page 117: Click Board

    Schematic Diagrams Click Board T3.3V W/O FP TJ_CLICK T_TP_VCC T_TP_BTN_L TJ_TP FCM1005KF-121T03 T_TP_BTN_R T_TP_CLK H7_0D3_7 H7_0D3_7 T_TP_DATA FP226H-004S10M TJ_FP1 PCB Footprint = JXT_FP226H-004XXAM T_TP_BTN_L T_TP_VCC T_TP_BTN_R TGND 27.4_1%_04 TUSB_PN10 TJ_MB 50501-0060N-001 27.4_1%_04 TUSB_PP10 T_TP_CLK TGND TGND TGND *V15AVLC0402 T_TP_DATA FP226H-004S10M TGND *V15AVLC0402 PCB Footprint = fp226h-004xxxm_r...

  • Page 118: Usb Board 1/4

    Schematic Diagrams USB Board 1/4 LAN (RTL8411B) Switching Regulator close to PIN48 2 IN 1 SOCKET KR80 0_06 Standard PUSH PUSH CARD READER KVDD10 (>20mil) KJ_CARD1 KRSET KR71 2.49K_1%_04 KREGOUT KVDD10 KGND (>20mil) KSD_D2/MS_CLK_R SD_DATA2 KR70 *1K_04 *SW F2520CF-4R7M-M KXTAL2 KGND KC66 KC64...

  • Page 119: Usb Board 4/4

    Schematic Diagrams USB Board 2/4 USB3.0 re-driver K3.3V USB3.0 PORT6 K3.3V P65 USB D02 KR67 *4.7K_04 KR68 *0_04 KUSBVCC3.0_6 KR62 *4.7K_04 KR63 *0_04 KR36 KR78 KR58 *4.7K_04 KR59 *0_04 *4.7K_04 *4.7K_04 100 MIL KR52 *4.7K_04 KR53 2K_1%_04 VOUT K_SCK_P6 K_SDA_P6 KR46 *4.7K_04 KR47...
  • Page 120 Schematic Diagrams USB Board 3/4 USB3.0 PORT2 USB3.0 re-driver K3.3V K3.3V KUSBVCC3.0_2 KR40 *4.7K_04 KR32 *0_04 100 mil KR33 *4.7K_04 KR25 *0_04 KR50 KR45 VOUT KR24 *4.7K_04 KR19 *0_04 KC38 *4.7K_04 *4.7K_04 10u_6.3V_X5R_06 KC48 KC40 KR18 *4.7K_04 KR15 2K_1%_04 K_SCK_P2 0.1u_16V_Y5V_04 *0.1u_16V_Y5V_04 K_SDA_P2...
  • Page 121 Schematic Diagrams USB Board 4/4 RSVD. RTS5227 Colay RTS5250 K3.3VS K3V3AUX KR27 KCR1_LEDN KR26 *10K_04 *10K_04 K3.3VS Sheet 70 of 72 40 mil IDD-3V3AUX: 375mA(typ) KR17 *0_04 USB Board 4/4 *RB751S-40C2 67,68 KPCIE_W AKE# KC37 KC35 100ohm +/- 15% space to others 20mil *4.7u_6.3V_X5R_06 *0.1u_16V_Y5V_04 KGND...

  • Page 122: Power Board

    Schematic Diagrams Power Board I3.3VS IJ_BTN1 IM_BTN# FP226H-004S10M PCB Footprint = fp226h-004xxxm_r IGND *0_04 *0_04 Sheet 71 of 72 *0_04 *0_04 P655SEQ Power I3.3VS POWER BUTTON *0_04 *0_04 POWER Board I_SW1 SWITCH TJE-532-Q-T/R IM_BTN# 20mil 220_1%_04 PCB Footprint = NTC017-BB1J-X160T 20mil IGND 0.1u_50V_Y5V_06...

  • Page 123: Led Board

    Schematic Diagrams LED Board OJ_LED1 OLED_ACIN OD11 OLED_PWR OLED_BAT_CHG OLED_PWR 330_04 OLED_BAT_FULL OR13 330_04 OLED_BAT_FULL Green Green OLED_NUM# MBD03 BCN MBD03 BCN RY-SP260UYG24-5M RY-SP260UYG24-5M OLED_CAP# OD10 OD12 OLED_SCROLL# LOT3 LOT3 O_WLAN_AIRPLANE# OLED_ACIN 330_04 OLED_BAT_CHG OR11 330_04 O_dGPU_LED Amber Amber OSATA_LED# RY-SP260USO24-5M RY-SP260USO24-5M O_GND...
  • Page 124 Schematic Diagrams B - 74...

  • Page 125: Updating The Flash Rom Bios

    Download the BIOS computer model. 1. Go to www.clevo.com.tw and point to E-Services and click E-Channel. Note that BIOS versions 2. Use your user ID and password to access the appropriate download area (BIOS), and download the latest BIOS files...

  • Page 126: Use The Flash Tools To Update The Bios

    BIOS Update Use the flash tools to update the BIOS 1. Make sure you are not loading any memory management programs such as HIMEM by holding the F8 key as you see the message “EFI Shell”. You will then be prompted to give “Y” or “N” responses to the programs being loaded by EFI Shell.

This manual is also suitable for:

P651sg

Table of Contents
