Removing The Battery - Clevo P650SE Service Manual

Disassembly

Removing the Battery

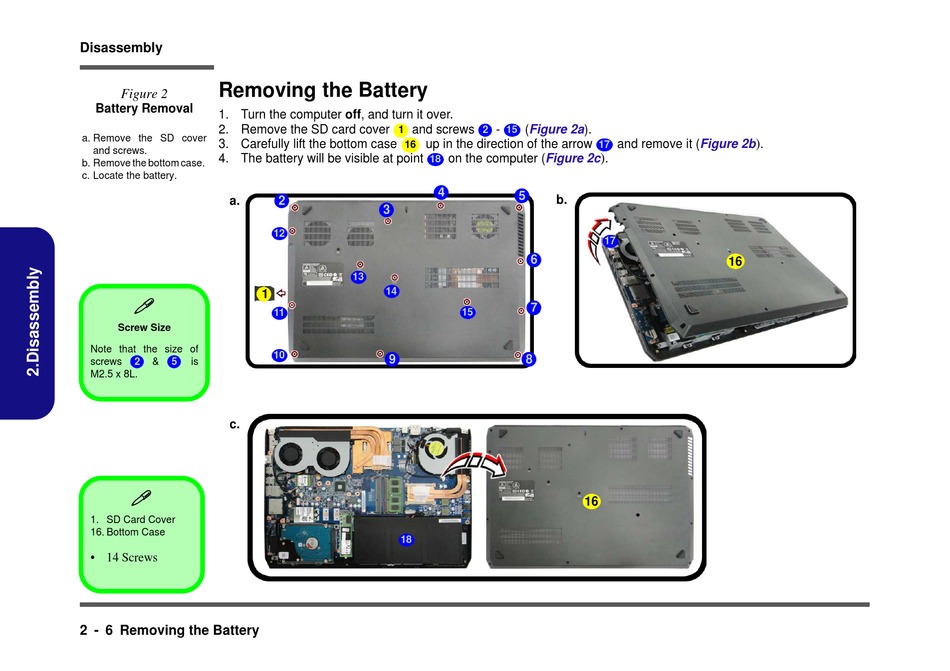

Figure 2
Battery Removal
1. Turn the computer off, and turn it over.
2. Remove the SD card cover
a. Remove the SD cover
3. Carefully lift the bottom case
and screws.
4. The battery will be visible at point
b. Remove the bottom case.
c. Locate the battery.
a.

Screw Size
Note that the size of
screws 2 & 5 is
M2.5 x 8L.
c.

1. SD Card Cover
16. Bottom Case
• 14 Screws
2 - 6 Removing the Battery
and screws
1
6
up in the direction of the arrow
16
18
4
2
3
12
13
14
1
11
10
9
18
- (Figure 2a).
2 15
and remove it
17
)
on the computer (Figure 2c .
5
b.
17
6
7
15
8
16
(Figure 2b ) .
16
