F e d e r a l C o m m u n i c a t i o n s C o m m i s s i o n S t a t e m e n t ( C l a s s A)
NOTE- This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined by
tuning the equipment off and on, the user is encouraged to try to correct the interference by one or more
of the following measu
res:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/television technician for help.
C l a s s A I T E :
Class A ITE is a category of all other ITE which satisfies the class A ITE limits but not the class B ITE
limits. Such equipment should not be restricted in its sale but the following warning shall be included in
the instructions for use:
Warning - This is a class A product. In a domestic environment this product may cause radio interference
in which case the user may be required to take adequate measures.
C E C l a s s A ( E M C )
This product is herewith confirmed to comply with the requirements set out in the Council
Directives on the Approximation of the laws of the Member States relating to
Electromagnetic Compatibility Directive 2004/108/EEC.
Warning - This is a Class A product. In a domestic environment this product may cause
radio interference in which case the user may be required to take adequate measures to correct this
interference.
D I S C L AI M E R
No warranty or representation, either expressed or implied, is made with respect to the contents of this
documentation, its quality, performance, merchantability, or fitness for a particular purpose. Information
presented in this documentation has been carefully checked for reliability; however, no responsibility is
assumed for inaccuracies. The information contained in this documentation is subject to change without
notice.
In no event will AVerMedia be liable for direct, indirect, special, incidental, or consequential damages
arising out of the use or inability to use this product or documentation, even if advised of the possibility of
such damages.
T R AD E M AR K S
AVerVision is registered trademarks of AVerMedia Information, Inc. IBM PC is a registered trademark of
International Business Machines Corporation. Macintosh is a registered trademark of Apple Computer,
Inc. Microsoft is a registered trademark and Windows is a trademark of Microsoft Corporation. All other
products or corporate names mentioned in this documentation are for identification and explanation
purposes only, and may be trademarks or registered trademarks of their respective owners.
C O P Y R I G H T
© 2009 by AVerMedia Information, Inc. All rights reserved. No part of this publication may be
reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any
language in any form by any means without the written permission of AVerMedia
INFORMATION, Inc.
ENGLISH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AVerVision355af and is the answer not in the manual?

Questions and answers

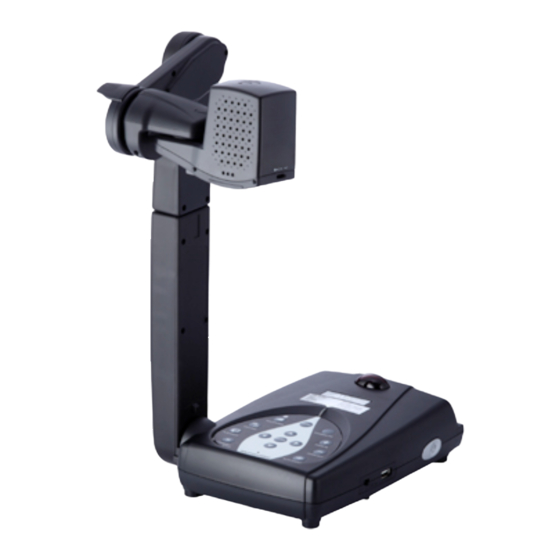

Summary of Contents for Avermedia AVerVision355af

  • Page 1 C O P Y R I G H T © 2009 by AVerMedia Information, Inc. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form by any means without the written permission of AVerMedia INFORMATION, Inc.
  • Page 2 ENGLISH THE MARK OF CROSSED-OUT WHEELED BIN INDICATES THAT THIS PRODUCT MUST NOT BE DISPOSED OF WITH YOUR OTHER HOUSEHOLD WASTE. INSTEAD, YOU NEED TO DISPOSE OF THE WASTE EQUIPMENT BY HANDING IT OVER TO A DESIGNATED COLLECTION POINT FOR THE RECYCLING OF WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT.
  • Page 3: Table Of Contents

    ENGLISH Package Contents ................1 Optional Accessories ..............1 Get Familiar with the AVerVision355AF ........2 Right Panel..................... 2 Rear Panel ..................... 3 Left Panel ....................3 Control Panel..................4 Remote Control ..................5 Making the Connections ..............7 Set the TV-RGB Switch Setting .............. 7 Connect to a Monitor or LCD/DLP Projector...........
  • Page 4 ENGLISH Presentation ..................19 AVerBox On/Off ................19 AVerBox Shade................19 AVerBox Resize ................20 AVerVisor ..................20 AVerVisor Shade................20 PIP....................20 Split Screen ..................21 Timer....................21 Timer Set ..................21 Setting ....................21 Capture Resolution ................. 21 Capture Quality................
  • Page 5 ENGLISH RS-232 Function Table..............30 Troubleshooting ................36 Limited Warranty................37...
  • Page 6: Package Contents

    USB Cable RS-232/CVBS Cable RGB Cable Power Adapter RCA Cable ® AVerMedia AVerVision355AF Power Cord * The power cord will vary Software & Manual CD depending on the standard power outlet of the country where it is sold. Anti-glare Sheet...
  • Page 7: Get Familiar With The Avervision355Af

    R ig ht Pa ne l (fig. 1.2) Name Function USB Flash Drive switch Switch to right (►) for audio video recording directly to a USB flash drive and left (◄) when connecting AVerVision355AF to a computer using a USB cable.
  • Page 8: Rear Panel

    DC12V / LIGHTBOX port Connect the power adapter into this port. DVI-I OUTPUT port Connect the AVerVision355AF to any display device with DVI cable. If the display device does not support DVI-I, you can only view in Camera and Playback mode.
  • Page 9: Control Panel

    ENGLISH Name Function TV-RGB switch TV switch to output display video from RS232/CVBS (via RCA connection), and RGB to RGB and DVI-I OUTPUT ports. SD card slot Insert the SD card with the label facing up. Control Panel (10 ) (11) (12 ) (fig.
  • Page 10: Remote Control

    ENGLISH Remote Cont rol The remote control requires two (2) “AAA” size batteries (supplied), make sure batteries are installed properly before use. You can access all the features of AVerVision355AF with the remote. Name Function POWER Turn the unit on/standby.
  • Page 11 ENGLISH Name Function (15) DEFAULT Reset at factory default setting. (16) NEAR / FAR Adjust the focus manually. (17) ZOOM RESET Reset zoom level to 100%. (26 ) (18) ZOOM +/- Increase/decrease the image (25 ) magnification in camera and picture (24 ) playback mode.
  • Page 12: Making The Connections

    RS232/CVBS VIDEO IN (use RS-232/CVBS cable) Locate the RGB (VGA) input port of the graphics display device and connect it to RGB OUTPUT port of AVERVISION355AF. Make sure the TV/RGB switch is set to RGB. RGB cable LCD/DLP projector CRT monitor...
  • Page 13: Connect To A Monitor Or Lcd/Dlp Projector With Dvi-I Interface

    ENGLISH Locate the DVI-I input port of the display device and connect it to DVI-I OUTPUT port of AVerVision355AF. Make sure the TV/RGB switch is set to RGB. LCD Monitor with DVI interface DVI cable (not supplied) LCD/DLP projector with DVI interface Locate the VIDEO or SCART RGB (if applicable) input port of the TV or Video equipment (i.e., VCR) to record your presentation and connect it to RCA jack of RS-232/CVBS cable.
  • Page 14: Connecting The Power

    Power cord Locate the RGB (VGA) output port of the computer or laptop and connect it to RGB INPUT port of AVerVision355AF. The video signal from the RGB INPUT port is streamed to RGB and DVI-I OUTPUT port. - To display computer image, press Camera/PC button on the control panel or remote control to switch AVerVision355AF to computer mode.
  • Page 15: Connect To A Computer Via Usb

    Locate the USB port of the computer or laptop and connect it to USB port of AVerVision355AF. This enables you to use AVerVision355AF as a USB Camera or to transfer the captured pictures/videos from the memory and to computer. Also see “Transfer File from AVerVision355AF to PC”.
  • Page 16: Connect An Amplified Speaker

    ENGLISH Plug a 3.5mm plug amplified speaker to port. Only the audio from the video playback is supported. We recommend connecting an amplified speaker to the Audio output port. Take caution when using earphones. Adjust the volume down on the remote to prevent hearing damage due to loudness.
  • Page 17: Setting Up Avervision355Af

    ENGLISH This section provides useful tips on how to adjust the AVerVision355AF to meet your needs. The camera head can turn freely at 90° to the left and right and up and down. 90° 90° 90° 90° If the camera head is in upright position, you can also press ROTATE on the remote control twice to rotate the image in 180°.
  • Page 18: Led Light Switch

    ENGLISH AVerVision355AF has patented four (4) laser positioning pointers feature that define the viewing area. This allows user quickly center the object underneath the camera. The three (3) various light and laser positioning pointers settings are indicated in the illustration below.
  • Page 19: External Memory Storage

    ENGLISH AVerVision355AF supports both SD memory card and USB flash drive for more image capture and audio & video recordings. AVerVision355AF can detect when there is an external storage media and automatically switch to the last detected storage. If no external storage is connected, all captured still images will be saved in the built-in memory.
  • Page 20: Osd Menu

    ENGLISH There are 5 tabs on the OSD menu: BASIC, ADVANCED, PRESENTATION, SETTING and SYSTEM. In Playback mode, you can access PLAYBACK OSD menu to enable the Slide Show feature and modify Slide Show interval and transition setting if desire. For TV output, the RESOLUTION will be disabled in SETTING menu list.
  • Page 21: Select Menu And Settings

    ENGLISH 1. Press MENU button on the remote or control panel. 2. Press ► and ◄ to toggle between tabs 3. Press ▼ and ▲ to select a menu option. 4. Press ENTER to make a selection and display the setting selection on the right.
  • Page 22: Mode

    ENGLISH Menu Screen Function MODE Select various image display settings. Text - adjust the intensity of text Graphics - adjust the gradient of image. High Frame - increase frame rate. Sufficient lighting is required when using this mode. Microscope - automatically adjust optical zoom for microscopic viewing.
  • Page 23: Advanced

    ENGLISH Menu Screen Function Exposure Select the exposure setting. AUTO - automatically adjust the camera exposure and amount of light required. MANUAL - manually adjust the exposure level. The exposure can be adjusted up to 100. White Balance Select the White Balance setting for various light conditions or color temperature.
  • Page 24: Night View

    ENGLISH Menu Screen Function Night View Select to turn Night View OFF or AUTO. When presenting in a low-light condition, Night View enables brighter images by automatically adjusting the exposure and the frame rate will be reduced. Menu Screen Function AVerBox On/Off AVerBox overlays a frame on the presentation screen.
  • Page 25: Averbox Resize

    ENGLISH Menu Screen Function AVerBox Resize Change AVerBox frame size. The frame blinks when it is in resizable mode. Use the ▲,▼,◄, & ► buttons to adjust the frame size and press ENTER to set the desire size. AVerVisor AVerVisor covers the presentation screen. The upper part of the presentation screen is slightly exposed.
  • Page 26: Split Screen

    Function Split Screen Divide the screen into two parts. Half of the screen displays the 8-thumbnail images and the other half display the image from the AVerVision355AF camera. Select the display location of the 8- thumbnail playback images. Left Right...
  • Page 27: Capture Quality

    ENGLISH Menu Screen Function Capture Quality Select the capture compression setting. Capture Type Select the capture type. Single - capture one picture only. Continuous - capture successive pictures. Capture Interval Set the interval before capturing the next picture. The length can be set up to 600 sec (10 min). Recording Format Select the video recording format between MOV and AVI.
  • Page 28: Current Storage

    ENGLISH Menu Screen Function Current Storage Change the storage location. Audio & video recording can only be saved in SD memory card or USB flash drive. Built-in Memory SD Memory Card USB Flash Drive Format Storage Format to delete all the data in the selected memory. A Warning Message will appear.
  • Page 29: Usb State

    Menu Screen Function USB State Select the status of the AVerVision355AF when it is connected to the computer via USB. Make sure the USB Flash Drive switch is set to the left. USB Camera - can be used as a computer webcam or with our bundled software to record video and capture still image.
  • Page 30: Information

    ENGLISH Menu Screen Function Information Display product code Menu Screen Function Slide Show Display all captured still pictures in an automated slide show. The video file will be skipped. Slide Show Interval Set the interval before displaying the next picture. The length can be set up to 100 sec.
  • Page 31: Current Storage

    3. When “Mass Storage Start…” appears at the lower right corner of the presentation screen, you may now connect the USB cable. 4. Upon connecting the USB cable, the system automatically detects the new removable disk. You can now transfer the captured image(s) from the AVERVISION355AF built-in memory to the computer hard disk.
  • Page 32: Technical Specifications

    ENGLISH Image Sensor 1/2.5” Progressive Scan CMOS Pixel Count 5 megapixels Frame Rate 24 fps (max.) White Balance Auto / Manual Exposure Auto / Manual Image mode Text / Graphics / High Frame / Microscope / Macro / Infinite Effect Color / B/W / Negative / Mirror / Rotate / Freeze HD 1080p 60Hz (Reduce blanking);...
  • Page 33: Dimension

    Secure Digital (SD) 1 GB ~ 32GB (FAT 32, 16, 12) USB Flash Drive 2GB ~ 64GB (FAT 32, 16, 12) AVerVision355AF can be controlled using a computer or any centralized control panel through RS-232 connection. RS-232/CVBS cable Desktop RS-232 cable...
  • Page 34: Rs-232 Transmission Specifications

    ENGLISH Start bit :1 bit :8 bit Data bit :1 bit Stop bit Parity bit :None X parameter :None Baud rate(Communication speed) :9600bps Start Code(1 Byte) : 0xFF Type Code(1 Byte) : 0x70 DataLength Code(1 Byte) : 0x01 Data Code(1 Byte) : See the Command Table for reference.
  • Page 35 ENGLISH Function Command Code CheckSum Code RS-232 Code 52,05,01,11,53,46 ARROW - UPPER 52,05,01,12,53,45 ARROW - LEFT 52,05,01,13,53,44 ARROR - ENTER 52,05,01,14,53,43 ARROW - RIGHT 52,05,01,15,53,42 ZOOM + 52,05,01,17,53,40 EXPOSURE + 52,05,01,18,53,4F ARROR - DOWN 52,05,01,16,53,41 ZOOM - 52,05,01,4B,53,1C EXPOSURE - 52,05,01,4C,53,1B ZOOM RESET 52,05,01,19,53,4E...
  • Page 36 ENGLISH CheckSum Function Data[0] Data[1] Data[2] RS-232 Code Code IMAGE CAPTURE 0x05 0x00 0x00 0x5E 52,0B,03,05,00,00,53,5E RESOLUTION: NORMAL IMAGE CAPTURE 0x05 0x01 0x00 0x5F 52,0B,03,05,01,00,53,5F RESOLUTION: TIMER START 0x06 0x00 0x00 0x5D 52,0B,03,06,00,00,53,5D TIMER PAUSE 0x07 0x00 0x00 0x5C 52,0B,03,07,00,00,53,5C TIMER STOP 0x08 0x00...
  • Page 37 ENGLISH CheckSum Function Data[0] Data[1] Data[2] RS-232 Code Code EFFECT: 0x10 0x00 0x00 0x4B 52,0B,03,10,00,00,53,4B COLOR EFFECT: B/W 0x10 0x01 0x00 0x4A 52,0B,03,10,01,00,53,4A EFFECT: 0x10 0x02 0x00 0x49 52,0B,03,10,02,00,53,49 NEGATIVE CONTRAST 0x11 Value[0~63] 0x00 BRIGHTNESS 0x12 Value[0~255] 0x00 AUTO IMAGE 0x13 0x00 0x00...
  • Page 38 ENGLISH CheckSum Function Data[0] Data[1] Data[2] RS-232 Code Code AVERBOX: 0x1D 0x00 0x00 0x46 52,0B,03,1D,00,00,53,46 AVERBOX: ON 0x1D 0x01 0x00 0x47 52,0B,03,1D,01,00,53,47 AVERBOX 0x1E 0x00 0x00 0x45 52,0B,03,1E,00,00,53,45 SHADE Level 0 AVERBOX 0x1E 0x01 0x00 0x44 52,0B,03,1E,01,00,53,44 SHADE Level 4 AVERBOX 0x1E 0x02...
  • Page 39 ENGLISH CheckSum Function Data[0] Data[1] Data[2] RS-232 Code Code SPLITSCREEN DIR: LOWER 0x26 0x02 0x00 0x7F 52,0B,03,26,02,00,53,7F SCREEN SPLITSCREEN DIR: LEFT 0x26 0x03 0x00 0x7E 52,0B,03,26,03,00,53,7E SCREEN SPLITSCREEN DIR: RIGHT 0x26 0x04 0x00 0x79 52,0B,03,26,04,00,53,79 SCREEN RECORD: OFF 0x27 0x00 0x00 0x7C 52,0B,03,27,00,00,53,7C...
  • Page 40 ENGLISH CheckSum Function Data[0] Data[1] Data[2] RS-232 Code Code OUTPUT RESOLUTION: 0x30 0x02 0x00 0x69 52,0B,03,30,02,00,53,69 1280x960 OUTPUT RESOLUTION: 0x30 0x03 0x00 0x68 52,0B,03,30,03,00,53,68 1600x1200 OUTPUT RESOLUTION: 0x30 0x04 0x00 0x6F 52,0B,03,30,04,00,53,6F 1920x1080 OUTPUT RESOLUTION: 0x30 0x05 0x00 0x6E 52,0B,03,30,05,00,53,6E HD720P 50Hz OUTPUT RESOLUTION:...
  • Page 41 3. Verify the setting of the display output device. 4. If you are presenting from a notebook or computer through the display output device, check the cable connection from computer RGB (VGA) output to RGB input of AVerVision355AF and make sure AVerVision355AF is in PC Mode.
  • Page 42 This limited warranty extends only to You as the original purchaser. Except for the foregoing, the Product is provided “AS IS.” In no event does AVerMedia warrant that You will be able to operate the Product without problems or interruptions, or that the Product is suitable for your purposes.
  • Page 43 (ii) fluctuations in electrical power beyond AVerMedia specifications, (iii) use of the Product with any accessories or options not furnished by AVerMedia or its authorized agents, or (iv) installation, alteration, or repair of the Product by anyone other than AVerMedia or its authorized agents.
