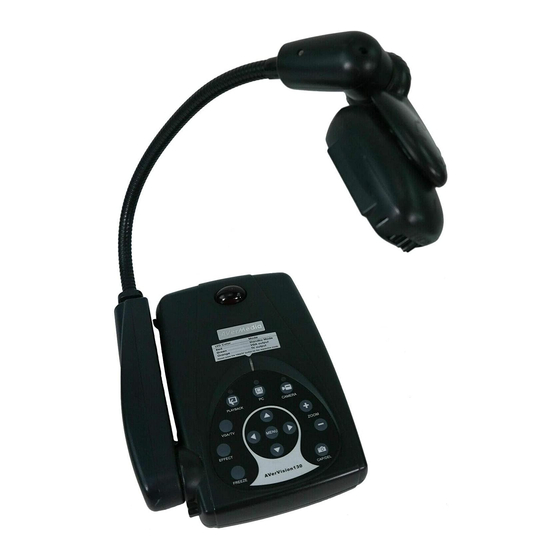

Avermedia AverVision130 User Manual
Hide thumbs Also See for AverVision130:

Advertisement

Quick Links

F C C N O T I C E ( C l a s s A)
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
NOTE- This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is
likely to cause harmful interference in which case the user will be required to correct the
interference at his own expense.
C AU T I O N O N M O D I F I C AT I O N S
To comply with the limits for the Class A digital device, pursuant to Part 15 of the FCC Rules,
this device must be installed in computer equipment certified to comply with the Class A
limits. All cables used to connect the computer and peripherals must be shielded and
grounded. Operation with non-certified computers or non-shielded cables may result in
interference to radio or television reception.
Changes and modifications not expressly approved by the manufacturer could void the
user's authority to operate this equipment.
E u r o p e a n C o m m u n i t y C o m p l i a n c e S t a t e m e n t
Class A
This product is conformity with the protection requirements of EU Council
Directives 89/336/EEC amended by 92/31/EEC on the laws of the Member
States relating to electromagnetic compatibility.
Warning- This is a Class A product. In a domestic environment this product may cause radio
interference in which case the user may be required to take adequate measures to correct
this interference.
D I S C L AI M E R
No warranty or representation, either expressed or implied, is made with respect to the
contents of this documentation, its quality, performance, merchantability, or fitness for a
particular purpose. Information presented in this documentation has been carefully checked
for reliability; however, no responsibility is assumed for inaccuracies. The information
contained in this documentation is subject to change without notice.
In no event will AVerMedia be liable for direct, indirect, special, incidental, or consequential
damages arising out of the use or inability to use this product or documentation, even if
advised of the possibility of such damages.
T R AD E M AR K S
AVerMedia is registered trademarks of AVerMedia TECHNOLOGIES, Inc. IBM PC is a
registered trademark of International Business Machines Corporation. Macintosh is a
registered trademark of Apple Computer, Inc. Microsoft is a registered trademark and
Windows is a trademark of Microsoft Corporation. All other products or corporate names
mentioned in this documentation are for identification and explanation purposes only, and
may be trademarks or registered trademarks of their respective owners.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AverVision130 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Avermedia AverVision130

  • Page 1 In no event will AVerMedia be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use this product or documentation, even if advised of the possibility of such damages.
  • Page 2 C O P Y R I G H T © 2006 by AVerMedia TECHNOLOGIES, Inc. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form by any means without the written permission of AVerMedia TECHNOLOGIES, Inc.
  • Page 3: Table Of Contents

    Connecting an IBM Compatible PC or Macintosh Computer..E-7 Connecting a Computer via USB connection ......E-8 Installing the Optional Light Box ..........E-8 Connecting to a Microscope ............E-9 Adjusting the AVerVision130..........E-10 Camera Head................E-10 Flexible Gooseneck and Mechanical Arm........E-10 LED Light Module..............E-11 Anti-glare Sheet ...............
  • Page 5: Introduction

    Thank you for purchasing the AVerMedia® AVerVision130. This document camera displays any documents, negatives, transparencies and 3D objects onto a TV, LCD or DLP projector making presentations a snap. The AVerVision130’s advanced features, including digital 4 times (400%) zoom in, negative to positive, black and white to color picture, dynamic image capture, image freezing function, make presentation become an ease.
  • Page 6: Package Contents

    User Manual Driver CD ® AVerMedia AVerVision130 Power Adapter Anti-glare Sheet Power Cord RCA Cable * The power cord will vary depending on the standard power outlet of the country where it is sold. S-Video Cable USB Cable Computer Extension cable...
  • Page 7: Optional Accessories

    34mm Microscopic 28mm Microscopic Microscopic Coupler Adapter Adapter M A C M A C Light Box Monitor Adapter Computer Adapter (for MAC) (for MAC)
  • Page 8: Technical Specifications

    Image Sensor 1/2” CMOS Effective Pixels 790K 1024 (H) x 768 (V) Frame Rate 12 fps White Balance Auto / Manual Exposure Auto / Manual / Flicker Image mode Text / Graphics Effect Color / B/W / Negative Analog RGB output XGA 75 Hz;...
  • Page 9: Installing And Setting Up The Hardware

    The ports on the back and side panel of the AVerVision130 enable you to connect the unit to a computer, graphics display monitor or LCD / DLP projector, TV or other device. Illustrated below are the ports that are located at the back and side panel of the AVerVision130 with their corresponding labels.
  • Page 10: Connecting The Power Adapter

    You can connect the power adapter to a standard 100V~240V AC power source. Wall Outlet Power Adapter Power Cord AVerVision130 enables you to display a presentation on a VGA /MAC display monitor, or LCD/DLP projector with an outstanding video quality. LCD Monitor VGA Cable (not supplied)
  • Page 11: Connecting A Tv

    To display a presentation on TV, connect AVerVision130 and TV by using the Video Cable or S-Video cable, switch the output mode to TV system by pressing VGA/TV button on the control panel. If you are using a SCART RGB monitor, connect it by using the RCA to SCART Cable.
  • Page 12: Connecting A Computer Via Usb Connection

    To access the software application as a PC Camera via the USB cable, just connect the USB cable to a computer. (Refer to the section, using the AVerVision Application, for more details.) USB Port Laptop USB Cable (not supplied) Computer Connecting an optional light box enables you to view x-rays, transparencies and negative slides.
  • Page 13: Connecting To A Microscope

    Connecting the AVerVision130 to a microscope enables you to examine microscopic objects on a big screen without straining your eyes. Press the latch to detach the light module from the camera head LED Light Module Microscope Coupler Microscope Adapter Microscope...
  • Page 14: Camera Head

    This section provides useful tips on how to adjust the AVerVision130 to meet your needs. The camera head can be rotated 135 degrees from left to right. You can also manually adjust the focus from here to improve the quality of the pictures.
  • Page 15: Led Light Module

    The LED light module provides white light and it is best use when presenting in low lightning condition. Turn on LED Light Turn on LED Light Turn off LED Light Turn off LED Light The anti-glare sheet is a special coated film that helps eliminate any glare you may encounter when you are displaying very shiny object or glossy surfaces such as magazines, pictures, etc.
  • Page 16: Touch Button Control Panel

    The touch button control panel located on the top side of the AVerVision130 provides quick access to commonly used functions. (10) AVerVision130 AVerVision130 CAPTURE Function Description Switches to Camera mode and displays the image from the CAMERA AVerVision130’s built-in digital video camera.
  • Page 17: Led Panel

    Press “+” or “–” to digitally zoom in and zoom out the picture up to 400%. ZOOM +/ - The LED on the front panel of AVerVision130 indicates the status of the unit. Color Description Green The unit is operated with VGA output.
  • Page 18: Application User Interface

    Click “Finish” to complete installation. After the installation, connect the USB cable between the AVervVsion130 and your PC. Open the applications by clicking “VisionAP” icon on your desktop. E-14...
  • Page 19 (10) (11) (14) (15) (12) (16) (13) (17) A. Basic Setting Function Description Digital Zoom and Pan Control Return to normal view (1X ) Convert the image to Negative Convert the image to Black and White Back to the original image B.
  • Page 20: Osd Navigation Tree

    EXPOSURE MANUAL AUTO MANUAL FLICKER FLICKER 50Hz WHITE BALANCE 60Hz AUTO MANUAL MANUAL MODE MENU BLUE BLUE TEXT MEASURE EXPOSURE GRAPHICS WHITE BALANCE MODE EFFECT EFFECT COLOR RESOLUTION NEGATIVE LANGUAGE DEFAULT RESOLUTION 1024 X 768 800 X 600 640 X 480 LANGUAGE ENGLISH ESPAÑOL...
  • Page 21: Menu Functions

    The MENU functions of AVerVision130 enhance fine-tuning your screen display, set the timer, select OSD language and more. Press the MENU button to call up and exit from the main menu or sub-menu display. Then use ▲or▼ buttons to select the items in the menu list.
  • Page 22: Troubleshooting

    PC Mode. I have set up the AVerVision130 and checked all the connections as specified in the manual, but I cannot get a picture on the preferred presentation screen.
  • Page 23: Limited Warranty

    Product is suitable for your purposes. Your exclusive remedy and the entire liability of AVerMedia under this paragraph shall be, at AVerMedia’s option, the repair or replacement of the Product with the same or a comparable product. This warranty does not apply to (a) any Product on which the serial number has been defaced, modified, or removed, or (b) cartons, cases, batteries, cabinets, tapes, or accessories used with this product.
  • Page 24: Limitation Of Liability

    (ii) fluctuations in electrical power beyond AVerMedia specifications, (iii) use of the Product with any accessories or options not furnished by AVerMedia or its authorized agents, or (iv) installation, alteration, or repair of the Product by anyone other than AVerMedia or its authorized agents.
