ICP OLR105A12D Installation Instructions Manual page 8

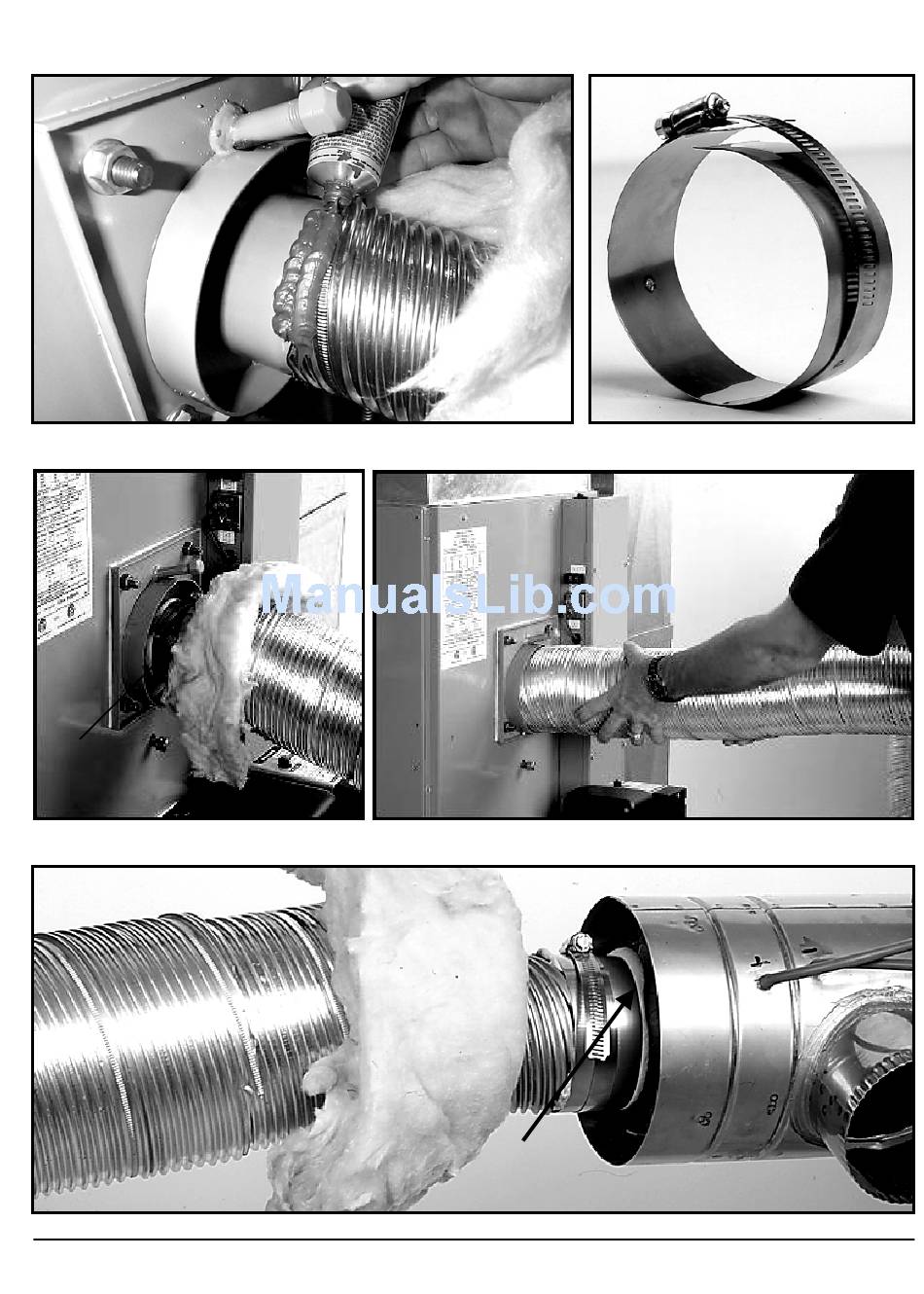

APPLY THE SEALANT TO
THE TUBE END
FIGURE 1.9
SEALANT FLOWING
OUT FROM UNDER
BAND CLAMP AT
BREECH
SEALANT OUTFLOW
SEALANT FLOWING OUT FROM UNDER BAND CLAMP AT
TERMINAL
FIGURE 1.7
TWIST SPIN SLEEVE TIGHTLY INTO
BREECH COLLAR
SEALANT OUTFLOW
CORRECT BAND
OVERLAP
FIGURE 1.10
FIGURE 1.11
FIGURE 1.8
