Summary of Contents for Ledj Archi BAR 48

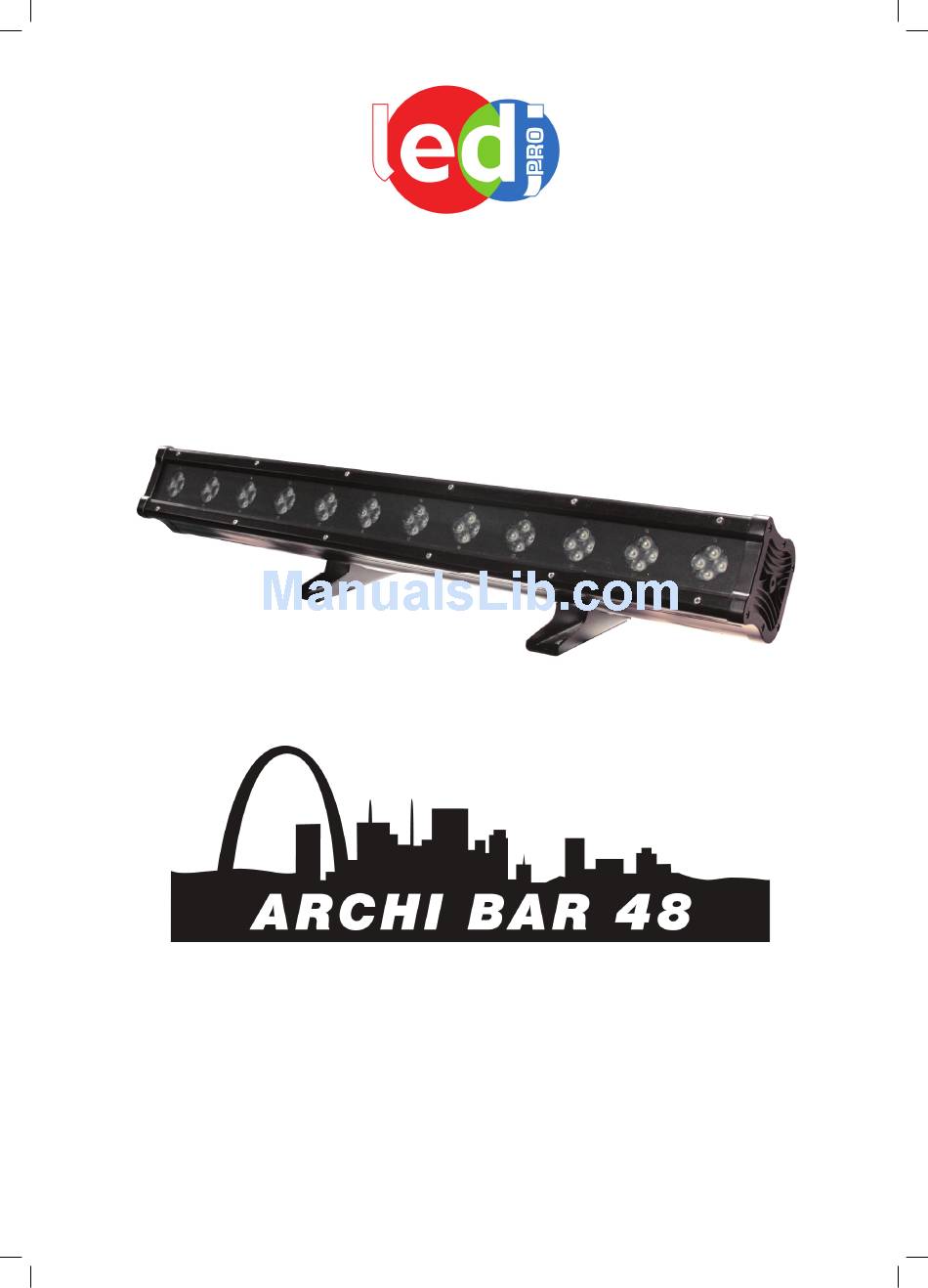

- Page 1 www.prolight.co.uk (Order code: LEDJ222) USER MANUAL...
- Page 2 ARCHI BAR 48 SAFETY WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! SAFETY INSTRUCTIONS Every person involved with the installation, operation & maintenance of this equipment should: Be competent Follow the instructions of this manual...
-
Page 3: Operating Determinations
ARCHI BAR 48 SAFETY IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. • Never let the power-cable come into contact with other cables. Handle the power-cable and all mains voltage connections with particular caution! •... - Page 4 • Weight: 10.2Kgs Overview LCD DISPLAY POWER POWER Setup Operating Instructions The Archi Bar 48 is a DMX-512 controllable unit made up of high efficiency and Ultra Bright RGBW LEDs and will operate in stand alone, master/slave or DMX control modes.
-
Page 5: Operation Modes
ARCHI BAR 48 OPERATION MODES Operation modes Dimming mode: To activate the unit in dimming mode, press the “MODE” button to show “DIMMING” on the LCD screen. Now press the “ENTER” button to set the brightness of the LEDs by using the “UP” and “DOWN”... - Page 6 ARCHI BAR 48 BUILT-IN PROGRAMME CHART 14 Built-in programme chart 01. Dimming Red: 00-99, Green: 00-99, Blue: 00-99, White: 00-99 Blackout - Full on Flash adjustable Flash 00 - 99 02. Colour Jump 7 colour change Speed 00 - 99, Flash 00 - 99 Speed &...
- Page 7 ARCHI BAR 48 DMX PROGRAMME CHARTS 19 channel mode DMX chart CH10 CH11 CH12 CH13 CH14 CH15 black 6-10 0-255 0-255 0-255 0-255 dimmer 11-15 0-255 0-255 0-255 0-255 0-255 0-255 0-255 0-255 0-255 0-255 0-255 0-255 dimmer 16-20 21-25...
- Page 8 DATA Cable (DMX cable) requirements (for DMX operation): • The Archi Bar 48 can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output (figure 1).
- Page 9 ARCHI BAR 48 DMX SET UP Notice: • Be sure to follow figures 2 & 3 when making your own cables. Do not connect the cable’s shield conductor to the ground lug or allow the shield conductor to come in contact with the XLR’s outer casing.
-
Page 10: Technical Specifications
ARCHI BAR 48 TECHNICAL SPECIFICATIONS Technical Specifications Weight & Dimensions • Length…............1000mm • Width..............120mm • Height……………………………………………...175mm • Weight………………………………………..10.2sKgs Power • AC input……………………………………..240V/50hz • Power consumption.........84W • Fuse • Main………………………………………………...F2A Control & Programming • Data input………………………………………..Locking 3-pin XLR male socket • Data output………………………………………..Locking 3-pin XLR female socket •... - Page 12 www.prolight.co.uk...
