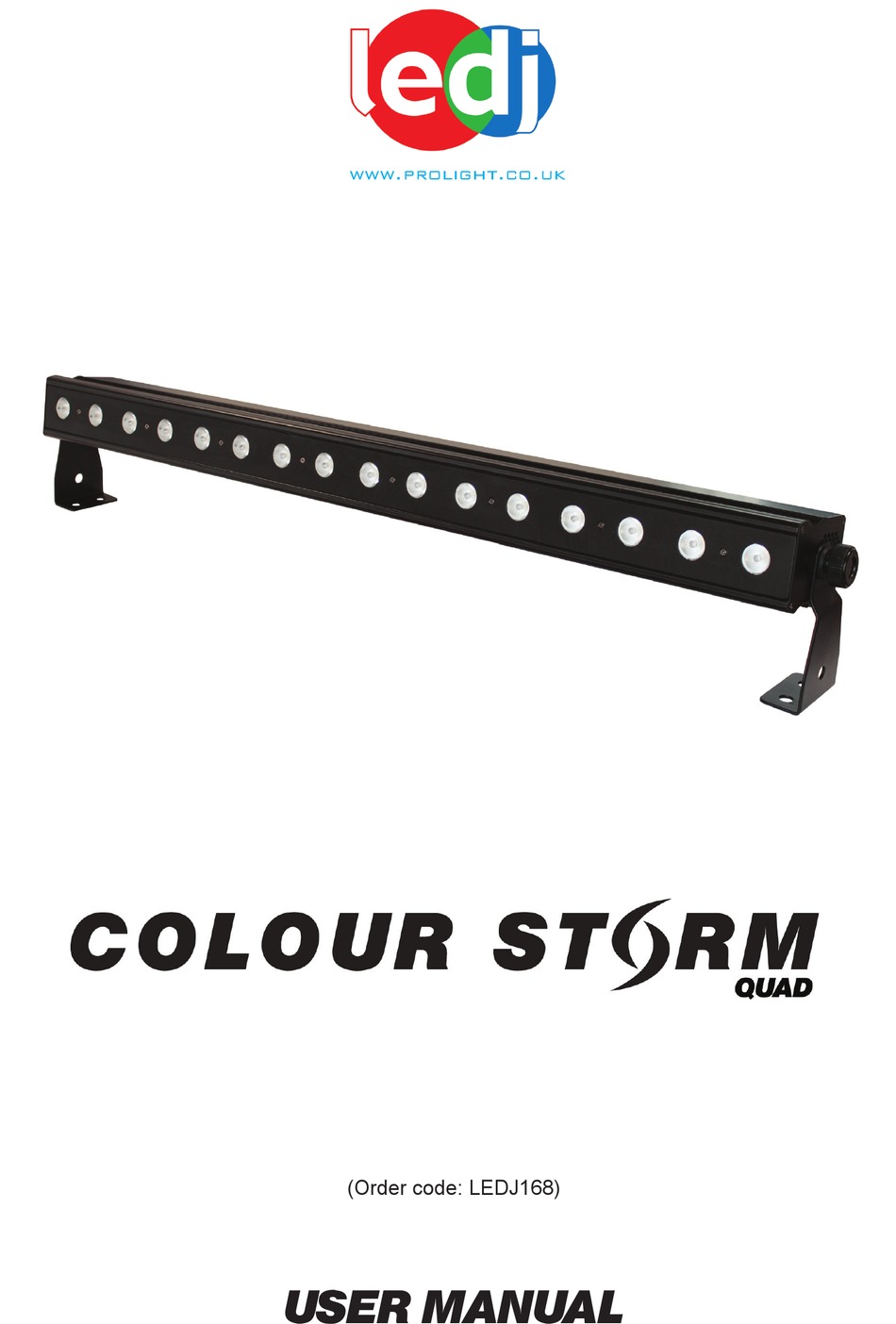

- Page 1 www.prolight.co.uk (Order code: LEDJ168) USER MANUAL...
-
Page 2: Safety Instructions
Colour Storm Quad Safety WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! CAUTION! Keep this equipment away from rain, moisture and liquids. SAFETY INSTRUCTIONS Every person involved with the installation, operation & maintenance of this... -
Page 3: Operating Determinations
Colour Storm Quad Safety IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. • Never let the power-cable come into contact with other cables. Handle the power-cable and all mains voltage connections with particular caution! •... -
Page 4: Operating Instructions

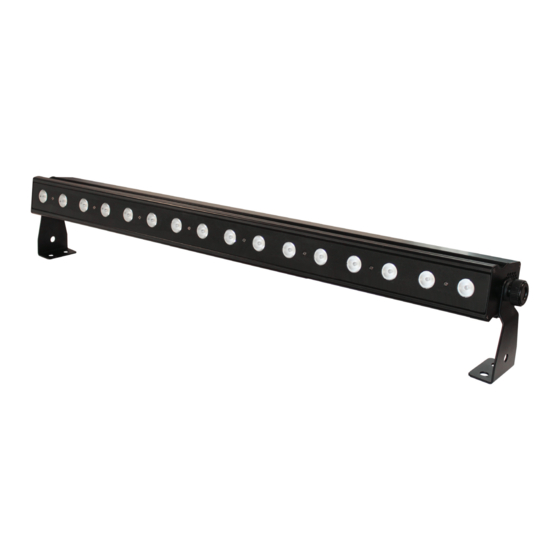

Down Button Power In Power Out Setup Operating Instructions The Colour Storm Quad is a DMX-512 controllable unit made up of high efficiency and Ultra Bright Quad-colour LEDs and will operate in auto run, master/slave, sound activated or DMX control modes. -
Page 5: Operation Modes
Colour Storm Quad Operation Modes Operation modes Sound Active mode: To activate the unit in sound active mode, press the “MODE” button to show “SOUND MODE” on the LCD screen. Now press the “ENTER” button to select the desired sensitivity level by using the “UP”... - Page 6 Colour Storm Quad Built-in Programme Chart 14 Built-in programme chart...
- Page 7 Colour Storm Quad DMX Programme Charts 4 channel DMX chart Green Blue White 0-255 0-255 0-255 0-255 6 channel DMX chart Master Flash Green Blue White Dimmer 0-255 0-255 0-255 0-255 0-255 0-255 7 channel DMX chart Master Flash All Red...
- Page 8 Colour Storm Quad DMX Programme Charts 19 channel DMX chart CH10 CH11 CH12 CH13 CH14 CH15 Master 0-15 Dimmer Flash 0-255 0-255 0-255 0-255 0-255 0-255 0-255 0-255 0-255 0-255 0-255 0-255 0-255 0-255 CH16 CH17 CH18 CH19 0-255 0-255...
- Page 9 Colour Storm Quad DMX Programme Charts 67 channel DMX chart CH10 CH11 CH12 CH13 CH14 CH15 Master 0-15 Dimmer Flash 0-255 0-255 0-255 0-255 0-255 0-255 0-255 0-255 0-255 0-255 0-255 0-255 0-255 0-255 CH16 CH17 CH18 CH19 CH20 CH21...
- Page 10 DATA Cable (DMX cable) requirements (for DMX operation): • The Colour Storm Quad can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output (figure 1).
- Page 11 Colour Storm Quad DMX Set up Notice: • Be sure to follow figures 2 & 3 when making your own cables. Do not connect the cable’s shield conductor to the ground lug or allow the shield conductor to come in contact with the XLR’s outer casing.
- Page 12 Colour Storm Quad Technical Specifications Technical Specifications Weight & Dimensions • With brackets....................1120 x 165 x 176mm • Without brackets.....................1066 x 165 x 89mm • Weight………………………………………................7.3Kgs Power • AC input……………………………………................240V/50hz • Power consumption.......................196W Fuse • Main…………………………………………................…….F2A Control & Programming • Data input………………………………………......Locking 3/5-pin XLR male socket •...
