www.prolight.co.uk

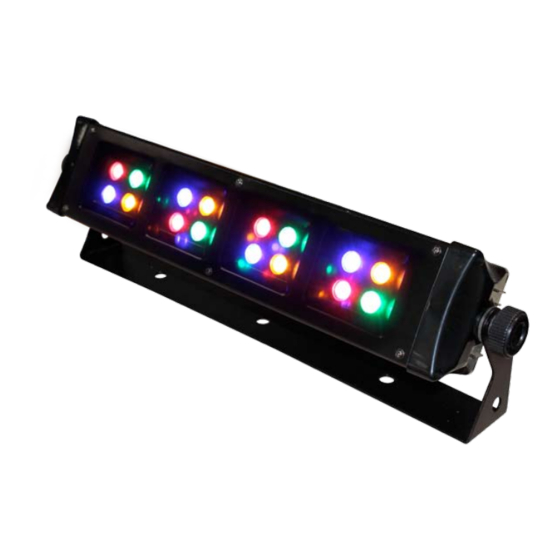

STAGE BAR 16
(Order code: LEDJ160)
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STAGE BAR 16 and is the answer not in the manual?

Questions and answers

Summary of Contents for Ledj STAGE BAR 16

  • Page 1 STAGE BAR 16 (Order code: LEDJ160) USER MANUAL...
  • Page 2: Safety Instructions

    STAGE BAR 16 SAFETY WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! CAUTION! Keep this equipment away from rain, moisture and liquids. SAFETY INSTRUCTIONS Every person involved with the installation, operation & maintenance of this...
  • Page 3: Operating Determinations

    STAGE BAR 16 SAFETY IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. • Never let the power-cable come into contact with other cables. Handle the power-cable and all mains voltage connections with particular caution! •...
  • Page 4 Power In Down Button Set Up Button Setup Operating Instructions The Stage Bar 16 is a DMX-512 controllable unit made up of high efficiency and Ultra bright LEDs and will operate in auto run, master/slave, sound activated or DMX control modes.
  • Page 5: Operation Modes

    “FQN” 01-99 (01 = low, 99 = high) Note: When the Stage Bar 16 is set to “SOUND” or “AUTO RUN” mode it will scroll through all of its built-in programmes one after the other. The term “FQN” refers to the number of times it displays the buit-in programmes: for example if you set the “FQN”...
  • Page 6 STAGE BAR 16 BUILT-IN PROGRAMME CHART 13 Built-in programme chart 01, Static colour Static colour selection. Blackout - RGBA R: 00 - 99, G: 00 - 99, B: 00 - 99, A: 00 - 99 Flash: 00 - 99 NB: See static colour selection below.
  • Page 7 STAGE BAR 16 DMX PROGRAMME CHARTS 4 channel mode DMX chart Green Blue Amber 0-255 0-255 0-255 0-255 6 channel mode DMX chart 0 = On Green Blue Amber Master 1-5 = Sound 0-255 0-255 0-255 0-255 dimmer 6-10 = On...
  • Page 8 DATA Cable (DMX cable) requirements (for DMX operation): • The Stage Bar 16 can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output (figure 1).
  • Page 9: Dmx Set Up

    STAGE BAR 16 DMX SET UP Notice: • Be sure to follow figures 2 & 3 when making your own cables. Do not connect the cable’s shield conductor to the ground lug or allow the shield conductor to come in contact with the XLR’s outer casing.
  • Page 10: Technical Specifications

    STAGE BAR 16 TECHNICAL SPECIFICATIONS Technical Specifications Weight & Dimensions • Length…............550mm • Width..............120mm • Height……………………………………………..155mm • Weight………………………………………..3.6kgs Power • AC input……………………………………..240V/50hz • Power consumption.........60W • Fuse • Main……………………………………………….2A/240V Control & Programming • Data input………………………………………...Locking 3-pin XLR male socket • Data output……………………………………….Locking 3-pin XLR female socket •...
  • Page 12 www.prolight.co.uk...
