11. Product overview

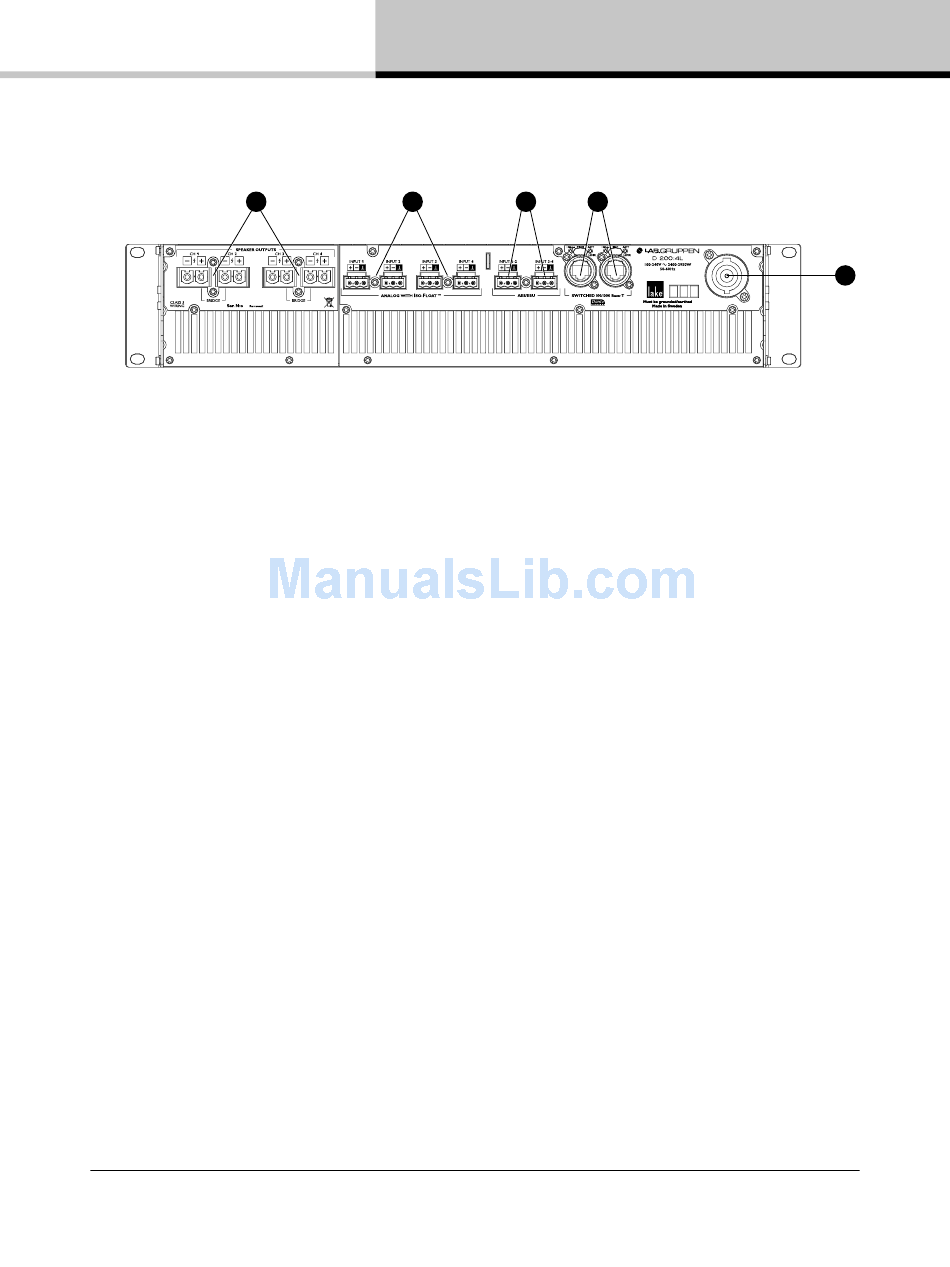

11.2. Rear panel

1 2 3 4
5
1 Amplifier Outputs - The amplifier output connectors are sturdy terminal block connectors. See Technical
Specifications (pages 26-27) for connector rating. Channels are located from left to right. Each channel has a
clearly marked hot (+) and cold (-) terminal
2 Analog Inputs - Analog inputs are available on terminal block connectors with clearly marked hot (+), cold (-)
and ground terminals
3 AES3 Inputs - AES3 inputs are available on terminal block connectors with clearly marked hot (+), cold (-)
and ground terminals
4 RJ-45 Ethernet connectors for control and Dante digital audio network
5 Mains connector - Detachable Neutrik powerCON. See data sheet for connector rating
