13. Quick Start Tutorial
21. Repeat step 16 and 20 for the B module. On the Output EQ/Crossover, tap the Aux Output Functions
button on the menu bar and then tap LPF Enable button. Drag the Low pass filter control object on the
frequency slider just above the menu bar to an appropriate crossover frequency for the sub, e.g. 100 Hz.

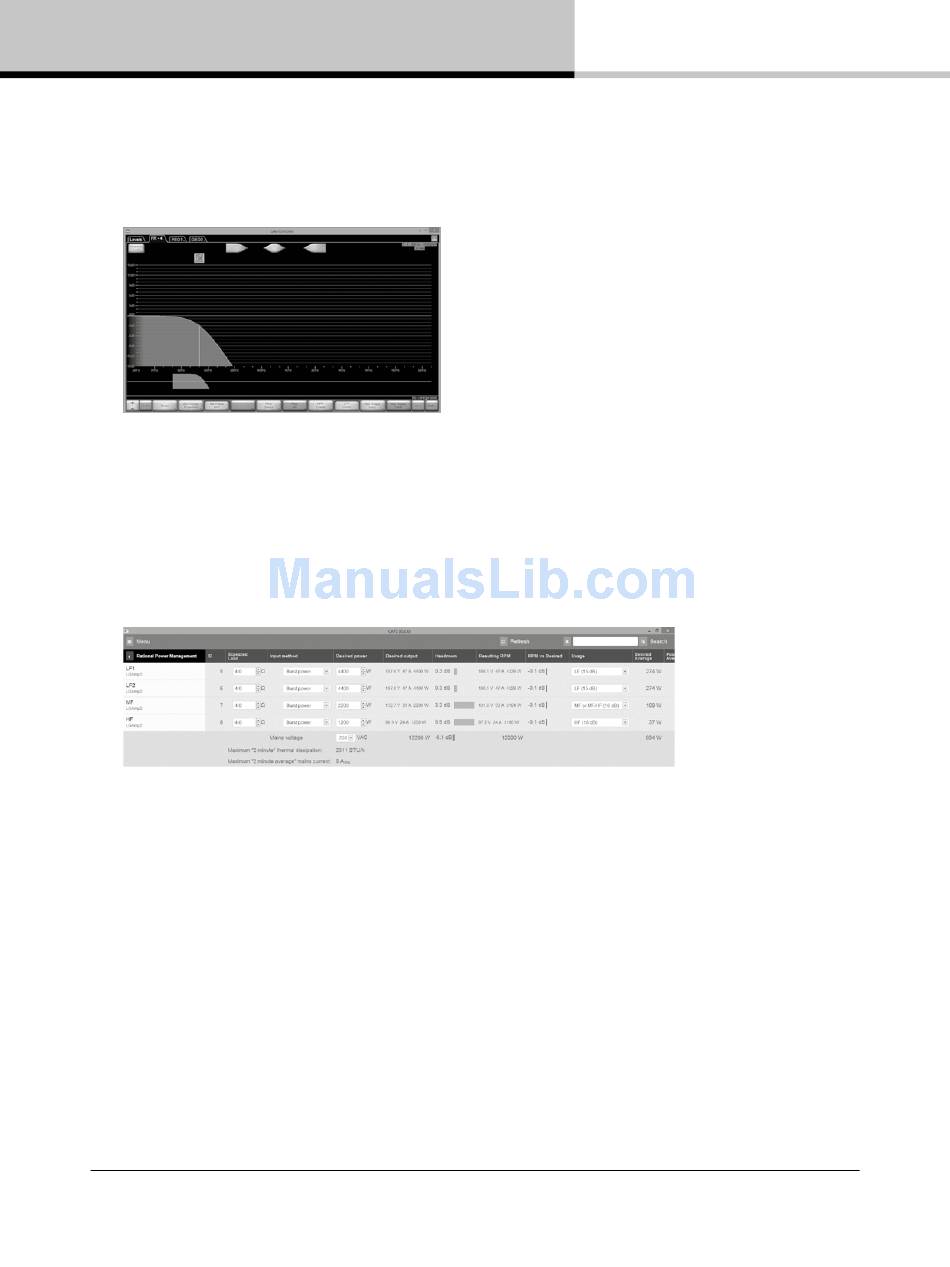

Output EQ control - Add LPF/HPF and EQ filters and drag to adjust.
22. Use the control options mentioned in 17 to tune your loudspeakers. For larger systems, modules can be
placed in groups (Groups menu from the MAIN page) for control of multiple units.
23. Some features like RPM can only be configured from within CAFÉ software. Return to EVENTS & CONTROL;
from the main area hit MODULES button, select a module (e.g. Module A), tap I/O Config, tap EVENTS &
CONTROL, and navigate to the Control tab. The CAFÉ button (next to bottom) opens the CAFÉ application
and imports and highlights the current amplifier and its RPM view.
CAFÉ, RPM view – Enter power requirements for various channels and automatically configure RPM.
