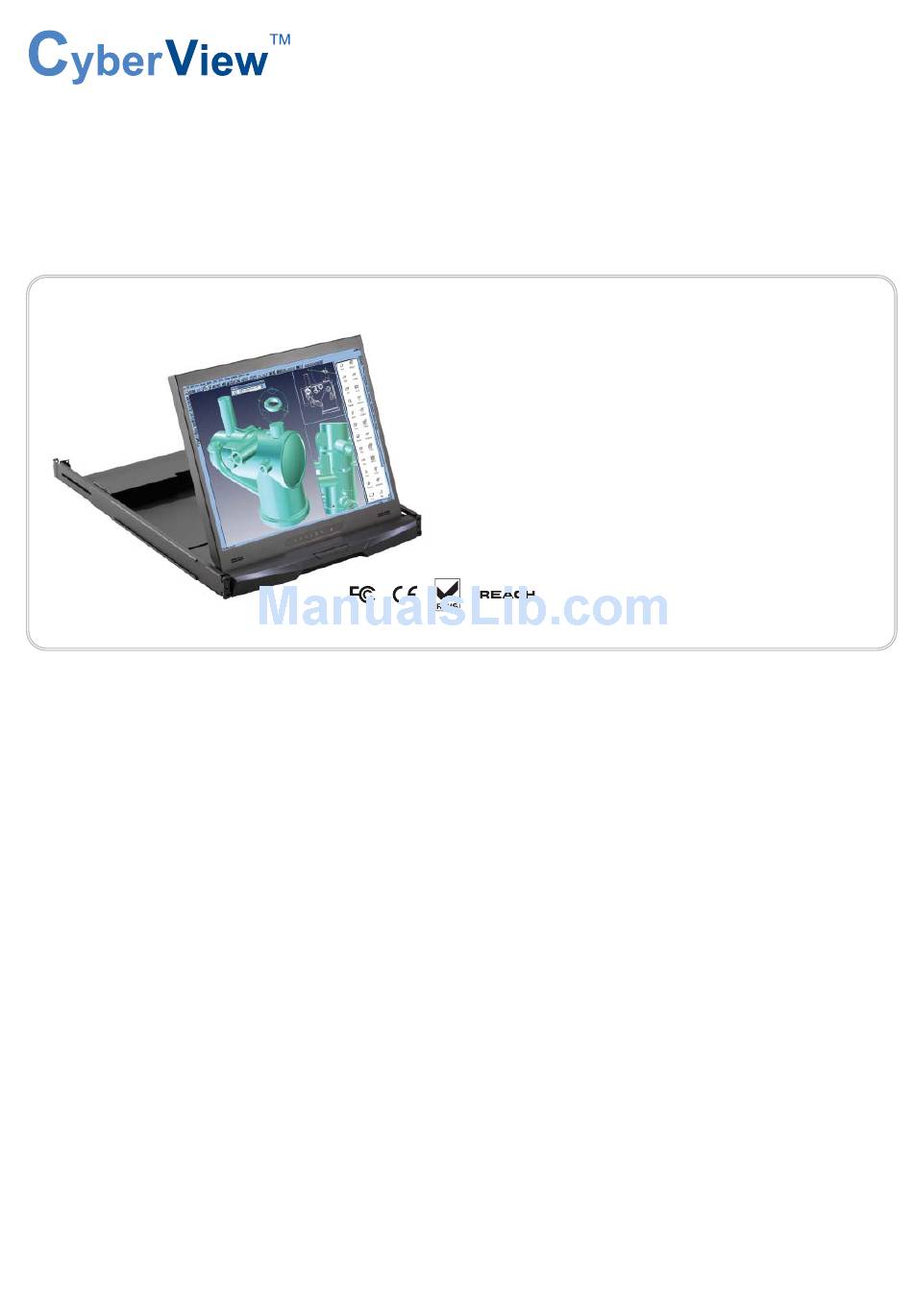

- Page 1 KVM switch and rackmount screen technology User Manual 20” LCD 1600 x 1200 RP-120 1U LCD Drawer Options : - AV / HDMI / Audio - DC power Designed and manufactured by Austin Hughes UM-CV-751-RP-120-Q117V1 www.austin-hughes.com...
- Page 3 ■ Re-position or relocate the receiving antenna. ■ Increase the separation between the equipment and receiver. ■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. UM-CV-751-RP-120-Q117V1 www.austin-hughes.com...
- Page 4 Contents < Part. 1 > RP-120 Package Content Structure Diagram & Dimension P.1 - 2 Installation < Part. 2 > Specifi cations / OSD Product Specifi cations P.4 - 5 On-screen Display Operation ( OSD ) P.6 - 7 < Part. 3 >...
-
Page 5: Before Installation
fi rst, not directly on the parts you are cleaning. Gently wipe the surface. Use as little pressure as possible. Wait until your monitor is completely dry before plugging it in and powering it up. UM-CV-751-RP-120-Q117V1 www.austin-hughes.com... - Page 6 < Part 1 > < 1.1 > Package Content RP-120 unit X 1 - 6ft VGA cable X 1 - Power cord X 1 - M6 screw, cage nut & cup washer X 8 The above package content is only for the pure model ( VGA and DVI-D only ).
- Page 7 < 1.2 > Dimension RP-120 Front View Rear View DVI-D Power UNIT : mm Side View 1mm = 0.03937 inch Top View Product Dimension Packing Dimension Gross Model (W x D x H) (W x D x H) Weight Weight 439.6 x 650 x 44 mm...
- Page 8 4 pcs included. Front side This step is necessary. Failure to complete this will cause damage. Rear kit Step Complete the installation M6 screw ■ Tighten all 8 pcs of M6 screw to complete the installation. UM-CV-751-RP-120-Q117V1 www.austin-hughes.com...
- Page 9 < Part 2 > < 2.1 > Product Specifi cations RP-120 Manufacturer Panel Panel Size ( diagonal ) 20-inch TFT color LCD Display pixel ( dots x lines ) 1600 x 1200 Brightness ( typ. ) Contrast Ratio ( typ. )
- Page 10 640 x 350 x 70Hz HDMI Input PC Signal Same as VGA Video Signal 720p : 50 / 60Hz 480p : 60Hz 576p : 50Hz Audio Signal 2ch Linear PCM ( 32 / 44.1 / 48 KHz ) UM-CV-751-RP-120-Q117V1 www.austin-hughes.com...
- Page 11 < 2.2 > On-screen Display Operation ( OSD ) RP-120 Membrane Switch Function Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust the displayed control...
- Page 12 H position, V position, phase and clock Video: for the colour, tint, sharpness, noise reduction, DCDi and TV Setup Audio: for volume, bass, treble, balance, AVL and mute Misc: for the language, OSD position, graphic mode, ratio, reset and timer UM-CV-751-RP-120-Q117V1 www.austin-hughes.com...
- Page 13 < Part 3 > < 3.1 > Options : RP-120 ( HDMI 1.2, CEA-861-D - HDMI ( S-Video + Composite, BNC ) - AV ( Built-in Dual Stereo Speakers, 2W x 2 ) - Audio ( 3.5mm audio jacks for audio in & out ) ( 1 ) Either HDMI or DVI-D can be selected.
- Page 14 4.16A 4.16A 6.25A 12.5A Effi ciency DC power DVI-D For DC power option : ( 1 ) If the unit with LCD, earthing may be required ( 2 ) DC option excludes AC power adapter and power cord. UM-CV-751-RP-120-Q117V1 www.austin-hughes.com...
- Page 16 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2017 Austin Hughes Electronics Ltd. All rights reserved. UM-CV-751-RP-120-Q117V1 www.austin-hughes.com...
