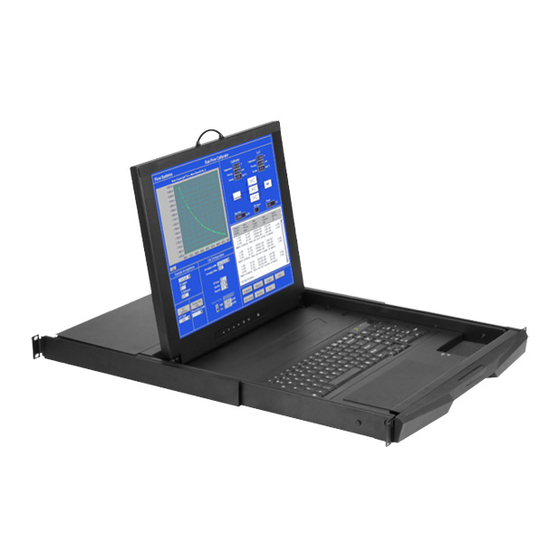

- Page 1 KVM switch and rackmount screen technology User Manual 17” / 19” LCD RKP7 / RKP9 1U LCD Console Drawer Options : - AV / DVI-D / HDMI / Audio - Full Range KVM - DC power Designed and manufactured by Austin Hughes UM-CV-751-RKP7-Q413V4 www.austin-hughes.com...
- Page 2 ■ Re-position or relocate the receiving antenna. ■ Increase the separation between the equipment and receiver. ■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. UM-CV-751-RKP7-Q413V4 www.austin-hughes.com...
-
Page 3: Table Of Contents
Contents < Part. 1 > RKP7 / RKP9 Package Content Structure Diagram & Dimension P.1 - 2 Installation Connection < Part. 2 > Specifi cations / OSD Product Specifi cations P.5 - 6 Keyboard / Mouse Specifi cations On-screen Display Operation ( OSD ) P.8 - 9... - Page 4 -MIP1613 -MIP824 -MIP1624 -M802 -M1602 -M803 -M1603 -M804 -M1604 www.austin-hughes.com/support/usermanual/cyberview/UM-CV-SKVM-KIT.pdf Local Remote 8-port 16-port 32-port Combo DB-15 KVM -IP802 -IP1602 -802 -1602 -S801 -S1601 www.austin-hughes.com/support/usermanual/cyberview/UM-CV-DVIKVM-KIT.pdf Local Remote 12-port DVI-D -1201D www.austin-hughes.com/support/usermanual/cyberview/UM-CV-PS2KVM-KIT.pdf Local Remote 8-port PS/2 DB-15 KVM -801 UM-CV-751-RKP7-Q413V4 www.austin-hughes.com...
- Page 5 fi rst, not directly on the parts you are cleaning. Gently wipe the surface. Use as little pressure as possible. Wait until your monitor is completely dry before plugging it in and powering it up. UM-CV-751-RKP7-Q413V4 www.austin-hughes.com...
-
Page 6: Package Content
< Part 1 > < 1.1 > Package Content RKP7 or RKP9 unit X 1 - WOM-01 wired mini USB optical mouse X 1 - CE-6 6ft Combo KVM cable X 1 - Power cord X 1 - M6 screw, cage nut & cup washer X 8 The above package content is only for the single console models. - Page 7 < 1.2 > Dimension RKP7 / 9 Front View UNIT : mm Side View 1mm = 0.03937 inch Top View Product Dimension Packing Dimension Gross Model (W x D x H) (W x D x H) Weight Weight 442 x 650 x 44 mm 595 x 860 x 140 mm 14.3 kg...
-
Page 8: Installation
Measure the depth of the front and rear mounting rails. ■ Align each rear mounting bracket to a suitable length. Step Complete the installation ■ Fix the LCD console drawer into the rack. M6 screw, cage nut & cup washer x 8 are provided. UM-CV-751-RKP7-Q413V4 www.austin-hughes.com... -
Page 9: Connection
< 1.4 > Connection to PS/2 or USB Server RKP7 / 9 LCD console drawer LCD console drawer CE-6 Combo CE-6 Combo KVM cable KVM cable PS/2 server USB server < 1.4 > Connection to external KVM LCD console drawer... -
Page 10: Product Specifi Cations
< Part 2 > < 2.1 > Product Specifi cations RKP7 RKP9 Panel Manufacturer Panel Size ( diagonal ) 17-inch TFT color LCD 19-inch TFT color LCD Display pixel ( dots x lines ) 1280 x 1024 1280 x 1024 Brightness ( typ. - Page 11 RKP7 / 9 Operating Temperature 0 to 50°C degree Environmental Conditions Humidity 20~90%, non-condensing Storage Temperature -5 to 60°C degree Humidity 5~90%, non-condensing Shock 10G acceleration (11ms duration) Vibration 5~500Hz 1G RMS random Physical RKP7 RKP9 Specifi cation Product ( W x D x H )
-
Page 12: Keyboard / Mouse Specifi Cations
MS Windows 7 / 2008 / 2003 / 2000 / XP / ME / 98 / DOC Software support Linux / Mac Supporting layouts America United States United Kingdom Germany France Spain Norway EMEA Italy Russia Switzerland Netherlands Portugal Asia China Japan Korea Arabia Turkey UM-CV-751-RKP7-Q413V4 www.austin-hughes.com... -
Page 13: On-Screen Display Operation ( Osd )
< 2.3 > On-screen Display Operation ( OSD ) RKP7 / 9 Membrane Switch Function Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust... - Page 14 H position, V position, phase and clock Video: for the colour, tint, sharpness, noise reduction, DCDi and TV Setup Audio: for volume, bass, treble, balance, AVL and mute Misc: for the language, OSD position, graphic mode, ratio, reset and timer UM-CV-751-RKP7-Q413V4 www.austin-hughes.com...
- Page 15 < Part 3 > < 3.1 > Options : RKP7 / 9 ( HDMI 1.1, CEA-861-D ) - HDMI - DVI-D ( DVI-D TMDS single link ) ( S-Video + Composite, BNC ) - AV ( 3.5mm audio jacks for audio in & out, and 2W + 2W speakers ) - Audio Either HDMI or DVI-D can be selected.
- Page 16 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2013 Austin Hughes Electronics Ltd. All rights reserved. P.11 UM-CV-751-RKP7-Q413V4 www.austin-hughes.com...
