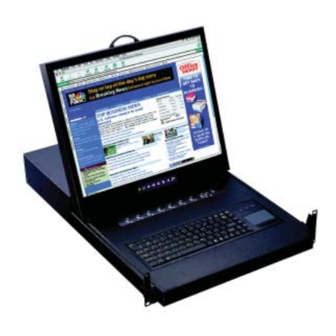

- Page 1 User Manual 2U LCD Keyboard Drawer RKP220 - With KVM options - 20" screen size - Ultra high resolution 1600 x 1200...
-
Page 2: Table Of Contents
Contents Chapter 1 Getting Started Important Safeguards............1 Regulatory Notice..............2 Package Contents...............3 Before Installation...............4 Unpacking................4 Optional Accessories............4 Peripheral Products.............5 Structure Diagram...............5 Installation................6 1.10 Connect to Server via USB Interface........7 1.11 Connect to KVM via USB Interface........7 1.12 Connect to Server via PS/2 Interface........8 1.13 Connect to KVM via PS/2 Interface........8 Chapter 2 Operation... -
Page 3: Important Safeguards
Chapter 1 1.1 Important Safeguards Please read all of these instructions carefully before you use the device. Save this manual for future reference. What the warranty does not cover ■ Any product, on which the serial number has been defaced, modifi ed or removed. ■... -
Page 4: Regulatory Notice
Chapter 1 1.2 Regulatory Notice Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment. -
Page 5: Package Contents
Chapter 1 1.3 Package Contents LCD keyboard drawer x 1 pc Fasteners for rear L-bracket x 4 pcs 330mm rear mounting L-bracket x 1 pair * mounting depth-adjustable from 310 to 880mm CB-6 2-in-1 USB KVM cable x 1 pc CD-6 3-in-1 PS/2 KVM cable x 1 pc User manual x 1 pc Power cord x 1 pc... -
Page 6: Before Installation
Chapter 1 1.4 Before Installation ■ It is very important to locate the LCD Keyboard Drawer in a suitable environment. ■ The surface for placing and fi xing the LCD Keyboard Drawer should be stable and level or mounted into a suitable cabinet. -
Page 7: Peripheral Products
Chapter 1 1.7 Peripheral Products Item Model No. Description IP-802 / IP-1602 8 / 16-port IP PS/2 KVM CV-802 / CV-1602 8 / 16-port two console PS/2 KVM DB-15 KVM CV-401 / CV-801 / CV-1601 4 / 8 / 16-port PS/2 KVM CV-S801 / CV-S1601 8 / 16-port USB KVM UIP-1602 / UIP-3202... -
Page 8: Installation
Chapter 1 1.9 Installation ■ Install each rear L-bracket using two fasteners shown in Figure 1. ■ Leaving the fasteners slightly loose. Figure 1. Installing the rear L-bracket to the LCD keyboard drawer. ■ Measure the front and rear mounting depth of the rack. -
Page 9: Connect To Server Via Usb Interface
Chapter 1 1.10 Connect to Server via USB Interface Figure 4. Example of connecting CB-6 2-in-1 USB KVM cable to server via USB interface 1.11 Connect to KVM via USB Interface Figure 5. Example of connecting CB-6 2-in-1 USB KVM cable to KVM via USB interface Remarks: ■... -
Page 10: Connect To Server Via Ps/2 Interface
Chapter 1 1.12 Connect to Server via PS/2 Interface Figure 6. Example of connecting CD-6 3-in-1 PS/2 KVM cable to server via PS/2 interface 1.13 Connect to KVM via PS/2 Interface Figure 7. Example of connecting CD-6 3-in-1 PS/2 KVM cable to KVM via PS/2 interface Remarks ■... -
Page 11: On-Screen Display Operation
Chapter 2 2.1 On-screen Display Operation LCD membrane Membrane Switch Function Power light Green = On Orange = Power saving Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control Exit the OSD screen Shortcut key to auto adjustment by pressing the button for 5 seconds Toggle analog, digital &... -
Page 12: On-Screen Menu
Chapter 2 2.2 On-screen Menu Image Brightness: Adjust background black level of the screen image Contrast: Adjust the difference between the image background (black level) and the foreground (white level) Sharpness: Adjust the image from weak to sharp Saturation: Adjust the saturation of the image color Hue: Adjust the screen hue value Geometry... -
Page 13: On-Screen Menu
Chapter 2 2.2 On-screen Menu Display mode Main menu Sub menu S-Video √ √ √ √ Brightness √ √ √ √ Contrast √ √ √ √ Image Sharpness √ √ Saturation √ √ √ Auto Confi g √ H. Position √... -
Page 14: Specifi Cations
Chapter 3 3.1 Specifi cations Item Description 1U rack mounting on slide-out rails Form Factor LCD Manufacturer 20" TFT Diagonal Size 1600 x 1200 Max. Resolution Brightness (cd/m²) 16.7 Mil. Color Support 800:1 Contrast Ratio (typ.) 160˚ x 160˚ Viewing Angle (H/V) 408 x 306 Display Area (mm) Tr Response Time (ms) -
Page 15: Keyboard & Mouse
Chapter 3 3.2 Keyboard & Mouse Supporting layouts Notebook type keyboard with Notebook type keyboard with trackball touch-pad mouse Supporting layouts Cherry keyboard with trackball Supporting layouts Supporting layouts only Compact keyboard integrated Compact keyboard integrated with touch-pad mouse with trackball P.13... -
Page 16: Kvm Options
Chapter 4 4.1 KVM Options Our KVM is designed to seamlessly integrate into the rear of our full range of LCD drawer solutions: ■ For KVM operation, please refer to "Integrated LCD KVM Switch" user manual ■ Option with high density Cat5 KVM with either 16 or 32 ports ■... -
Page 17: S-Video + Bnc Input Option
Chapter 4 4.4 S-Video + BNC Input Option 3-in-1 VGA KB mouse Internal power version S-Video BNC console port External power version Remarks : ■ Package includes an extra 6ft S-Video cable P.15... -
Page 18: Dc Power Options
Chapter 4 4.5 DC Power Options Model Input rating Input voltage: 12-Volt 24-Volt 48-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V Input current - No load 50 mA 50 mA 50 mA - Full load 4950 mA 2450 mA 1220 mA Output rating... -
Page 19: Chapter 5 Troubleshooting
Chapter 5 5.1 Troubleshooting 1. How do I adjust the resolution? To change monitor resolution, click Start -> Control Panel -> Display. Select Setting tab to adjust the monitor resolution in Desktop Area. The available resolutions, "640 x 480", "800 x 600", "1024 x 768", "1152 x 864", "1280 x 1024", are deter- mined by the display card in your computer. -
Page 20: Chapter 6 Dimensions
Weight 442 x 650 x 88 mm 583 x 796 x 215 mm 20 kg 26 kg RKP220 series 17.4 x 25.9 x 3.5" 23 x 31.3 x 8.5" 44 lb 57 lb The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication.
