Summary of Contents for CyberView RP-HF117

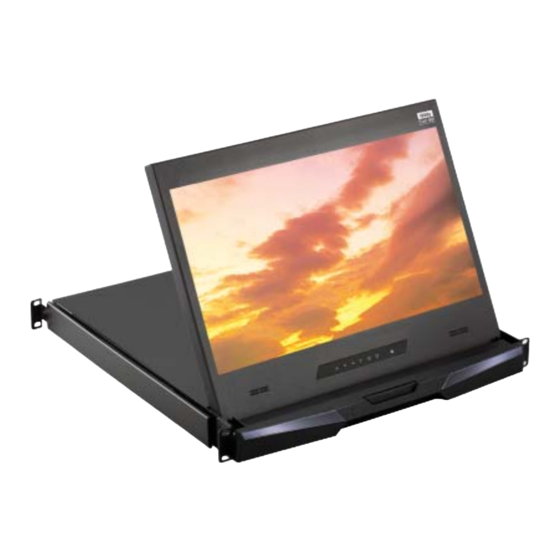

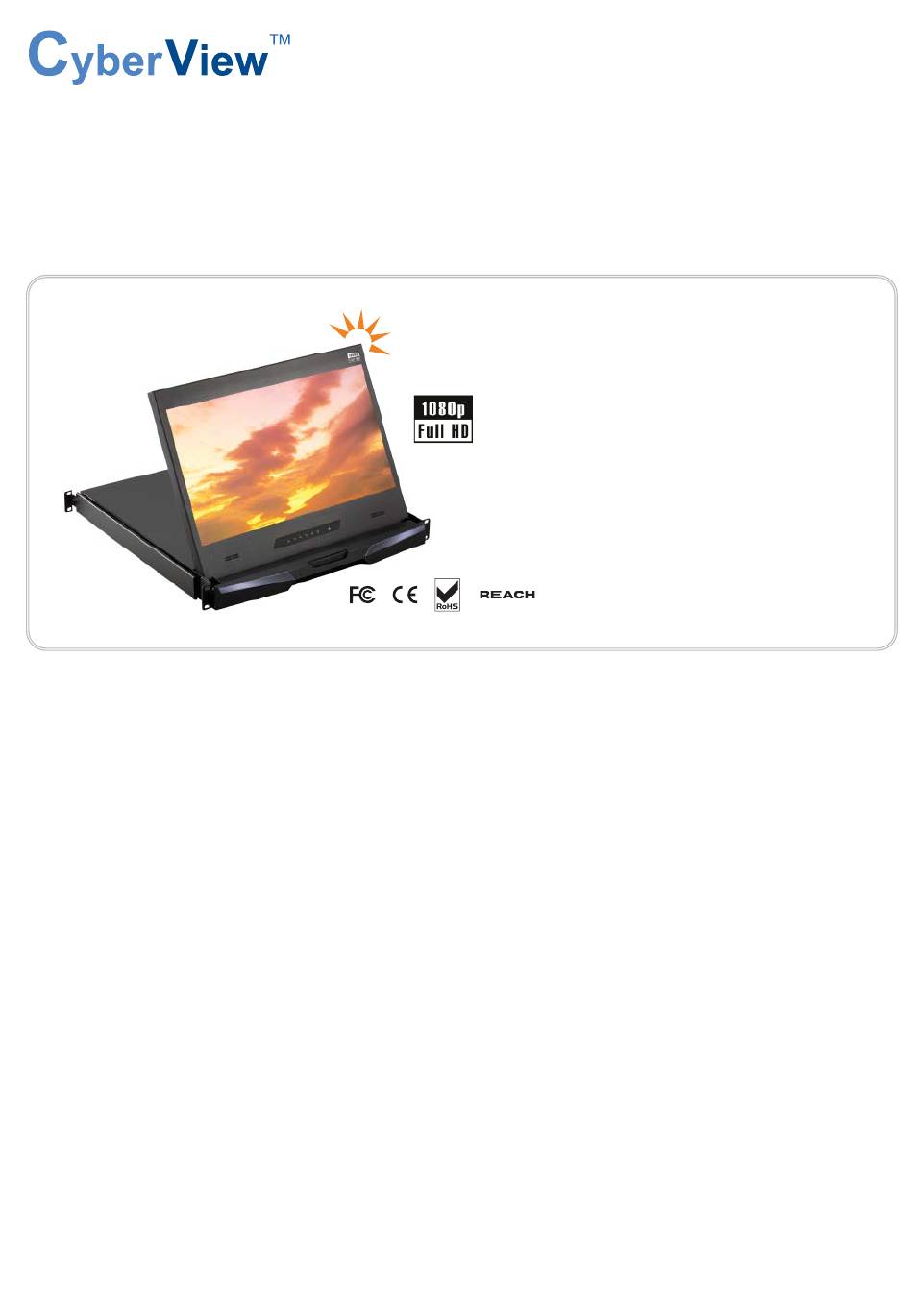

- Page 1 KVM switch and rackmount screen technology User Manual 17” High Brightness FHD 1080p LCD 1000 cd/m² RP-HF117 1U LCD Drawer Options : - SDI - HDMI / Audio - Touchscreen / DC power UM-CV-751-RP-HF117-Q317V2...
- Page 2 ■ Re-position or relocate the receiving antenna. ■ Increase the separation between the equipment and receiver. ■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. UM-CV-751-RP-HF117-Q317V2...
- Page 3 Contents < Part. 1 > RP-HF117 Package Content Structure Diagram & Dimension P.1 - 2 Installation < Part. 2 > Specifications / OSD Product Specifications P.4 - 5 On-screen Display Operation ( OSD ) P.6 - 7 < Part. 3 >...
- Page 4 Caution : Do not spray or apply any liquids directly onto the monitor. Always apply the solution to your microfiber cloth first, not directly on the parts you are cleaning. Gently wipe the surface. Use as little pressure as possible. Wait until your monitor is completely dry before plugging it in and powering it up. UM-CV-751-RP-HF117-Q317V2...
- Page 5 < Part 1 > < 1.1 > Package Content RP-HF117 RP-HF117 unit X 1 - 6ft VGA cable X 1 - Power cord X 1 - M6 screw, cage nut & cup washer X 8 The above package content is only for the pure model ( VGA and DVI-D only ).
- Page 6 Weight 441.6 x 480 x 44 mm 588 x 758 x 120 mm 11 kg 15 kg RP-HF117 17.4 x 18.1 x 1.73" 23.1 x 29.8 x 4.7” 24.2 lb 33 lb The weight is only for the pure models. It varies with accessories & options such as SDI, HDMI, audio, touchscreen &...
- Page 7 RP-HF117 < 1.3 > Installation - How to install Installation Slides Step ■ Insert the left and right rear mounting brackets into the display drawer. Step ■ Measure the depth of the front and rear mounting rails. ■ Align each rear mounting bracket to a suitable length.
- Page 8 *When the audio output is connected, speaker output is OFF Power Power Supply Range Auto-sensing 100 to 240VAC, 50 / 60Hz Power Consumption Screen ON Max. 65W Power saving mode Max. 6W Power button OFF Max. 2W Regulatory Safety FCC & CE certified Environmental RoHS2 & REACH compliant UM-CV-751-RP-HF117-Q317V2...
- Page 9 RP-HF117 Environmental Operating Temperature 0 to 55°C degree Conditions Humidity 20~90%, non-condensing Altitude 16,000 ft Storage / Non-operating Temperature -20 to 60°C degree Humidity 5~90%, non-condensing Altitude 40,000 ft Shock 10G acceleration (11ms duration) Vibration 5~500Hz 1G RMS random Physical Product ( W x D x H ) 441.6 x 480 x 44 mm...
- Page 10 All the LED touch buttons will automatically turn off after 10 minutes of idle status ( except the Power Light up all membrane buttons, please press any button for 1 - 2 seconds ( except the Power UM-CV-751-RP-HF117-Q317V2...
- Page 11 < 2.2 > On-screen Display Operation ( OSD ) RP-HF117 OSD Configuration Page Image: for the brightness, contrast, color temp, red, green, and blue Geometry: for the auto adjust, H position, V position, phase and clock Video: for the colour, tint, sharpness, noise reduction, DCDi and TV Setup...
- Page 12 Austin Hughes’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with CyberView displays, a SDI input module can support up to 1080p @60Hz resolution without using additional space or power and it comes standard with a 2-year warranty.
- Page 13 RP-HF117 < 3.2 > Options : - HDMI ( HDMI 1.3, CEA-861-D - Audio ( Built-in Dual Stereo Speakers, 2W x 2 ) ( 3.5mm audio jacks for audio in & out ) ( 1 ) In some circumstances, if the user connects the LCD to PC via HDMI port for video and audio signals, the LCD may display incorrectly on a full screen.
- Page 14 Step 2. Double click the Setup.exe Step 3. Follow the installation instruction to finish the setup Step 4. After installation, run the TouchKit program & the “4 point calibration” Please do the initial calibration after the first setup P.10 UM-CV-751-RP-HF117-Q317V2...
- Page 15 < 3.4 > Options : DC Power RP-HF117 Model 125V 250V Input rating Input voltage: 24-Volt 48-Volt 110-Volt 300-Volt Input range: 18 ~ 36V 36 ~ 75V 66 ~ 160V 180 ~ 425V Input current - No load 50 mA...
