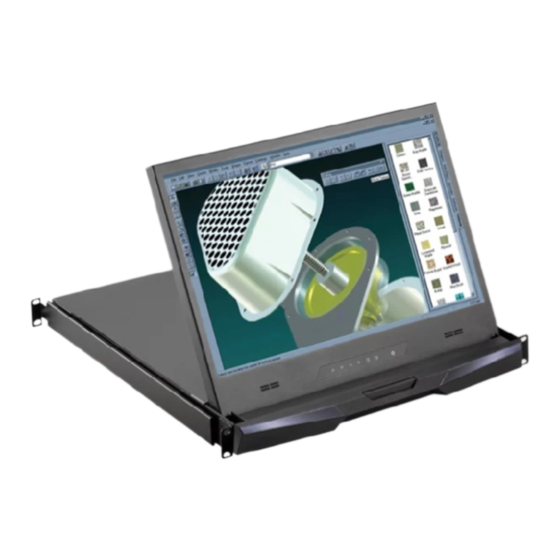

- Page 1 KVM switch and rackmount screen technology User Manual 19” Widescreen LCD 1440 x 900 RP-W119 1U LCD Drawer Options : - SDI - AV / HDMI / Audio - DC power UM-CV-751-RP-W119-Q218V1...
- Page 2 ■ Re-position or relocate the receiving antenna. ■ Increase the separation between the equipment and receiver. ■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. UM-CV-751-RP-W119-Q218V1...
- Page 3 Contents < Part. 1 > RP-W119 Package Content Structure Diagram & Dimension P.1 - 2 Installation < Part. 2 > Specifications / OSD Product Specifications P.4 - 5 On-screen Display Operation ( OSD ) P.6 - 7 < Part. 3 >...
-
Page 4: Before Installation
Caution : Do not spray or apply any liquids directly onto the monitor. Always apply the solution to your microfiber cloth first, not directly on the parts you are cleaning. Gently wipe the surface. Use as little pressure as possible. Wait until your monitor is completely dry before plugging it in and powering it up. UM-CV-751-RP-W119-Q218V1... - Page 5 < Part 1 > < 1.1 > Package Content RP-W119 RP-W119 unit X 1 - 6ft VGA cable X 1 - Power cord X 1 - M6 screw, cage nut & cup washer X 8 The above package content is only for the pure model ( VGA and DVI-D only ).
- Page 6 Weight 441.6 x 460 x 44 mm 588 x 758 x 120 mm 13 kg 17 kg RP-W119 17.4 x 18.1 x 1.73" 23.1 x 29.8 x 4.7” 28.6 lb 37.4 lb The weight is only for the pure models. It varies with accessories & options such as SDI, HDMI, AV, audio &...
- Page 7 < 1.3 > Installation - How to install Installation Slides RP-W119 Step ■ Insert the left and right rear mounting bracket into the display drawer. Step ■ Measure the depth of the front and rear mounting rails. ■ Align each rear mounting bracket to a suitable length.
- Page 8 Range Auto-sensing 100 to 240VAC, 50 / 60Hz Power Consumption Screen ON Max. 25W Power saving mode Max. 4W Power button OFF Max. 1W Compliance FCC & CE certified Safety CE / LVD certified Environment RoHS2 & REACH compliant UM-CV-751-RP-W119-Q218V1...
- Page 9 RP-W119 Environmental Operating Temperature 0 to 55°C degree Conditions Humidity 20~90%, non-condensing Altitude 16,000 ft Storage / Non-operating Temperature -20 to 60°C degree Humidity 5~90%, non-condensing Altitude 40,000 ft Shock 10G acceleration (11ms duration) Vibration 5~500Hz 1G RMS random Physical Product ( W x D x H ) 441.6 x 460 x 44 mm...
- Page 10 All the LED touch buttons will automatically turn off after 10 minutes of idle status ( except the Power Light up all membrane buttons, please press any button for 1 - 2 seconds ( except the Power UM-CV-751-RP-W119-Q218V1...
- Page 11 < 2.2 > On-screen Display Operation ( OSD ) RP-W119 OSD Configuration Page Image: for the brightness, contrast, color temp, red, green, and blue Geometry: for the auto adjust, H position, V position, phase and clock Video: for the colour, tint, sharpness, noise reduction, DCDi and TV Setup...
- Page 12 Austin Hughes’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with CyberView displays, a SDI input module can support up to 1080p @60Hz resolution without using additional space or power and it comes standard with a 2-year warranty.
- Page 13 < 3.2 > Options : RP-W119 - HDMI ( HDMI 1.2 / HDCP 1.1 - AV ( S-Video + Composite, BNC ) - Audio ( Built-in Dual Stereo Speakers, 2W x 2 ) ( 3.5mm audio jacks for audio in & out ) ( 1 ) Either HDMI or DVI-D can be selected.
- Page 14 ( 1 ) If the unit with LCD, earthing may be required ( 2 ) DC option excludes AC power adapter and power cord. ( 3 ) Casing depth will be extended from 460mm ( 18.1” ) to 530mm ( 20.9” ) P.10 UM-CV-751-RP-W119-Q218V1...
