• Verify the knob is in zero position. Knob marks are pointing up (see page 5).

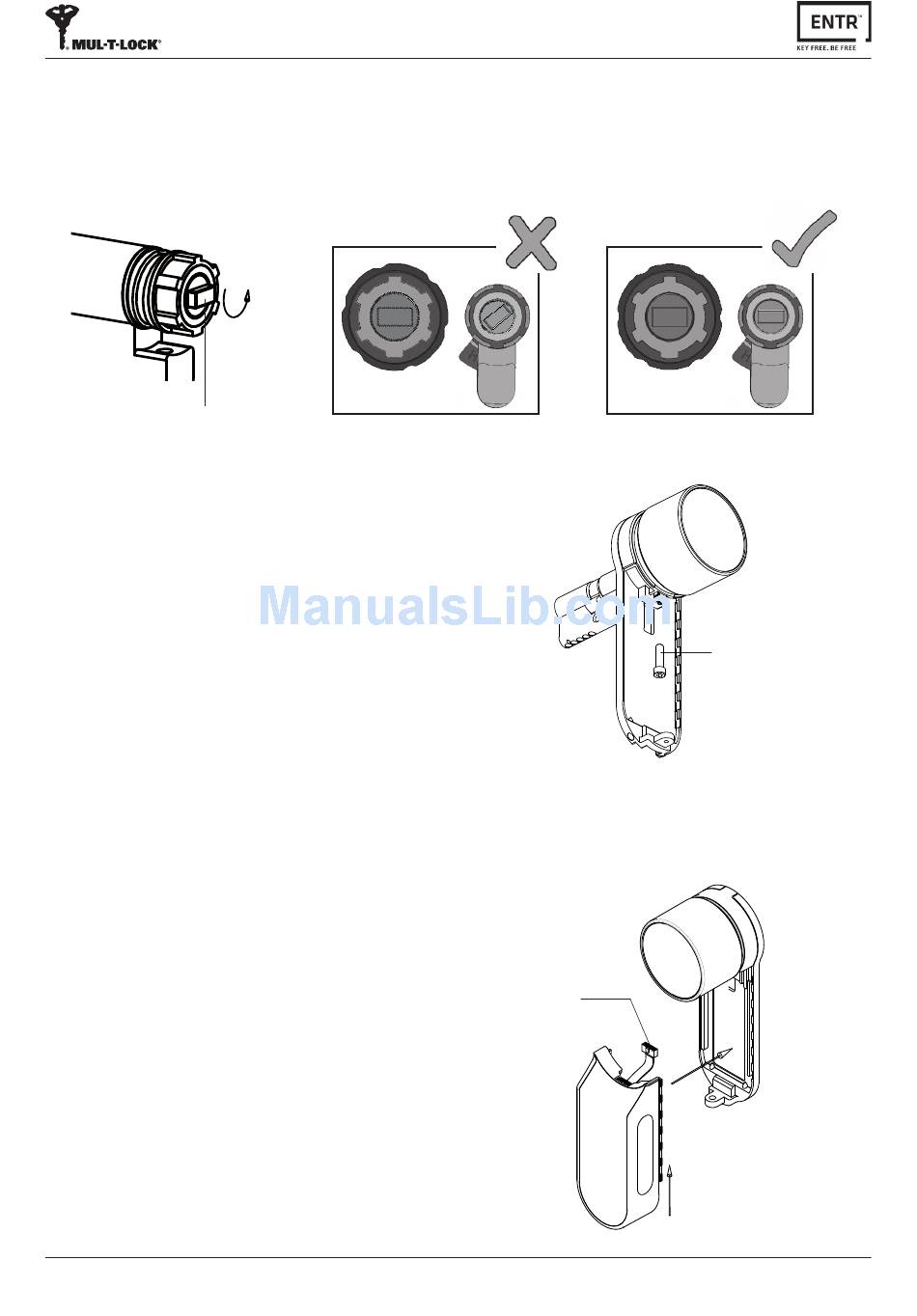

• Verify that the rectangle driver (cylinder) is in the same direction as the knob rectangle bore. If required turn
the rectangle driver (cylinder) until it is in the same direction (see illustration below).
Driver
• Assemble the cylinder into the door unit (base plate & knob).
• Tighten cylinder mounting screw.
Note: Verify that the cylinder and the knob are engaged. Press the knob and try to turn. If the knob can not be
pressed or turned, disassemble the cylinder, adjust the cylinder projecting rectangle and reassemble.
• Connect data cable plug
• Assemble Electrical unit as illustrated
• Tighten electrical unit panel screw
ENTR™ User Manual
Knob back view
Data cable
Knob back view
Mounting screw
1
2
