1.3 Prior to installation

Warning: Do not attempt to operate the unit until assembled into the door

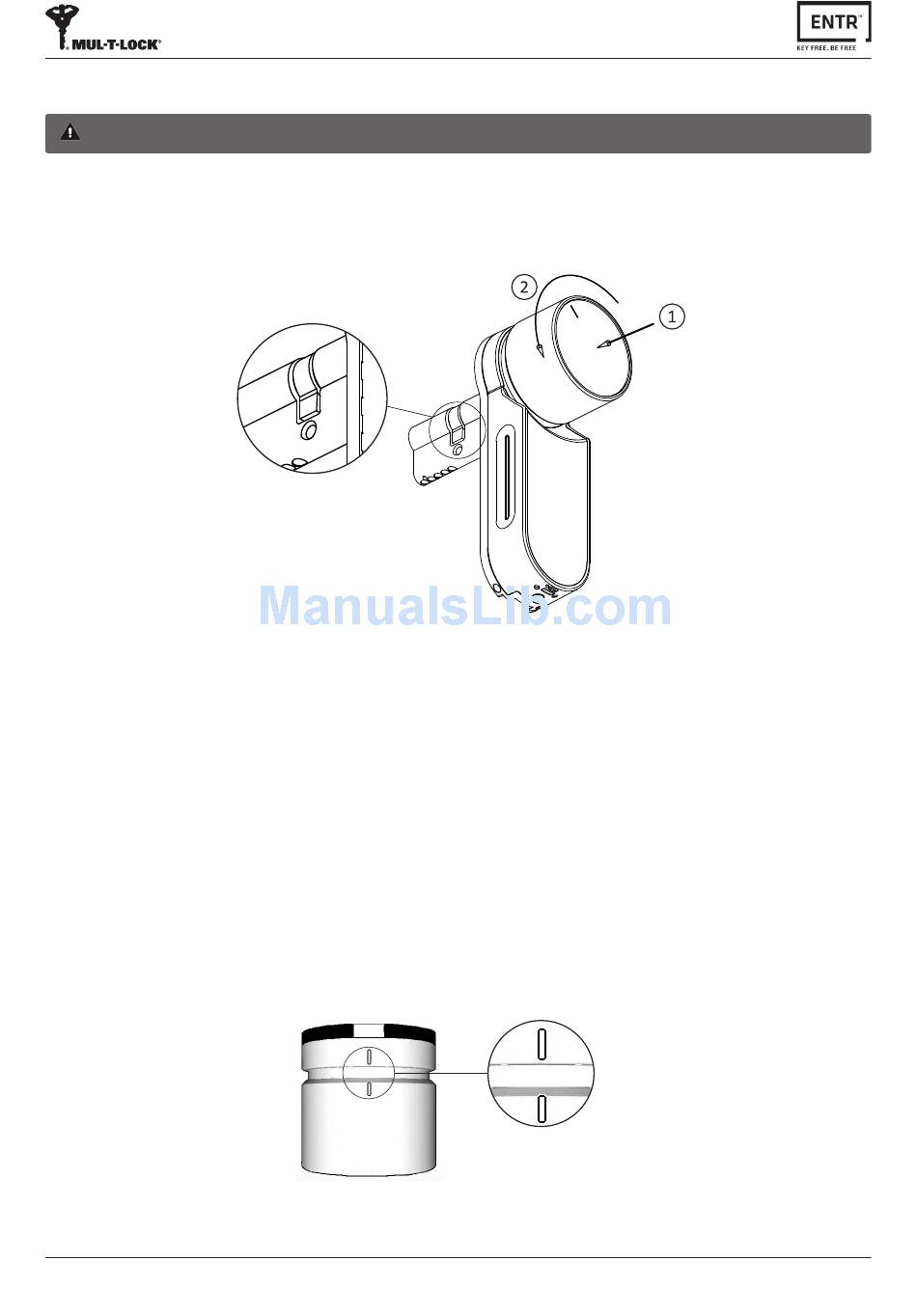

• Press & hold the knob (1) and turn it slightly (2) until the cylinder cam is no longer protruding from the side
of the cylinder body (see illustration).
1.4 Cylinder & Unit installation
• Insert the cylinder (with base plate & knob) from the internal side of the door.
• Once the cylinder is correctly aligned in the door secure the cylinder in place using the M5 screw.
• Do not over tighten the screw or use power tools.
Note: Do not hammer (or otherwise force) either the cylinder or knob when inserting into the door.
• Turn the knob back to zero position. Knob marks are pointing up.
Note: The knob will jump out when returned to zero position.
Zero position
