Everlast Powertig 255 EXT Operator's Manual page 26

Section 3
6. Standard Pulse. (AC and DC) The pulse creates two
amp values, a high and a low value that cycle back and
forth between each other while welding. The upper
amperage is called the "welding amps" (sometimes
called peak current) and the lower amperage is called
"pulse amps " (sometimes called background or base
current). This creates a situation where penetration
can be achieved without overheating the metal, par-
ticularly on metals that are prone to structural deteri-
oration or burn through. In effect you are creating an
average of amps. The PowerTIG series feature three
adjustable parameters concerning the pulse:
1. Pulse Amps. Both welding amps and pulse amps are
independently set. Adjust the welding amps with the
main control knob and the pulse amps with the pulse
amp knob. However, when you adjust the pulse
amps, you are actually defining a fixed ratio of amps.
This is expressed as a percentage of Welding Amps.
The display is not synchronized with the pulse so it
samples at a set rate that is independent of pulse
changes, which yields randomly fluctuating numbers.
As you increase amperage, the pulse will maintain the
same ratio of amps you have selected. To adjust the
pulse amps to a desired setting using an example of
100 Welding Amps, setting the pulse amps to 50%
would yield a 50 amp value for the pulse amps. The
foot pedal will control both Welding Amps and Pulse
Amps according to the %(Ratio) selected on the panel.
2. Pulse Frequency. Pulse speed or frequency as it is
referred to is measured in the unit standard "Hertz".
Simply, it is the number of pulses per second that oc-
cur. Pulse frequency controls the arc constriction and
also help with heat management.
3. Pulse Time On (Balance). Pulse Balance is the per-
centage (%) of time that the pulse stays in the welding
amp stage of the cycle. Increasing the Pulse time on
can increase the duration the welding amp stage of
the cycle to increase the overall heat input. Pulse
Balance is also commonly referred to as pulse duty
cycle. For welding purposes, the term "Pulse Time
On" is used as it deals with the sharing of on time be-
tween Peak and base amp values during one pulse
cycle.
Setting up the pulse is not a process with a
justment procedure. Changes to frequency, balance,
and time will skew the final result. A slow pulse with a
equal 50% pulse time on and somewhere around a
AMPS
Pulse Time ON
100
50
Pulse Hz
AMPS
100
50
AMPS
100
25
f
ixed ad-
26
Basic theory and function

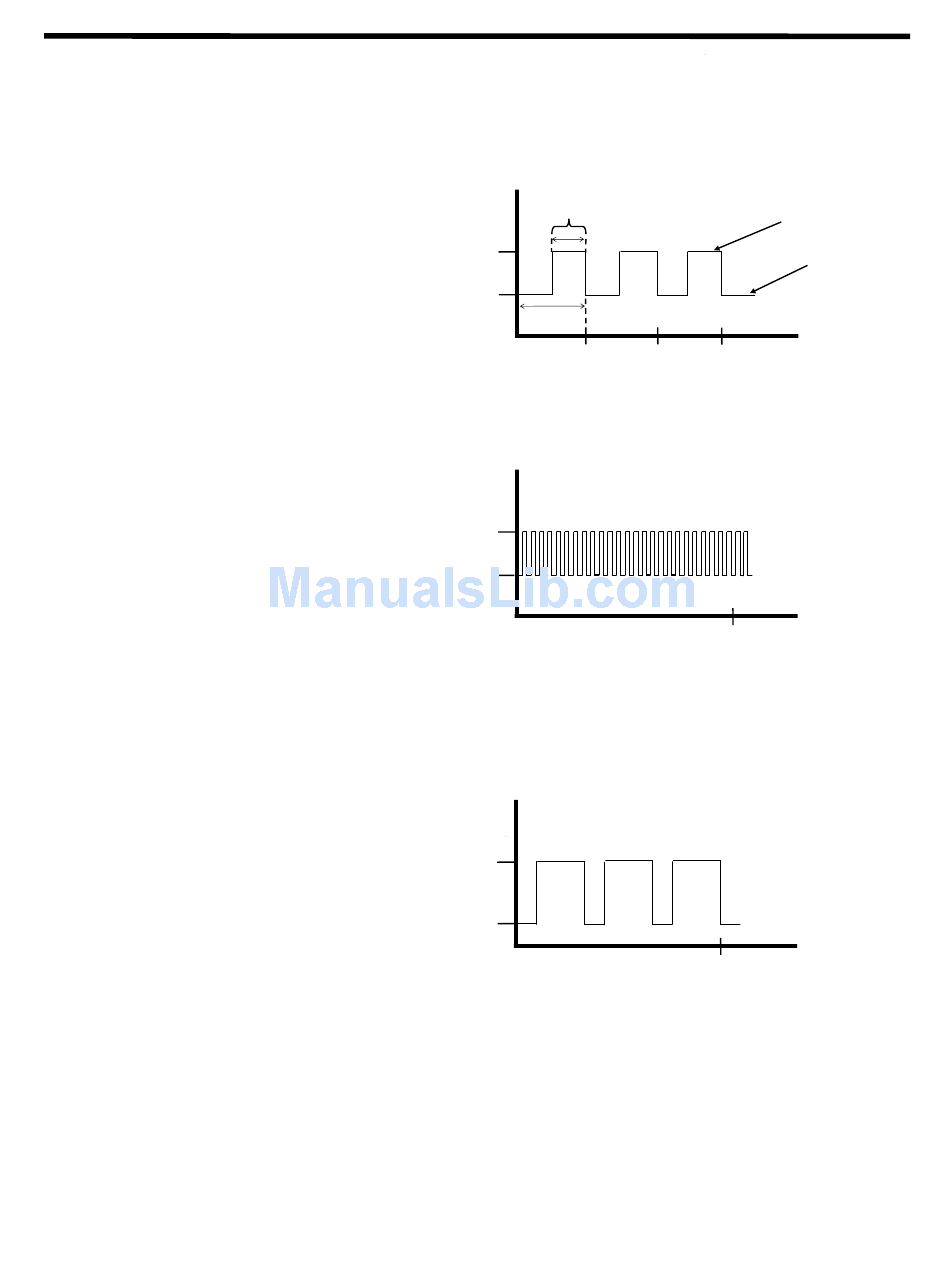

EXAMPLE 1
Welding Amps: 100 amps,
PulseAmps: 50%
Pulse Time On: 50%
DC Pulse Frequency: 1 Hz
2 S 3 S
1 S
EXAMPLE 2
Welding Amps: 100 amps
Pulse Amps: 50%
Pulse Time On : 50%
DC Pulse Frequency: 25Hz
1 S
EXAMPLE 3
Welding Amps: 100 amps
Pulse Amps: 25%
Pulse Time On: 75%
DC Pulse Frequency: 3 Hz
1 S
Welding Amps
Pulse Amps
DC
DC
DC
